Pneumatic Quick Exhaust Valve BQE

BQE Pneumatic Quick Exhaust Valve is a one-way control valve, the medium can only flow in one direction through the valve. The valve has reasonable design, simple structure, beautiful appearance and wide application.

Port Size: PT1/8,PT1/4,PT3/8,PT1/2;
Proof Pressure: 1.0-1.5MPa
Working Environment Temperature: 0~70℃
Material: Copper

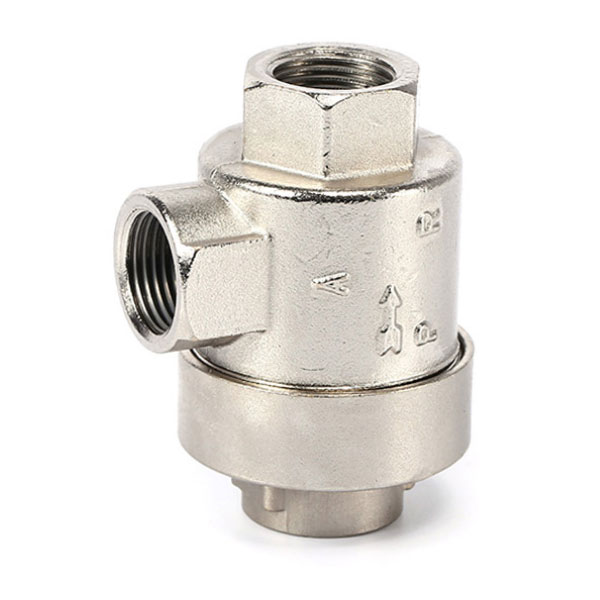

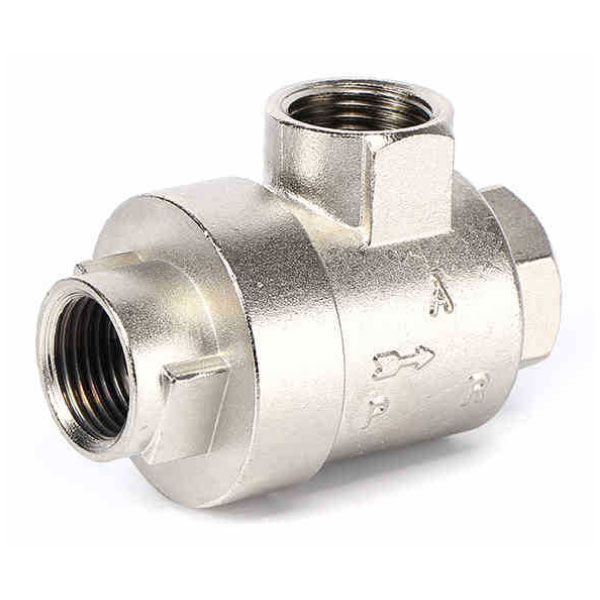

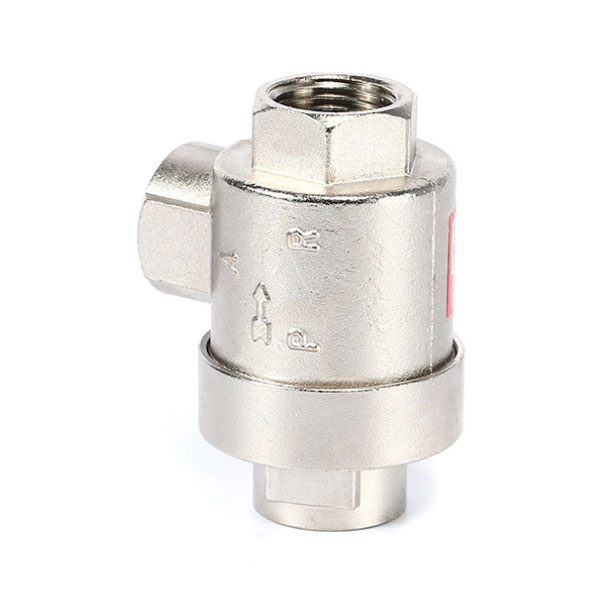

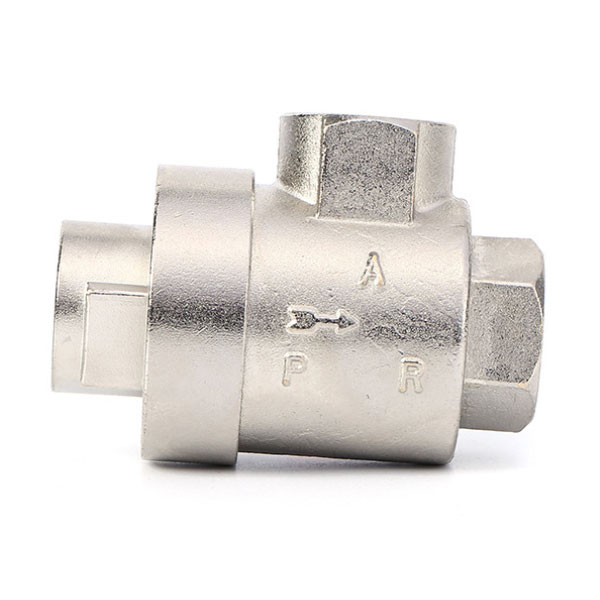

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for Pneumatic Quick Exhaust Valve BQE

BQE Pneumatic Quick Exhaust Valve is a one-way control valve, the medium can only flow in one direction through the valve. The valve has reasonable design, simple structure, beautiful appearance and wide application.

Technical Parameters for Pneumatic Quick Exhaust Valve BQE

Port Size: PT1/8,PT1/4,PT3/8,PT1/2;
Proof Pressure: 1.0-1.5MPa
Working Environment Temperature: 0~70℃
Material: Copper

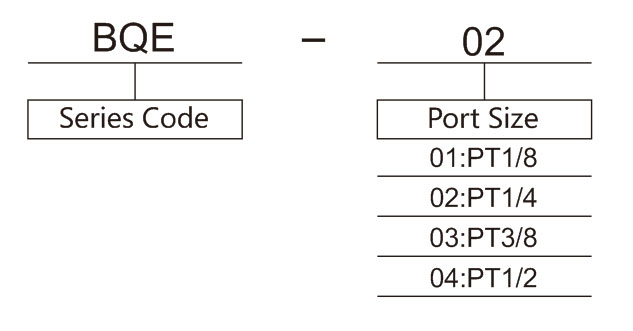

Ordering Code for Pneumatic Quick Exhaust Valve BQE

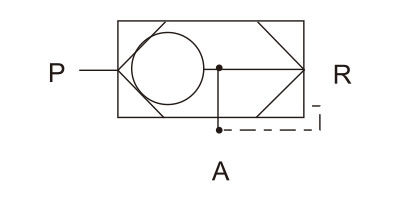

Symbol for Pneumatic Quick Exhaust Valve BQE

Technical Parameter for Pneumatic Quick Exhaust Valve BQE

Model BQE-01 BQE-02 BQE-03 BQE-04
Working Medium Compressed Air
Port Size PT1/8 PT1/4 PT3/8 PT1/2
Max. Operating Pressure 1.0MPa
Proof Pressure 1.5MPa
Operating temp. range 0~70℃
Main parts material Body Copper
Sealing element NBR

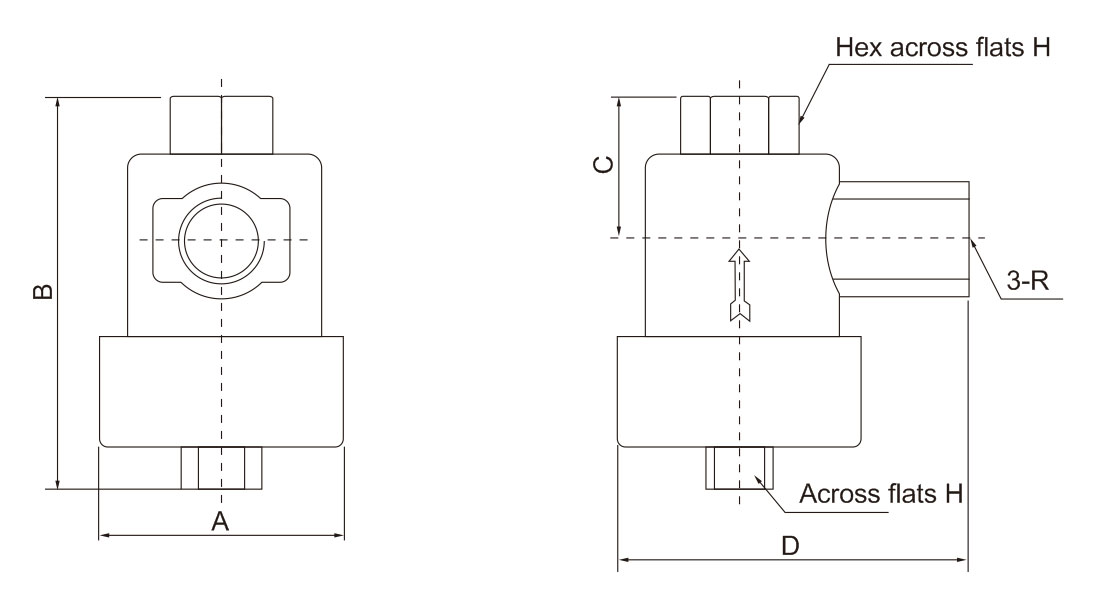

Overall Dimension for Pneumatic Quick Exhaust Valve BQE

Model A B C D H R
BQE-01 28 40 14.5 32.5 14 PT1/8
BQE-02 33 54 21 41 19 PT1/4
BQE-03 38 60 24 41 22 PT3/8
BQE-04 43 67 25 51.2 24 PT1/2
