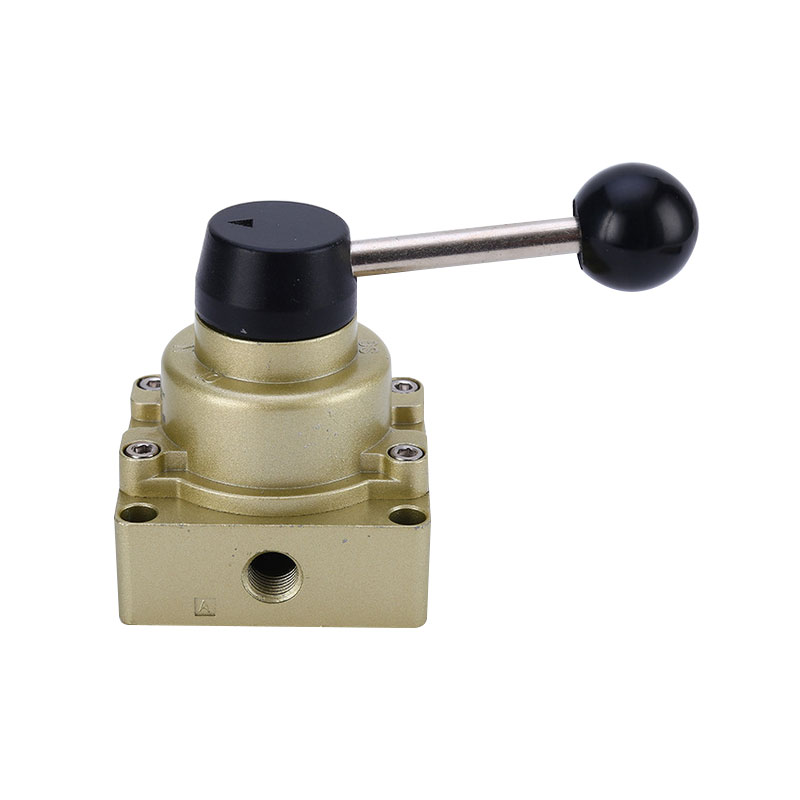

Hand Operated Valve HV

Overview for Pneumatic Manual Valve HV

HV-02, HV-03, HV-04, HV Pneumatic Manual Valve is a three-position four-way middle-seal hand-switch valve. The HV-03 Pneumatic Manual Valve produced by our company is excellent in both shape and quality, very popular with users around the world. The HV-03 Pneumatic Manual Valve can be used to replace the three-position five-way valve and the three-position three-way valve. Compared with the three-position five-way valve, one vent is missing from the HV-03 series Pneumatic Manual Valve, that is, the HV series Pneumatic Manual Valve shares one vent. Compared with the three-position three-way valve, the HV-03 hand-turn valve has one more working hole. As long as one working hole is blocked, can also achieve the effect of three-way three-way.
Model Description: HV-03 Hand Operated Valve is a three-position four-way middle-seal hand-switch valve with G3/8 interface.
HV-02, HV-03, HV-04, HV Pneumatic Manual Valve adopts a disc structure, which is faster in response and simpler in operation.
• High-precision finishing process for valve holes, longer life
• Integrated die-casting process for better air tightness
• This product is widely used in equipment and is one of the most basic components for automation.
• Can replace any control component
• Various specifications and sizes are optional, and installation is more convenient.
• Adopts the process of oxidizing and then painting, double protect the valve body and adapt to work in harsh environments

Technical Parameters for Pneumatic Manual Valve HV

Port Size: G1/4,G3/8,G1/2
Operating Pressure: 0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

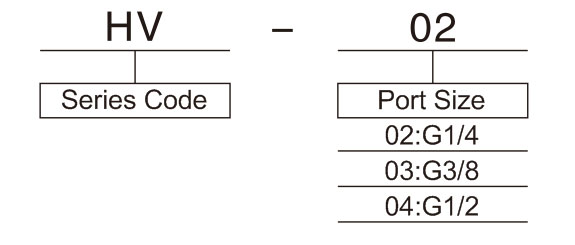

Ordering Code for Pneumatic Manual Valve HV

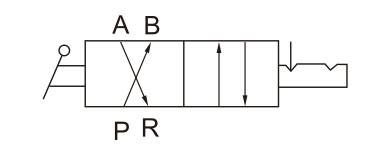

Symbol for Pneumatic Manual Valve HV

Technical Parameter for Pneumatic Manual Valve HV

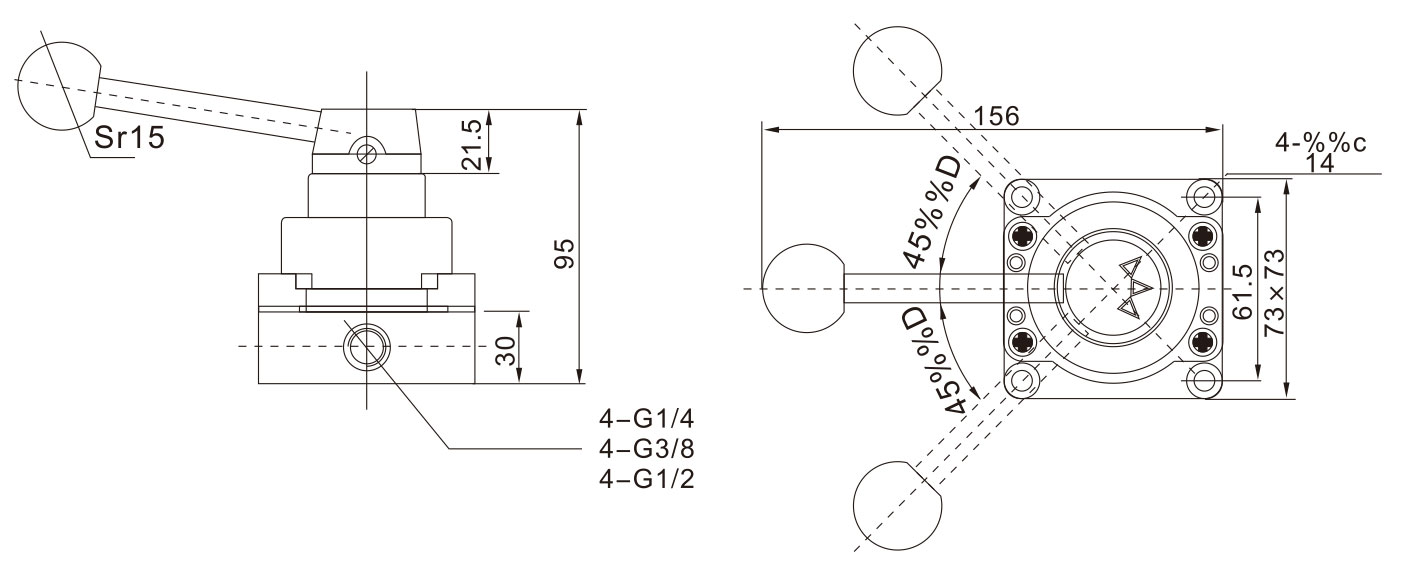

Overall Dimension
