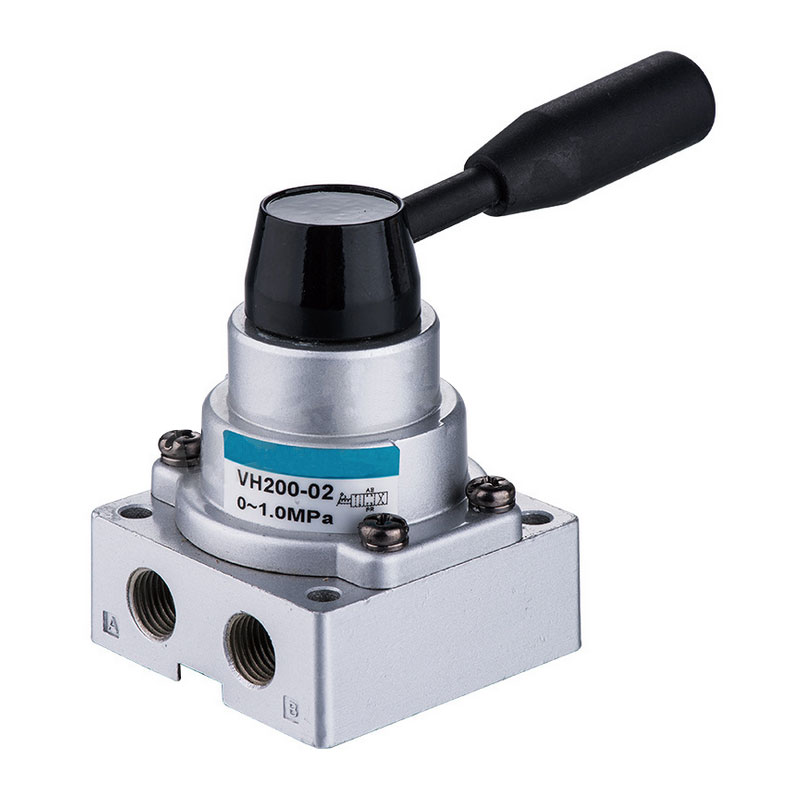

Hand Operated Valve VH200

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -10~60℃
Material: Aluminium Alloy,NBR

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for VH200 Hand Valves

Port Size: G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -10~60℃
Material: Aluminium Alloy,NBR

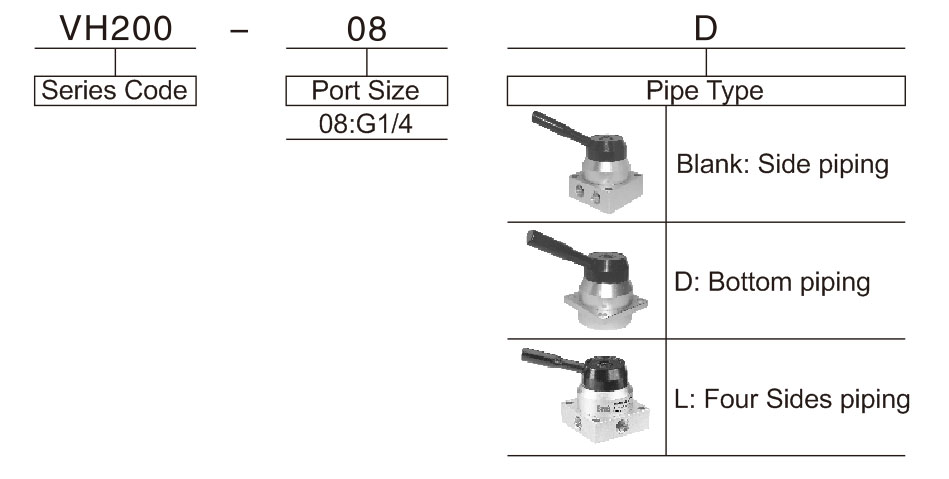

Ordering Code for VH200 Hand Valves

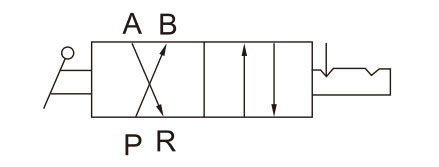

Symbol for VH200 Hand Valves

Technical Parameter for Pneumatic Hand Valve VH200 Series

Model VH200-08 VH200-08D VH200-08L
Working Medium Compressed Air
Motion Pattern Manual Control
Port Size G1/4
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Working temperature -10~60℃
Lubrication Non-lube
Main parts material Body Aluminium Alloy
Sealing element NBR

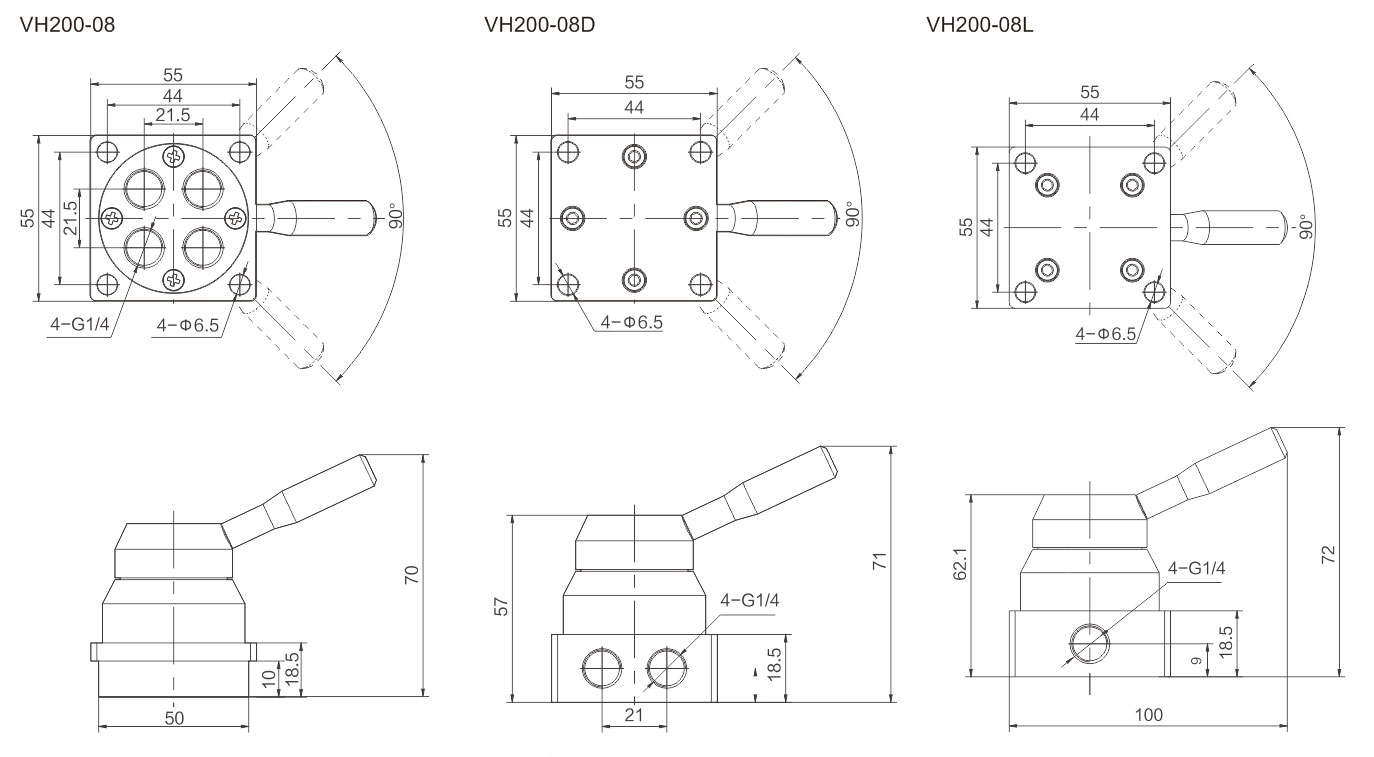

Overall Dimension
