Description for Pneumatic Couplings Fittings KS

Built-in bearing, rotate freely around the middle shaft for 360° high speed rotation;
Basic material: copper;
can be used in vacuum system (vacuum degree below 100kPa);
Suitable hose materials: nylon and PU;
Standard type with sealant;
The surface is nickel plated and does not produce copper ions.
Can be used for swing part.
Quick-change coupling for low torque rotation.
No copper ions (the surface is nickel plated)

Technical Parameters for Pneumatic Couplings Fittings KS

Thread: M5×0.8,M6×1.0,1/8",1/4",3/8",1/2"
Maximum working pressure: 1.0MPa

Rotational torque / rotational speed of Pneumatic Couplings Fittings KS

Suitable hose O.D (mm)	4	6	8	10	12
Rotational torque (N·m)	0.006	0.012	0.014	0.020	0.022
Max. allowable speed (r/min)	500	500	400	300	250

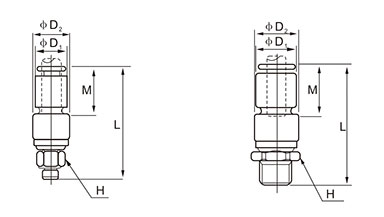

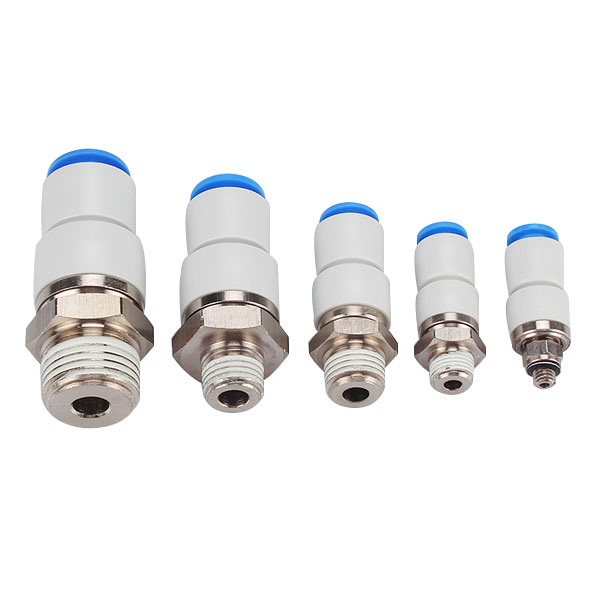

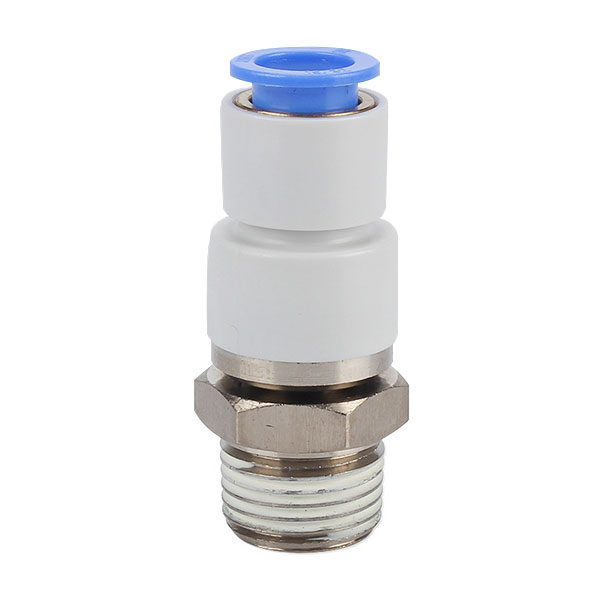

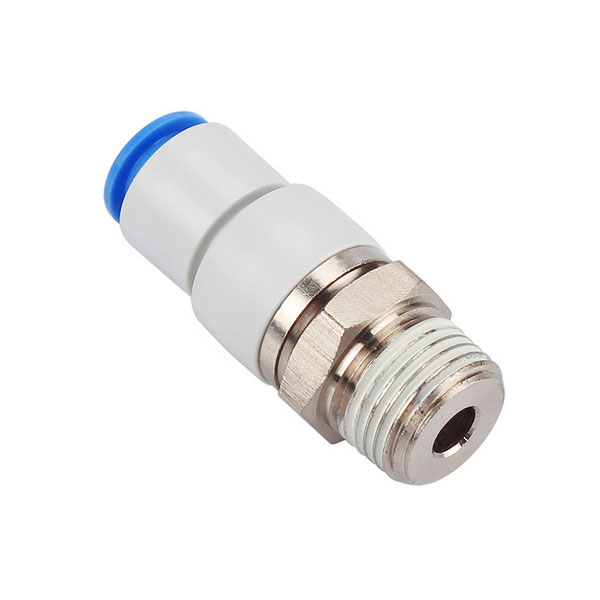

Straight Pneumatic Couplings Fittings: KSH

O.D mm	Model	Thread	Hex across flats H	D1	D2	L	M
Φ4	KSH04-M5	M5×0.8	8	10.4	12	36.5	16
	KSH04-M6	M6×1.0				37
	KSH04-01S	1/8"	12			38
Φ6	KSH06-M5	M5×0.8	8	12.8	14	37.5	17
	KSH06-M6	M6×1.0				38
	KSH06-01S	1/8"	14			39.5
	KSH06-02S	1/4"				42.5
Φ8	KSH08-01S	1/8"	17	15.2	17	44	18.5
	KSH08-02S	1/4"				47
	KSH08-03S	3/8"				48
Φ10	KSH10-02S	1/4"	22	18.5	22	54	21
	KSH10-03S	3/8"				55
	KSH10-04S	1/2"				57.5
Φ12	KSH12-03S	3/8"	24	20.9	24	57	22
	KSH12-04S	1/2"				60

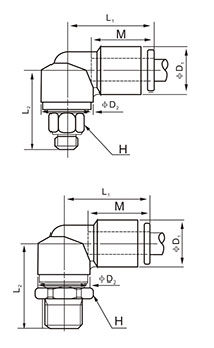

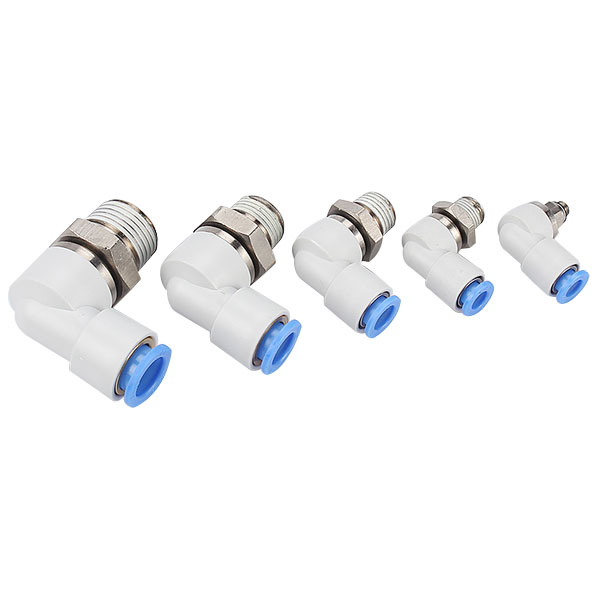

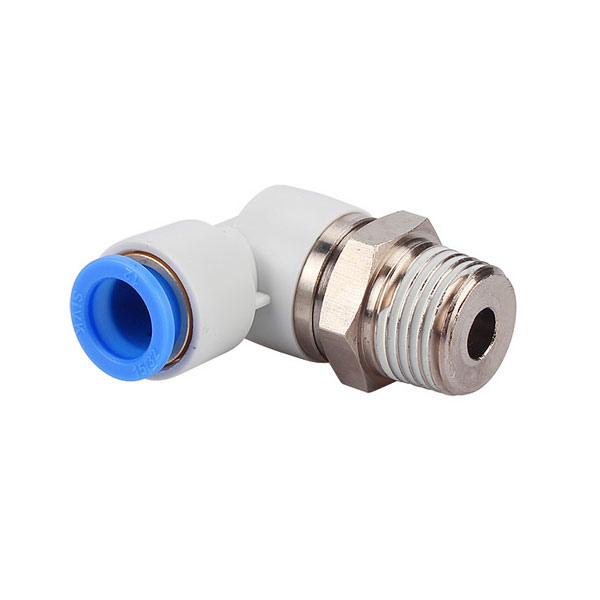

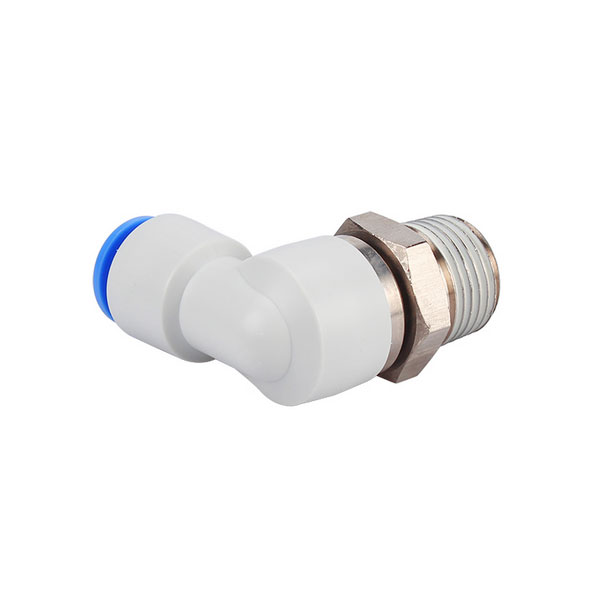

Elbow Pneumatic Couplings Fittings: KSL

O.D mm	Model	Thread	Hex across flats H	D1	D2	L1	L2	M
Φ4	KSL04-M5	M5×0.8	8	10.4	12	21	20.5	16
	KSL04-M6	M6×1.0					21
	KSL04-01S	1/8"	12				22
Φ6	KSL06-M5	M5×0.8	8	12.8	14	23	21	17
	KSL06-M6	M6×1.0					21.5
	KSL06-01S	1/8"	14				23
	KSL06-02S	1/4"					26
Φ8	KSL08-01S	1/8"	17	15.2	17	26	26.5	18.5
	KSL08-02S	1/4"					29.5
	KSL08-03S	3/8"					31
Φ10	KSL10-02S	1/4"	22	18.5	22	31.5	34	21
	KSL10-03S	3/8"					35
	KSL10-04S	1/2"					38
Φ12	KSL12-03S	3/8"	24	20.9	24	34	36.5	22
	KSL12-04S	1/2"					39.5
