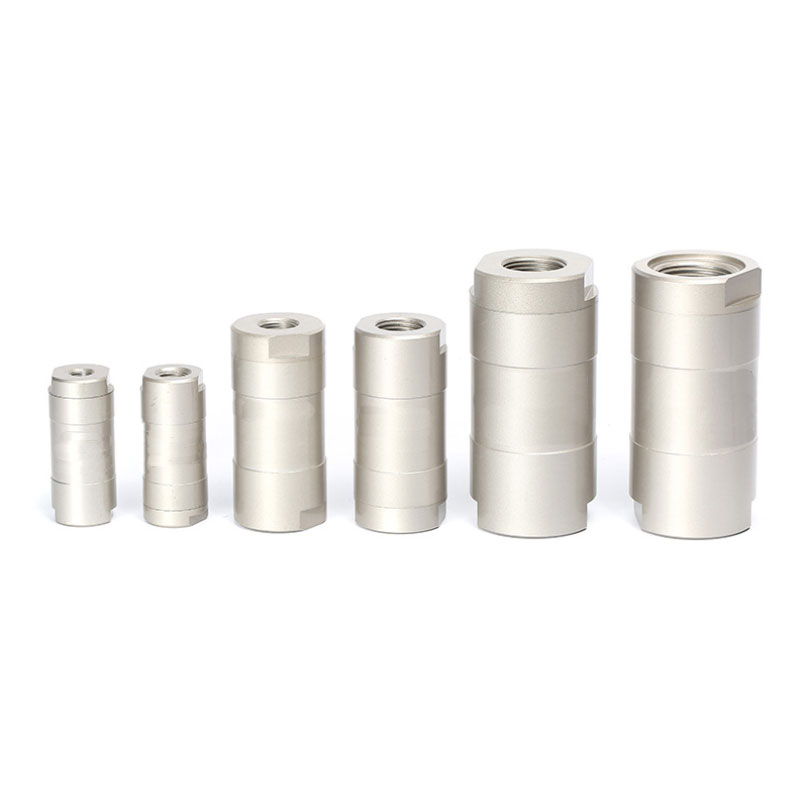

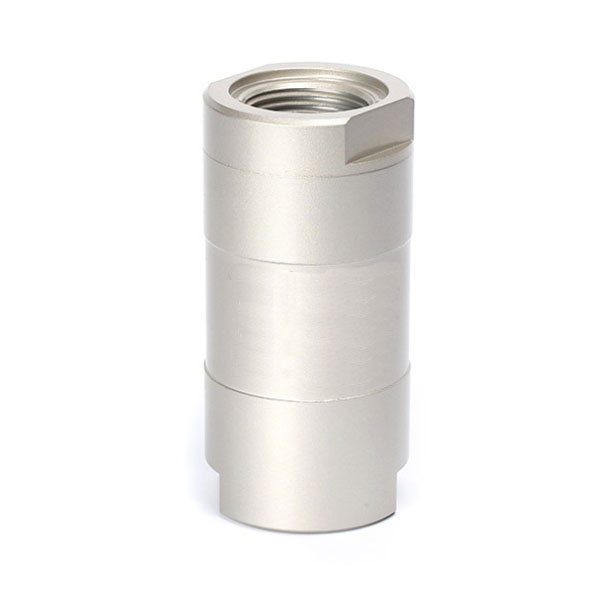

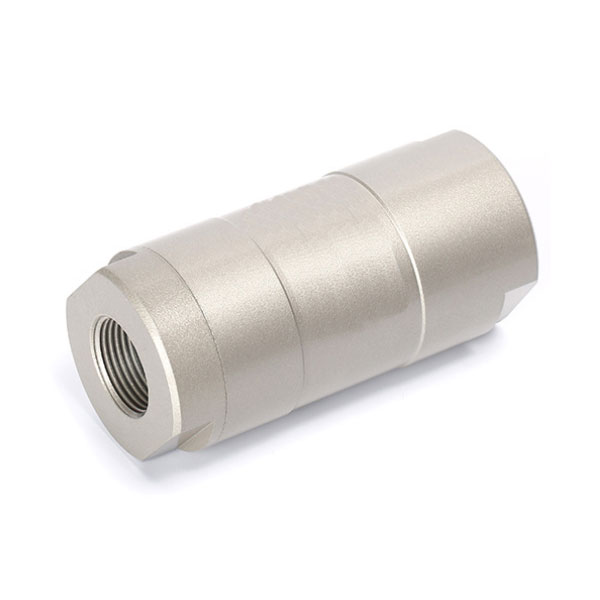

Overview for High Pressure Check Valve LCV
LCV Pneumatic Check Valve Nominal pressure range: 0.15, 1, 3 8 Psig (0.01, 0.07, 0.21 0.55 bar);
Zero leakage from zero to maximum working pressure;
Temperature rating: -320 °F to 450 °F (-195°C to 232°C);
Maximum operating pressure to 300°F (149°C).
Technical Parameters for High Pressure Check Valve LCV
Port Size: G1/8,G1/4,G3/8,G1/2,G3/4,G1;
Proof Pressure: 15kgf/cm²;
Working Environment Temperature: -5~60℃
Material: Aluminum,NBR

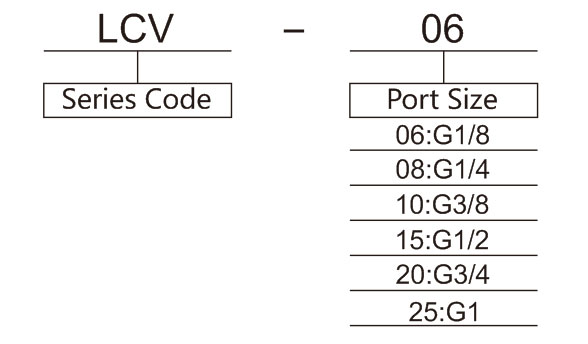

Ordering Code for High Pressure Check Valve LCV

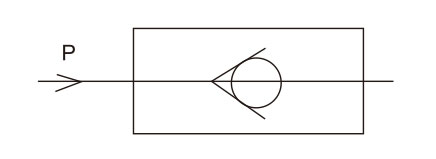

Symbol for High Pressure Check Valve LCV
Technical Parameter for High Pressure Check Valve LCV
| Model |
LCV-06 |
LCV-08 |
LCV-10 |
LCV-15 |
LCV-20 |
LCV-25 |
| Port Size |
G1/8 |
G1/4 |
G3/8 |
G1/2 |
G3/4 |
G1 |
| Working Medium |
Compressed Air |
| Max. Operating Pressure |
1.0MPa |
| Proof Pressure |
1.5MPa |
| Operating temp. range |
-5~60℃ |
| Main parts material |
Body |
Aluminium Alloy |
| Sealing element |
NBR |

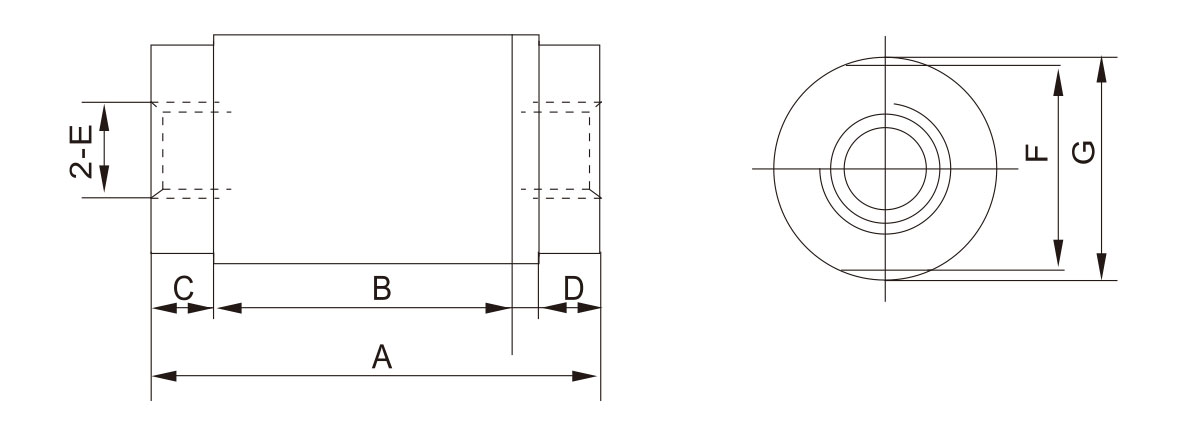

Overall Dimension
| Model |
A |
B |
C |
D |
E |
F |
G |
| LCV-06 |
51.5 |
41.5 |
7 |
7 |
G1/8 |
22 |
Φ24 |
| LCV-08 |
51.5 |
41.5 |
7 |
7 |
G1/4 |
22 |
Φ24 |
| LCV-10 |
68.5 |
58.5 |
8 |
8 |
G3/8 |
32 |
Φ35 |
| LCV-15 |
68.5 |
58.5 |
8 |
8 |
G1/2 |
32 |
Φ35 |
| LCV-20 |
95.5 |
81 |
8 |
8 |
G3/4 |
47 |
Φ50 |
| LCV-25 |
95.5 |
81 |
8 |
8 |
G1 |
47 |
Φ50 |
High Pressure Check Valve | LCV Check Valve
