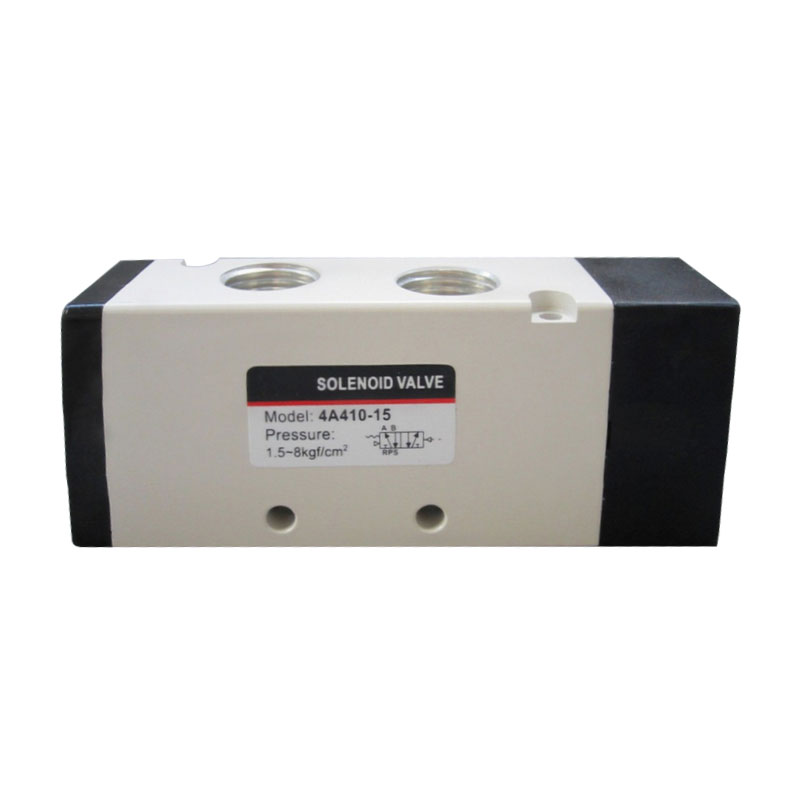

Pilot Pneumatic Solenoid Valve 4A4

Port Size: G1/2
Operating Pressure: 0.15~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

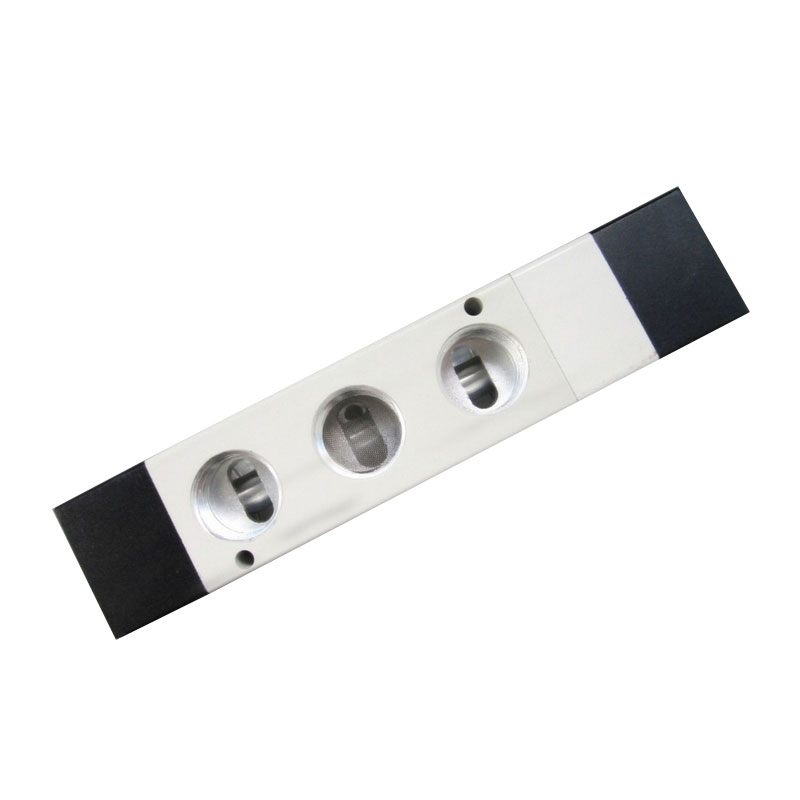

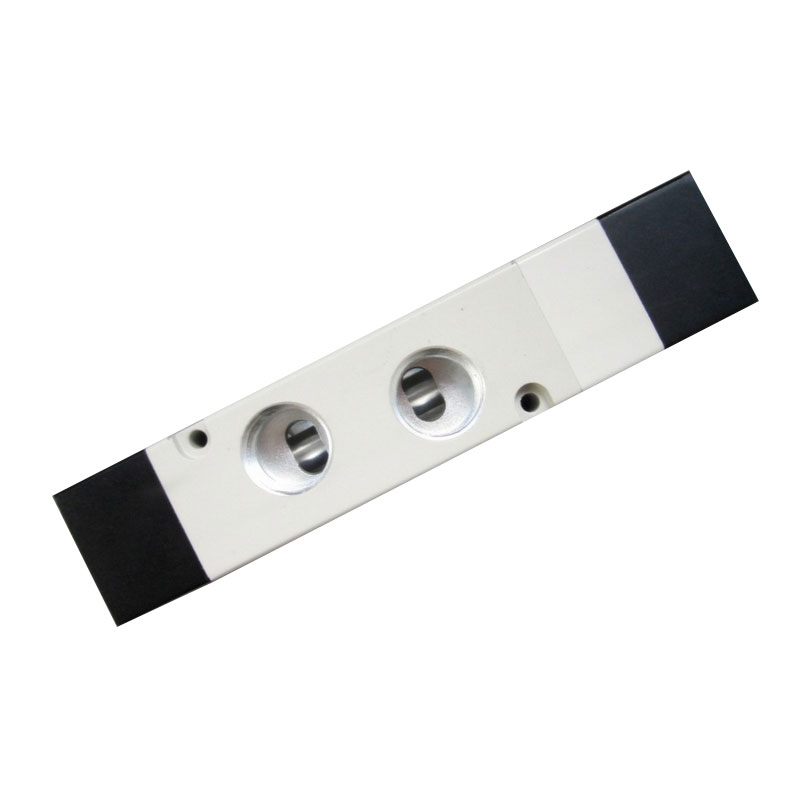

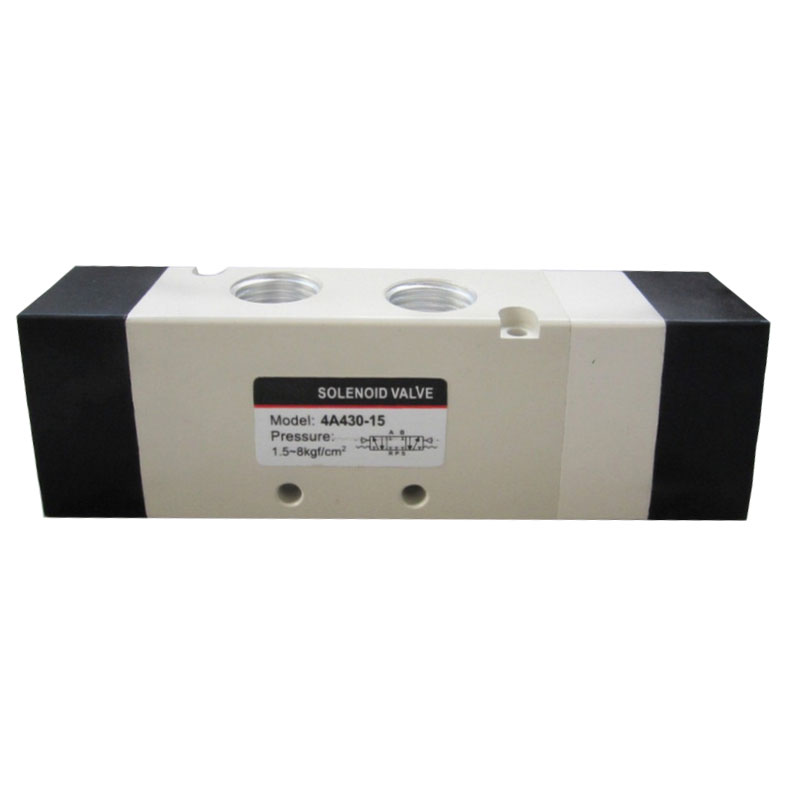

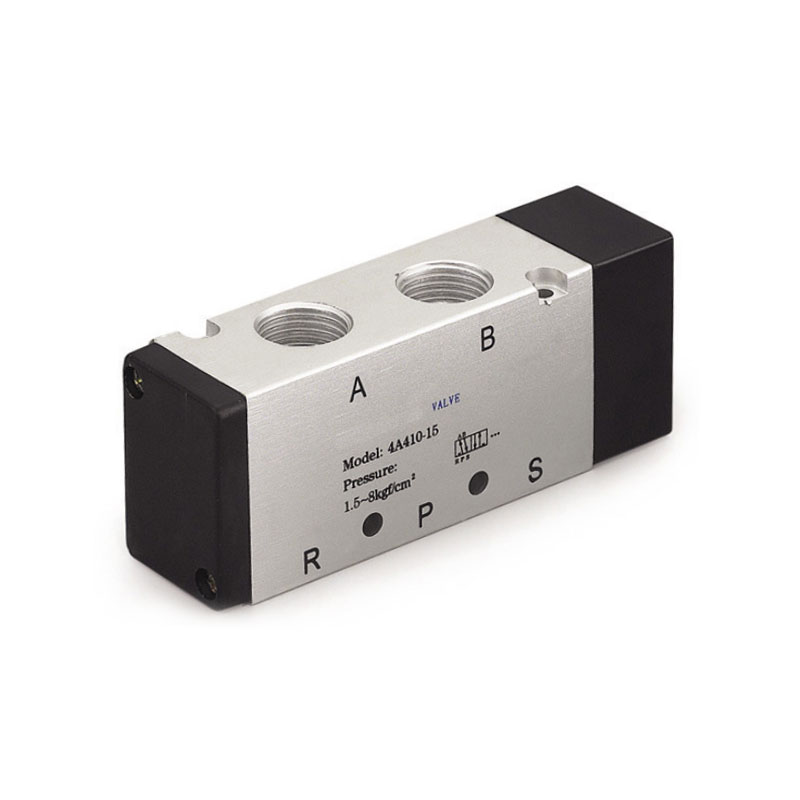

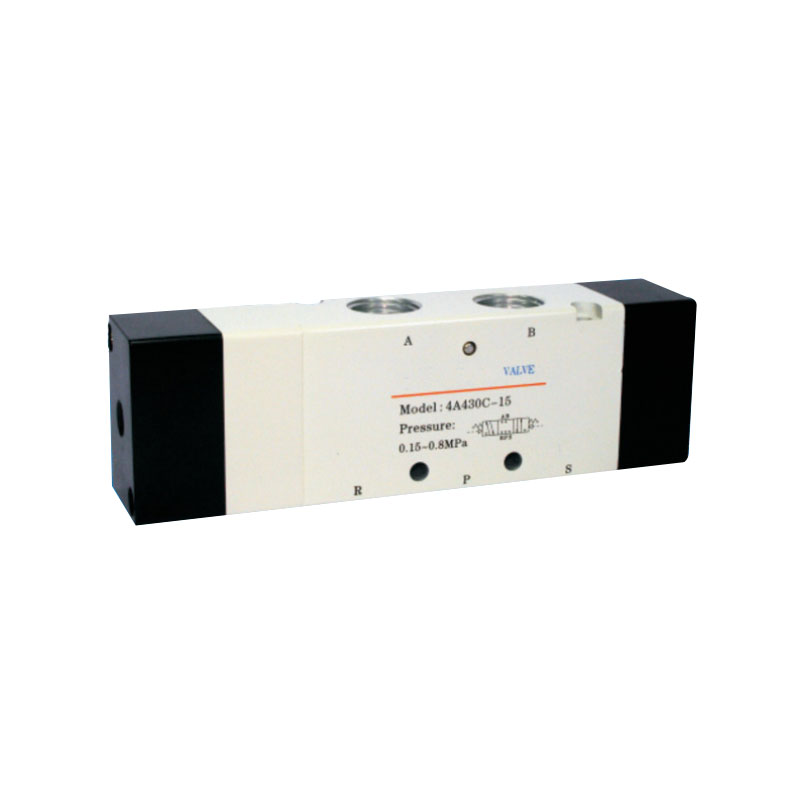

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Pilot Solenoid Valve 4A4

Port Size: G1/2
Operating Pressure: 0.15~0.8MPa
Working Environment Temperature: 0~60℃
Material: Aluminium Alloy,NBR

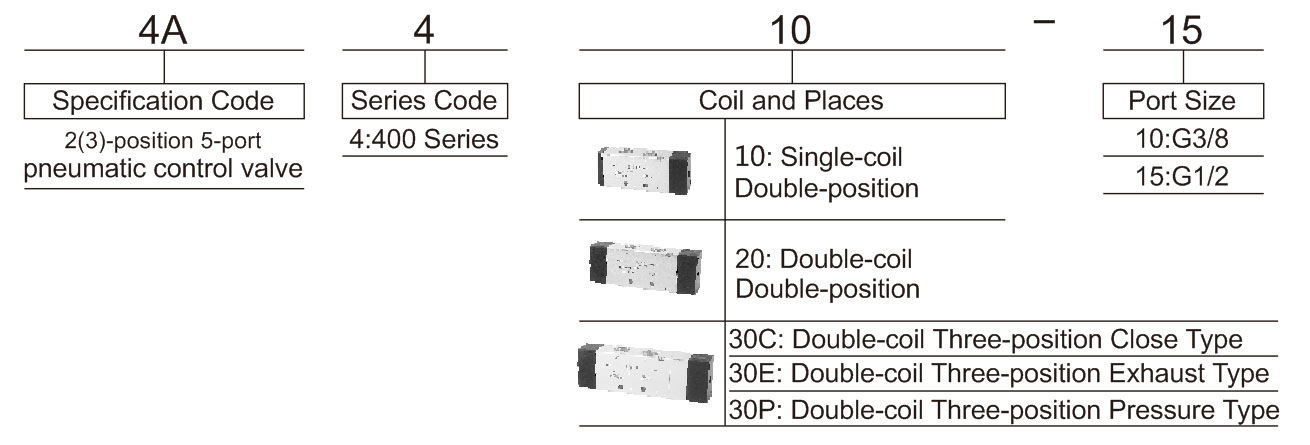

Ordering Code for Pilot Solenoid Valve 4A4

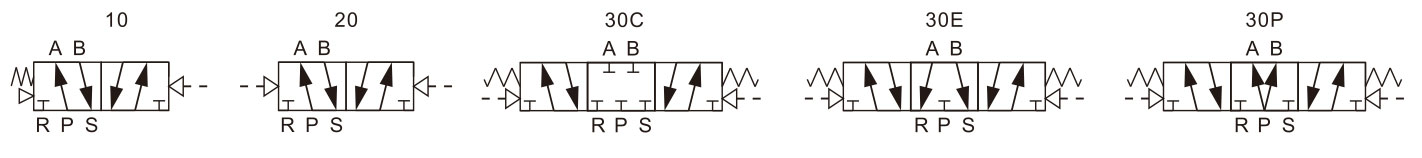

Symbol for Pilot Solenoid Valve 4A4

Technical Parameter for Pilot Solenoid Valve 4A4

Model 4A410-15 4A420-15 4A430C-15 4A430E-15 4A430P-15
Working Medium Air
Motion Pattern External pneumatic control type
Valve Type 2-position 5-port 3-position 5-port
Effective sectional area 50.0mm²(Cv=2.79) 30.0mm²(Cv=1.68)
Port Size Intake=Outlet=Exhaust=G1/2
Lubrication Non-lube
Operating Pressure 0.15~0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. 0~60℃
Max. operating frequency 5 times/s 3 times/s
Main parts material Body Aluminium Alloy
Sealing element NBR

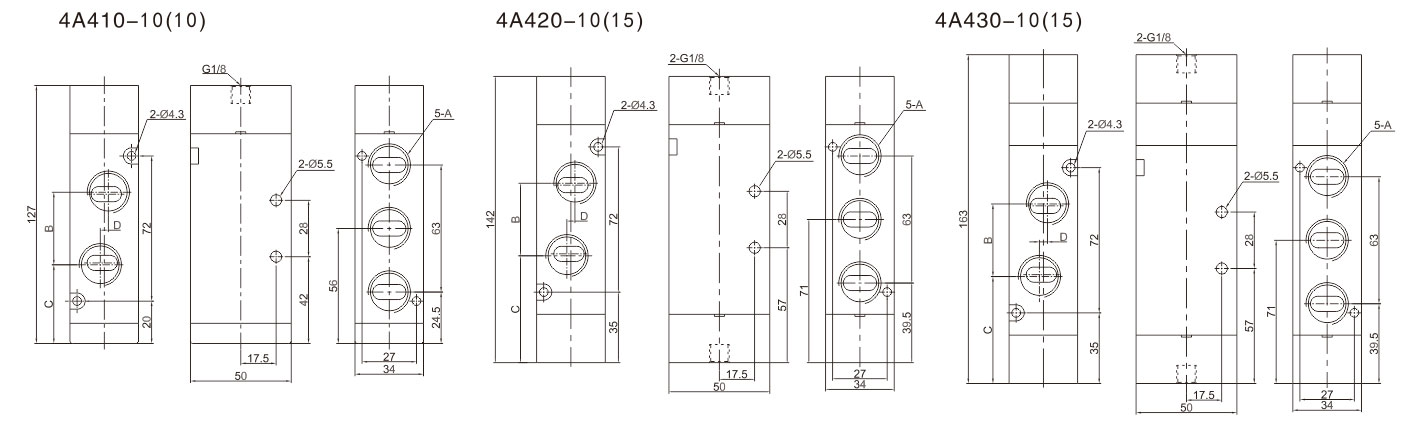

Overall Dimension

Model A B C D
4A410-10 G3/8 33 39.5 2
4A410-15 G1/2 36 38 4
4A420-10 G3/8 33 54.5 2
4A420-15 G1/2 36 53 4
4A430-10 G3/8 33 54.5 2
4A430-15 G1/2 36 53 4
