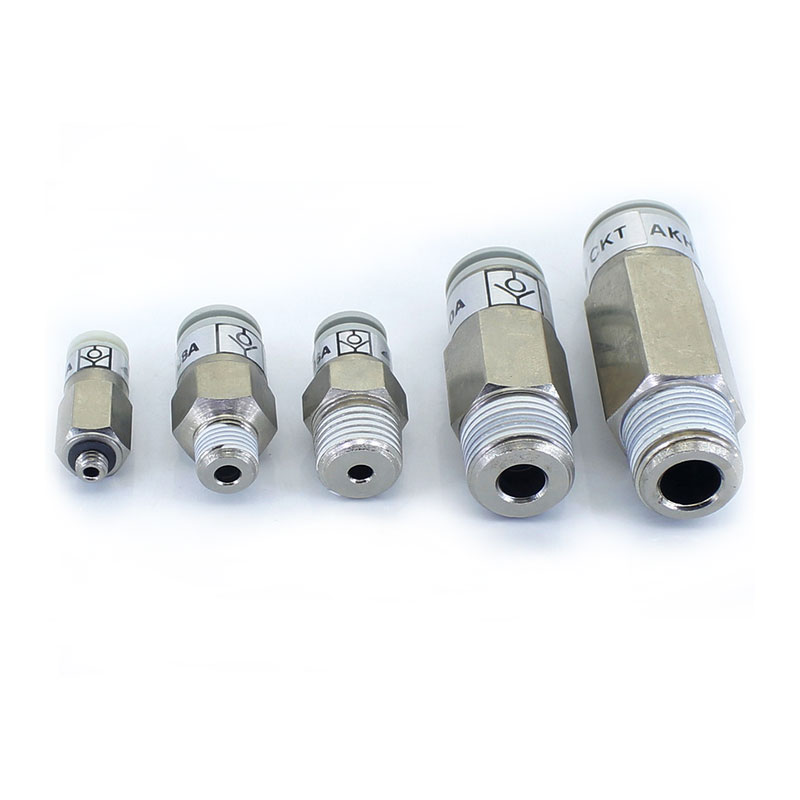

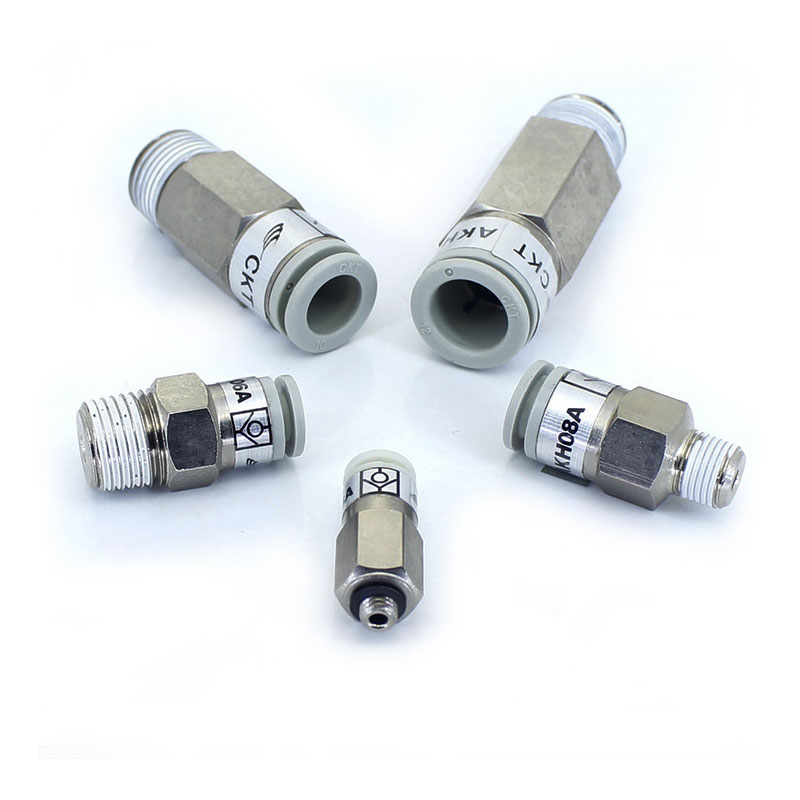

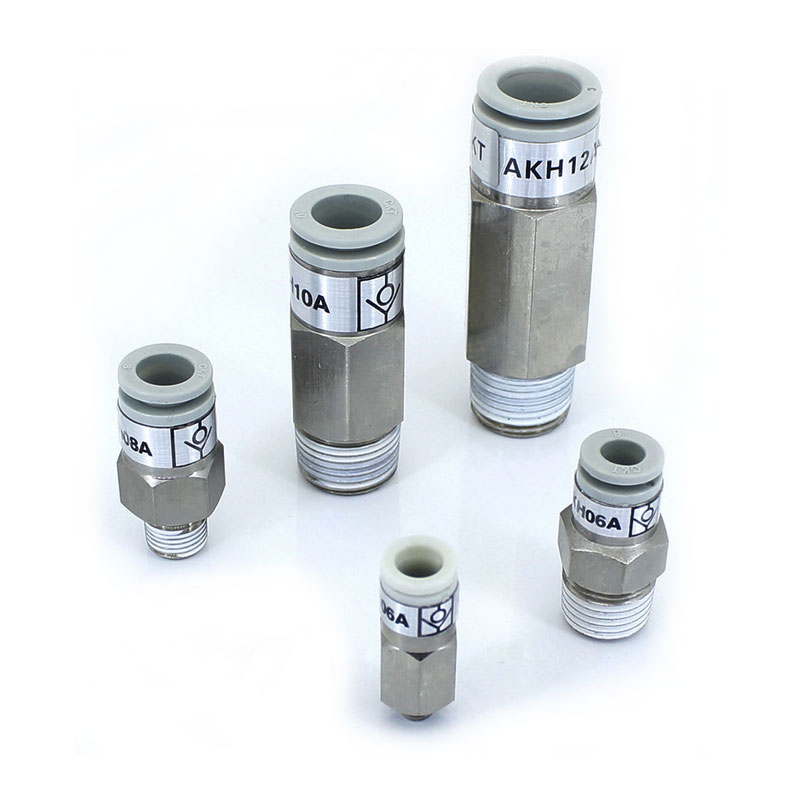

Overview for One Way Check Valve AKH
AKH One Way Check Valve of check valves are available in a variety of configurations to provide designers with a variety of solutions according to the operating conditions. They are compact, lightweight and have low burst pressure. Because of its straight-type, one-touch accessories, AKH One Way Check Valve is particularly suitable for installation in pipes, while the plug-in connector type can be mounted directly on the device. AKB Pneumatic Check Valve bushing type is especially suitable for applications with splash coolant and spatter.
Check valve with high flow capacity
Compact and lightweight
Various models
Plug-in connector type
Easy to install to the device
One-touch accessories
Low burst pressure
Can be used for vacuum
Technical Parameters for One Way Check Valve AKH
Port Size: M5,PT1/8,PT1/4,PT3/8,PT1/2

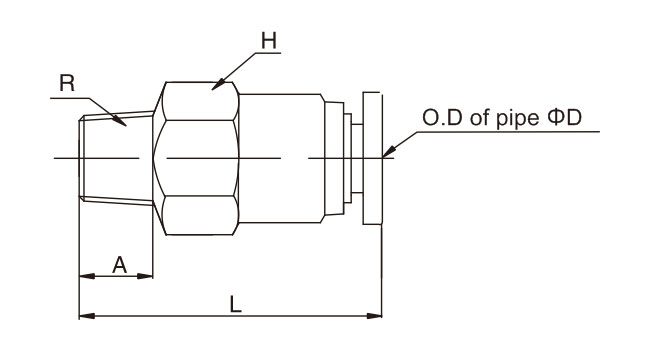

Overall Dimension for One Way Check Valve AKH
| Model |
ΦD |
R |
L |
A |
H |
| A-type |
B-type |
| AKH04-M5A |
AKH04-M5B |
4 |
M5 |
31.5 |
5 |
12 |
| AKH04-01A |
AKH04-01B |
PT1/8 |
28.5 |
8 |
12 |
| AKH04-02A |
AKH04-02B |
PT1/4 |
28.5 |
8 |
14 |
| AKH06-01A |
AKH06-01B |
6 |
PT1/8 |
31 |
8 |
14 |
| AKH06-02A |
AKH06-02B |
PT1/4 |
31 |
8 |
14 |
| AKH08-01A |
AKH08-01B |
8 |
PT1/8 |
30.5 |
8 |
15 |
| AKH08-02A |
AKH08-02B |
PT1/4 |
30.5 |
8 |
15 |
| AKH08-03A |
AKH08-03B |
PT3/8 |
30.5 |
10 |
17 |
| AKH10-02A |
AKH10-02B |
10 |
PT1/4 |
56.2 |
8 |
19 |
| AKH10-03A |
AKH10-03B |
PT3/8 |
46.3 |
10 |
19 |
| AKH10-04A |
AKH10-04B |
PT1/2 |
47.2 |
10 |
21 |
| AKH12-02A |
AKH12-02B |
12 |
PT1/4 |
57 |
10 |
21 |
| AKH12-03A |
AKH12-03B |
PT3/8 |
47 |
10 |
21 |
| AKH12-04A |
AKH12-04B |
PT1/2 |
47 |
10 |
21 |
One Way Check Valve AKH： One side for male thread, the other side for quick joint
| A-type |
From the quick joint end to the male thread end |
 |
B-type |
From the male thread end to the quick joint end |
 |
