Metal Pneumatic Fittings KCH

Features: When disassembling the hose, the air can be prevented from flowing out of the joint,Basic material: copper

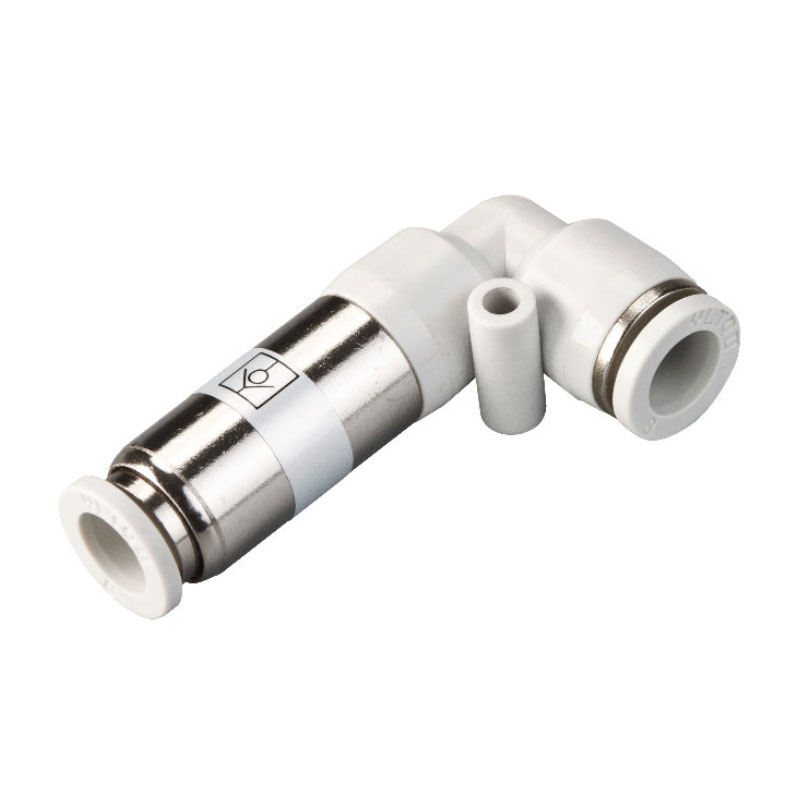

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description for Metal Pneumatic Fittings KCH

Features: When disassembling the hose, the air can be prevented from flowing out of the joint
Basic material: copper
Maximum operating pressure: 1.0MPa
Suitable hoses: nylon and PU
Standard type with sealant
The surface is nickel-plated and does not produce copper ions.
* KC series products should be used with KCR intubation joint.

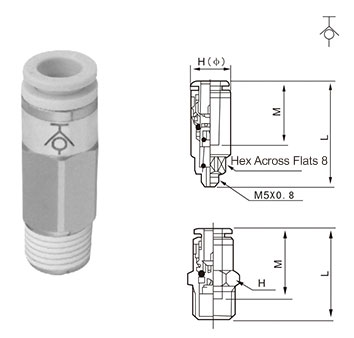

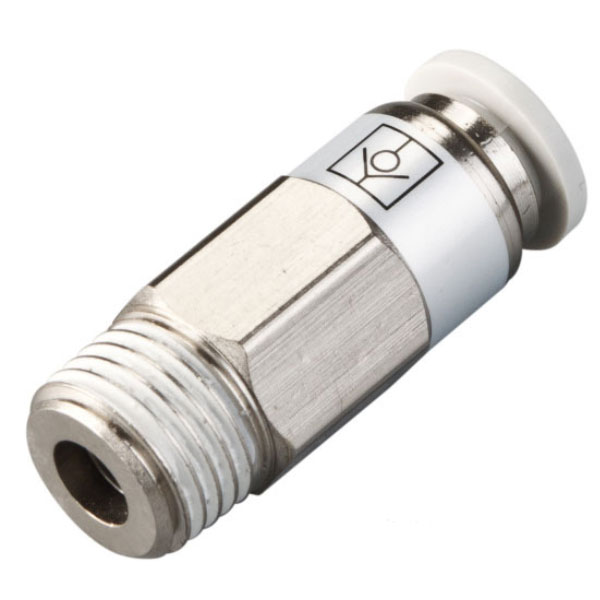

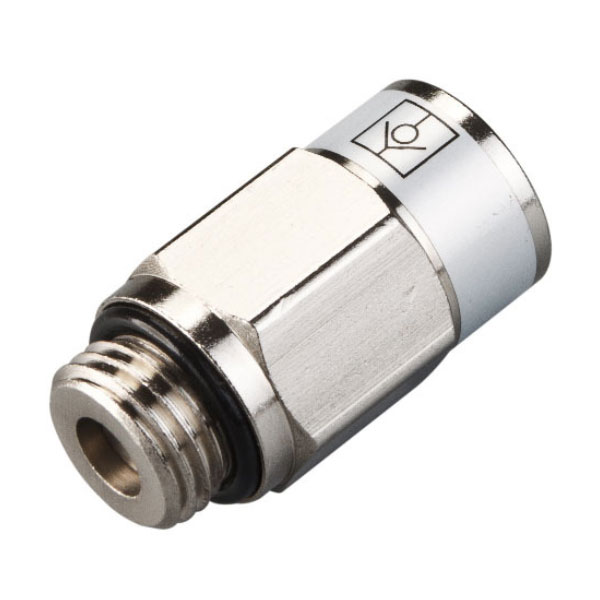

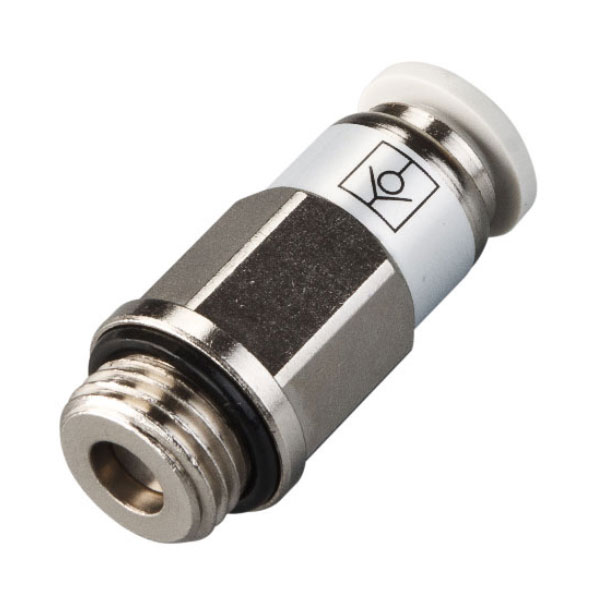

Straight Joint: KCH Metal Pneumatic Fittings

Applicable O.D mm Model Thread Hex across flats H L M
Φ4 KCH04-M5 M5×0.8 9.8 30.8 18
KCH04-01S 1/8" 10 26.1
Φ6 KCH06-M5 M5×0.8 11.8 32.4 19.5
KCH06-01S 1/8" 12 37.4 19
KCH06-02S 1/4" 14 28.9
Φ8 KCH08-01S 1/8" 14 42.4 21.5
KCH08-02S 1/4" 45.7
KCH08-03S 3/8" 17 34
Φ10 KCH10-02S 1/4" 17 50.5 24
KCH10-03S 3/8" 51.5
Φ12 KCH12-03S 3/8" 19 54.2 25.5
KCH12-04S 1/2" 22 41.6

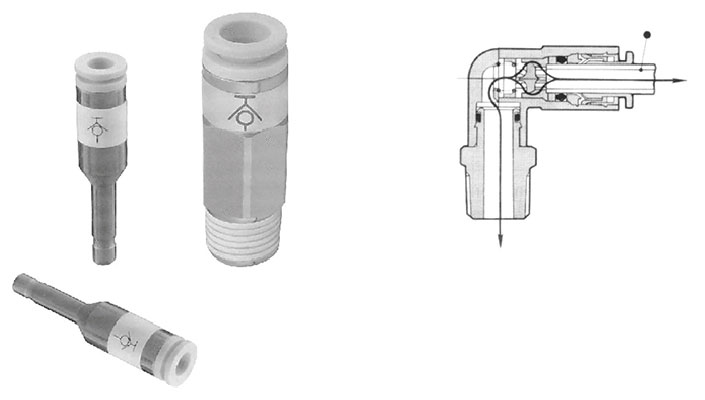

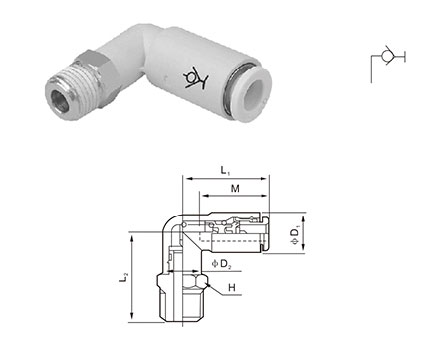

Elbow Joint: KCL Metal Pneumatic Fittings

Applicable O.D mm Model Thread Hex across flats H ΦD1 ΦD2 L1 L2 M
Φ4 KCL04-M5 M5×0.8 8 10.4 8 25.3 16.7 18
KCL04-01S 1/8" 10 10 23
Φ6 KCL06-M5 M5×0.8 8 12.8 8 26.8 17.4 19.5
KCL06-01S 1/8" 12 12 28 25.1 19
KCL06-02S 1/4" 14 29.1
Φ8 KCL08-01S 1/8" 14 15.2 14 34.1 27.1 21.5
KCL08-02S 1/4" 31.1
KCL08-03S 3/8" 17
Φ10 KCL10-02S 1/4" 17 18.5 17 38 33.9 24
KCL10-03S 3/8" 35.9
Φ12 KCL12-03S 3/8" 17 20.9 20.9 40.7 40.3 25.5
KCL12-04S 1/2" 22 43.2

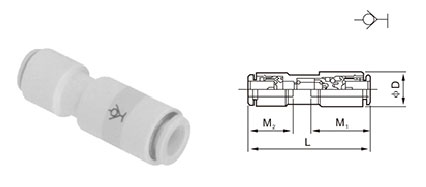

Equal Straight Joint: KCH Metal Pneumatic Fittings

Applicable O.D mm Model ΦD L M1 M2
Φ4 KCH04-00 10.4 42.1 18 16
Φ6 KCH06-00 12.8 45.8 19 17
Φ8 KCH08-00 15.2 52.8 21.5 18.5
Φ10 KCH010-00 18.5 59.8 24 21
Φ12 KCH012-00 20.9 63.5 25.5 22

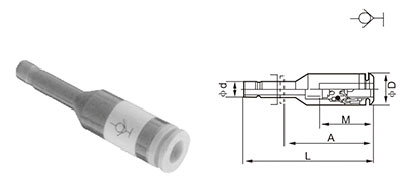

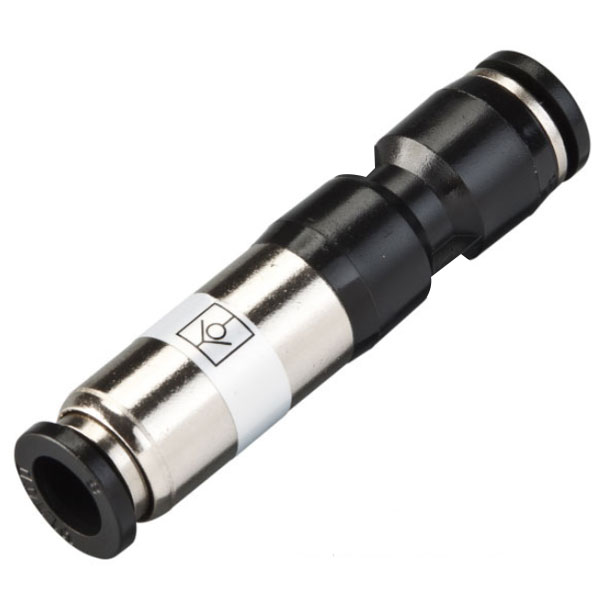

Intubation Straight Joint: KCJ Metal Pneumatic Fittings

Applicable O.D mm Model Φd ΦD L A M
Φ4 KCJ04-99 4 9.8 49.5 33.5 18
Φ6 KCJ06-99 6 11.8 54 37 19
Φ8 KCJ08-99 8 14 61 42.5 21.5
Φ10 KCJ10-99 10 17 70.4 49.5 24
Φ12 KCJ12-99 12 19 74.4 52.4 25.5

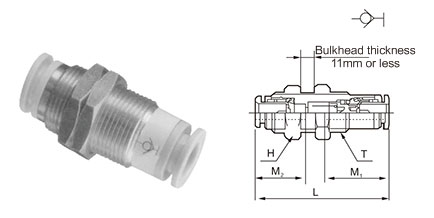

BulkheadJoint: KCE Metal Pneumatic Fittings

Applicable O.D mm Model Male thread T Hex across flats H L Bulkhead mounting hole M1 M2
Φ4 KCE04-00 M12×1 14 42 13 18 16
Φ6 KCE06-00 M14×1 17 45.5 15 19 17
Φ8 KCE08-00 M16×1 19 52.5 17 21.5 18.5
Φ10 KCE10-00 M20×1 24 59.5 21 24 21
Φ12 KCE12-00 M22×1 27 63.2 23 25.5 22

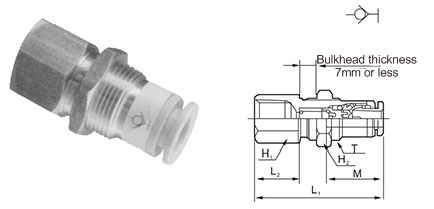

Female BulkheadJoint: KCE Metal Pneumatic Fittings

Applicable O.D mm Model Thread Male thread T Hex across flats H1 Hex across flats H2 L1 L2 Bulkhead mounting hole M1
Φ4 KCE04-02 1/4" M12×1 17 14 40.5 14.7 13 18
Φ6 KCE06-02 1/4" M14×1 17 17 42.7 14.7 15 19
Φ8 KCE08-03 3/8" M16×1 19 19 49.4 15 17 21.5
Φ10 KCE10-03 3/8" M20×1 22 24 63.9 14.2 21 24
Φ12 KCE12-03 3/8" M22×1 24 27 56.1 13.7 23 25.5

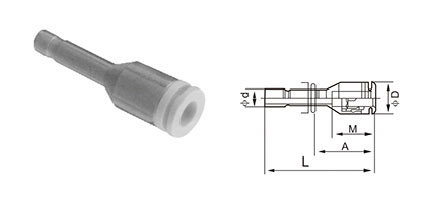

Intubation Joint: KCR Metal Pneumatic Fittings

Applicable O.D mm Model Φd ΦD L A M
Φ4 KCR04-99 4 9.8 40.6 22.6 16
Φ6 KCR06-99 6 11.8 43.1 24.1 17
Φ8 KCR08-99 8 14 46.7 25.2 18.5
Φ10 KCR10-99 10 17 52.6 28.6 21
Φ12 KCR12-99 12 19 84.9 29.4 22
