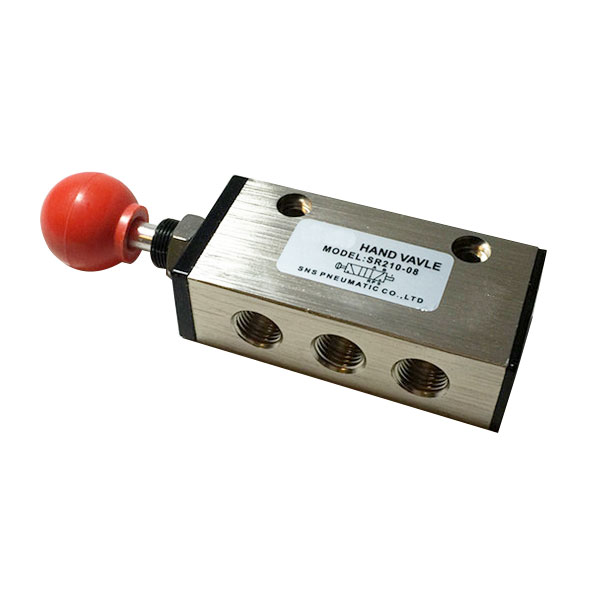

Manual Control Valve SR

Port Size: G1/8,G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

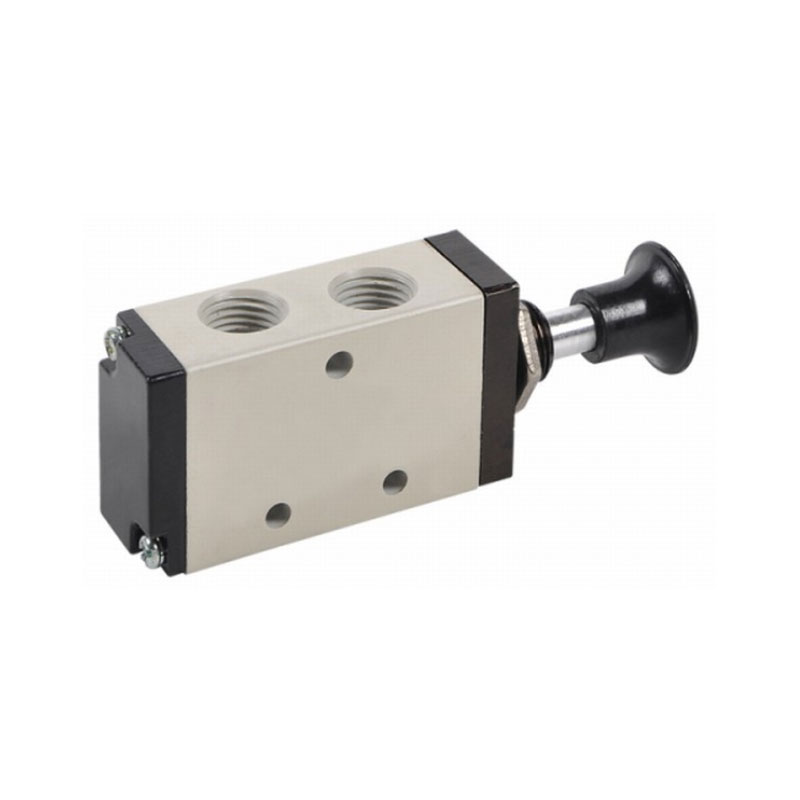

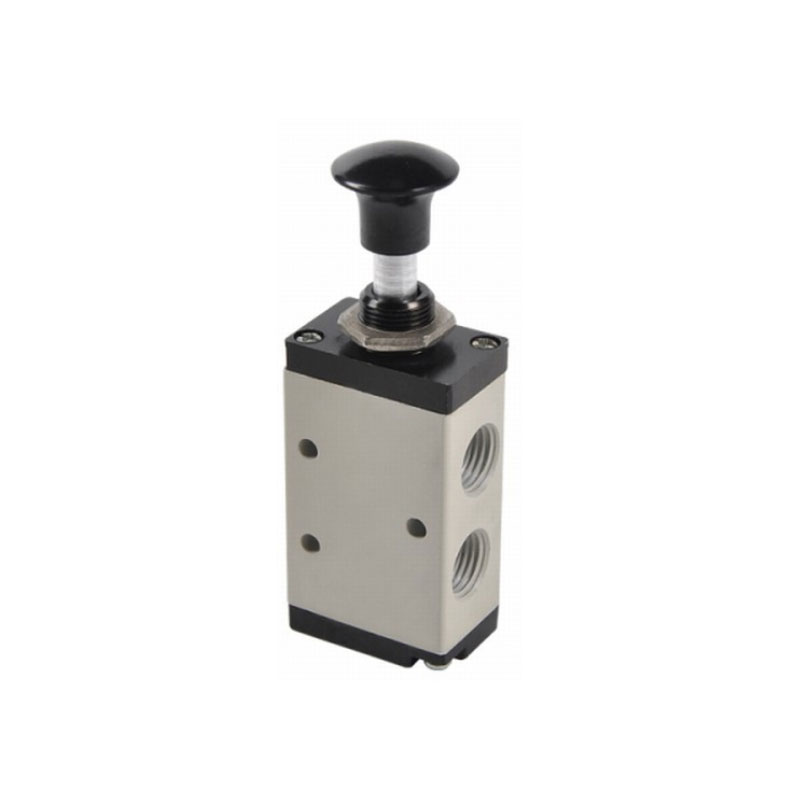

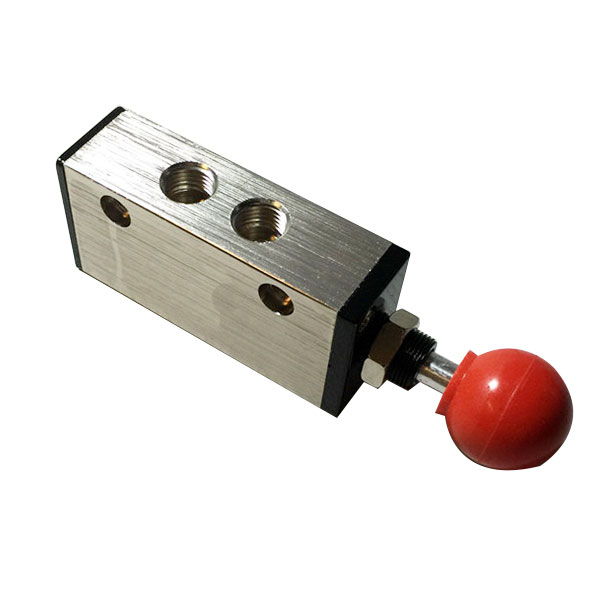

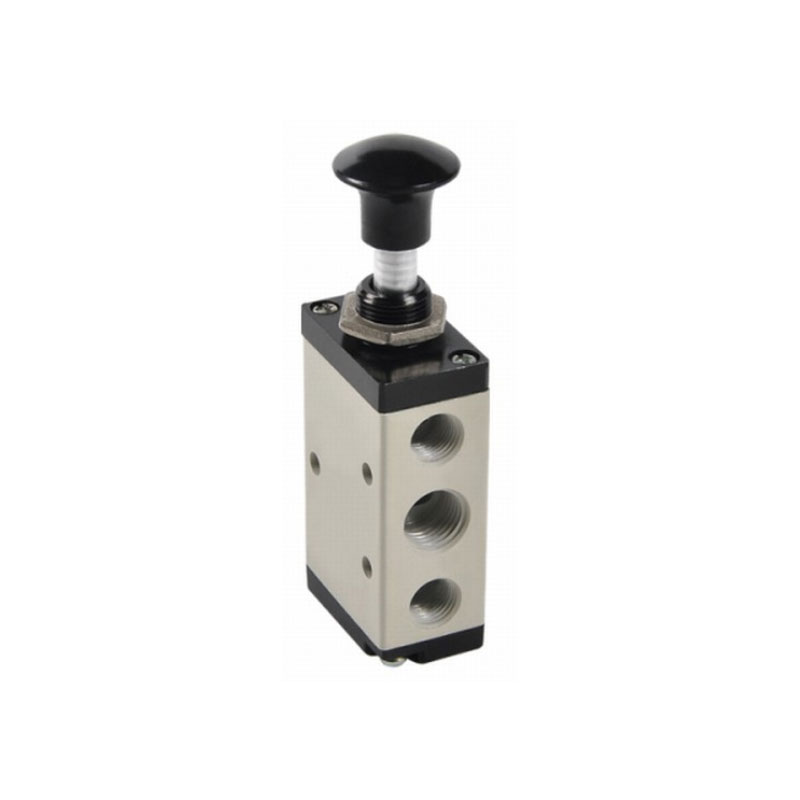

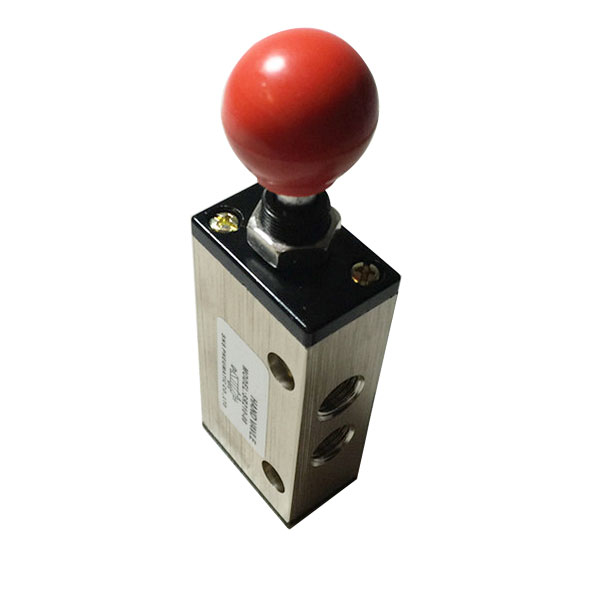

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters for Manual Control Valve SR

Port Size: G1/8,G1/4
Operating Pressure: 0.8MPa
Working Environment Temperature: -20~70℃
Material: Aluminium Alloy,NBR

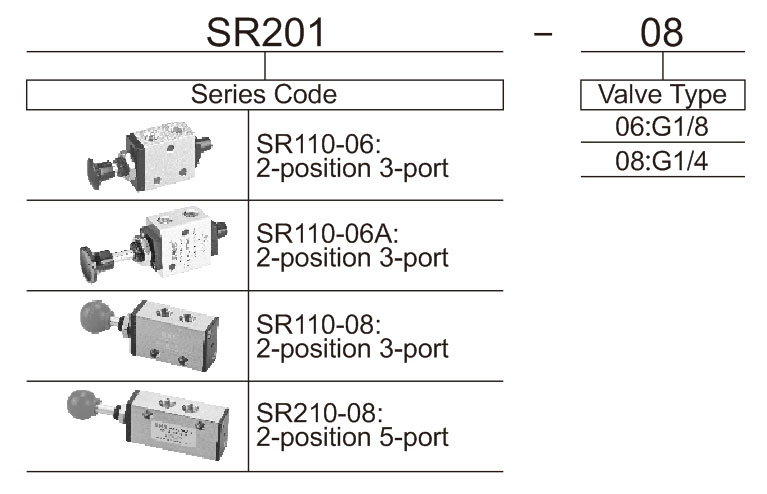

Ordering Code for Manual Control Valve SR

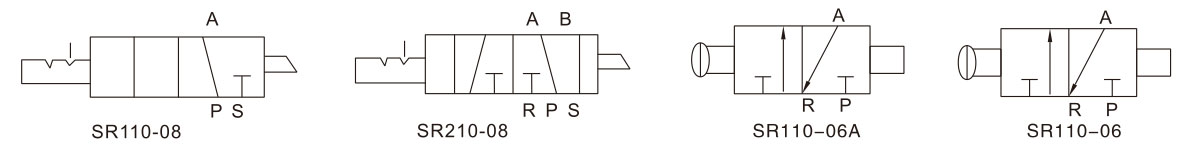

Symbol for Manual Control Valve SR

Technical Parameter for Manual Control Valve SR

Model SR110-06 SR110-06A SR110-08 SR210-08
Working Medium Compressed Air
Motion Pattern Hand-operated direct-acting
Effective Sectional Area (mm²) 12(CV=0.67) 16(CV=0.89)
Port Size G1/8 G1/4
Max. Operating Pressure 0.8MPa
Max. Proof Pressure 1.0MPa
Operating Temp. -20~70℃
Lubrication Non-lube
Main parts material Body Aluminium Alloy
Sealing element NBR

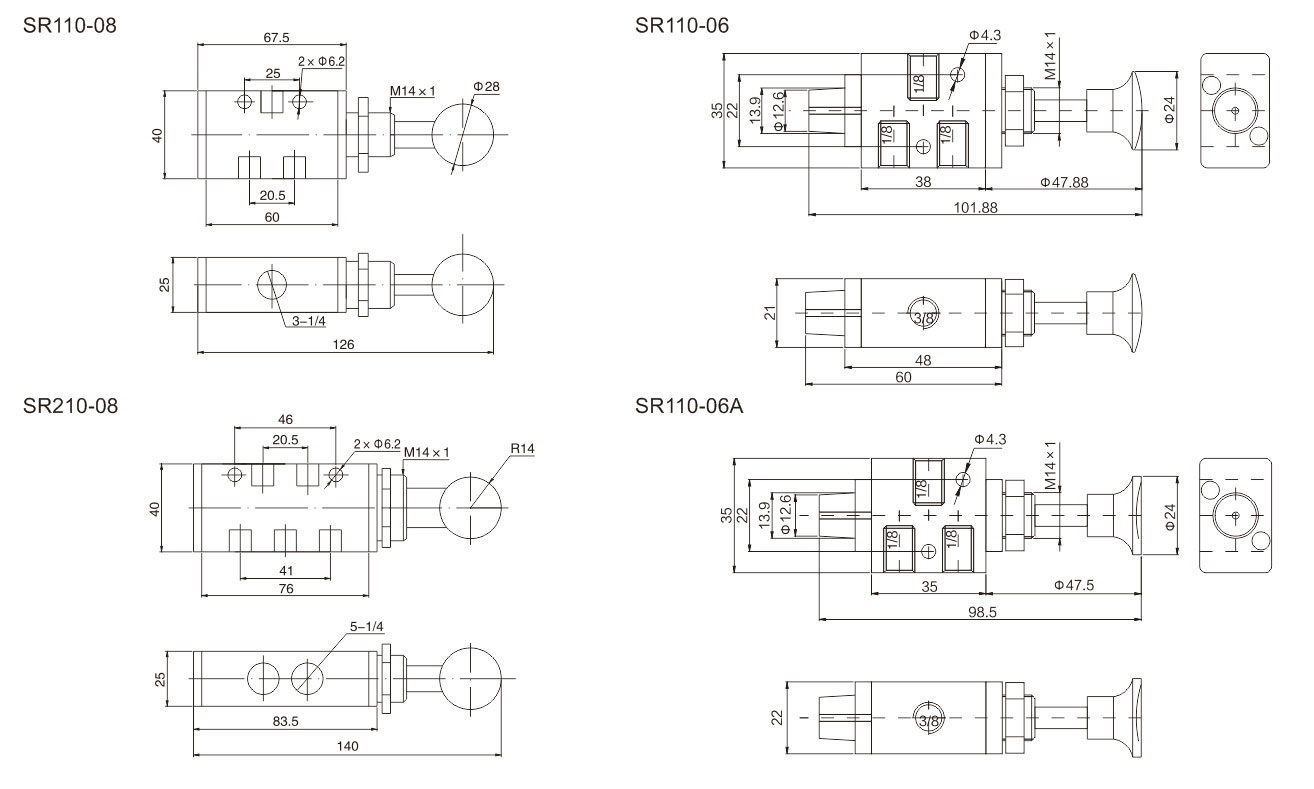

Overall Dimension
