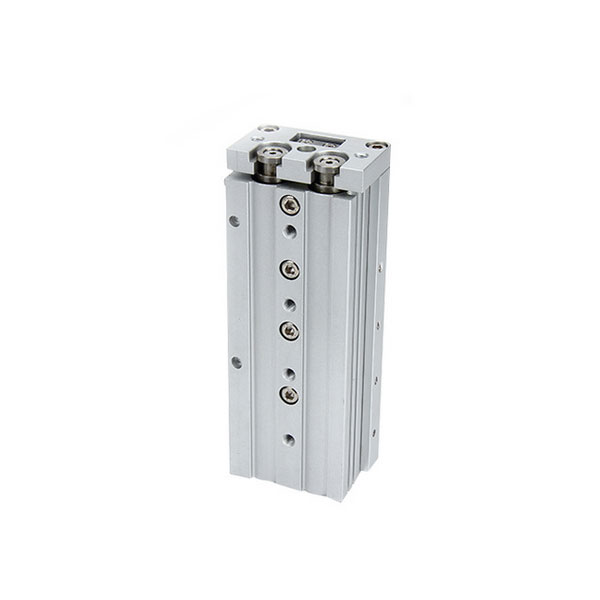

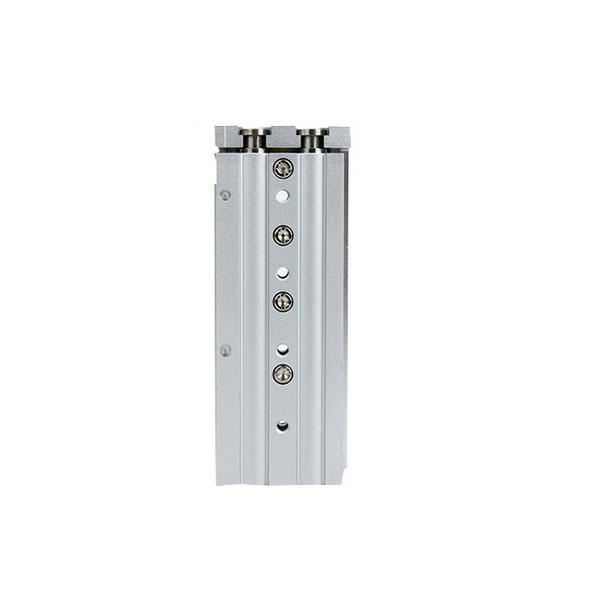

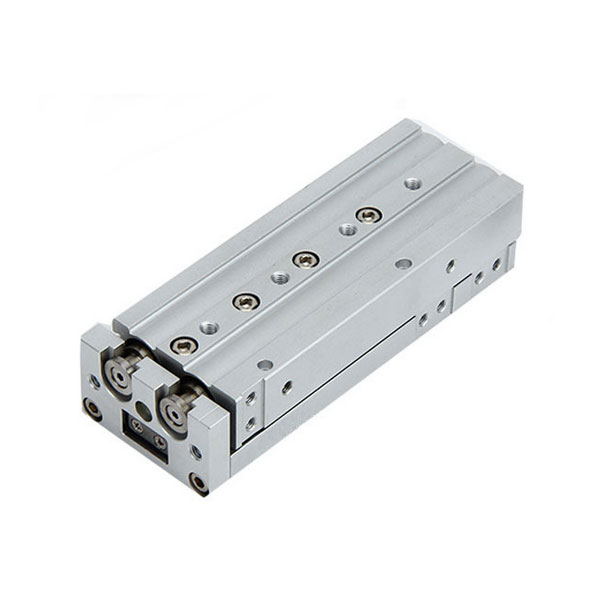

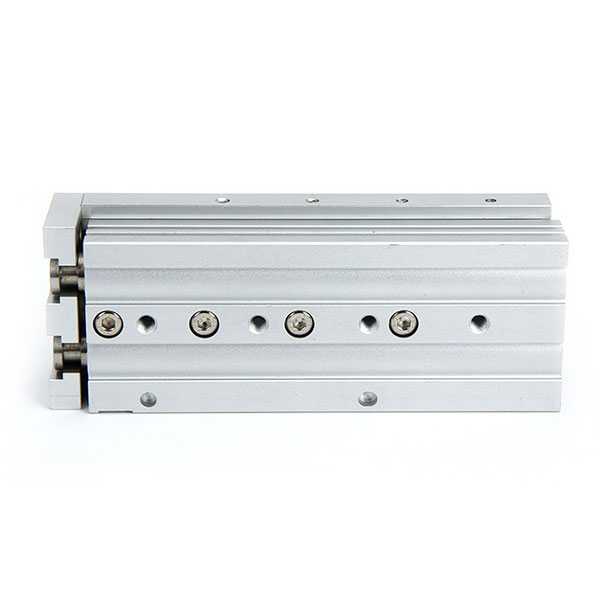

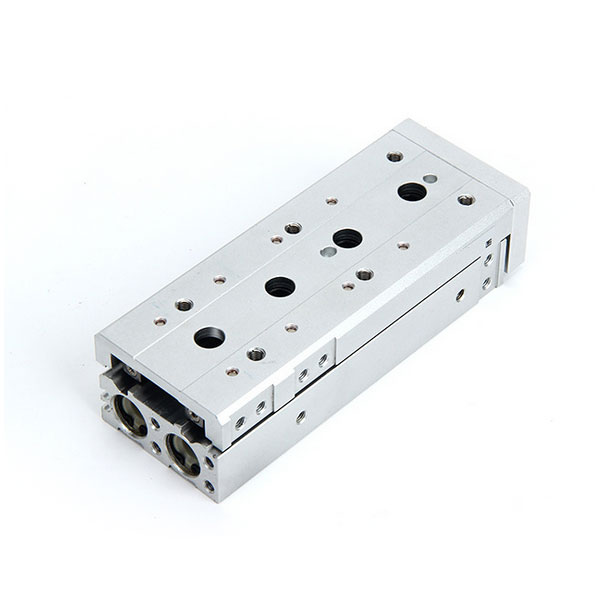

Precision Slide Table Pneumatic Cylinder MXS

MXS Precision Slide Table, double cylinder design, 2 times output force, thin volume. Cylinder and workbench are combined to reduce the overall size; Cross roller guide rail design is adopted, friction is small.

Bore: 6, 8, 12, 16, 20, 25 mm
Motion Pattern: Double-acting
Operating pressure: 0.15~0.7MPa
Piston speed: 50~500mm/s
Ambient and fluid temperature: -10~+60°C

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Overview for MXS Precision Slide Table

MXS Precision Slide Table, double cylinder design, 2 times output force, thin volume. Cylinder and workbench are combined to reduce the overall size; Cross roller guide rail design is adopted, friction is small, there is no gap between the cylinder and workbench, suitable for precision assembly; MXS Precision Slide Table can be installed from three sides. Built in magnetic rings, magnetic switches can be installed.

Product Feature for MXS Precision Slide Table

* Adjustable stroke device is optional (0 ~ 5mm).
* Double cylinder design, 2 times the output force, thin volume.
* The combination of the cylinder and worktable reduces the overall size.
* Cross roller guide design, friction is small, there is no gap between the cylinder and the workshop, suitable for precision assembly.
* Can be installed from three sides.
* Built-in magnetic ring type, can install magnetic switch.

Specification for MXS Precision Slide Table

Model MXS6 MXS8 MXS12 MXS16 MXS20 MXS25
Bore (mm) Φ6×2(About Φ8) Φ8×2(About Φ11) Φ12×2(About Φ17) Φ16×2(About Φ22) Φ20×2(About Φ28) Φ25×2(About Φ35)
Working Medium Air
Motion Pattern Double-acting
Max. Operating Pressure 0.7MPa
Min. Operating Pressure 0.15MPa
Ambient and fluid temp -10~+60℃(No Freezing)
Piston speed 50~500mm/s
Buffer Rubber buffer (standard)
Lubrication Non-lube
Port Size M3×0.5 M5×0.8 Rc1/8

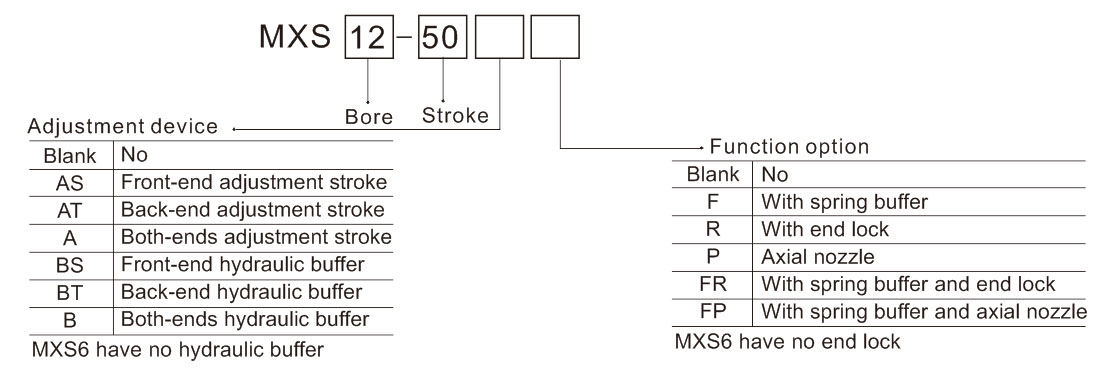

Ordering Code for MXS Precision Slide Table

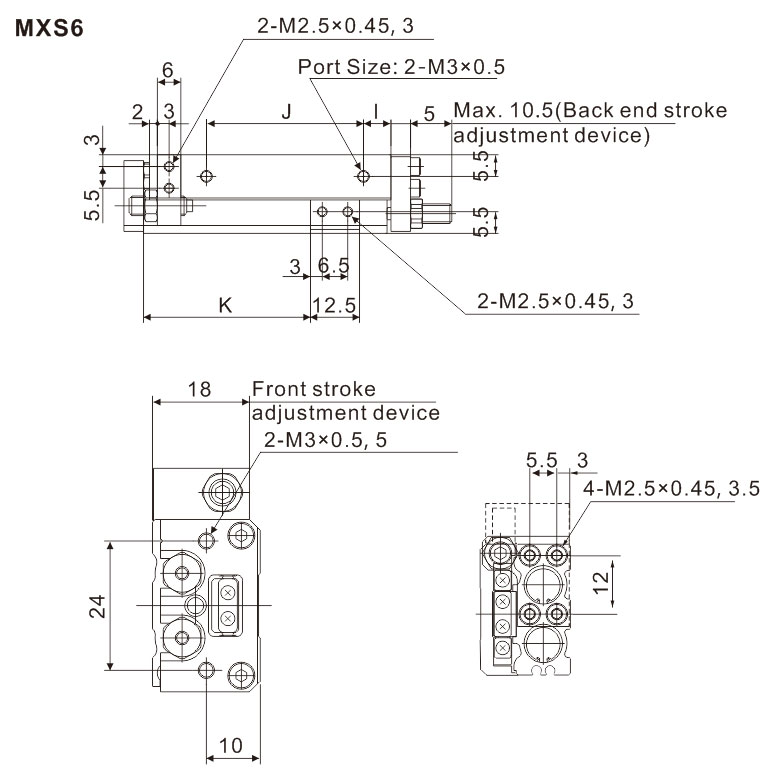

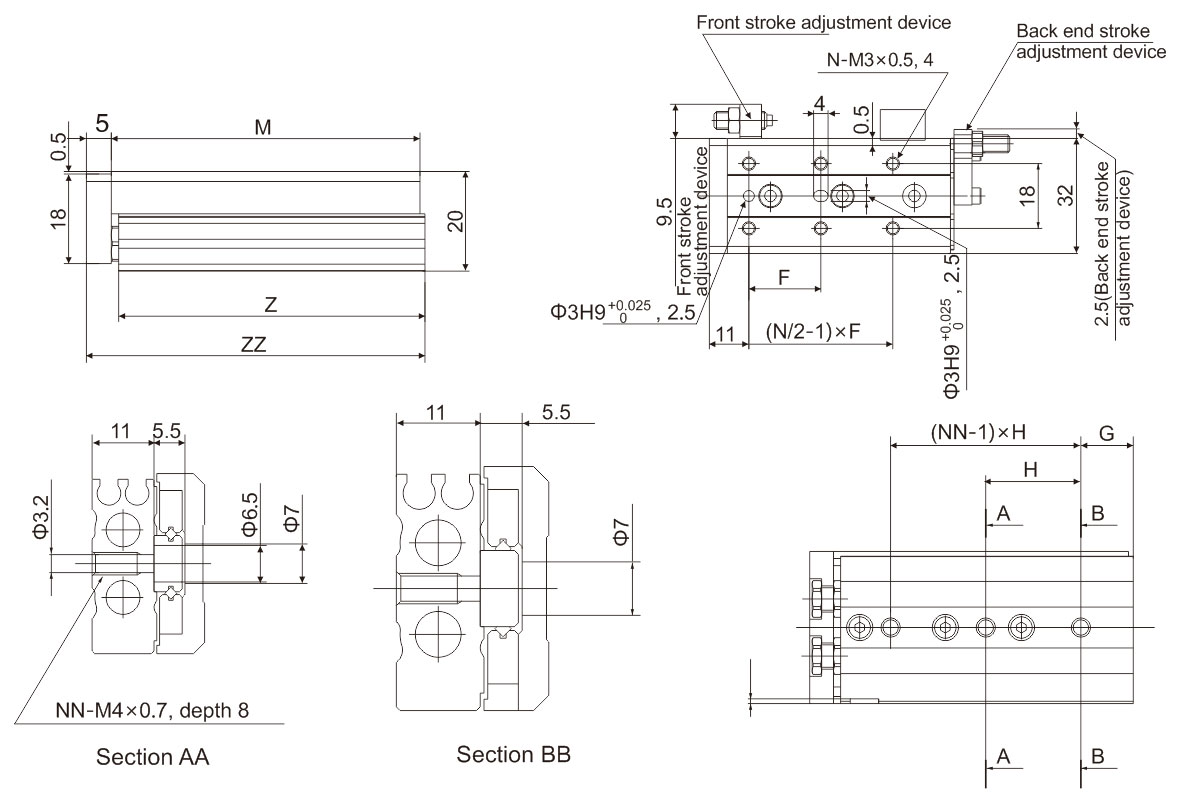

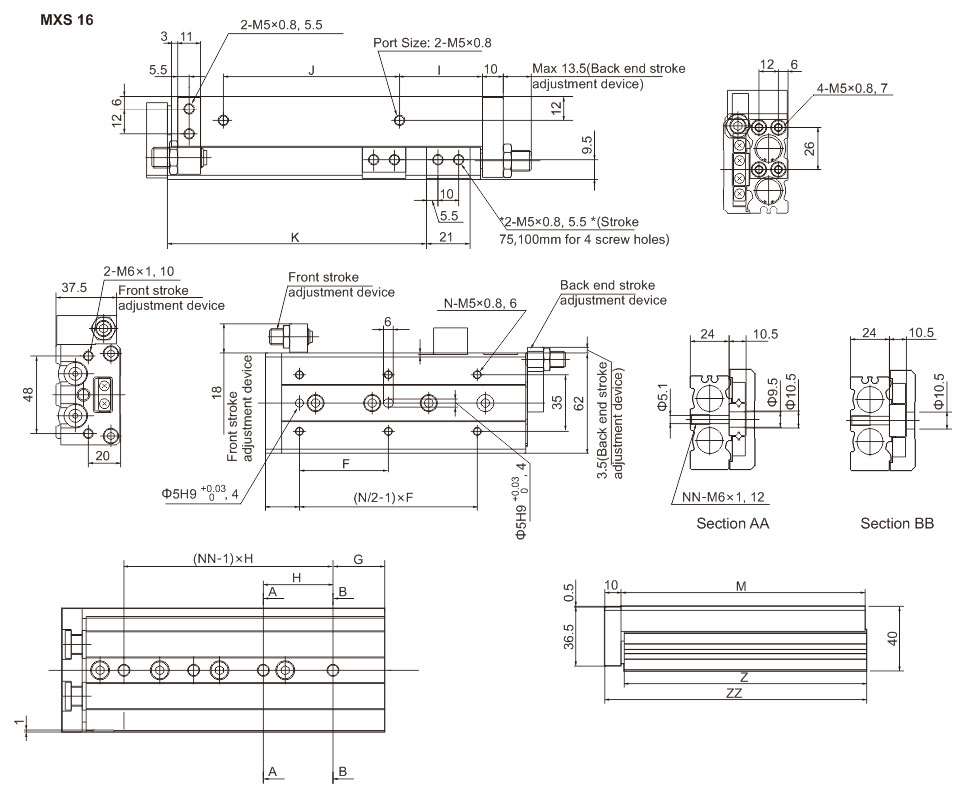

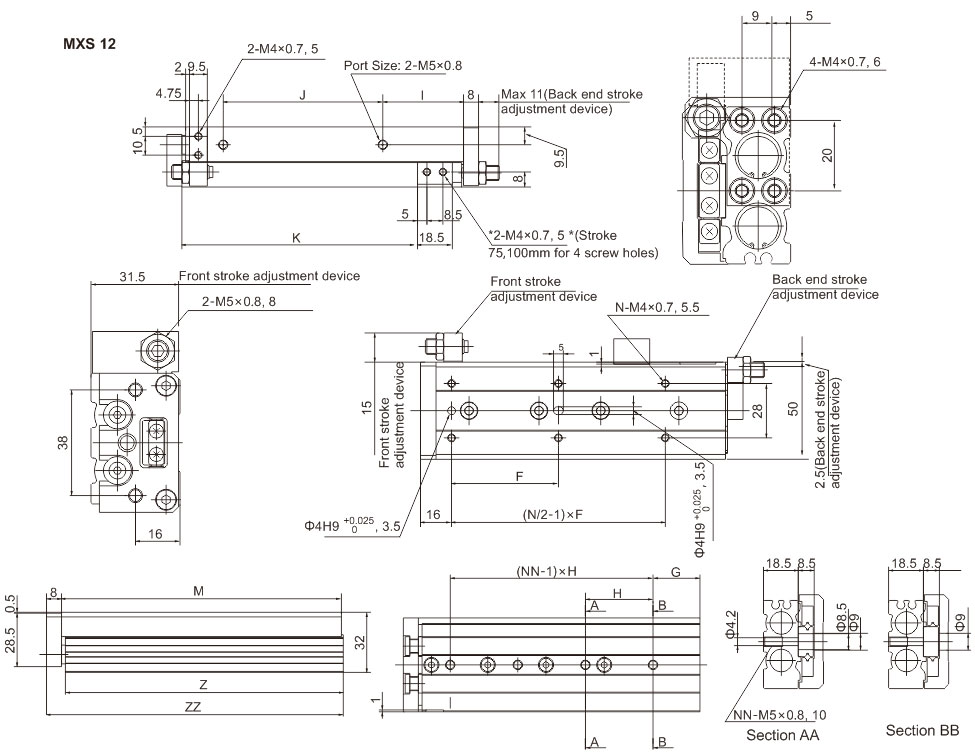

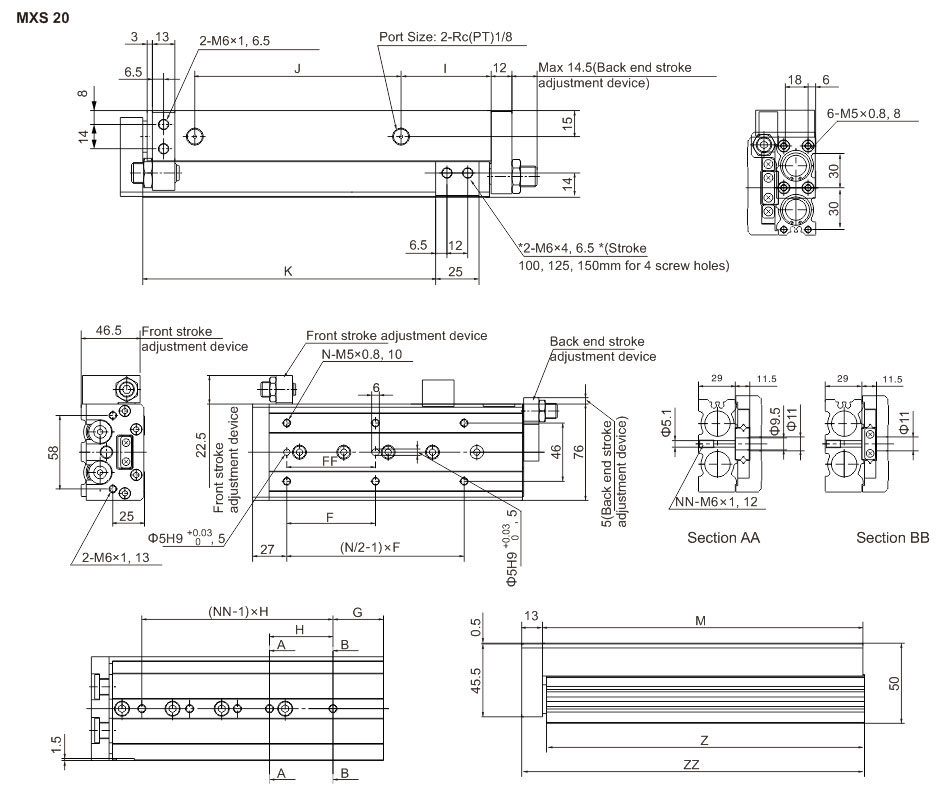

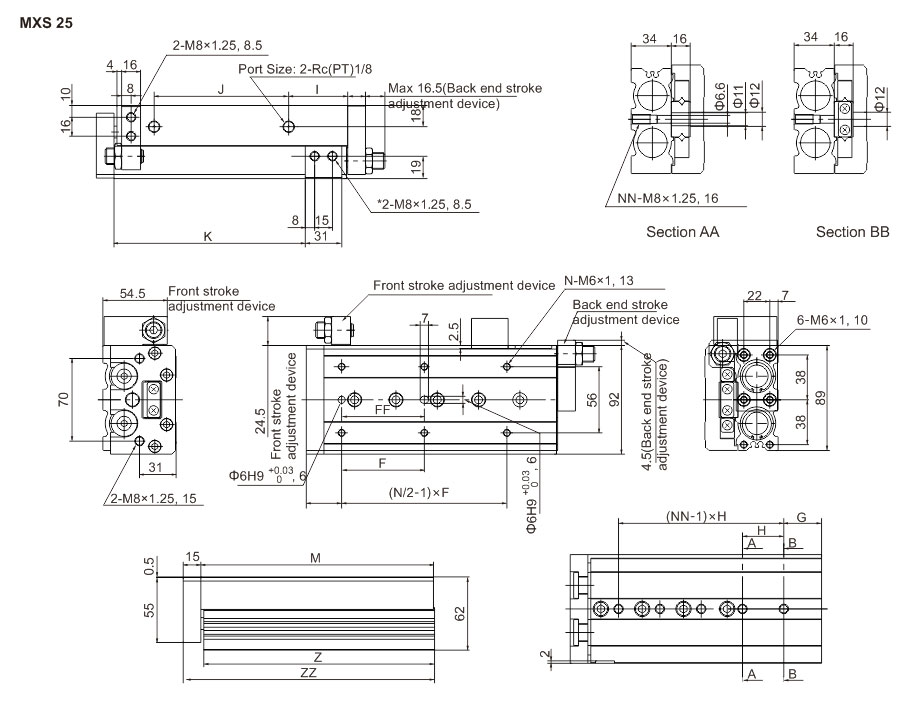

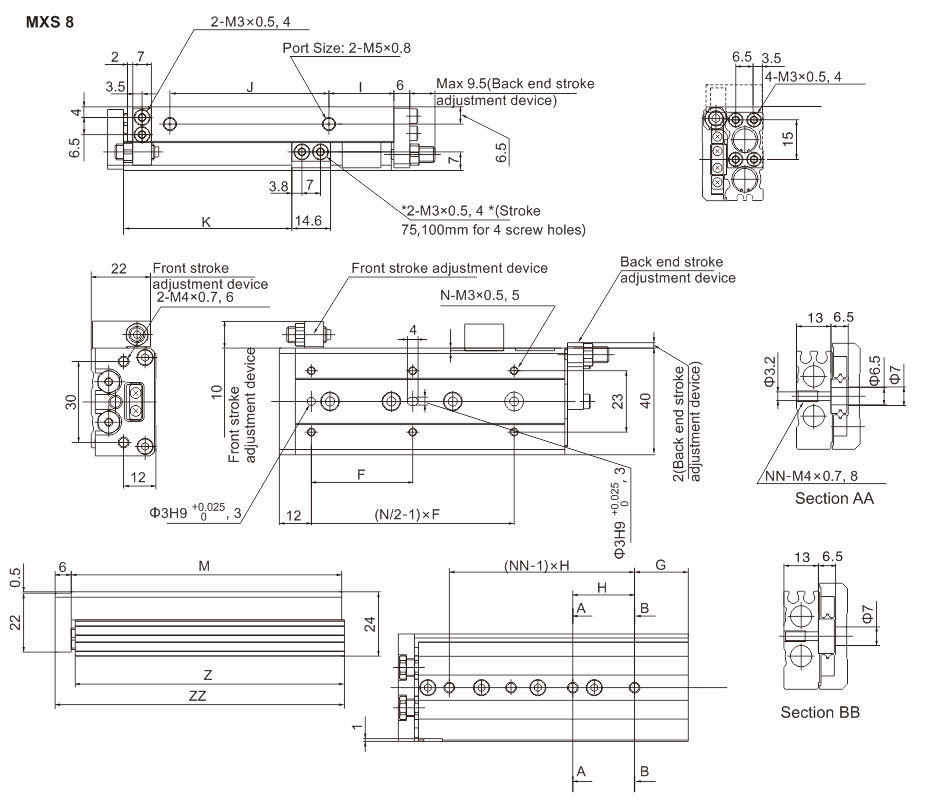

Dimension (mm) for MXS Precision Slide Table

Model F N G H NN I J K M Z ZZ
MXS6-10 20 4 6 25 2 10 17 22.5 42 41.5 48
MXS6-20 30 4 6 35 2 10 27 32.5 52 51.5 58
MXS6-30 20 6 11 20 3 17 40 42.5 62 61.5 68
MXS6-40 28 6 13 30 3 19 50 52.5 84 83.5 90
MXS6-50 38 6 17 24 4 25 60 62.5 100 99.5 106

Model F N G H NN I J K M Z ZZ
MXS8-10 25 4 9 28 2 13 19.5 23.5 49 48.5 56
MXS8-20 25 4 12 30 2 8.5 29 33.5 54 53.5 61
MXS8-30 40 4 13 20 3 9.5 39 43.5 65 64.5 72
MXS8-40 50 4 15 28 3 10.5 56 53.5 83 82.5 90
MXS8-50 38 6 20 23 4 24.5 60 65.3 10 100.5 108
MXS8-75 50 6 27 28 5 38.5 96 88.5 151 150.5 158

Model F N G H NN I J K M Z ZZ
MXS12-10 35 4 15 40 2 10 40 26.5 71 70 80
MXS12-20 35 4 15 40 2 10 40 36.5 71 70 80
MXS12-30 35 4 15 40 2 10 40 46.5 71 70 80
MXS12-40 50 4 17 25 3 10 52 56.5 83 82 92
MXS12-50 35 6 15 36 3 22 60 66.5 103 102 112
MXS12-75 55 6 25 36 4 43 85 91.5 149 148 158
MXS12-100 65 6 35 38 5 52 130 116.5 203 202 212

Model F N G H NN I J K M Z ZZ
MXS16-10 35 4 16 40 2 10 40 29 76 75 87
MXS16-20 35 4 16 40 2 10 40 39 76 75 87
MXS16-30 35 4 16 40 2 10 40 49 76 75 87
MXS16-40 40 4 16 50 2 10 50 59 86 85 97
MXS16-50 30 6 21 30 3 15 60 69 101 100 112
MXS16-75 55 6 26 35 4 40 85 94 151 150 162
MXS16-100 65 6 39 35 5 55 118 119 199 198 210
MXS16-125 70 8 19 35 7 68 155 144 249 248 260

Model F FF N G H NN I J K M Z ZZ
MXS20-10 50 40 4 15 45 2 10 44 31 83 81.5 97
MXS20-20 50 40 4 15 45 2 10 44 41 83 81.5 97
MXS20-30 50 40 4 15 45 2 10 44 51 83 81.5 97
MXS20-40 60 50 4 15 55 2 10 54 61 93 91.5 107
MXS20-50 35 35 6 15 35 3 10 69 71 108 106.5 122
MXS20-75 60 60 6 19 35 4 10 108 96 147 145.5 161
MXS20-100 70 70 6 37 35 5 58 113 121 200 198.5 214
MXS20-125 70 70 8 41 38 6 70 155 146 254 252.5 268
MXS20-150 80 80 8 19 44 7 87 190 171 306 304.5 320

Model F FF N G H NN I J K M Z ZZ
MXS25-10 50 40 4 22 45 2 12 47 35 92 90.5 108
MXS25-20 50 40 4 22 45 2 12 47 45 92 90.5 108
MXS25-30 50 40 4 22 45 2 12 47 55 92 90.5 108
MXS25-40 60 50 4 22 55 2 12 57 65 102 100.5 118
MXS25-50 35 35 6 20 35 3 12 70 75 115 113.5 131
MXS25-75 60 60 6 26 35 4 33 90 100 156 154.5 172
MXS25-100 70 70 6 32 35 5 50 114 125 197 195.5 213
MXS25-125 75 75 8 40 38 6 67 155 150 255 253.5 271
MXS25-150 80 80 8 30 40 7 82 180 175 295 293.5 311
