LTV TV Lifting Column

LTV TV Lifting Column

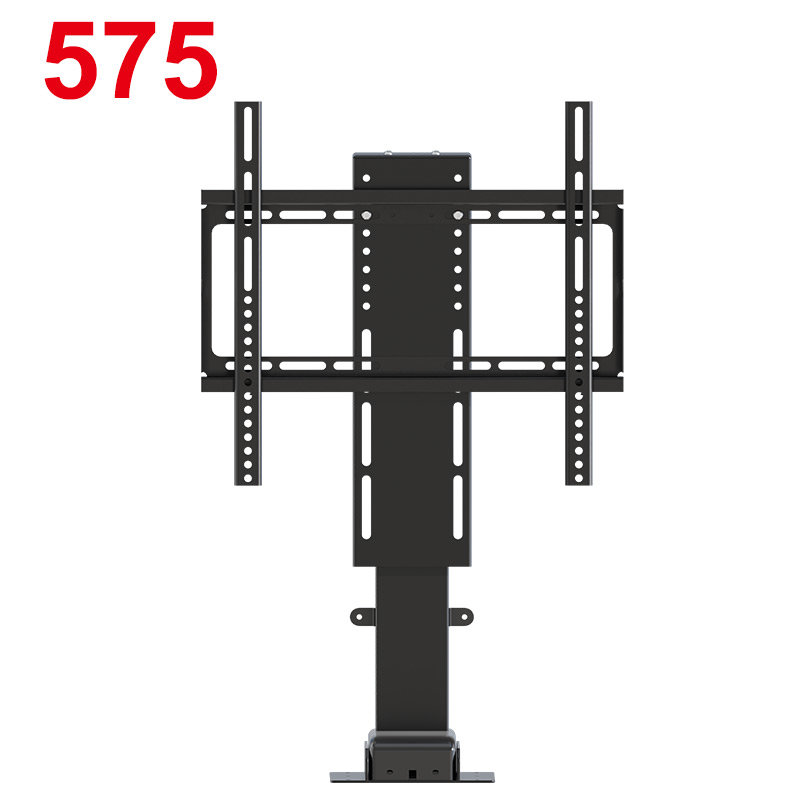

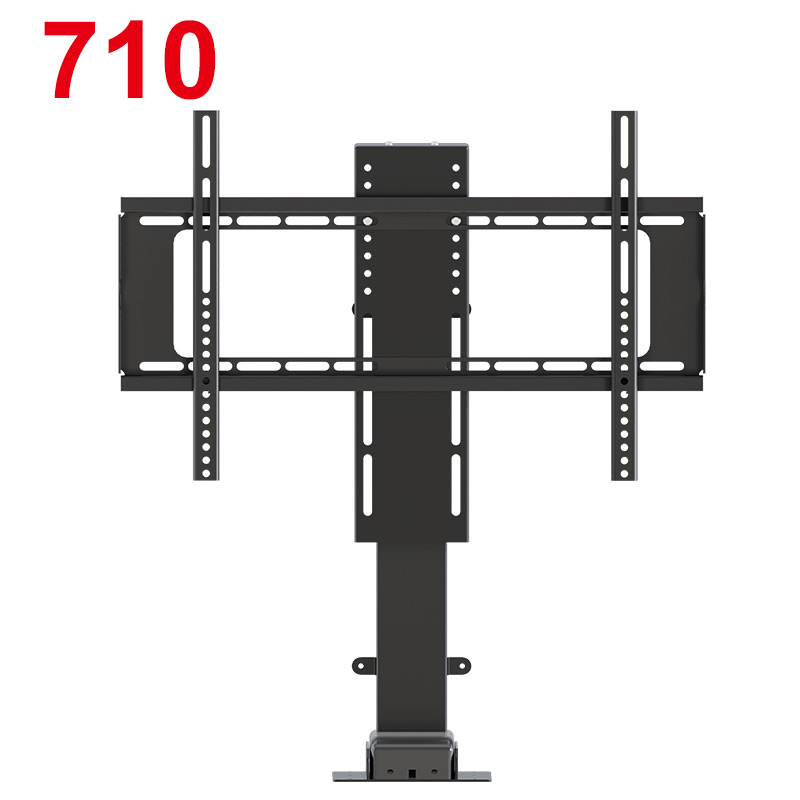

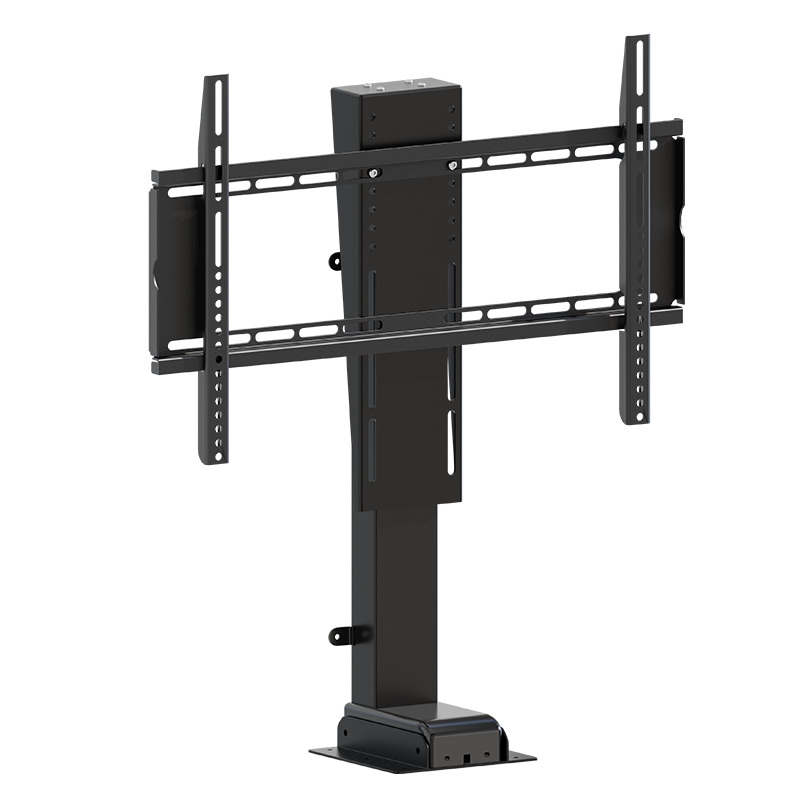

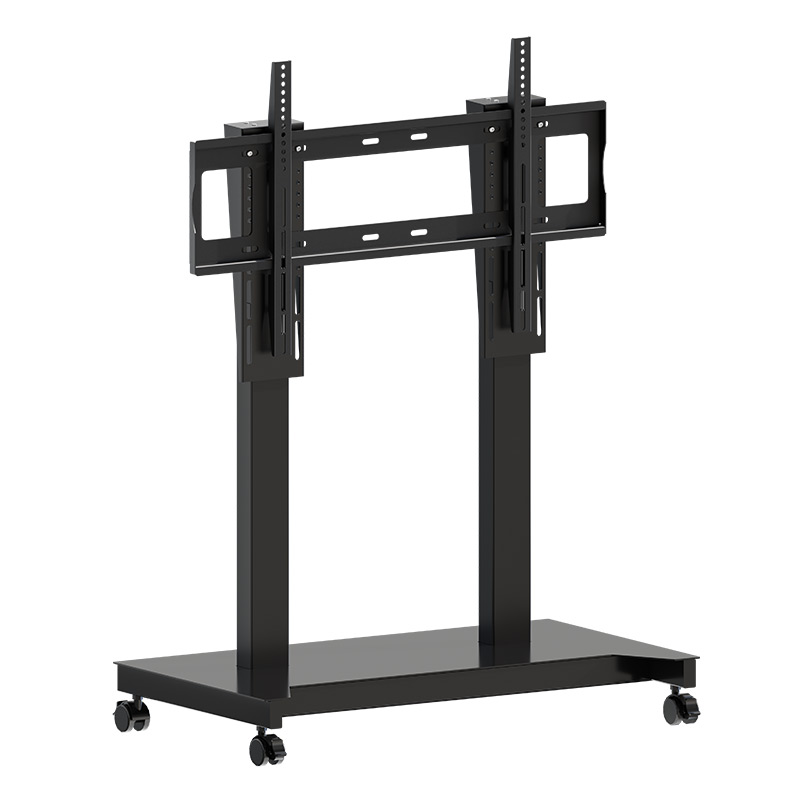

LTV TV lift are divided into four types, there are cabinet-mounted TV lifts TV575, TV710, TV850, mobile TV lifts TV800Y and double-pillar TV lifts TV710Y-2. It is easy to operate, flexible and convenient, and reliable in work.

Volatge: AC110-240V Turn DC32V (with controller power supply)
Maximum Load:100kg/120kg/75kg/160kg
Speed: 25MM/S
Operating Frequency: 10% Work System, Max 5 Minutes Continue Working
Section: 3

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

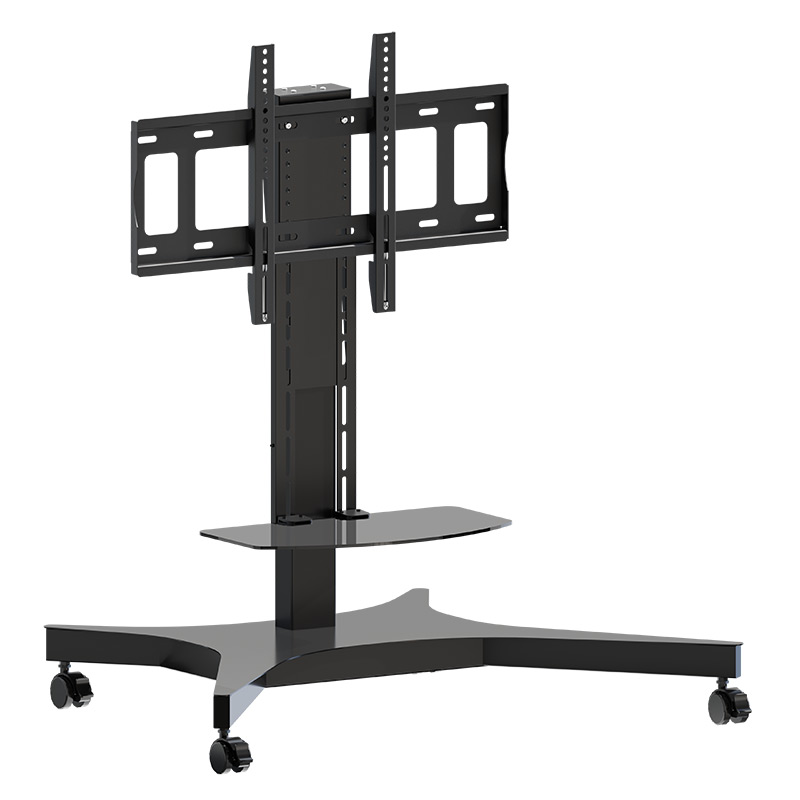

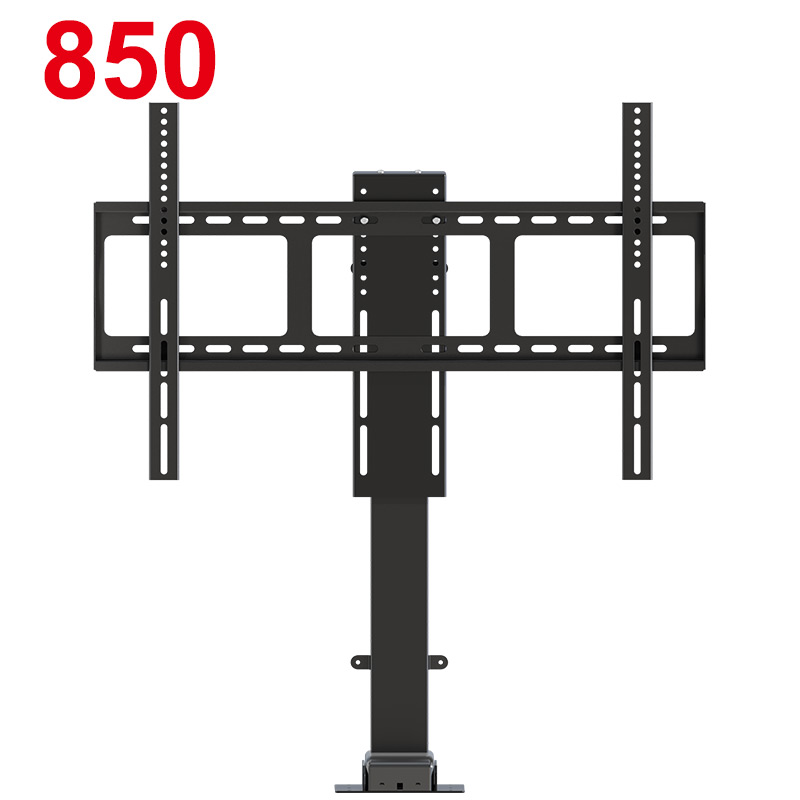

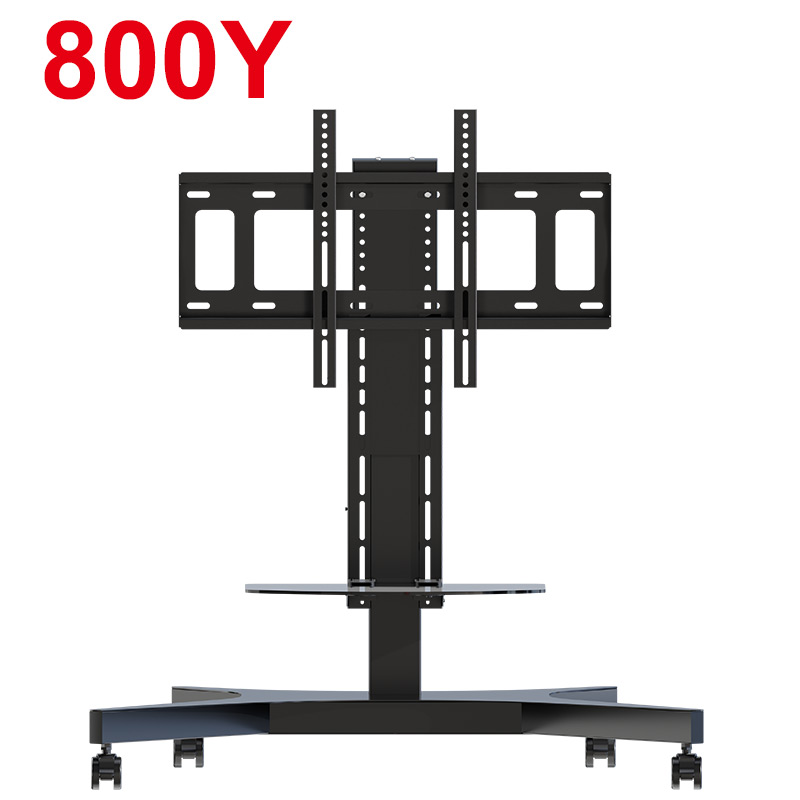

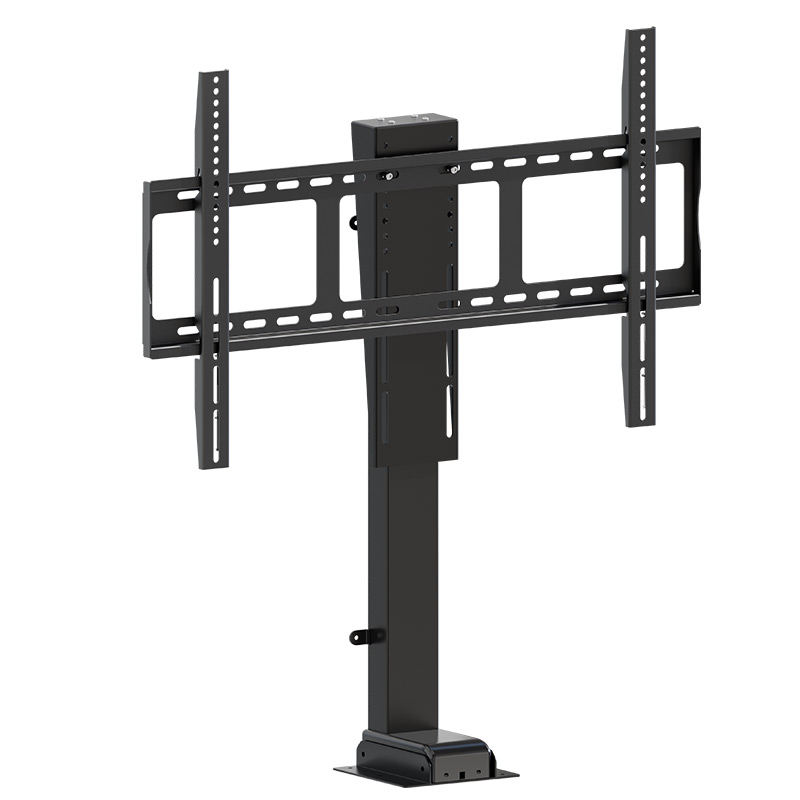

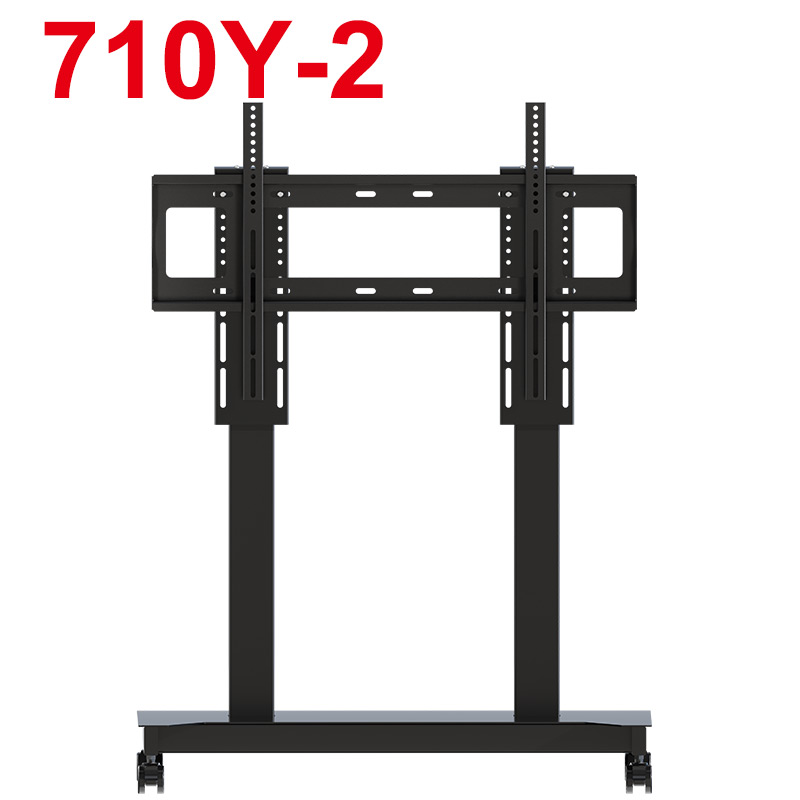

LTV TV lift are divided into four types, there are cabinet-mounted TV lifts TV575, TV710, TV850, mobile TV lifts TV800Y and double-pillar TV lifts TV710Y-2. The products are ergonomic, adjustable in height, and can be controlled by mobile phone Bluetooth remote control and remote control. Suitable for 32-75 inch LED TVs. The elevator is used in hotels, yachts, multimedia conference rooms, exhibition halls and other places. When you want to enjoy TV programs, the TV will rise from the TV cabinet through the remote control, it is an excellent accessory for office homes equipment. The product is made of steel and linear actuators, and the running noise is lower through linear bearing transmission, the product structure is reasonable and the appearance is beautiful. It is easy to operate, flexible and convenient, and reliable in work.

TECHNICAL PARAMETERS

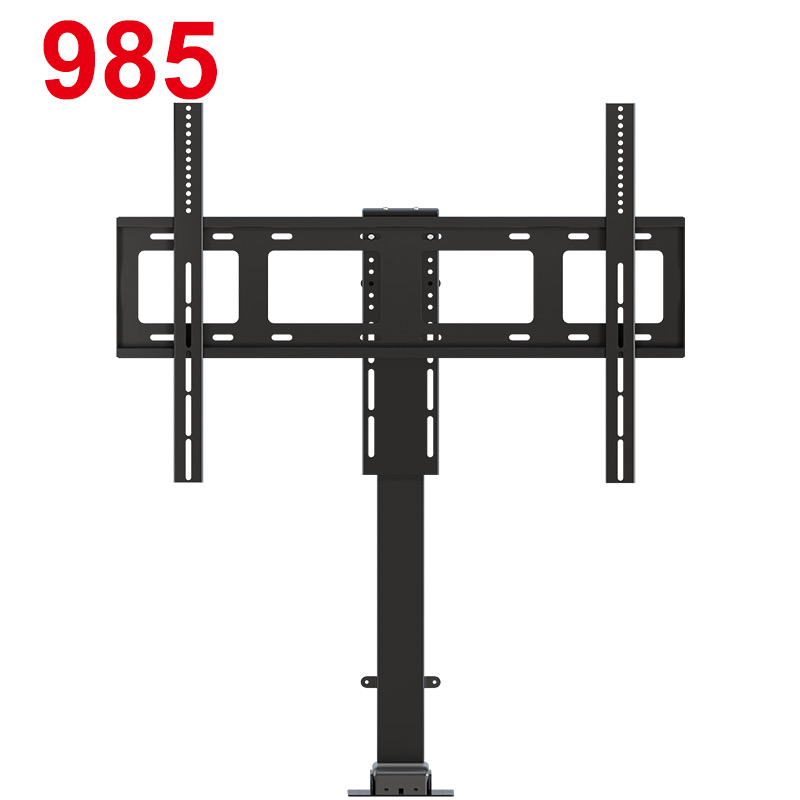

ModelLTV575LTV710LTV850LTV985LTV800YLTV710Y-2
Initial Height (MM)575710850985800800
Final Height (MM)122516102050248517001700
Stroke Length (MM)65090012001500900900
TV Stand Size (Inch)30-6030-6540-8040-10030-6530-65
TV Maximum Height (MM)60085011501400850850
Section333333
Maximum Load100KG/220lb120KG/264lb75KG/165lb160KG/350lb
VoltageAC110-240V Turn DC32V (with controller power supply)
Speed25MM/S
Operating Temperature-15°C~+65°C
Limit SwitchesNone
Operating Frequency10% Work System, Max 5 Minutes Continue Working
ColorBlack
Carton Size (MM)L:790*W:300*H:210

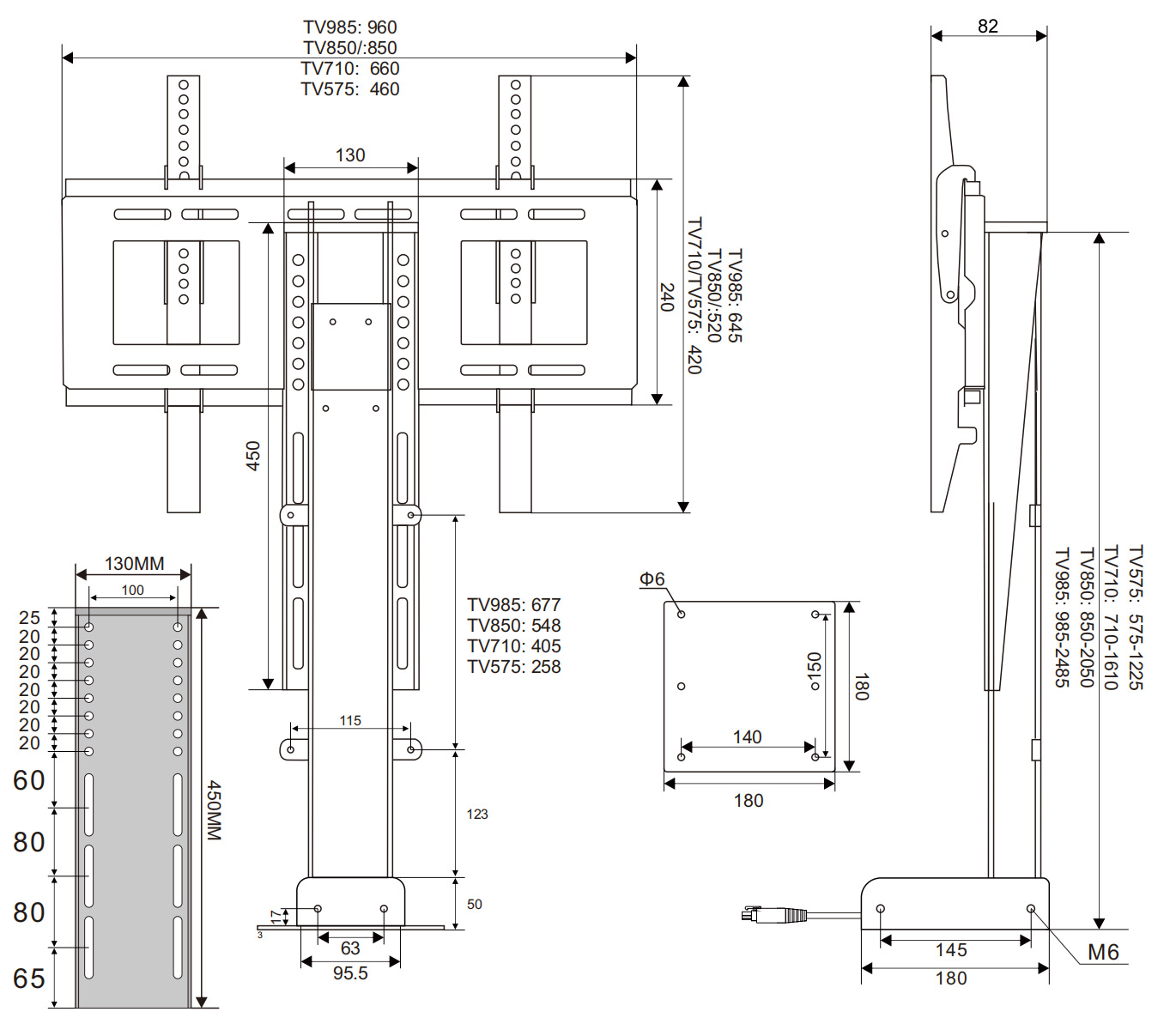

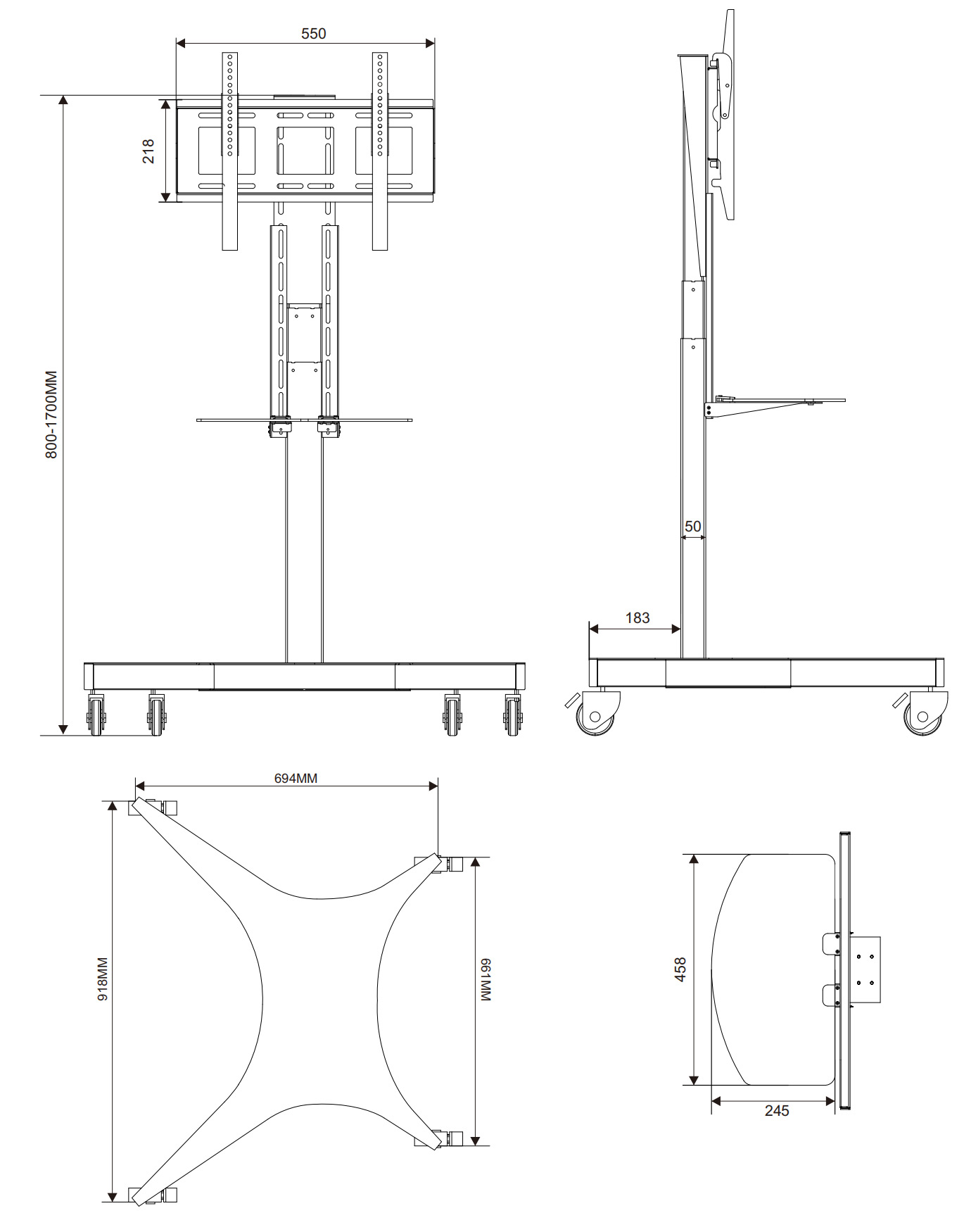

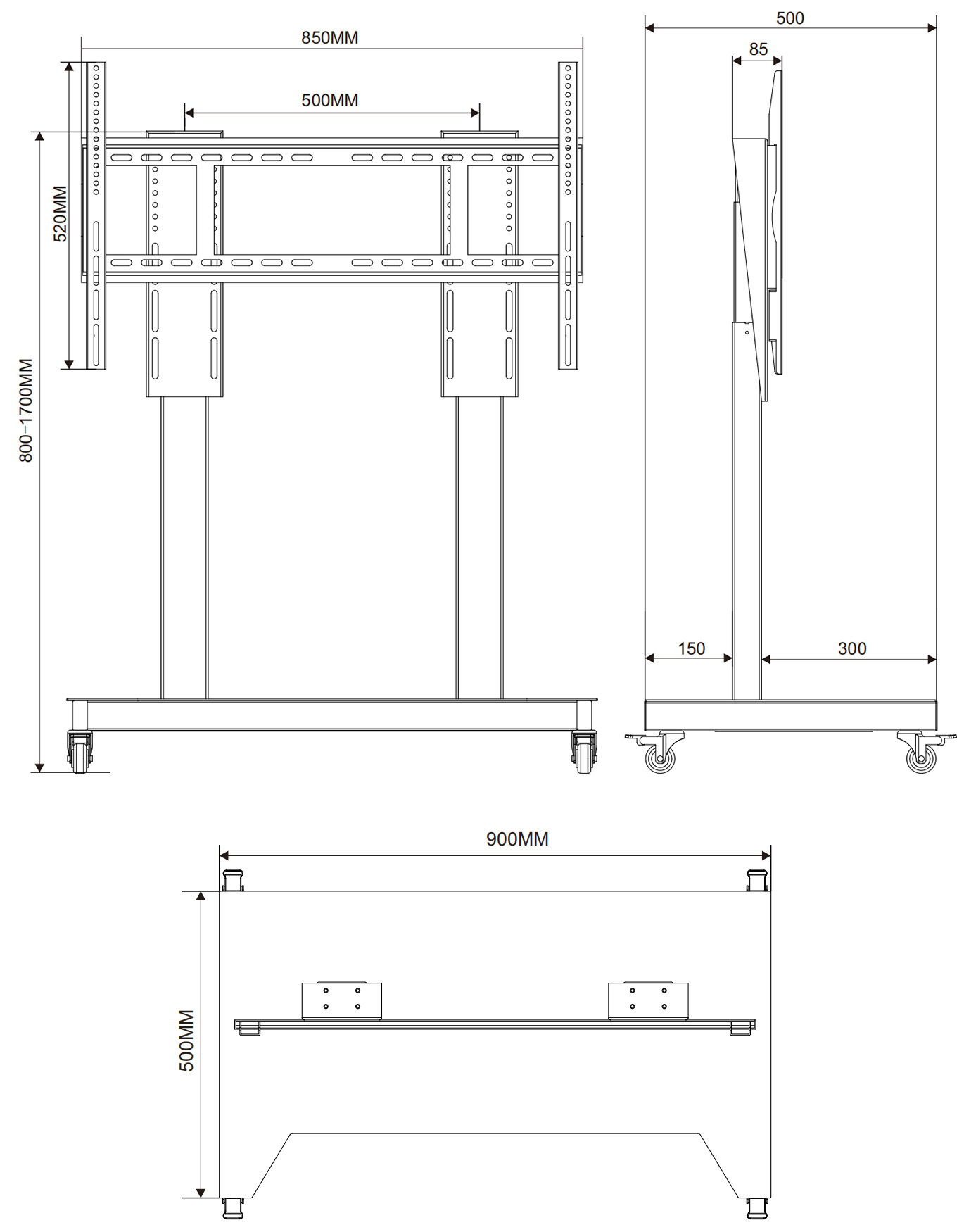

OUTLINE DIMENSION DRAWING
