LT4-BK Electric Lift Table

LT4-BK Electric Lift Table

Volatge: AC100~240V to DC24V
Load Capacity: 2400N/240kg
IP Grade: IP54
Height Adjustable Range: 700~1200MM / 610~1260MM / Customized (710~1610MM / 850~2020MM / 985~2455MM)
Board Adjustable Range: 1210~2010MM
Width: 700MM / 800MM / 900MM

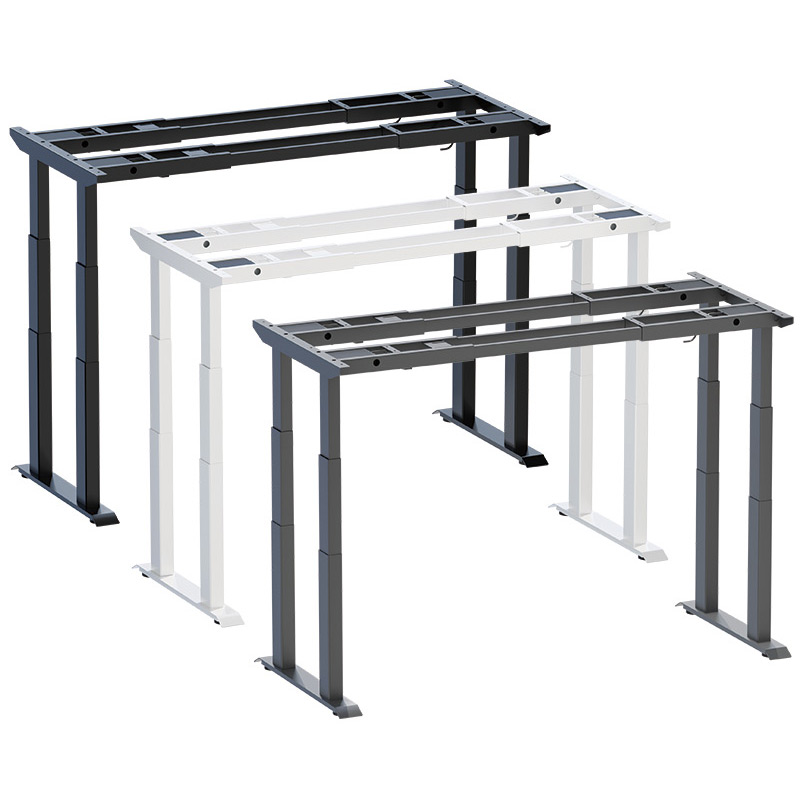

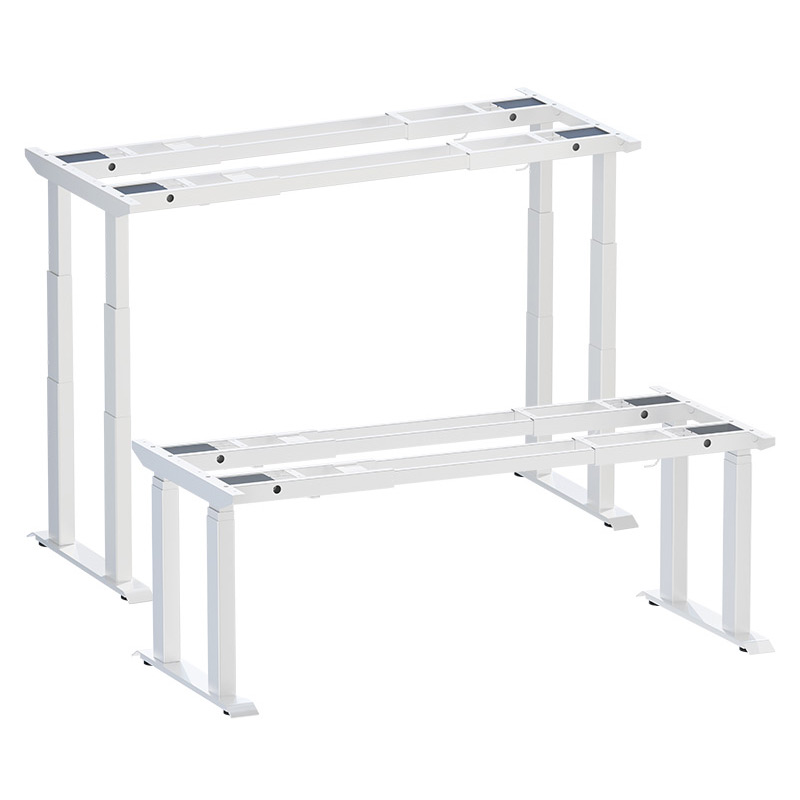

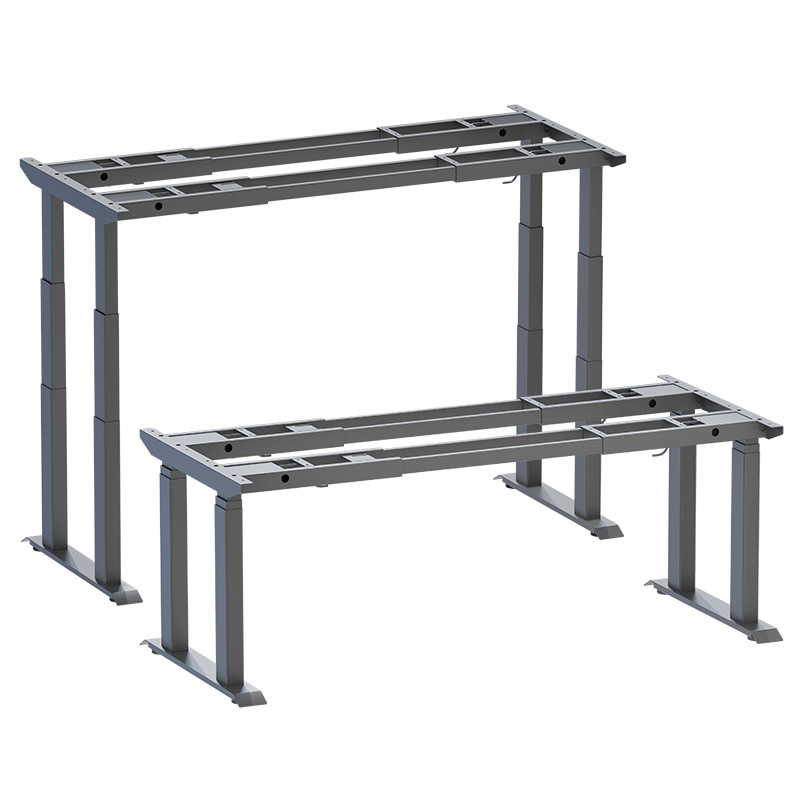

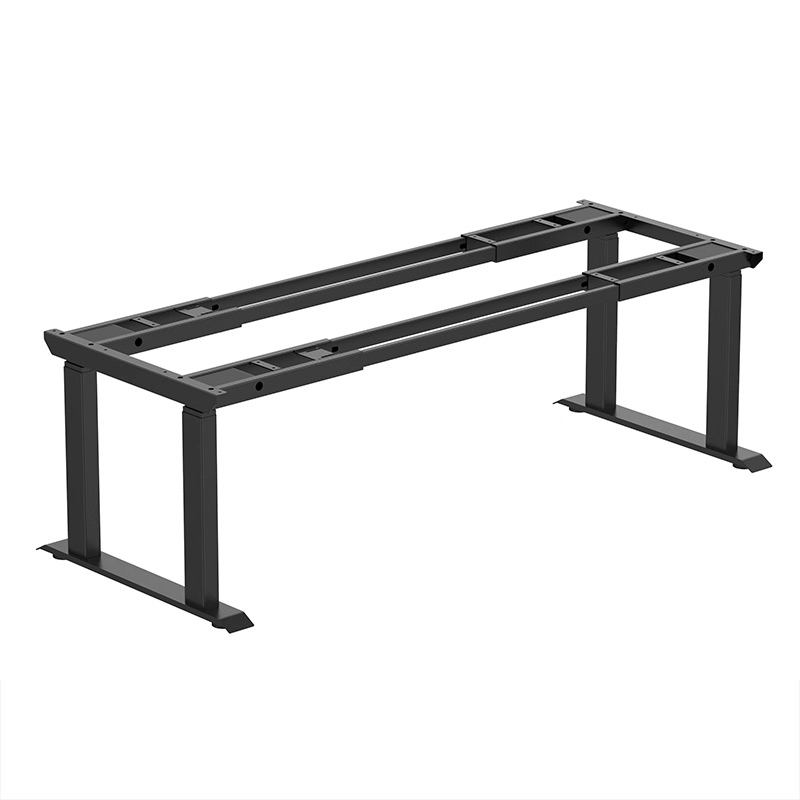

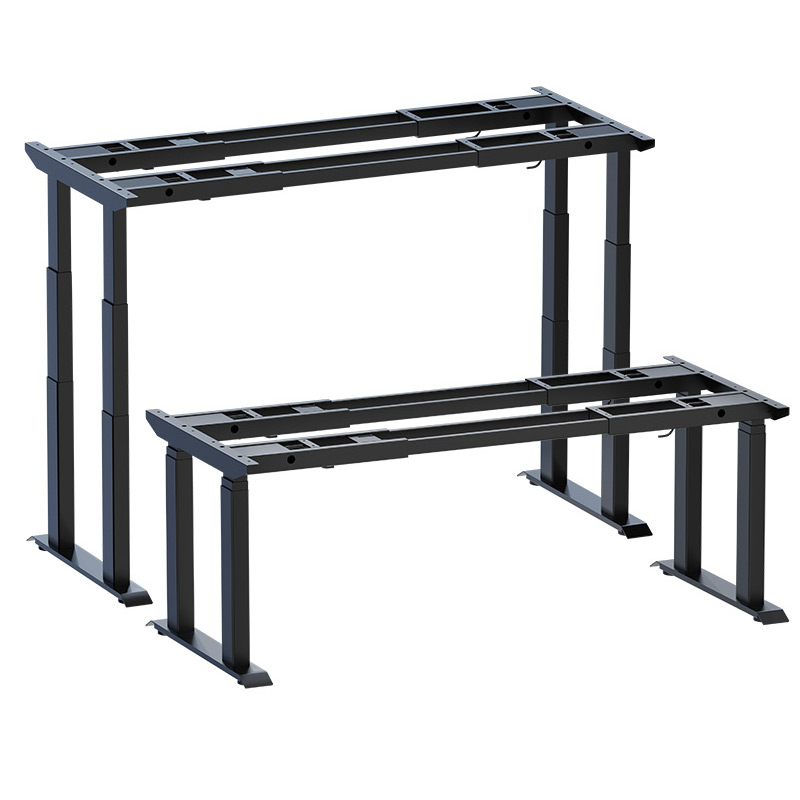

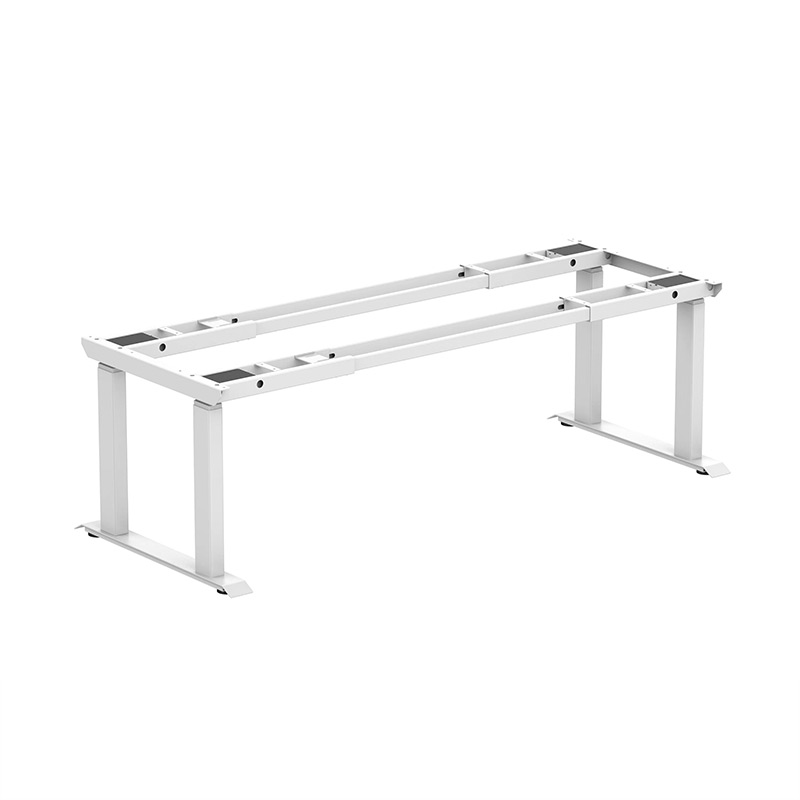

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Technical Parameters

ModelLT4-BK
VoltageAC100~240V to DC24V
Height Adjustable Range700~1200MM / 610~1260MM / Customized (710~1610MM / 850~2020MM / 985~2455MM)
Board Adjustable Range1210~2010MM
Width700MM / 800MM / 900MM
Number Of Motors4
Section4
Load Capacity2400N | 240kg
No-load Speed25MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color

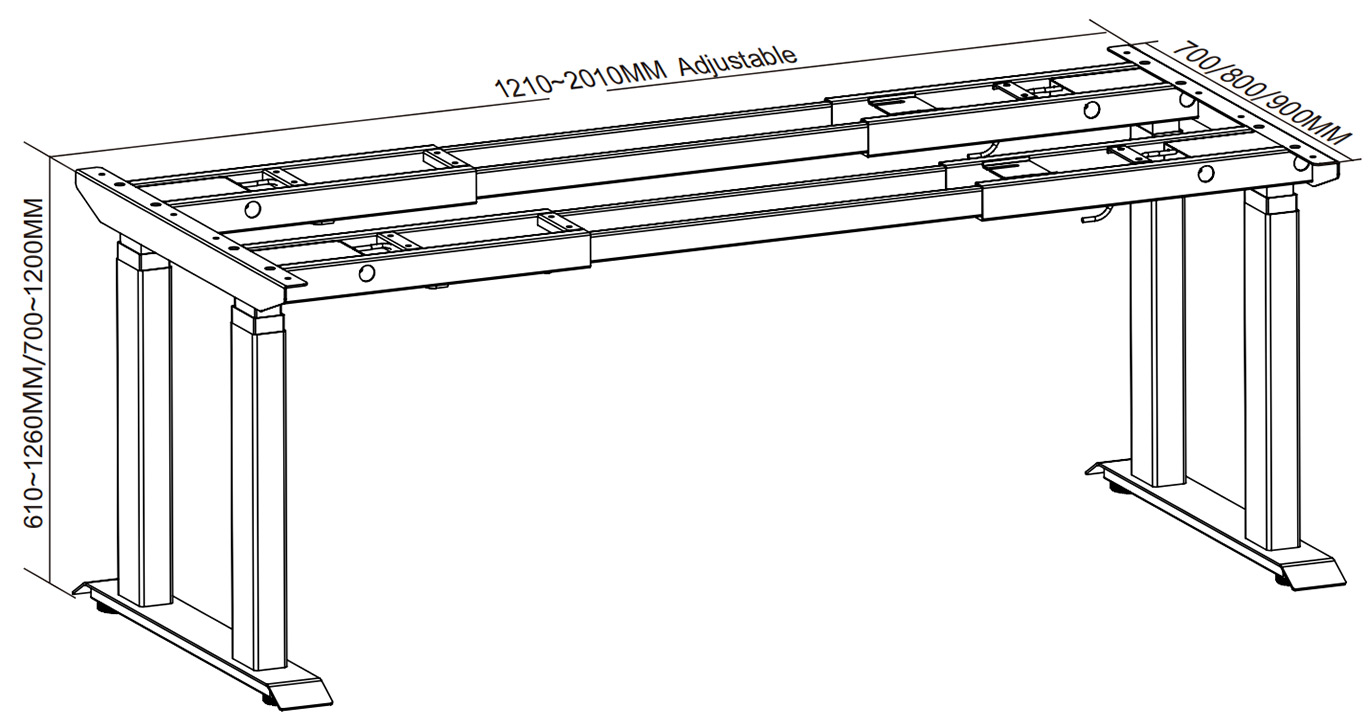

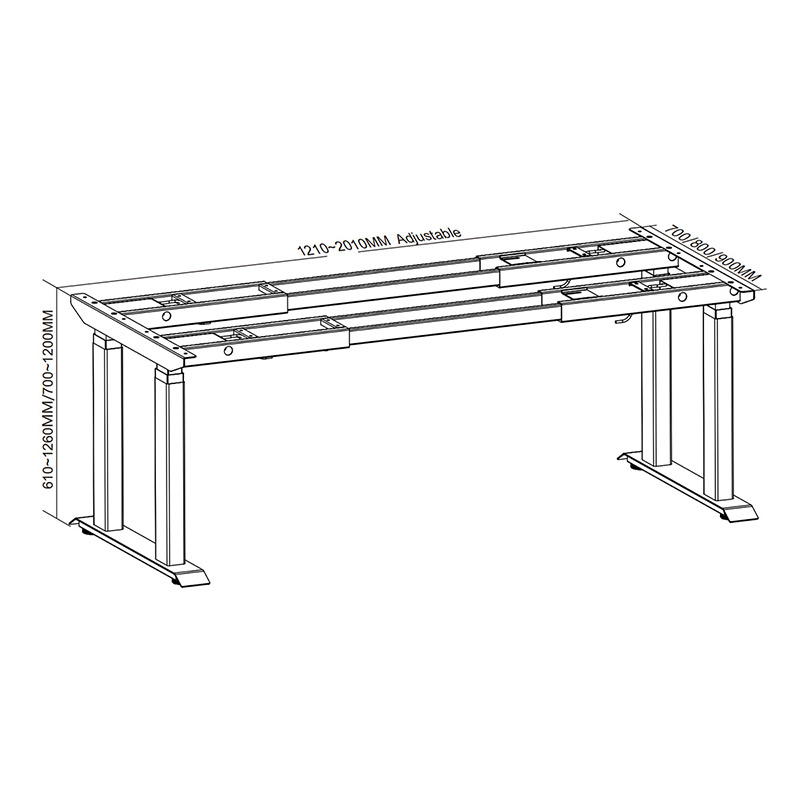

Outline Dimension Drawing
