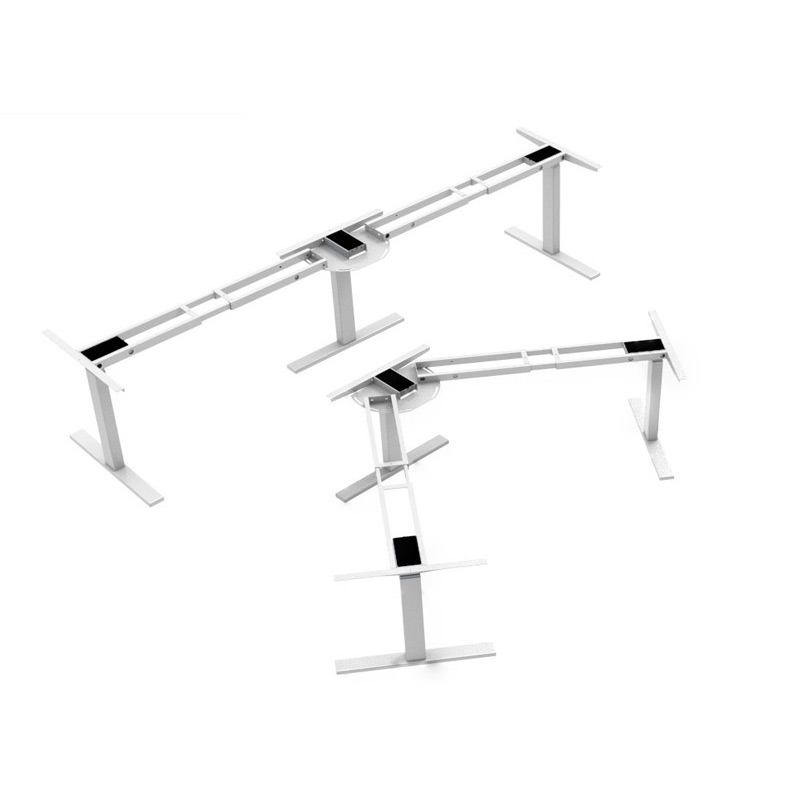

LT3-L3 L-shaped Lifting Table

LT3-L3 L-shaped Lifting Table

LT3-L3 lifting table silent lifting does not disturb others, lifting does not jam.Strong bearing capacity, stable and firm, slow stop slow start, use more secure.

Volatge: AC100~240V to DC24V
Load Capacity: 2400N/240kg
IP Grade: IP54
Height Adjustable Range: 610~1260MM
Board Adjustable Range: L1080mm*W265mm*H185mm + L790mm*W400mm *H160mm

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT3-L3 lifting table silent lifting does not disturb others, lifting does not jam.Strong bearing capacity, stable and firm, slow stop slow start, use more secure. Simple and beautiful appearance, suitable for the majority of people to use.

Product Features

● Column: Three columns
● Load Capacity: 2400N
● Speed: 32mm/s
● Input Voltage: 110-240V widely voltage
● Memory position: 4 memory position set
● Brilliant digital LED display indicates height selection
● Smooth and gentle soft-start and soft-stop
● Anti-collision technology to prevent damage
● Duty Cycle: 10% max 2 min, continuous use

ModelLT3-L3
VoltageAC100~240V to DC24V
Height Adjustable Range610~1260MM
Board Adjustable RangeL1080mm*W265mm*H185mm + L790mm*W400mm *H160mm
Width575MM
Number Of Motors3
Section3
Load Capacity2400N | 240kg
No-load Speed32MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color

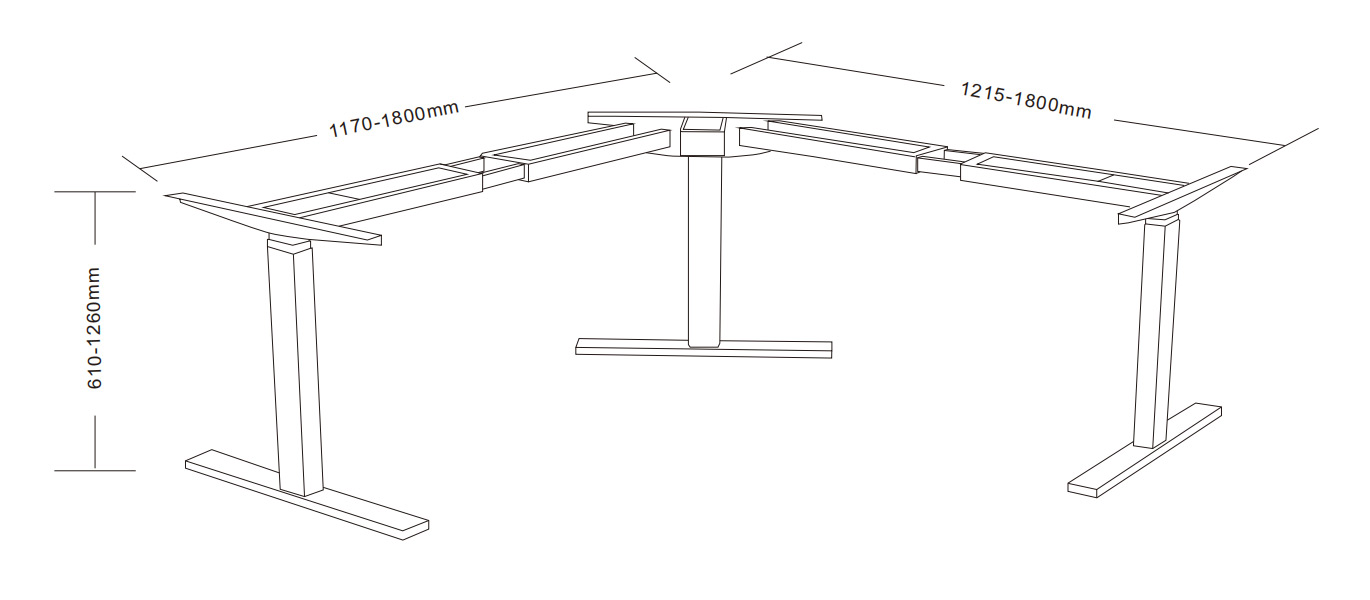

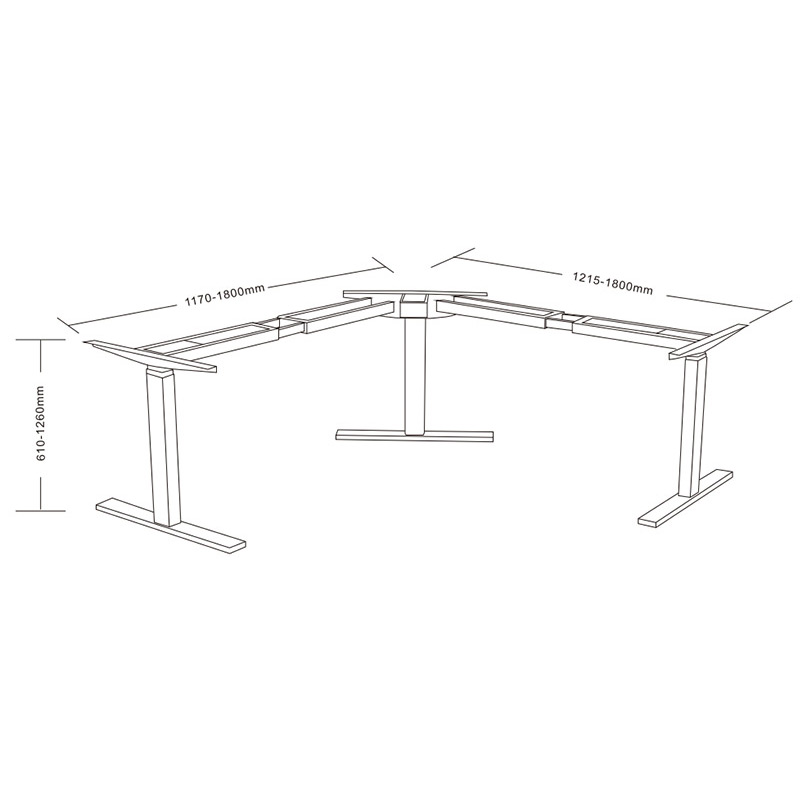

Outline Dimension Drawing
