LT3-L2 Electric Lift Table

LT3-L2 Electric Lift Table

LT3-L2 elevating table, as a new technological innovation and invention product, has a huge impact on human scientific and technological progress.

Volatge: AC100~240V to DC24V
Load Capacity: 2400N/240kg
IP Grade: IP54
Height Adjustable Range: 610~1260MM
Board Adjustable Range: L1080mm*W265mm*H185mm + L790mm*W400mm *H160mm

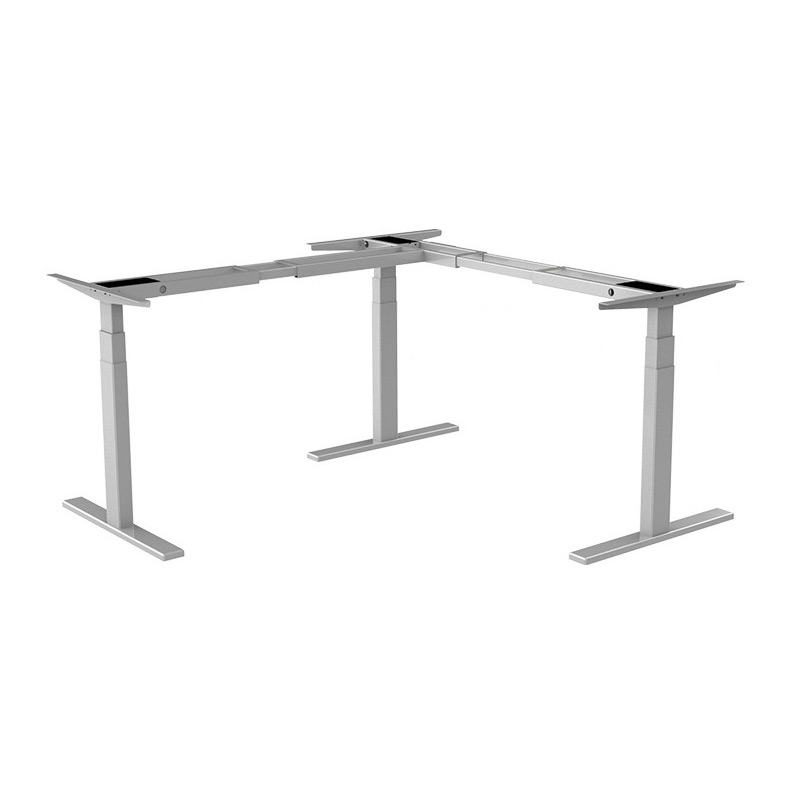

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT3-L2 elevating table, as a new technological innovation and invention product, has a huge impact on human scientific and technological progress. Now elevating table has been used by a large number of people, all need to adjust the position of the occasion, can use elevating table. This product is suitable for office workers, such as Internet workers, educators, writers, advertising media professionals and game lovers.

Technical Parameters

ModelLT3-L2
VoltageAC100~240V to DC24V
Height Adjustable Range610~1260MM
Board Adjustable RangeL1080mm*W265mm*H185mm + L790mm*W400mm *H160mm
Width575MM
Number Of Motors3
Section3
Load Capacity2400N | 240kg
No-load Speed32MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color

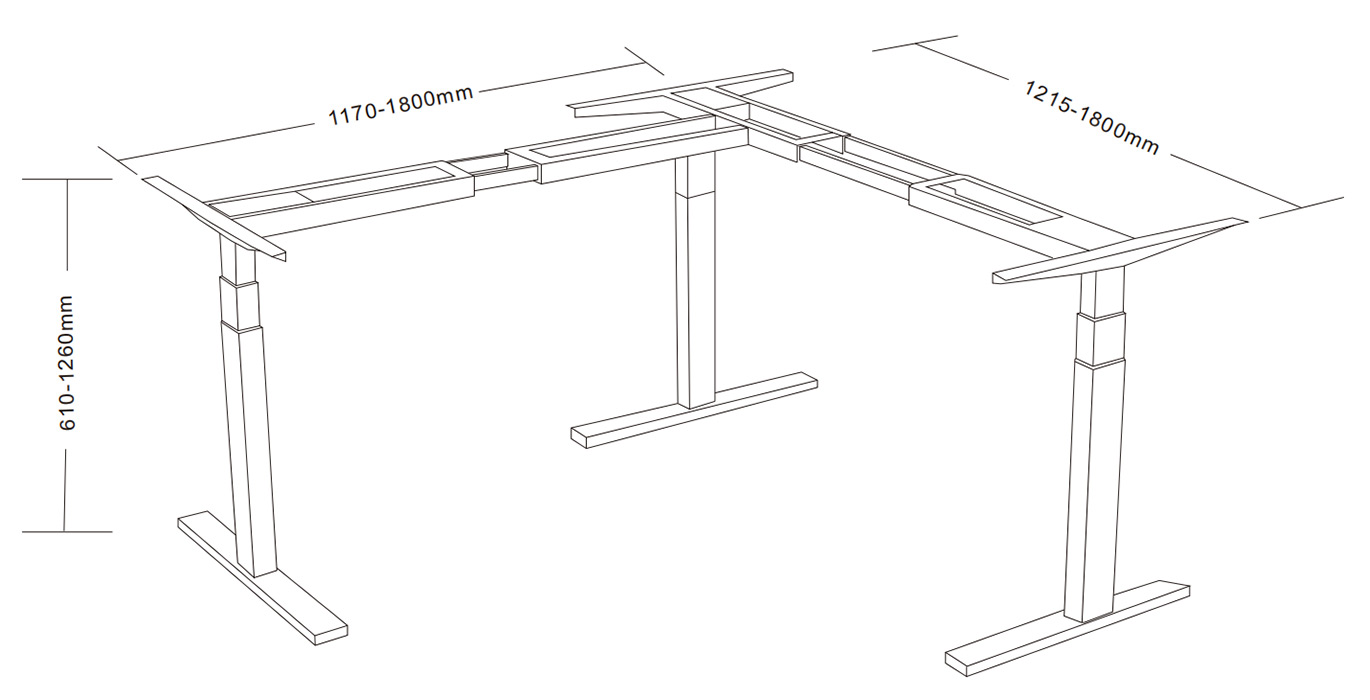

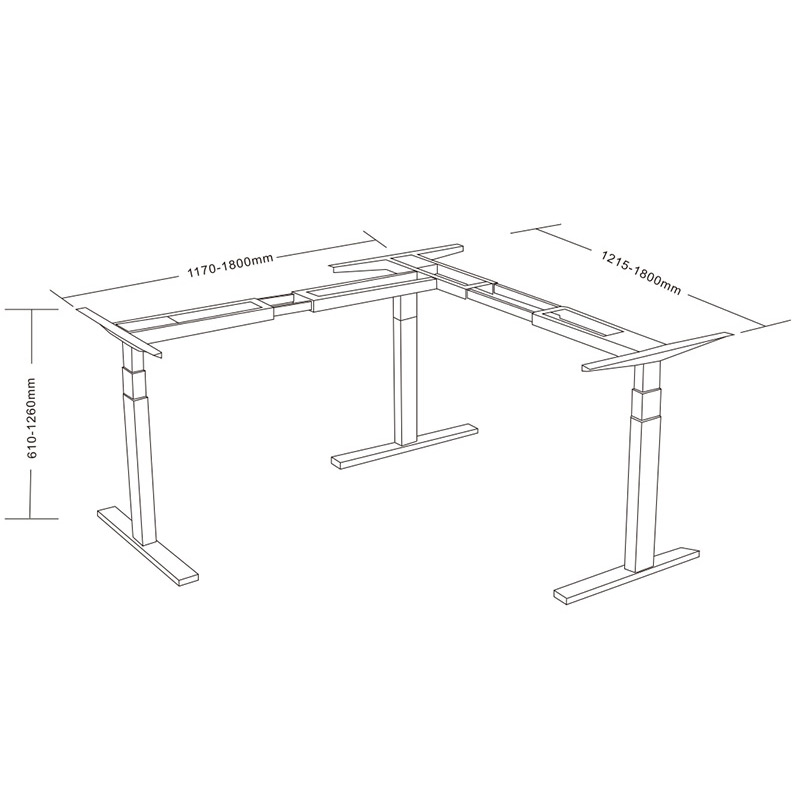

Outline Dimension Drawing
