LT3-I3 Electric Conference Lifting Table

LT3-I3 Electric Conference Lifting Table

LT3-I3 lifting table is a lifting table born to protect health. Using this product, you can stand and sit alternately to prevent potential workplace diseases and improve work efficiency.

Volatge: AC100~240V to DC24V
Load Capacity: 2400N/240kg
IP Grade: IP54
Height Adjustable Range: 610~1260MM
Board Adjustable Range: W(1870-2800)mm*D800mm

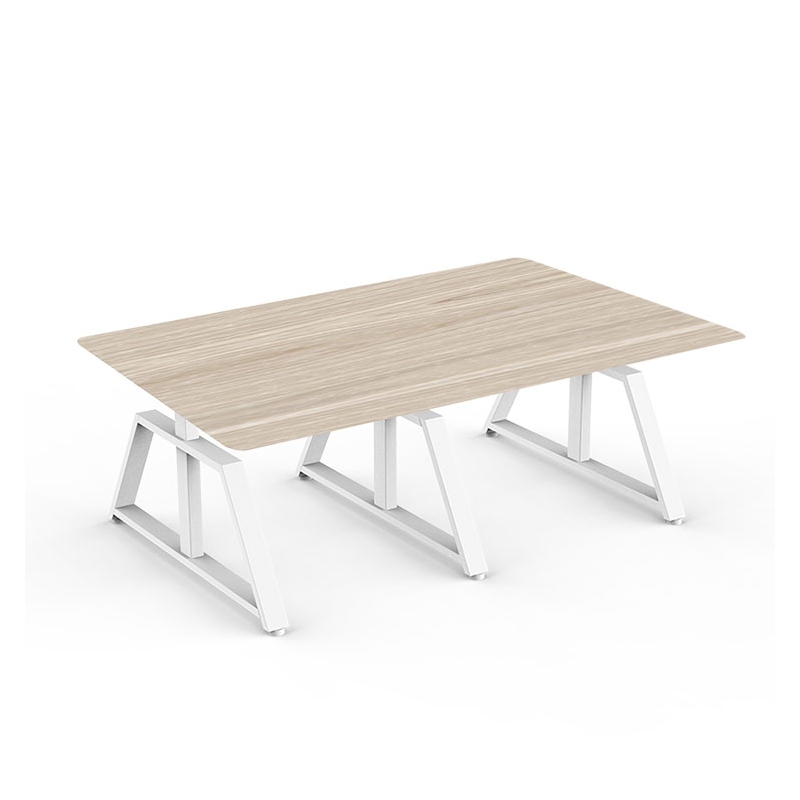

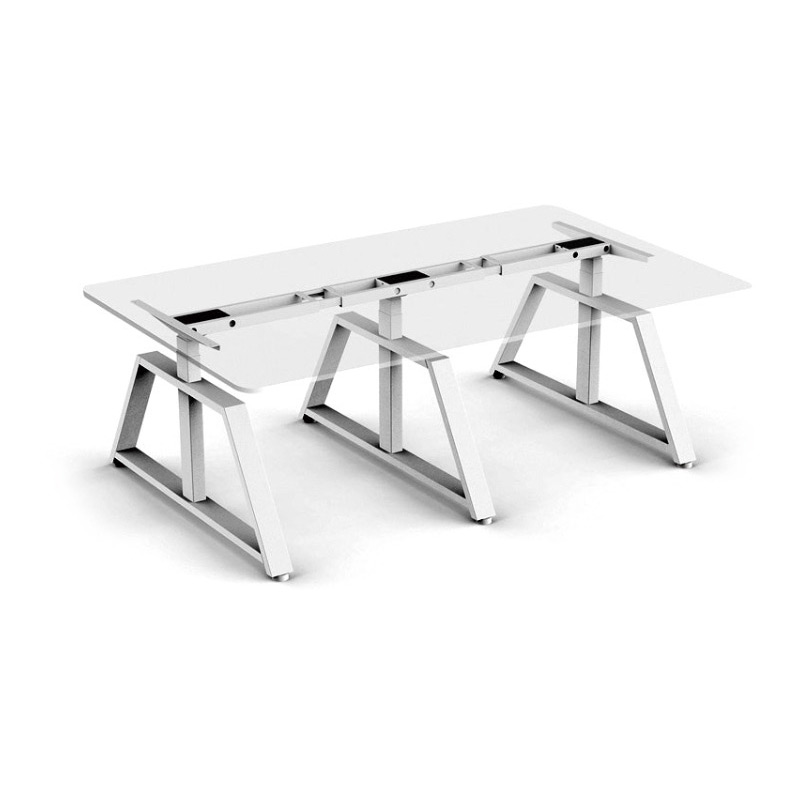

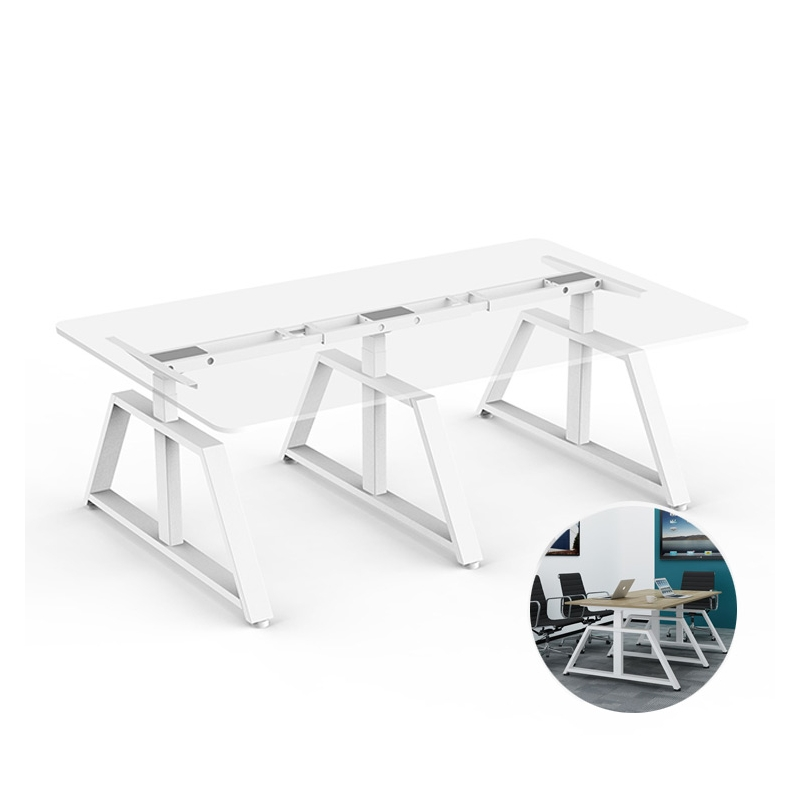

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT3-I3 lifting table is a lifting table born to protect health. Using this product, you can stand and sit alternately to prevent potential workplace diseases and improve work efficiency. This product uses steel plate bracket, super bearing, anti - collision anti - pressure deformation, lifting process without shaking.

ModelLT3-I3
VoltageAC100~240V to DC24V
Height Adjustable Range610~1260MM
Board Adjustable RangeW(1870-2800)mm*D800mm
Width575MM
Number Of Motors3
Section3
Load Capacity2400N | 240kg
No-load Speed32MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min. continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color

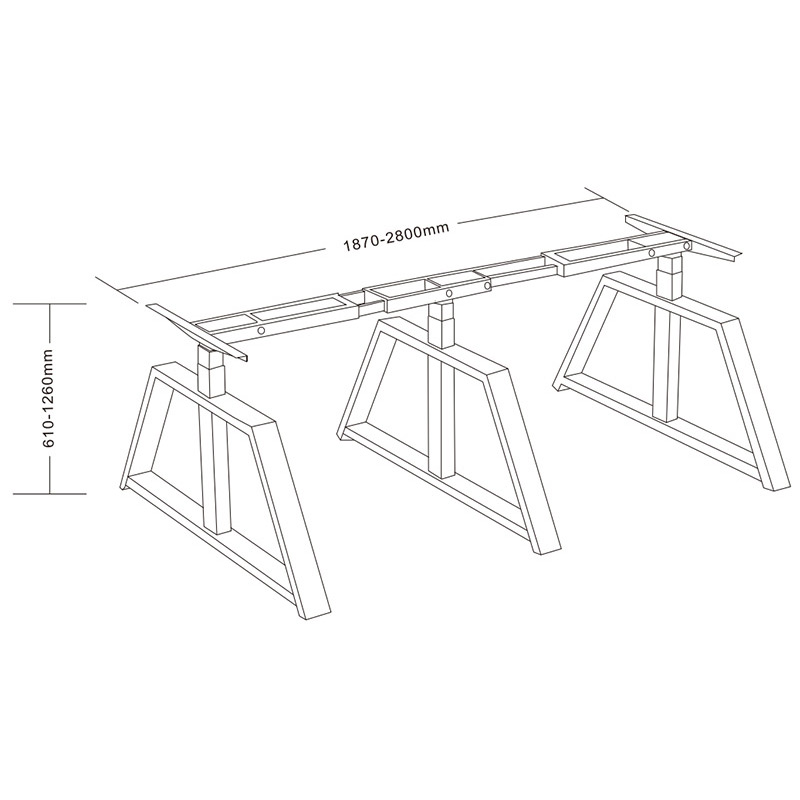

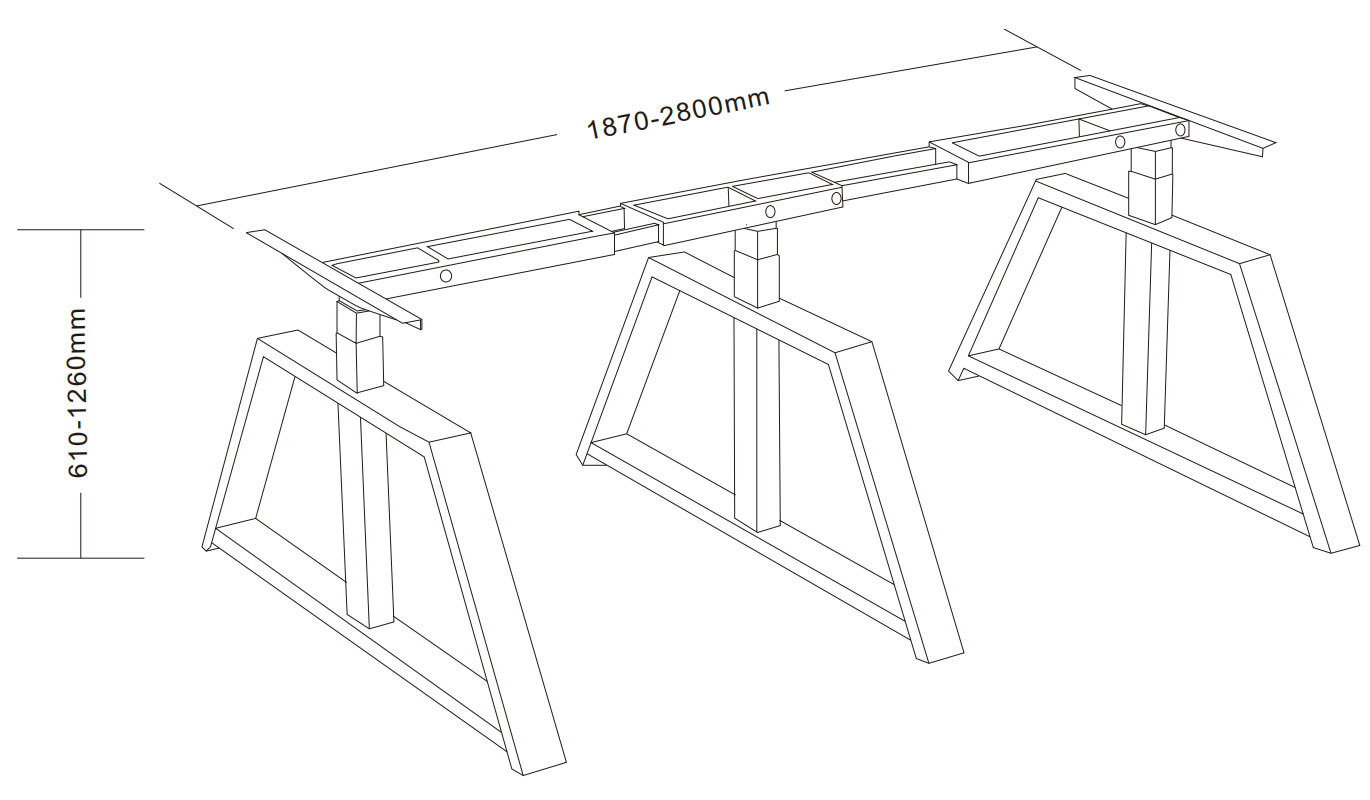

Outline Dimension Drawing
