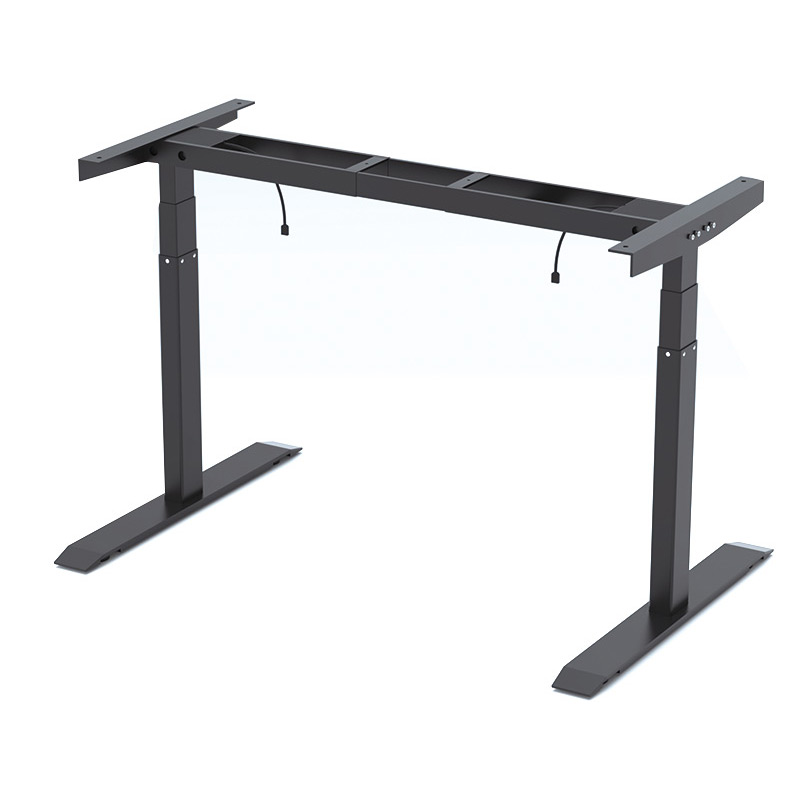

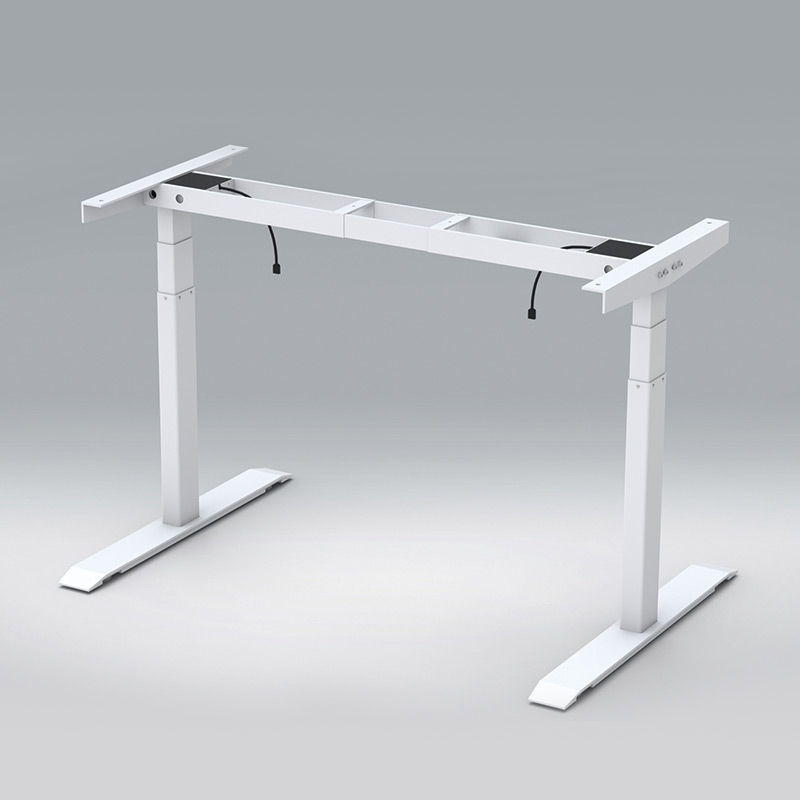

LT2-C3 Double-legged Lifting Table

LT2-C3 Double-legged Lifting Table

LT2-C3 lifting table is the whole steel plate table frame, the durable compressive resistance is not deformation, strict selection of cold-rolled steel, durable.

Volatge: AC100~240V to DC24V
Load Capacity: 1600N/160kg
IP Grade: IP54
Height Adjustable Range: 610~1260MM
Length Adjustable Range: 1010~1700MM

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT2-C3 lifting table is the whole steel plate table frame, the durable compressive resistance is not deformation, strict selection of cold-rolled steel, durable. This product conforms to the human engineering design, the stable bearing, the table frame and the table leg length proportion through the strict measurement. The whole table structure is stable without shake and roll.

Product Features

● Column: Two columns
● Memory position: 4 memory position set
● Brilliant digital LED display indicates height selection
● Smooth and gentle soft-start and soft-stop
● Anti-collision technology to prevent damage
● Duty Cycle: 10% max 2 min, continuous use

Technical Parameters

ModelLT2-C3
VoltageAC100~240V to DC24V
Height Adjustable Range610~1260MM
Length Adjustable Range1010~1700MM
Width575MM
Number Of Motors2
Section3
Load Capacity1600N | 160kg
No-load Speed40MM/S, 15MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color
PackagingL1080mm *W265mm *H235mm

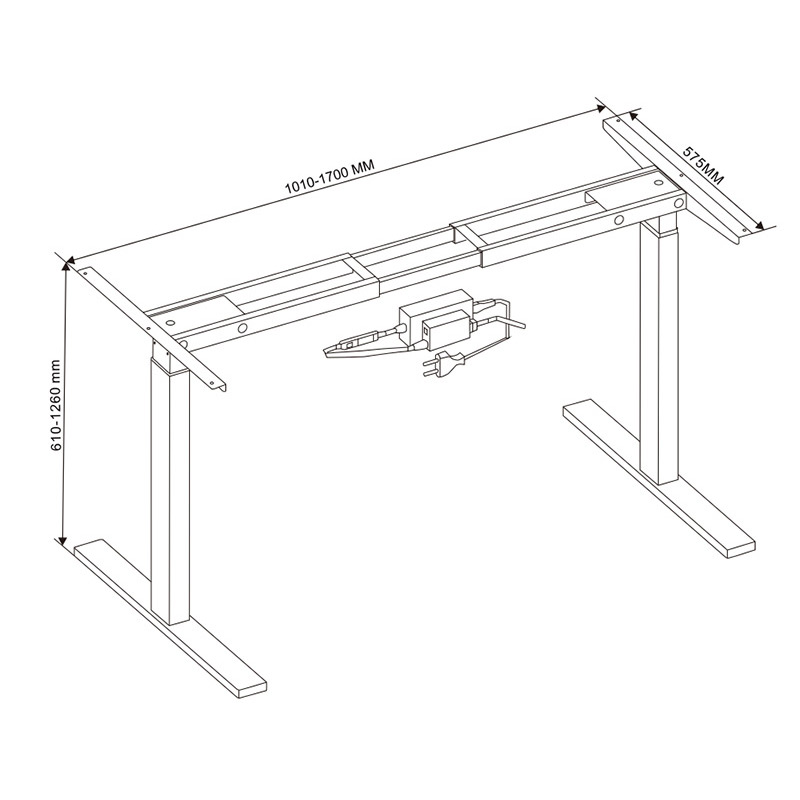

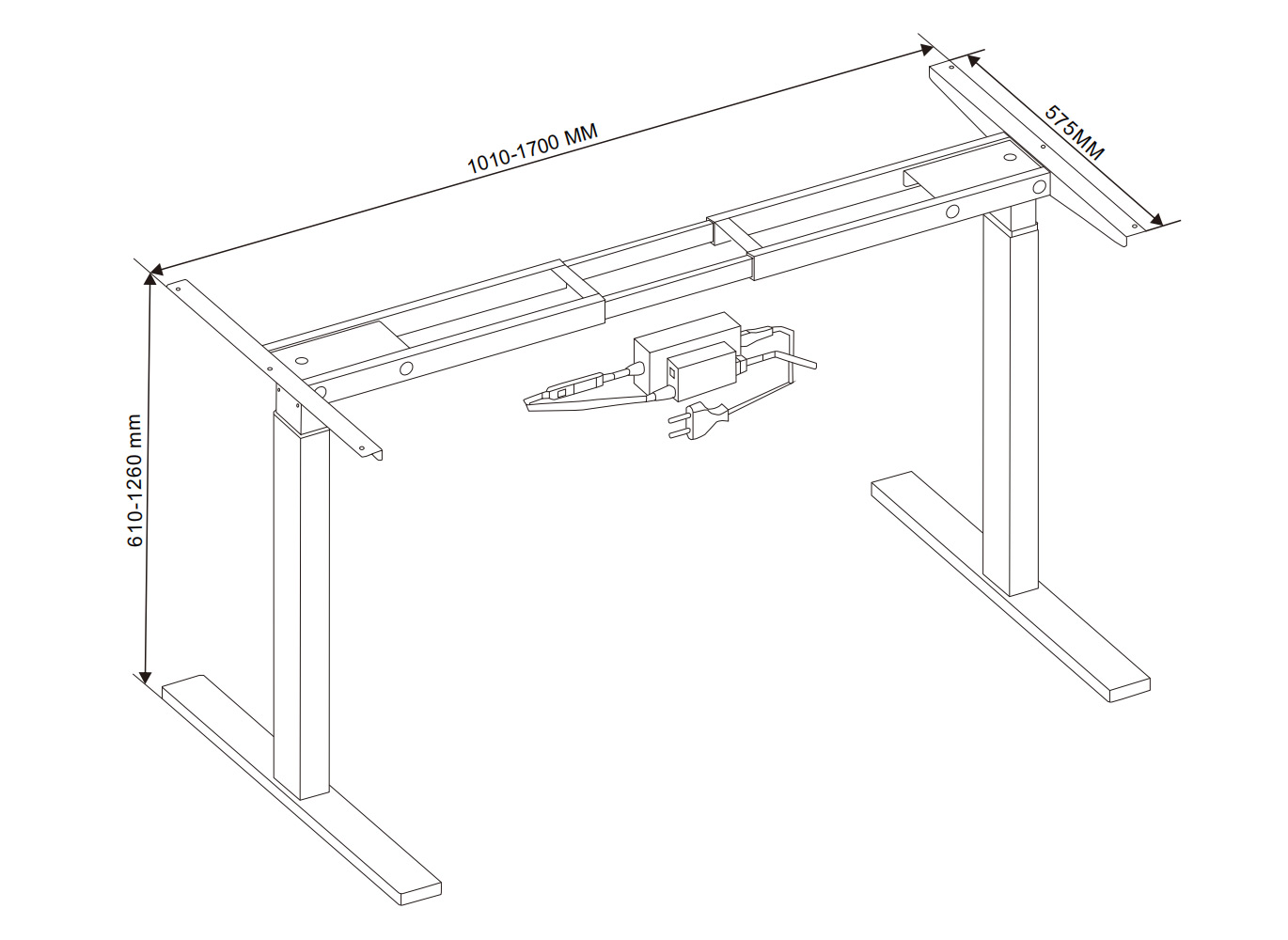

Outline Dimension Drawing
