LT2-C2 Double-legged Lifting Table

LT2-C2 Double-legged Lifting Table

LT2-C2 lifting table is powered by electricity. The height of the lifting table can be adjusted by controlling the mechanical device with an electric motor.

Volatge: AC100~240V to DC24V
Load Capacity: 1600N/160kg
IP Grade: IP54
Height Adjustable Range: 700~1200MM
Length Adjustable Range: 1010~1700MM

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT2-C2 lifting table is powered by electricity. The height of the lifting table can be adjusted by controlling the mechanical device with an electric motor. The height of the lifting table can also be adjusted by controlling the air pressure bar or hydraulic bar with a compressor. Advantages: small power consumption, stable and beautiful style, can rise and fall wide range.

Product features

● Electrical control height adjustment, easy to operate, fast.
● The lifting process is smooth, synchronous and low noise.
● LED backlight control panel, real-time display desktop height
● Four memory preset buttons, four common memory heights
● Metal structural parts adopt high quality cold rolled sheet, which has strong structure and beautiful appearance.
● The floor is equipped with universal adjusting footpads, which automatically flat the floor, and the table is stable and not shaking.
● Beautiful and generous baffle, increase stability

Technical Parameters

ModelLT2-C2
VoltageAC100~240V to DC24V
Height Adjustable Range700~1200MM
Length Adjustable Range1010~1700MM
Width575MM
Number Of Motors2
Section2
Load Capacity1600N | 160kg
No-load Speed40MM/S, 15MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color
PackagingL1080mm *W265mm *H235mm

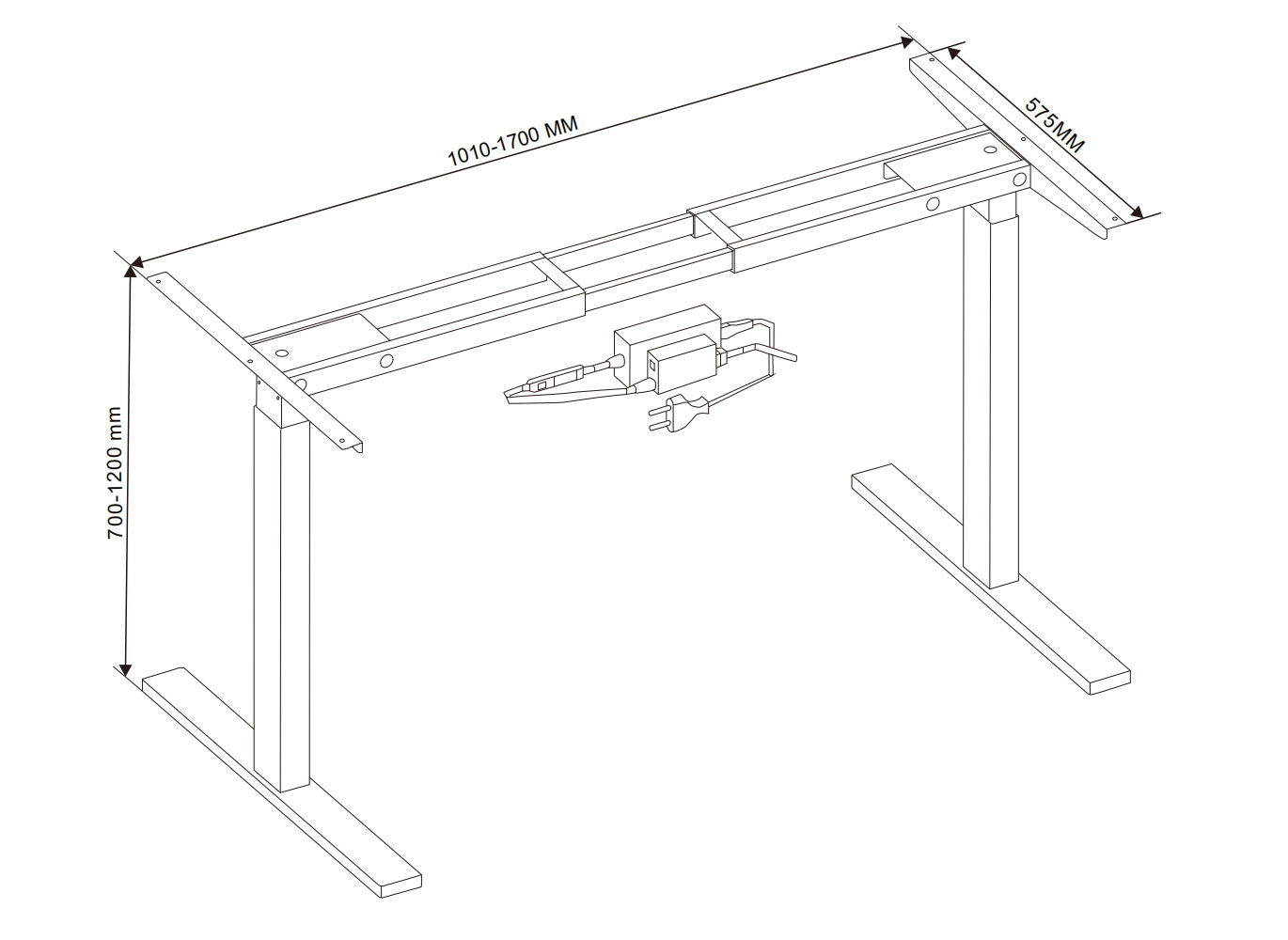

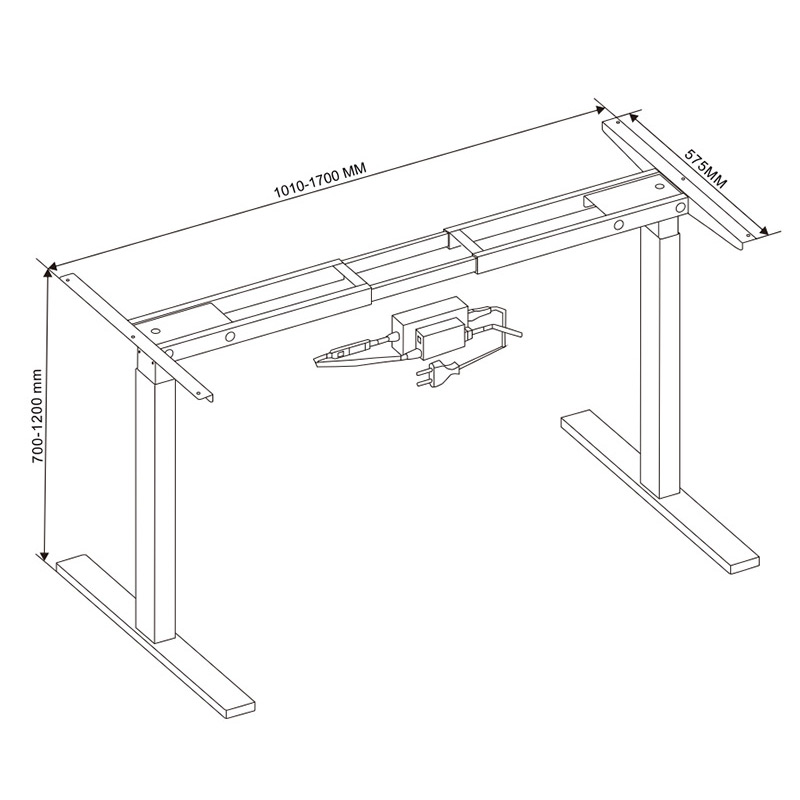

Outline Dimension Drawing
