LT1-Z09 Electric Lift Table

LT1-Z09 Electric Lift Table

LT1-Z09 elevating desk is a kind of table that can be raised or lowered freely. It is suitable for users of different heights and is commonly used in learning desks used by growing children.

Volatge: AC100~240V to DC24V
Load Capacity: 500N/50kg
IP Grade: IP54
Height Adjustable Range: 450~880MM
Table Board Size: 650mm×380mm + 650mm×180mm

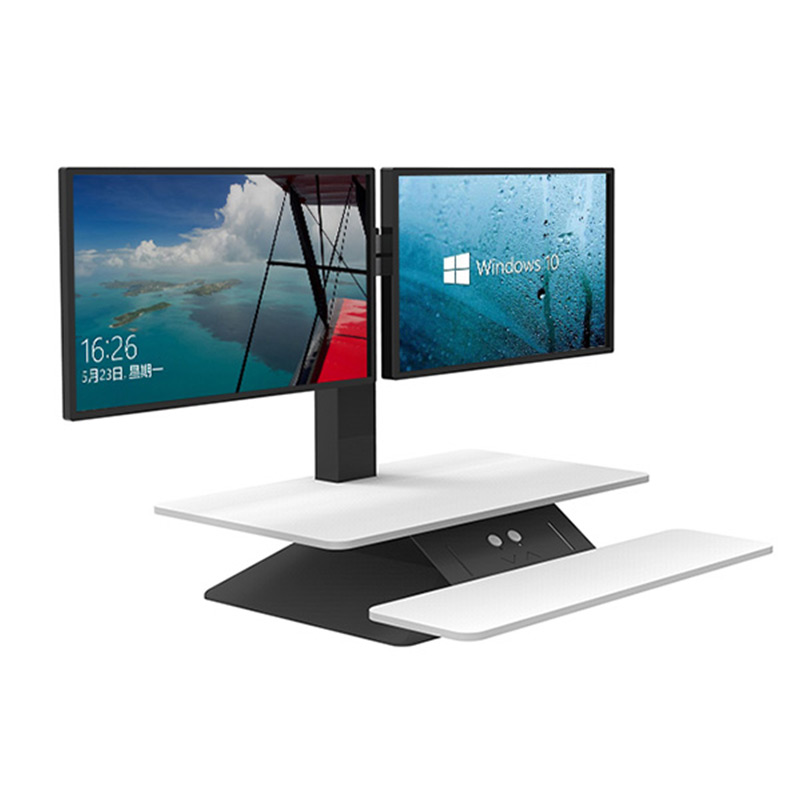

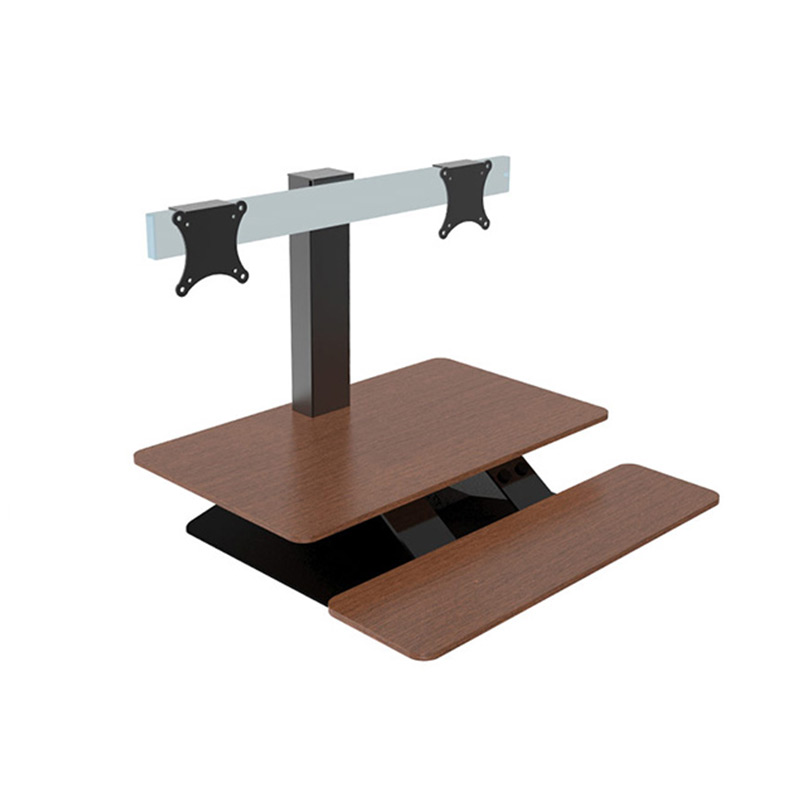

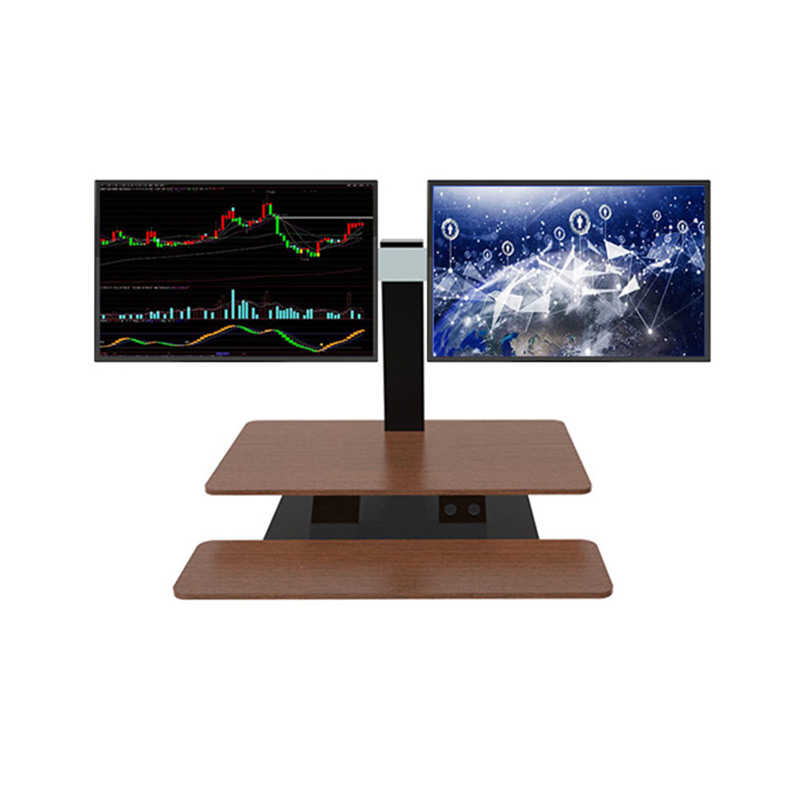

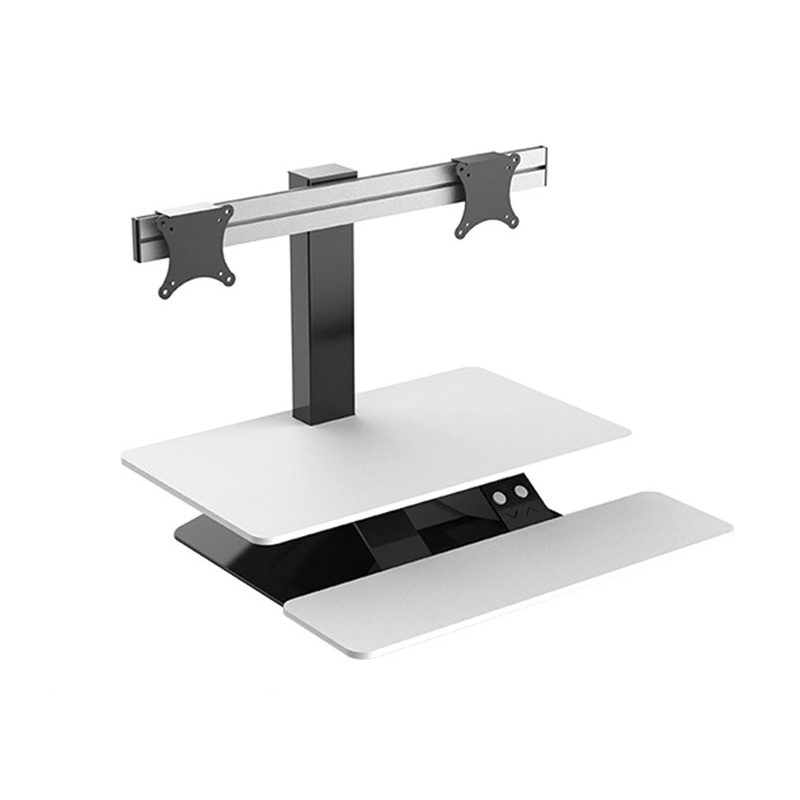

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT1-Z09 elevating desk is a kind of table that can be raised or lowered freely. It is suitable for users of different heights and is commonly used in learning desks used by growing children. And office workers can also use this product, in the office to use the lifting desk, can achieve sitting office and standing office two modes.

Technical Parameters

ModelLT1-Z09
VoltageAC100~240V to DC24V
Table Board Size650mm×380mm + 650mm×180mm
Height Adjustable Range450~880MM
Section3
Load Capacity500N | 50kg
No-load Speed30MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color
PackagingL780mm*W680mm*H175mm

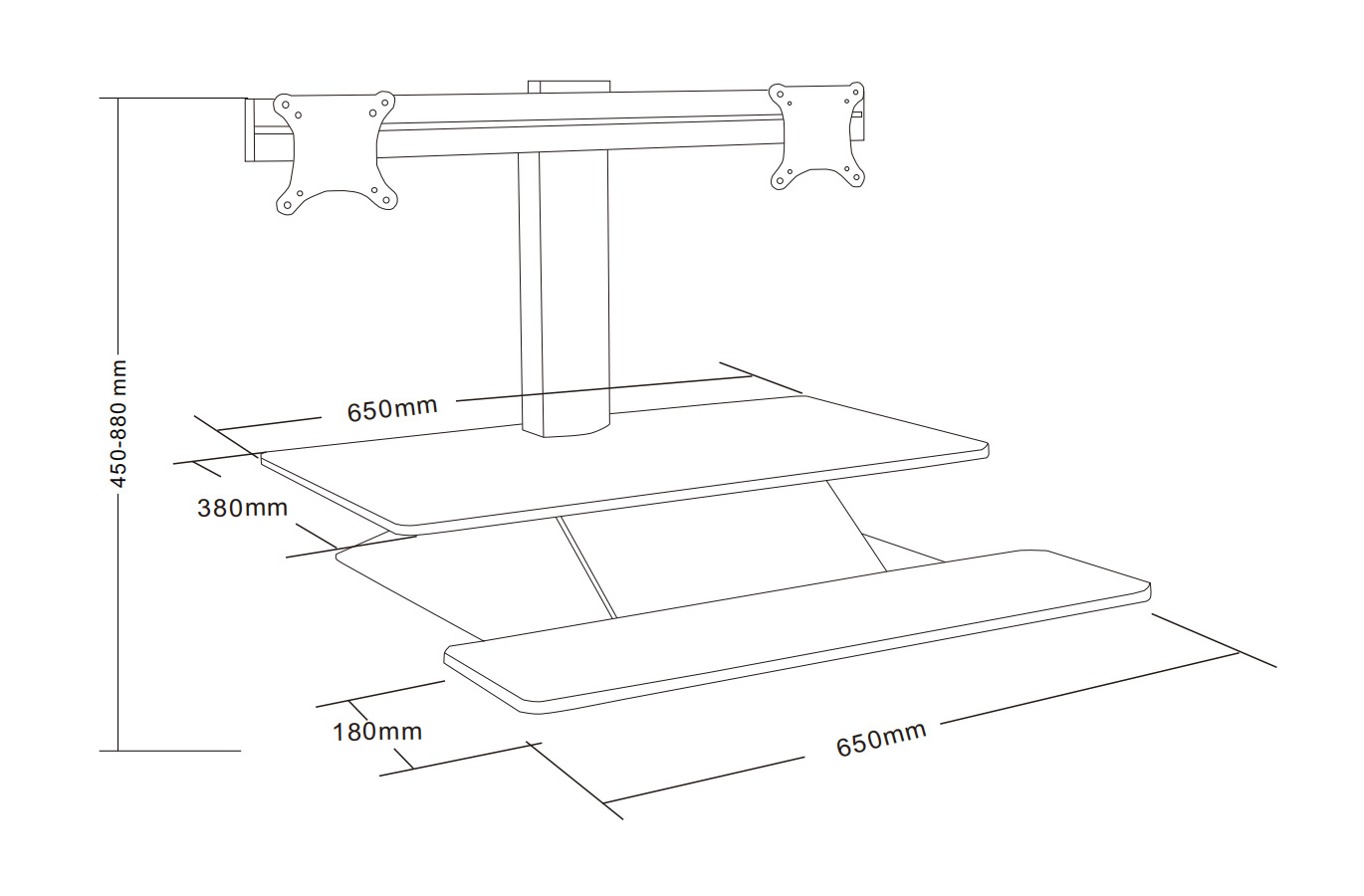

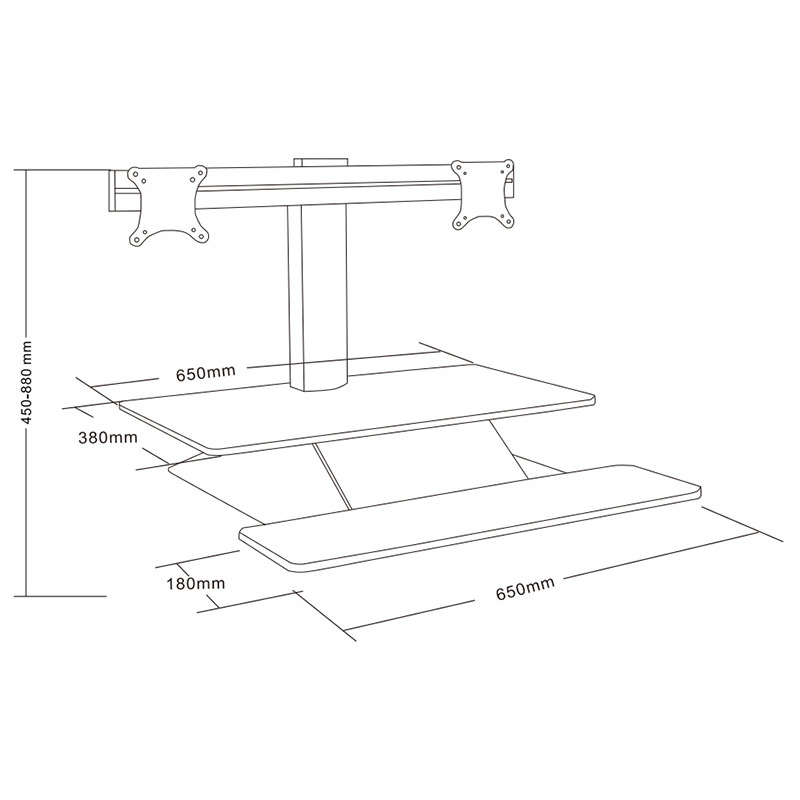

Outline Dimension Drawing
