LT1-D07X Electric Lift Table

LT1-D07X Electric Lift Table

LT1-D07X lifting desk is characterized by free lifting, standing and sitting alternate office, standing and sitting alternate does not hinder the busy affairs at hand, easy to operate.

Volatge: AC100~240V to DC24V
Load Capacity: 800N/80kg
IP Grade: IP54
Height Adjustable Range: 780~1220MM
Length: 1100MM; Width: 575MM

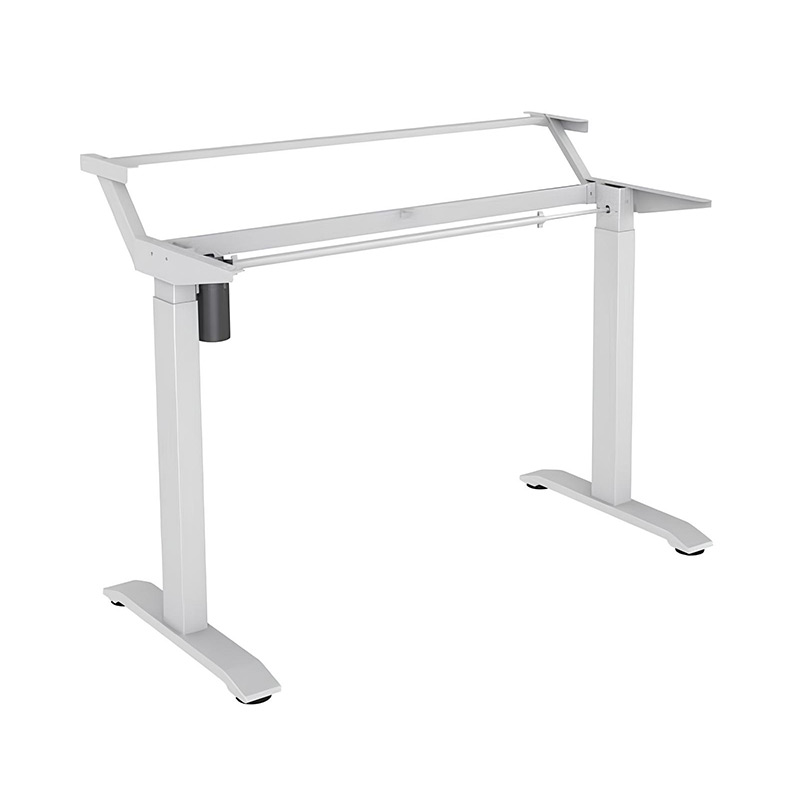

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT1-D07X lifting desk is characterized by free lifting, standing and sitting alternate office, standing and sitting alternate does not hinder the busy affairs at hand, easy to operate. Memory function storage, that is, users can adjust the product to a fixed position according to their own suitable height, easy to use. The appearance is simple, generous, in line with the international office trend, different from the traditional dull desk is not easy to move the style. Beneficial to the physical and mental health of office workers, can increase work efficiency, so that the workplace atmosphere more active.

Technical Parameters

ModelLT1-D07X
VoltageAC100~240V to DC24V
Table Board SizeW1180*D400 and W1180*D300 (mm)
Height Adjustable Range780~1220MM
Length1100MM
Width575MM
Number Of Motors1
Section2

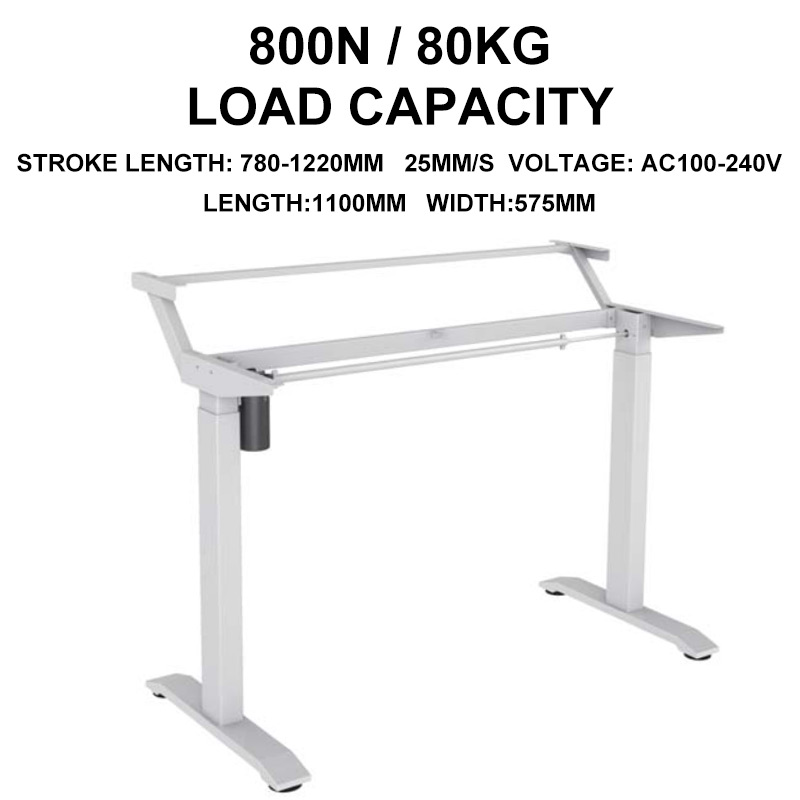

Load Capacity800N | 80kg
No-load Speed25MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color
PackagingL1215mm *W635mm *H140mm

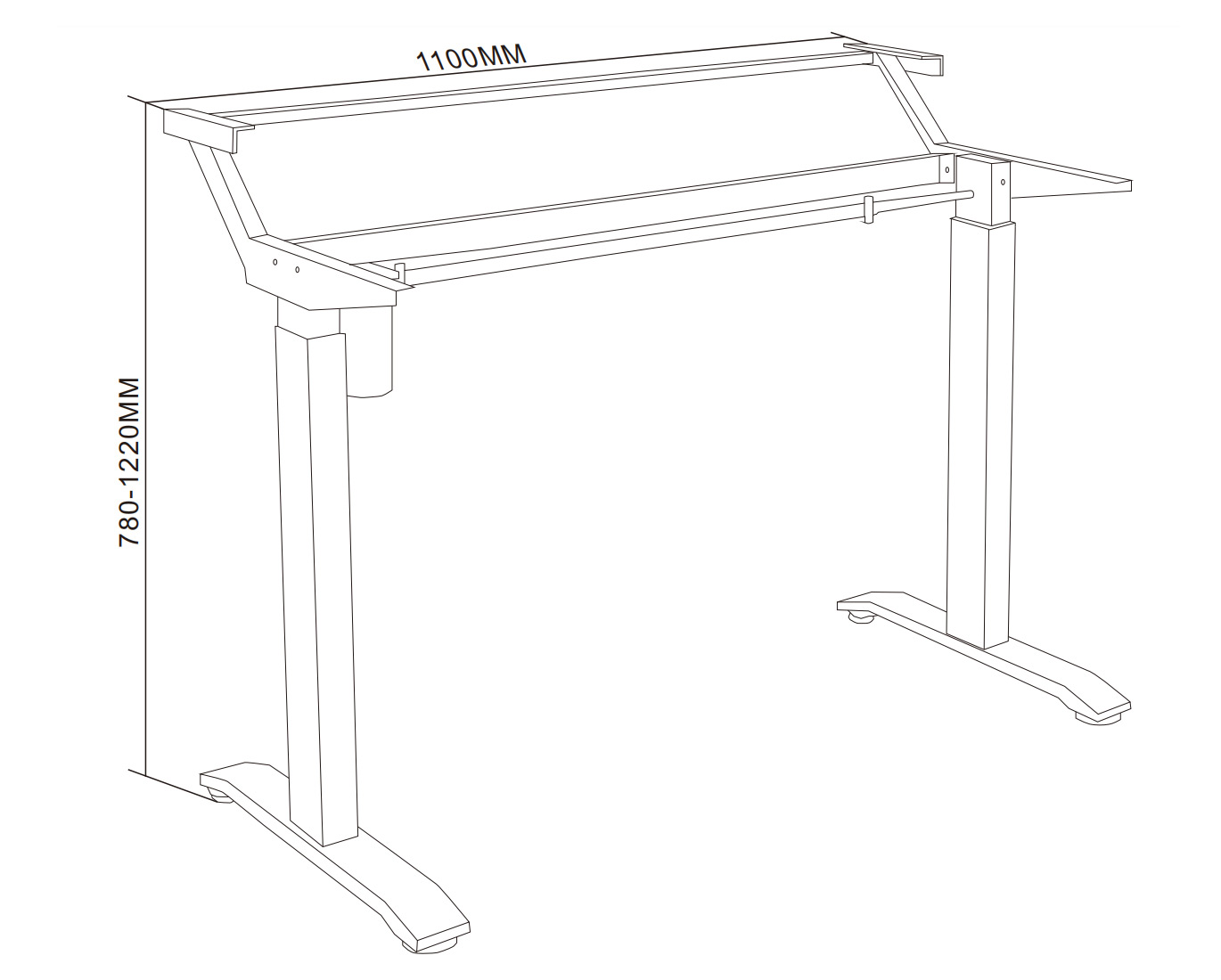

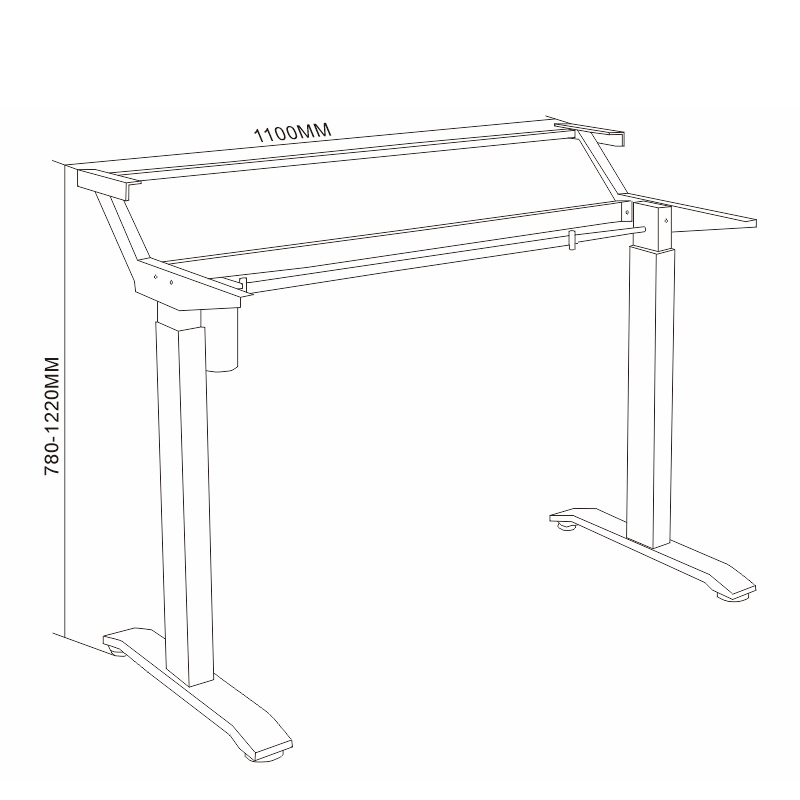

Outline Dimension Drawing
