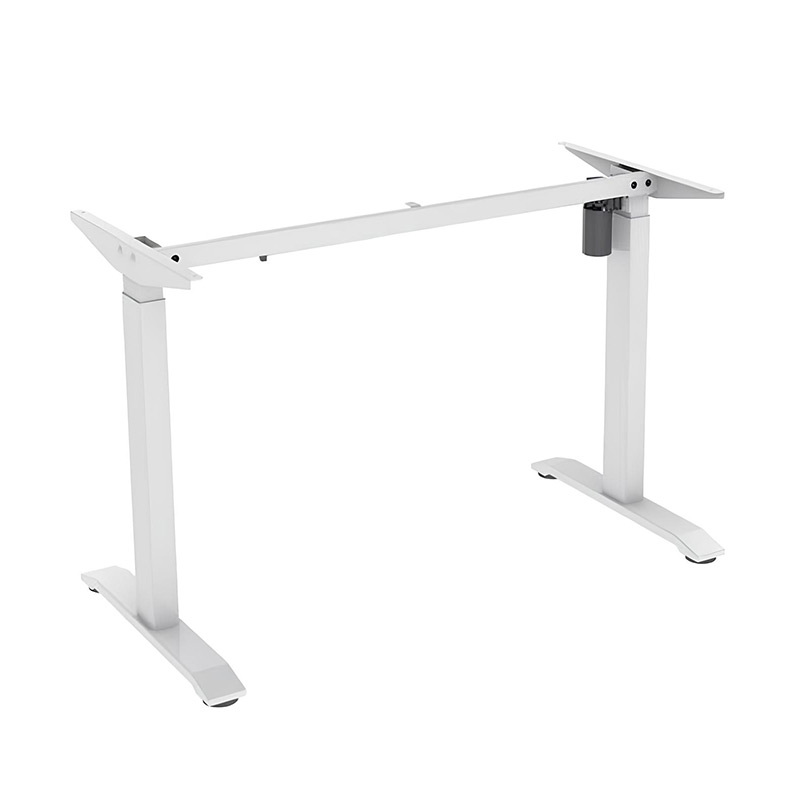

LT1-D07A Electric Lift Table

LT1-D07A Electric Lift Table

LT1-D07A elevating table is designed with embedded table corner, which is tightly stitched for more stable support. The table bracket is cold-rolled steel column, which is strong and durable.

Volatge: AC100~240V to DC24V

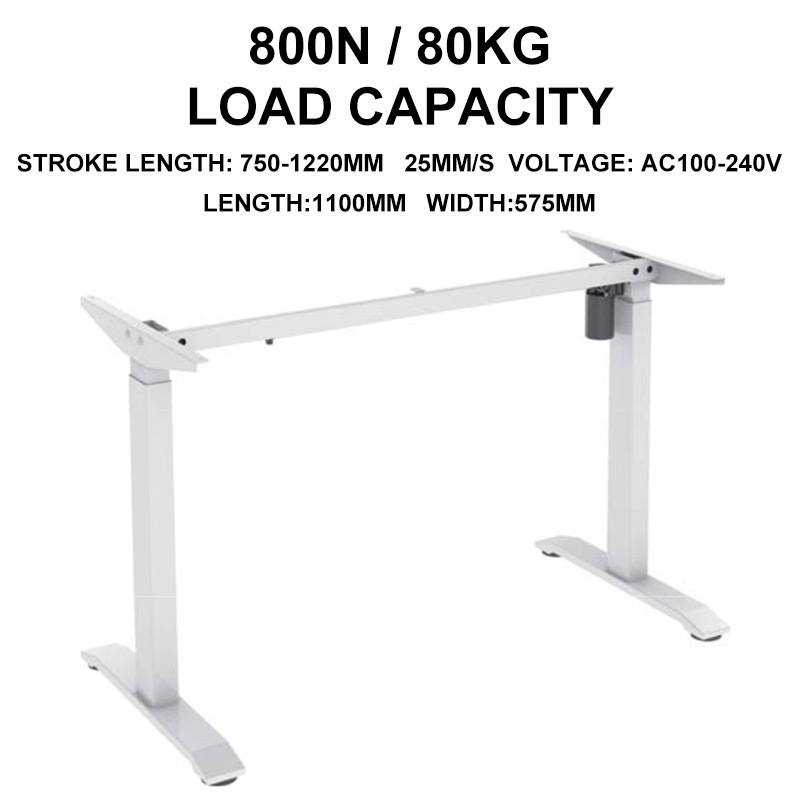

Load Capacity: 800N/80kg
IP Grade: IP54
Height Adjustable Range: 775~1220MM
Length: 1100MM; Width: 575MM

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT1-D07A elevating table is designed with embedded table corner, which is tightly stitched for more stable support. The table bracket is cold-rolled steel column, which is strong and durable. The friction of articles will not damage the paint surface. Stable structure support, product is not easy to shake.

Technical Parameters

ModelLT1-D07A
VoltageAC100~240V to DC24V
Height Adjustable Range775~1220MM
Length1100MM
Width575MM
Number Of Motors1
Section2
Load Capacity800N | 80kg
No-load Speed25MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color
PackagingL1215mm *W635mm *H140mm

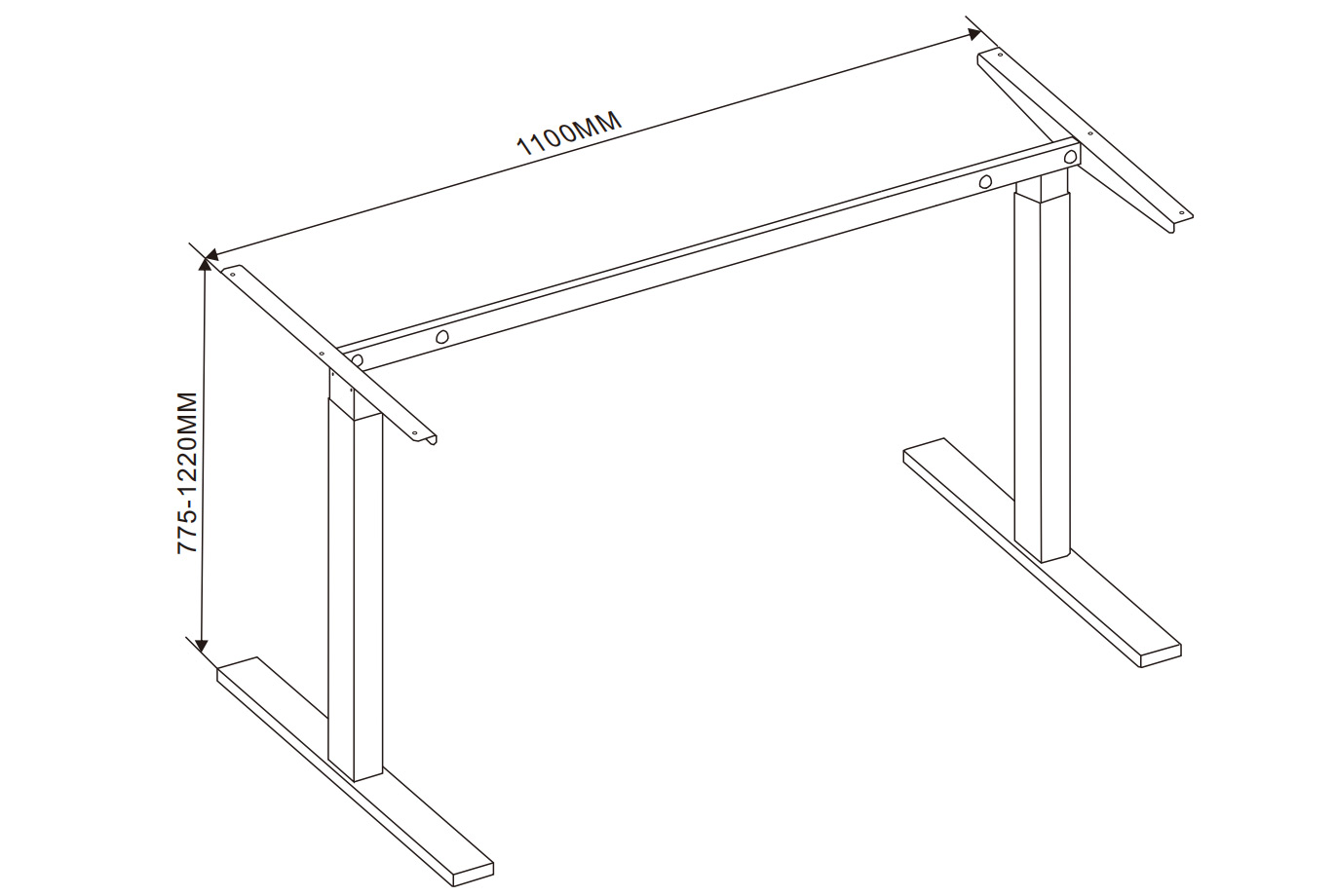

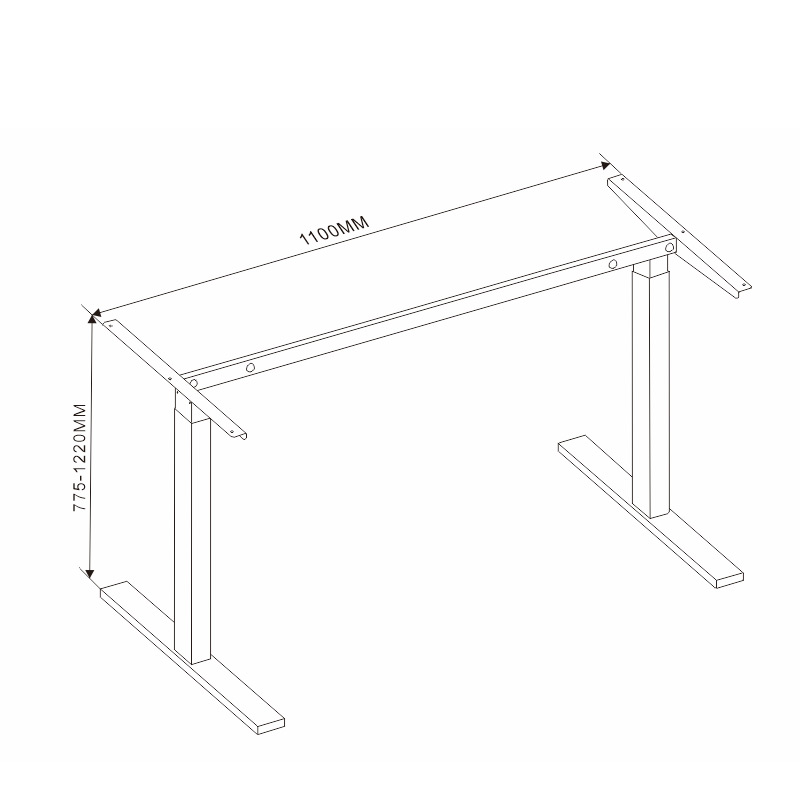

Outline Dimension Drawing
