LT1-D06 Electric Lift Table

LT1-D06 Electric Lift Table

LT1-D06 lifting table is a lifting table born to protect health. Using this product, you can stand and sit alternately to prevent potential workplace diseases and improve work efficiency.

Volatge: AC100~240V to DC24V
Load Capacity: 600N/60kg
IP Grade: IP54
Height Adjustable Range: 750~1250MM
Table Board Size: W1200mm×D600mm

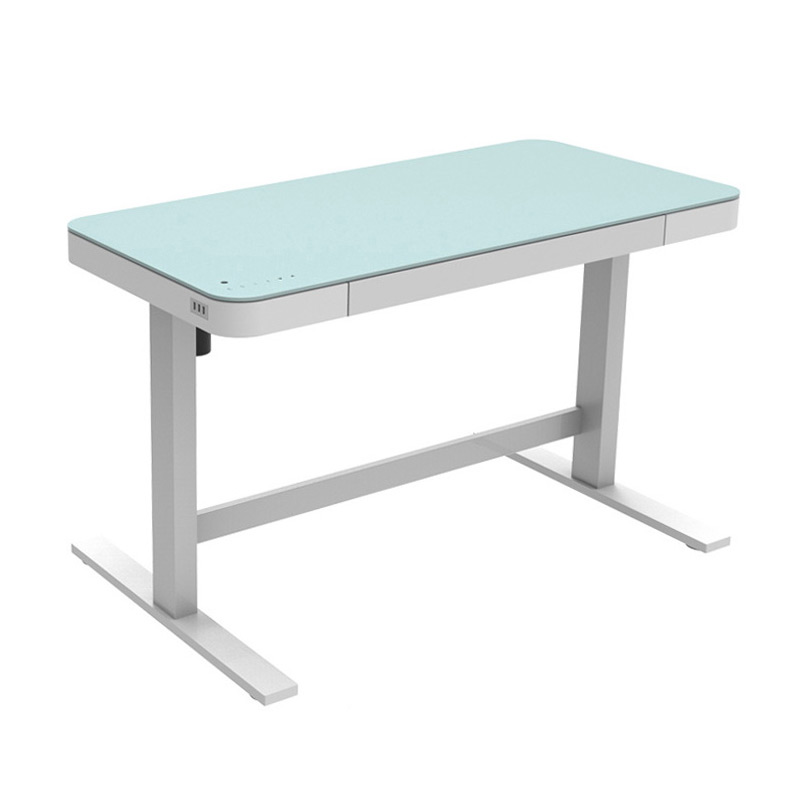

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LT1-D06 lifting table is a lifting table born to protect health. Using this product, you can stand and sit alternately to prevent potential workplace diseases and improve work efficiency. This product USES steel plate bracket, super bearing, anti - collision anti - pressure deformation, lifting process without shaking.

Technical Parameters

ModelLT1-D06
VoltageAC100~240V to DC24V
Table Board SizeW1200mm×D600mm
Height Adjustable Range750~1250MM
Number Of Motors1
Section2
Load Capacity600N | 60kg
No-load Speed25MM/S
ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Operating Temperature0°C~+40°C
IP GradeIP54
Operating Frequency10% max 2min.continuous use
Limit SwitchesNone
PanelsNone
ControllerHall Controller | With APP Hall Controller
CustomizedTable Leg | Hand Control | Color
PackagingL1254mm*W754mm*H239mm

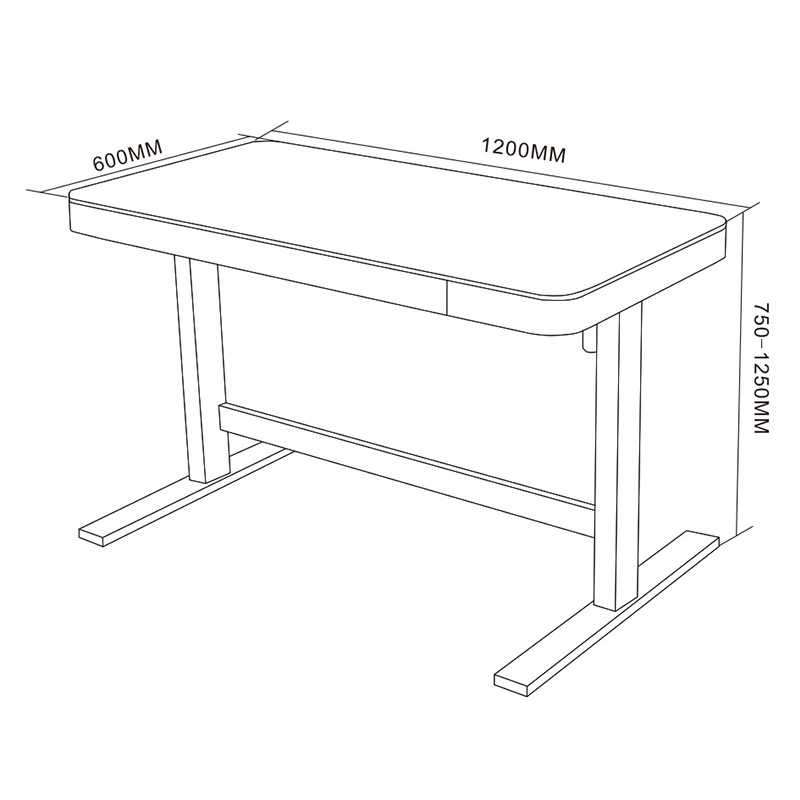

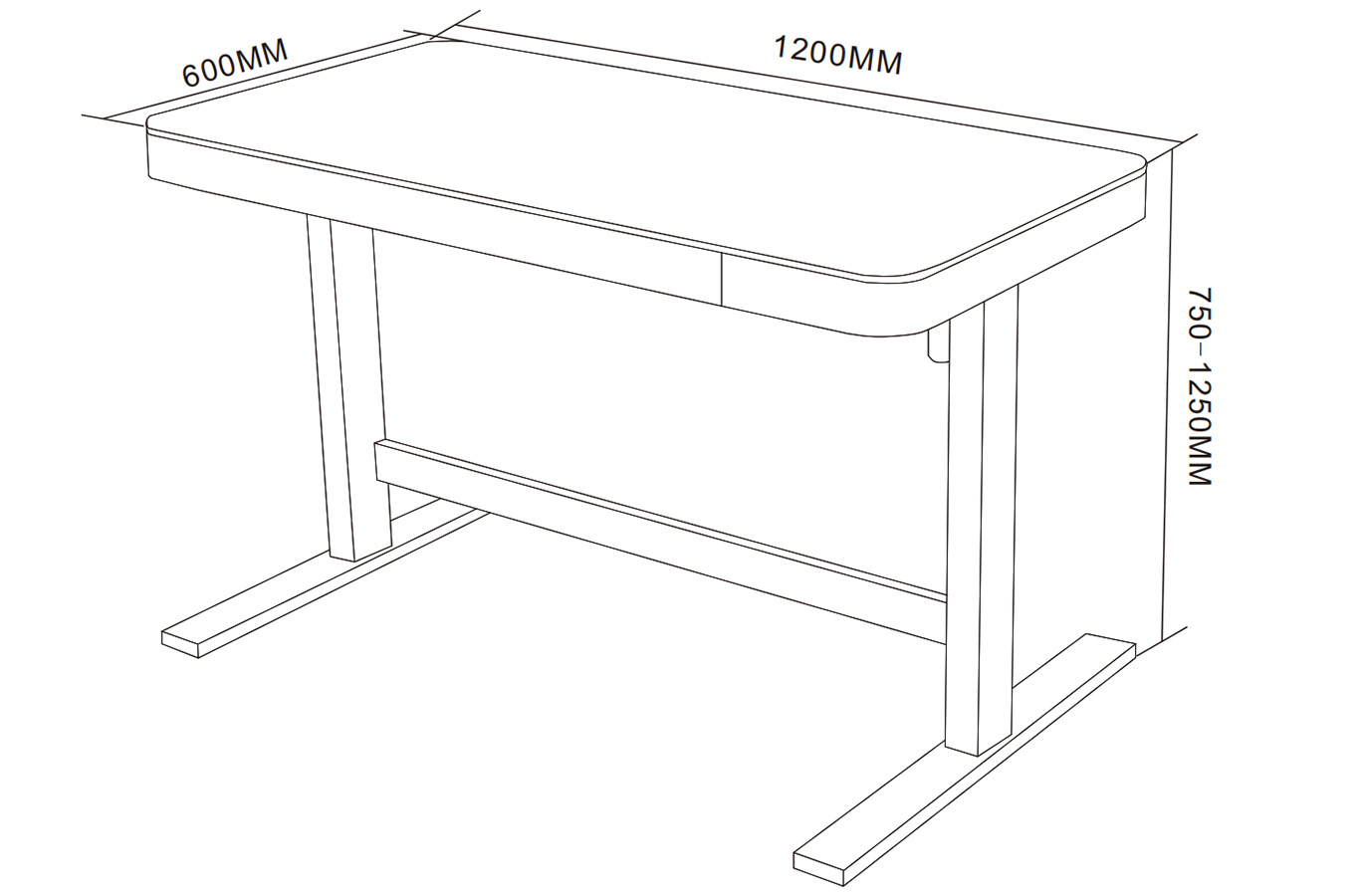

Outline Dimension Drawing
