LCT Electric Scissor Lift

LCT Electric Scissor Lift

LCT Electric Scissor Lift is equipped with electric linear actuator to drive the rise and fall of the tea table by controlling the electric linear actuator, which is noiseless, convenient and practical.

Input Volatge: DC24~32V / DC12~19V / Hall 29V~32V
Maximum load：40kg/60kg/80kg/120kg/150kg
IP Grade: IP43
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
-10°C~+65°C: -10°C~+65°C

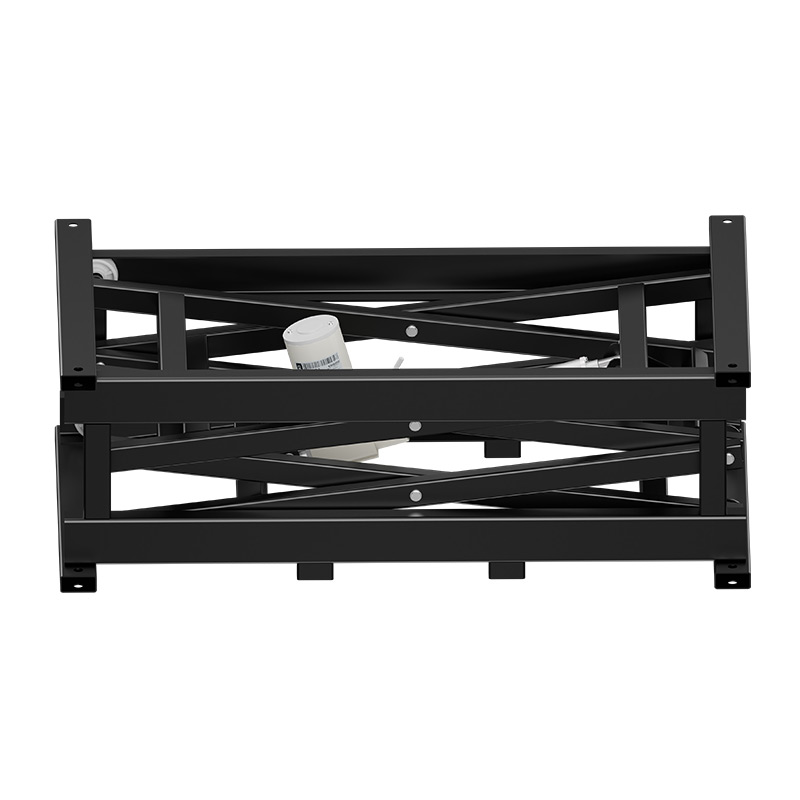

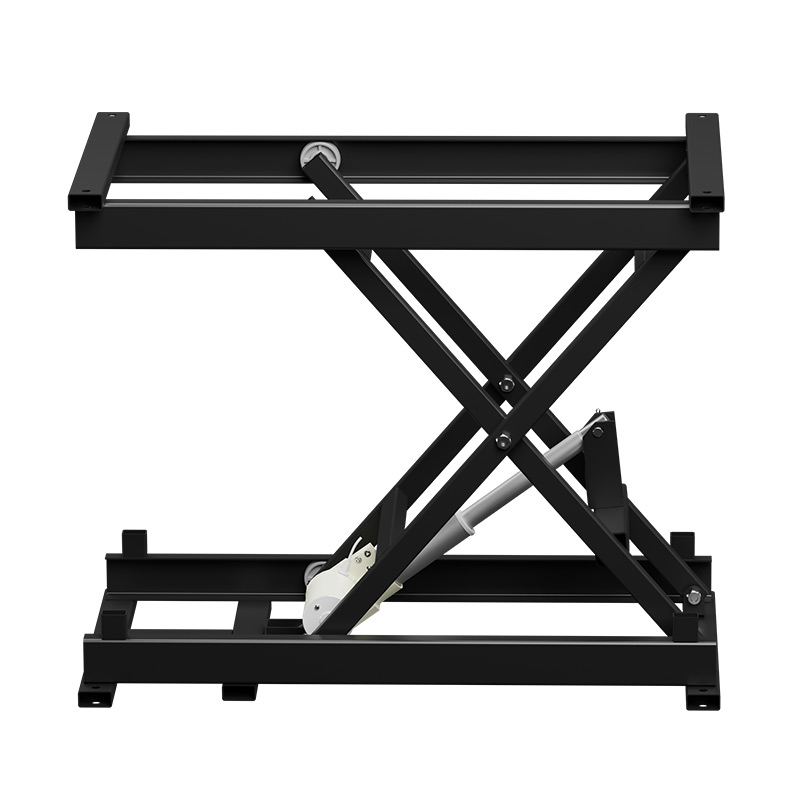

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

LCT Electric Scissor Lift is equipped with electric linear actuator to drive the rise and fall of the tea table by controlling the electric linear actuator, which is noiseless, convenient and practical. The product can be applied to dining table, functional coffee table tea table, telescopic tea table, etc.
Features: This Electric Scissor Lift is equipped with an electric linear actuator, which can drive the coffee table up and down by controlling the electric linear actuator, which is noise-free and convenient.

TECHNICAL PARAMETERS

ModelLCT-25LCT-40LCT-120LCT-150LCT-C2-80LCT-C2-60
Load Capacity60KG40KG120KG150KG80KG60KG
No-load Speed13.5MM/S23MM/S10MM/S10MM/S20MM/S16MM/S
Min Height100MM115MM210MM195MM265MM265MM
Max Height370MM345MM580MM680MM1100MM1270MM
Stroke270MM230MM370MM485MM835MM1005MM
Size (L*W*H)400*320*100MM580*370*115MM590*420*210MM760*420*195MM760*420*265MM760*420*265MM
Weight6KG8KG13.5KG17KG26KG26KG
VoltageDC24~32V / DC12~19V / Hall 29V~32V
Surface TreatmentElectrophoretic Black
Operating Temperature-10°C~+65°C
IP GradeIP43
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
Optional ConfigurationHall Sensor: Position Display, Position Memory, Precise Control
Magnetic Induction Sensor: Adjust Rising And Falling Limit
Upper And Lower Limit Feedback

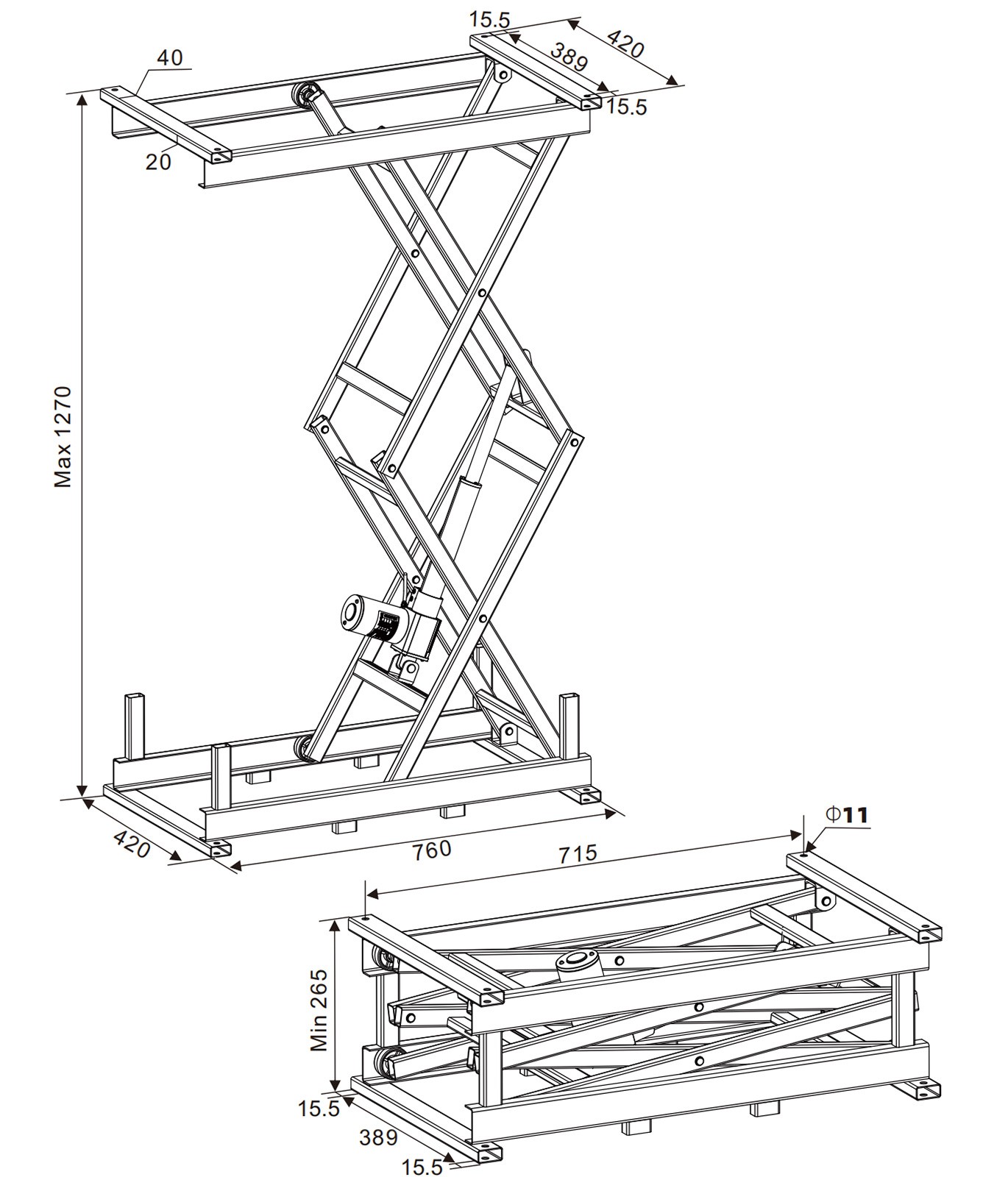

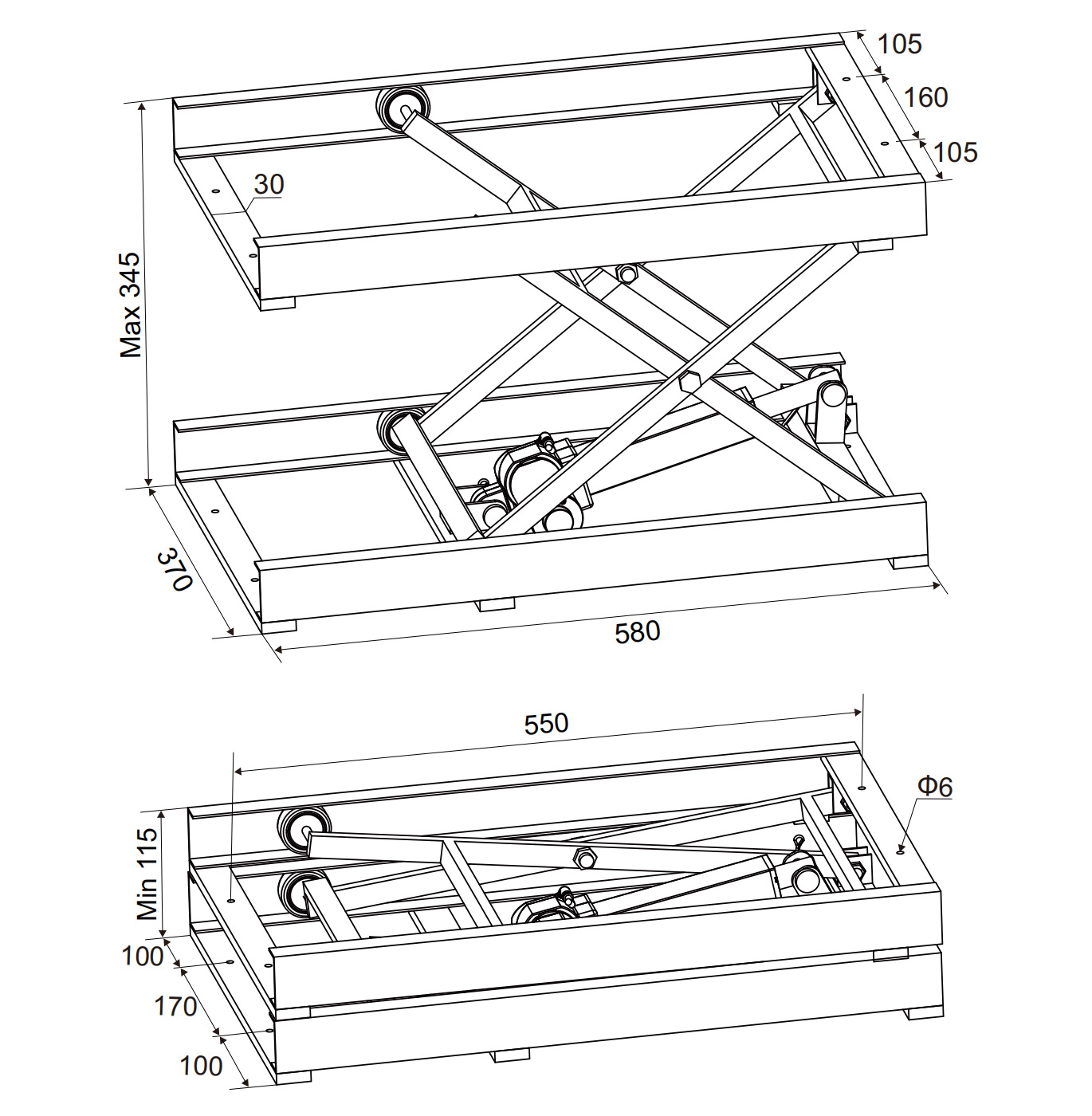

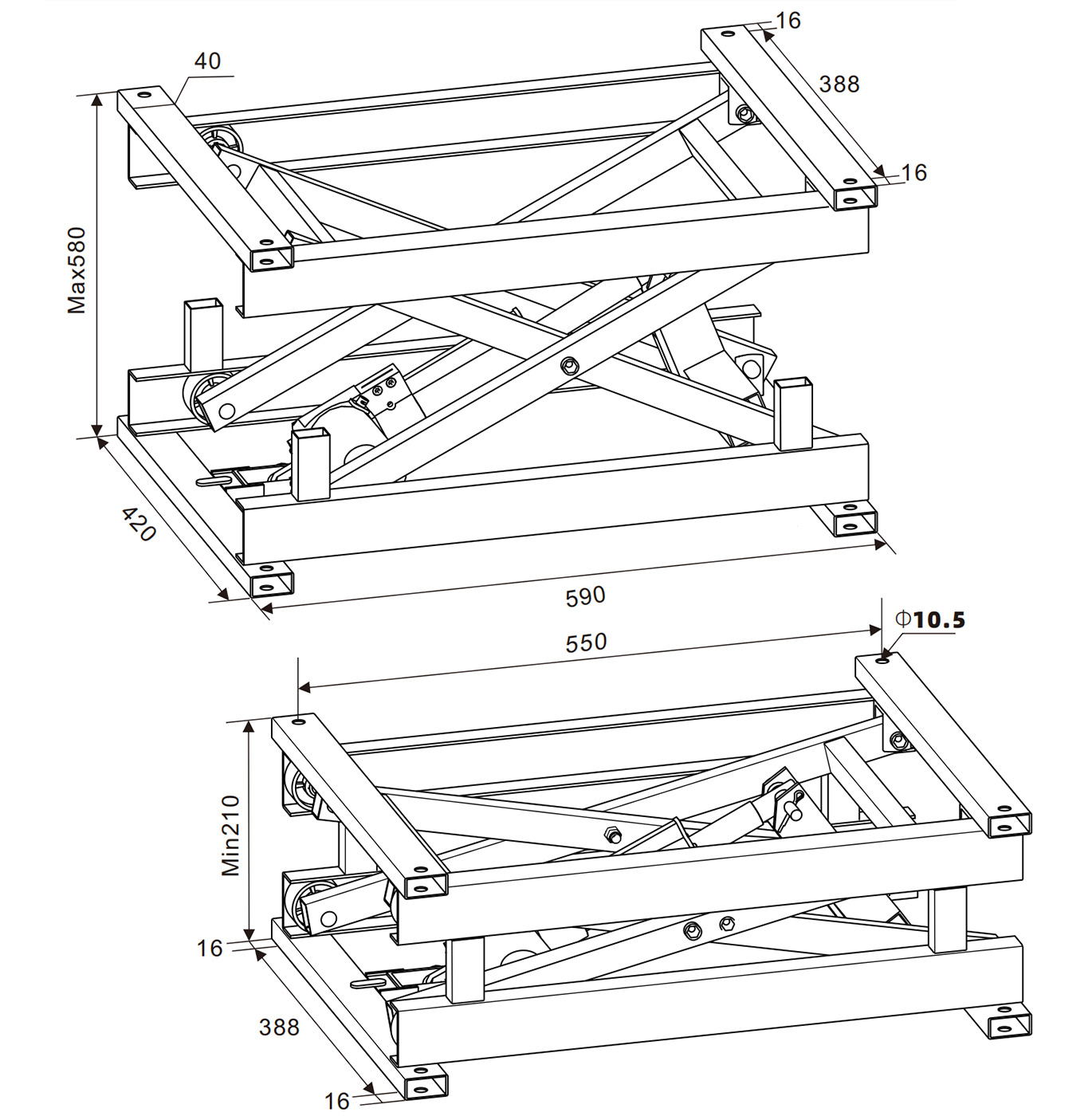

OUTLINE DIMENSION DRAWING

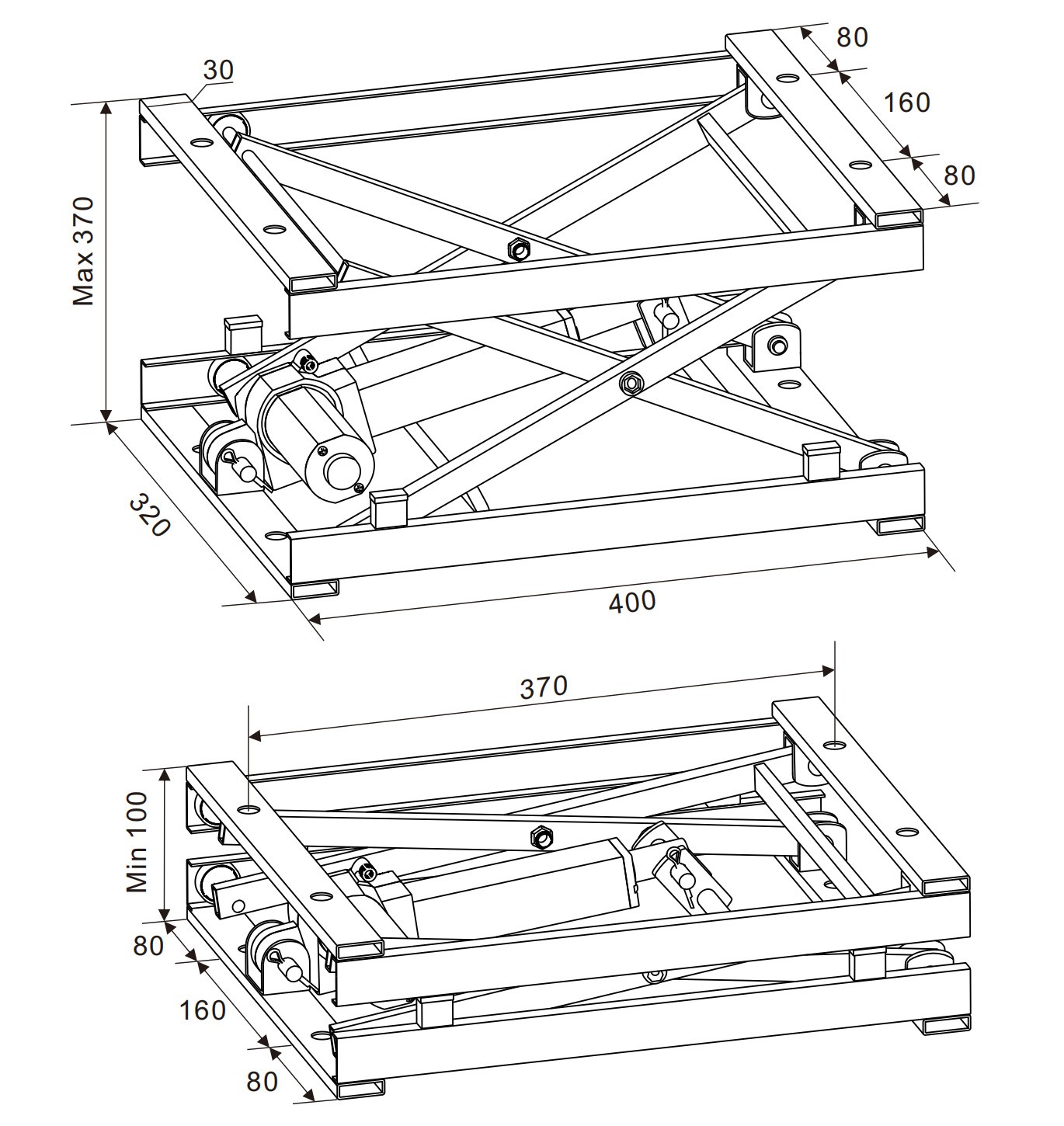

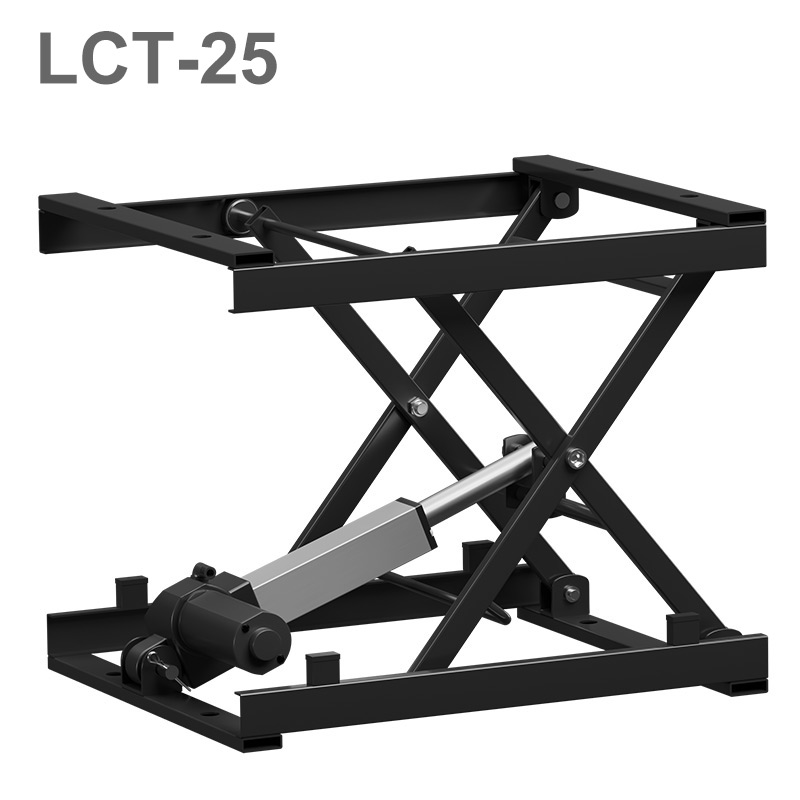

LCT-25

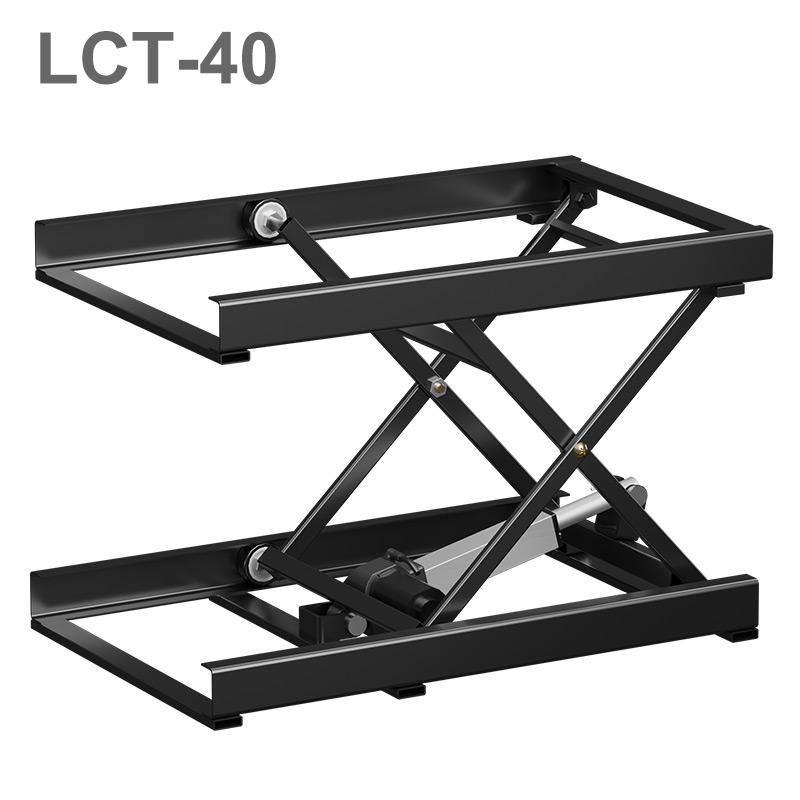

LCT-40

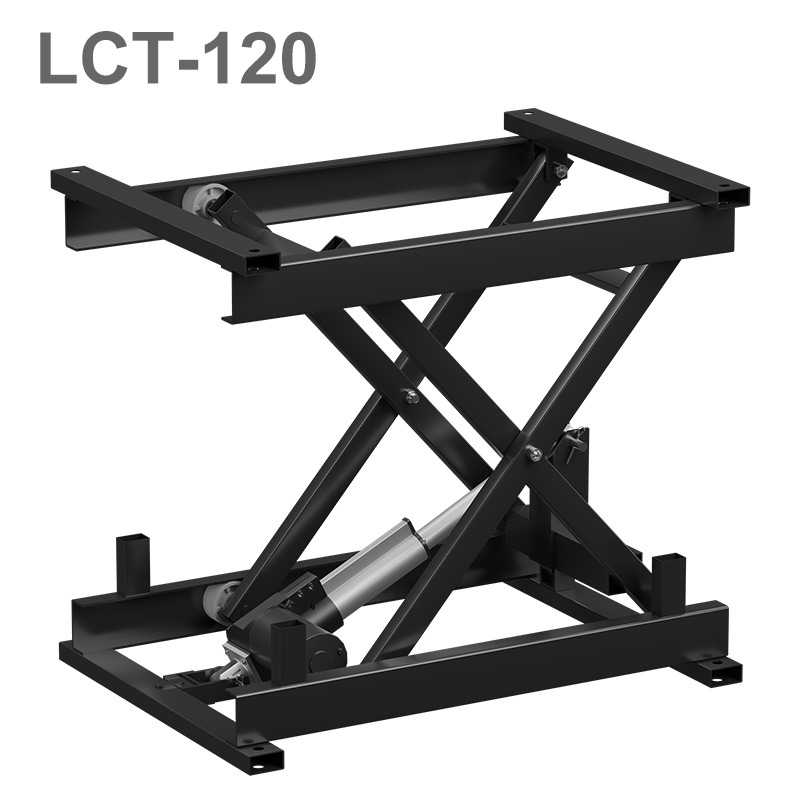

LCT-120

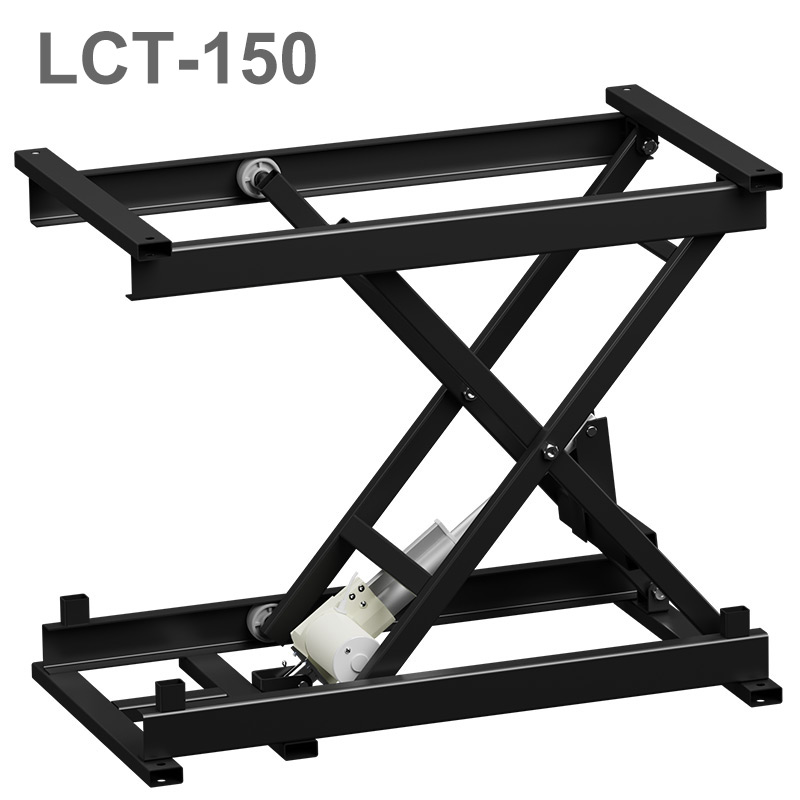

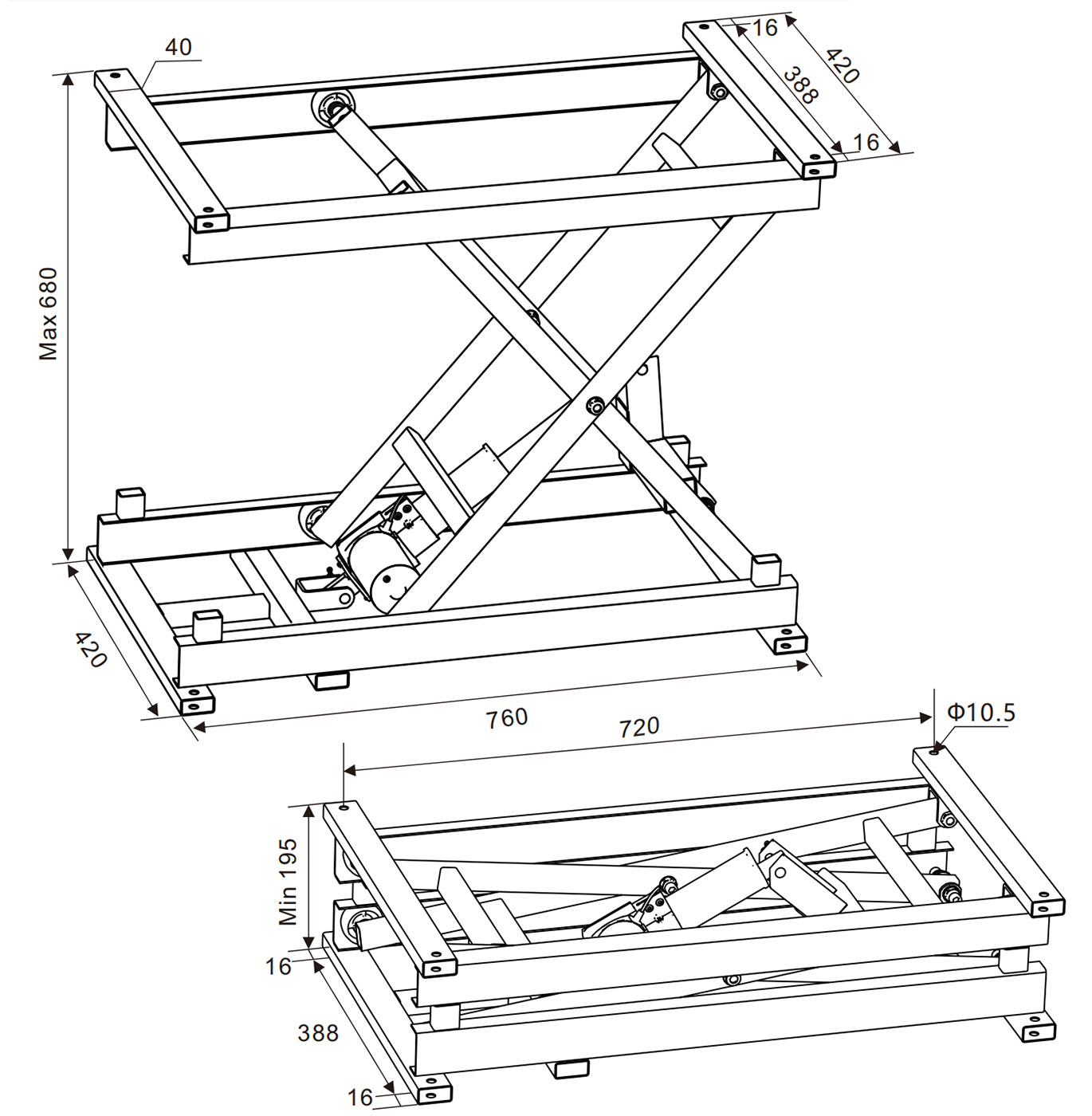

LCT-150

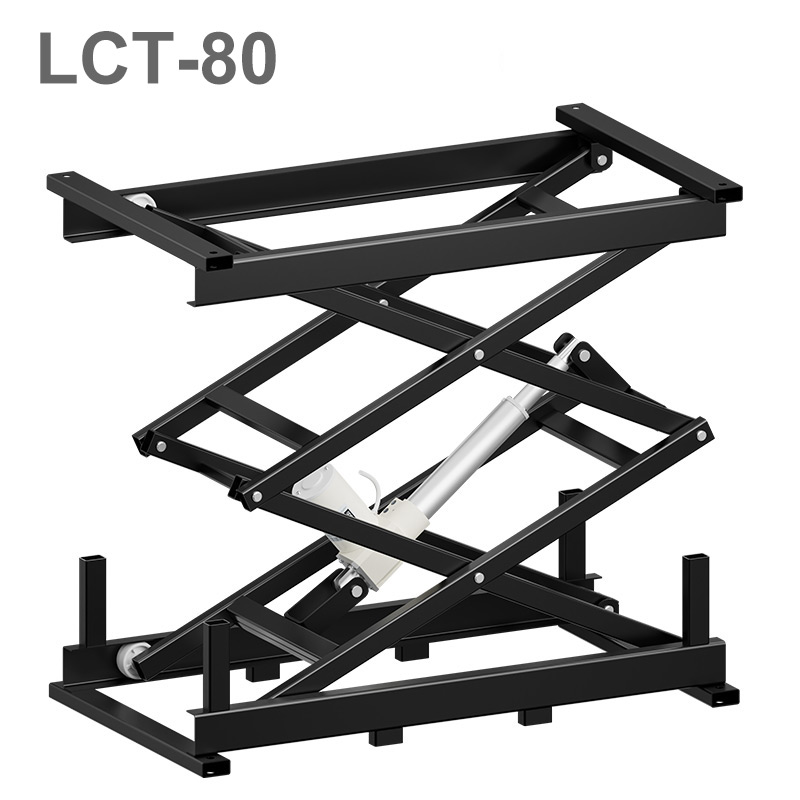

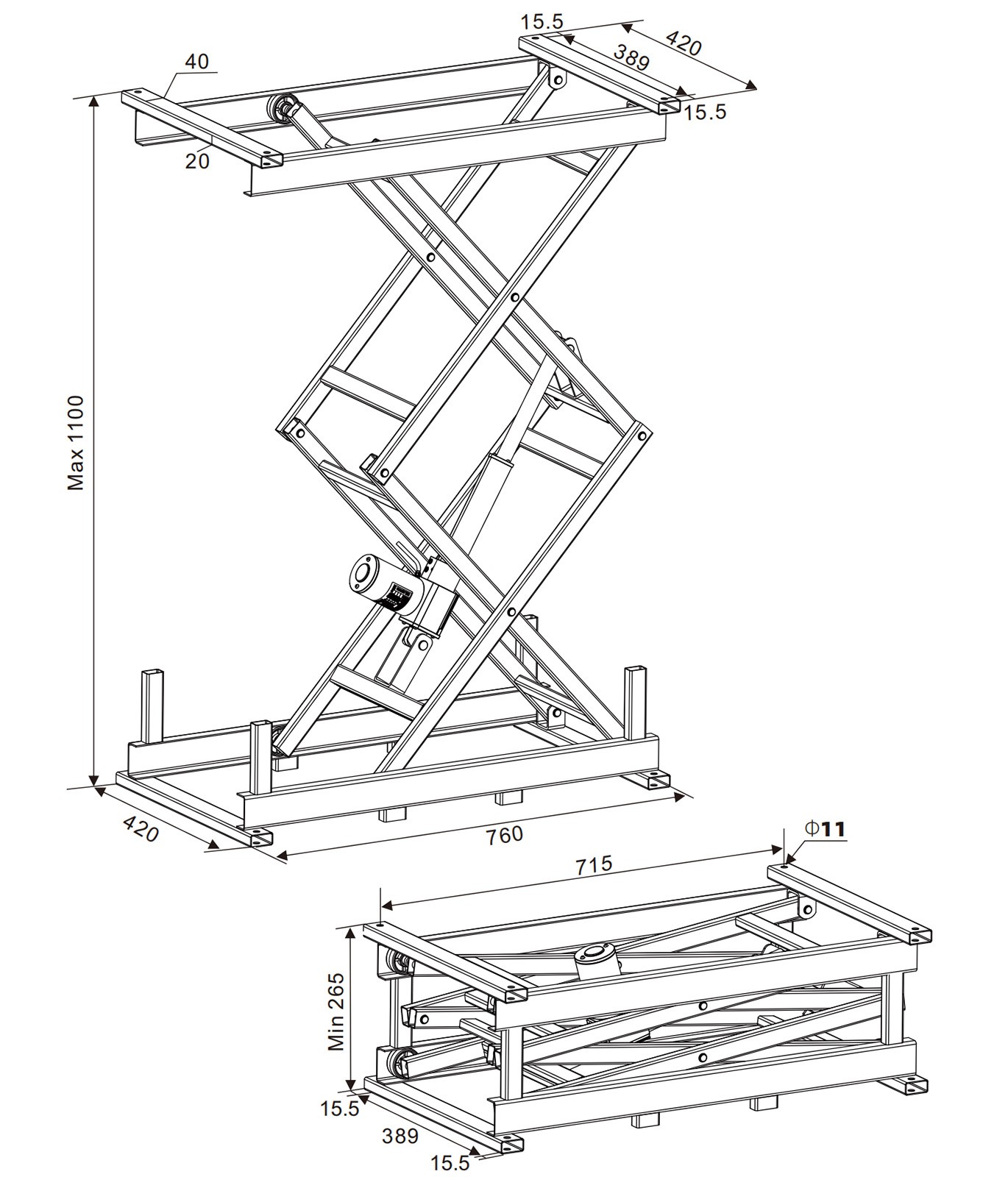

LCT-C2-80

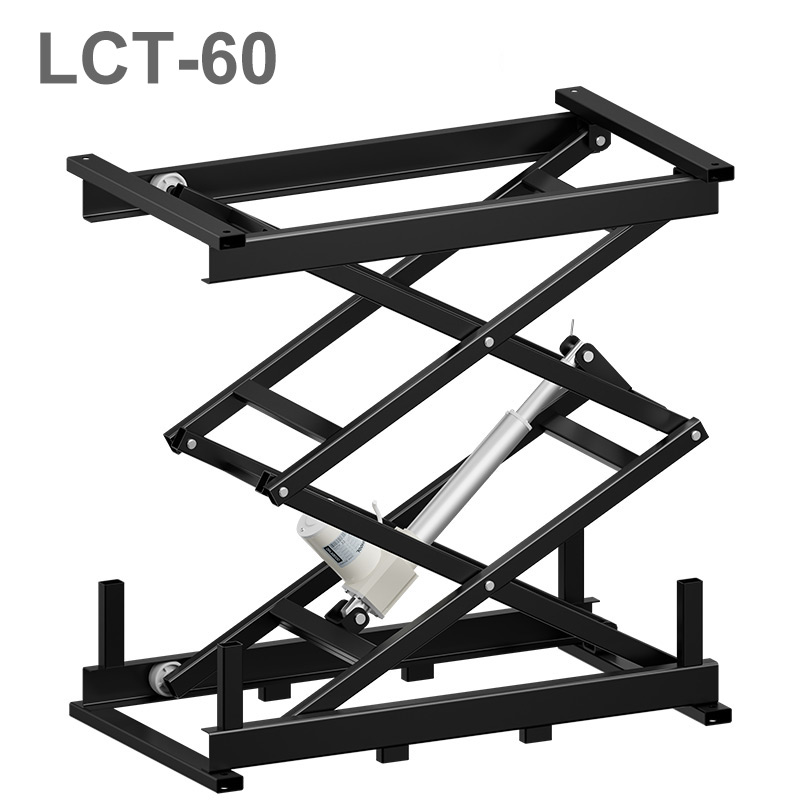

LCT-C2-60
