LCM Tatami Manual Lift

LCM Tatami Manual Lift

LCM tatami manual lift is modified with an electric lift, and the motor mechanism is cancelled. The transmission mechanism is driven up and down by hand. The lock mechanism can carry 200KG items.

Aluminum alloy shell, impact resistance, durable
Maximum load:2000N/200kg
Speed: 5MM / Circle
Section: 3
Color: Silver White

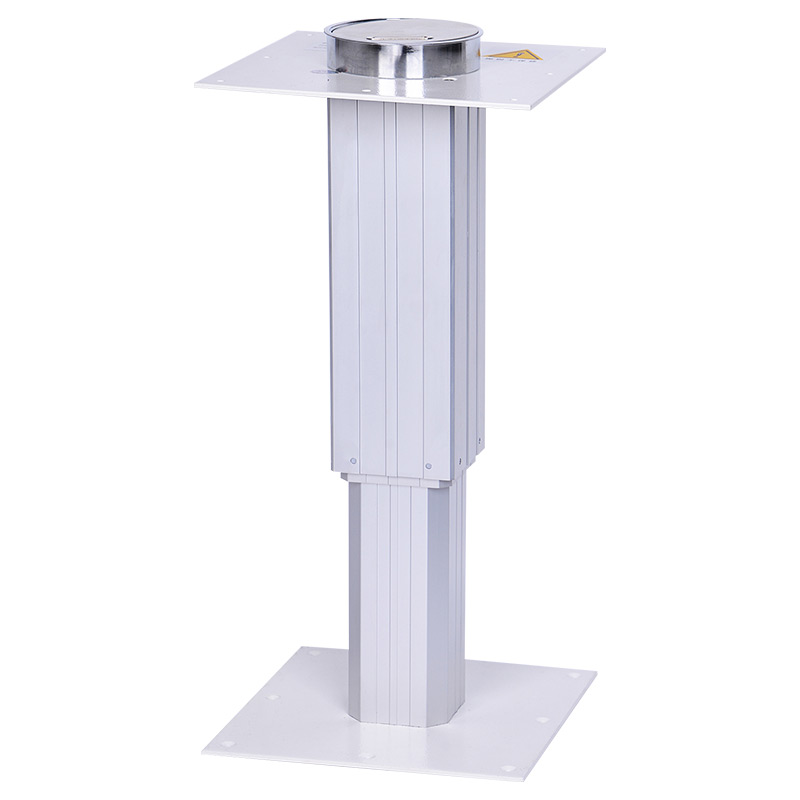

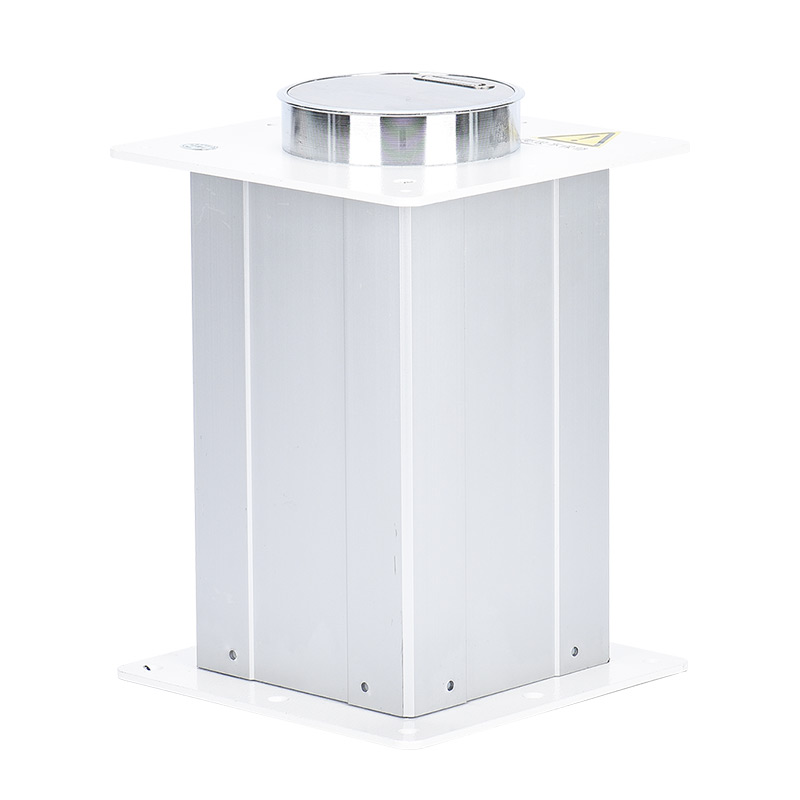

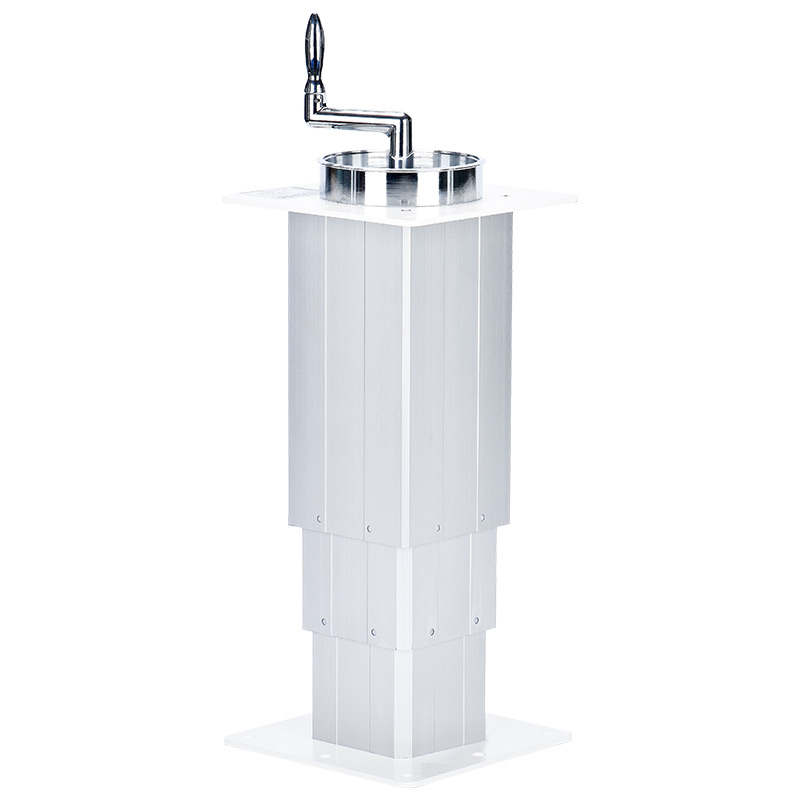

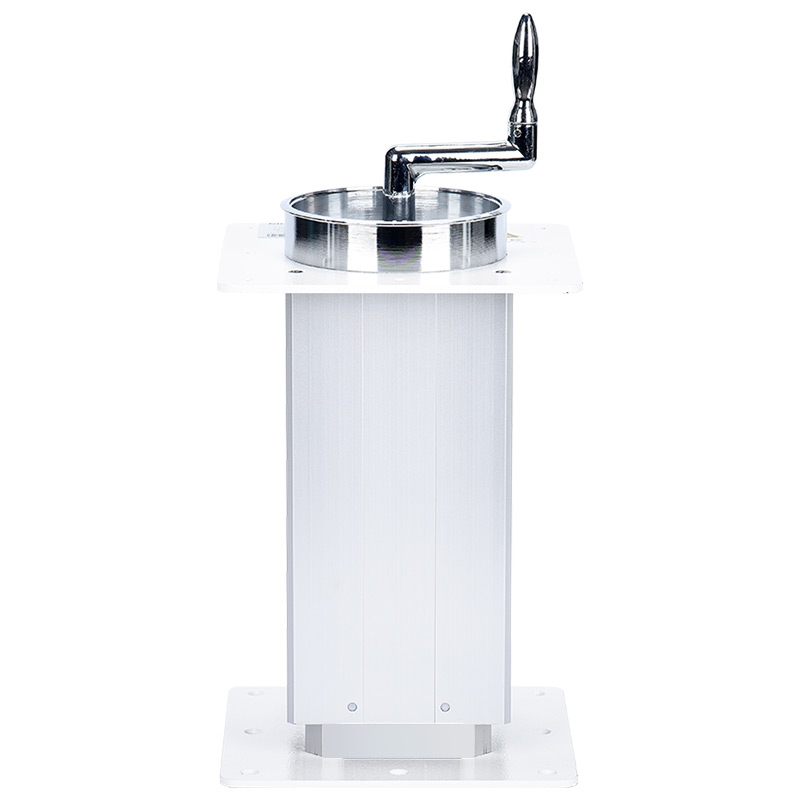

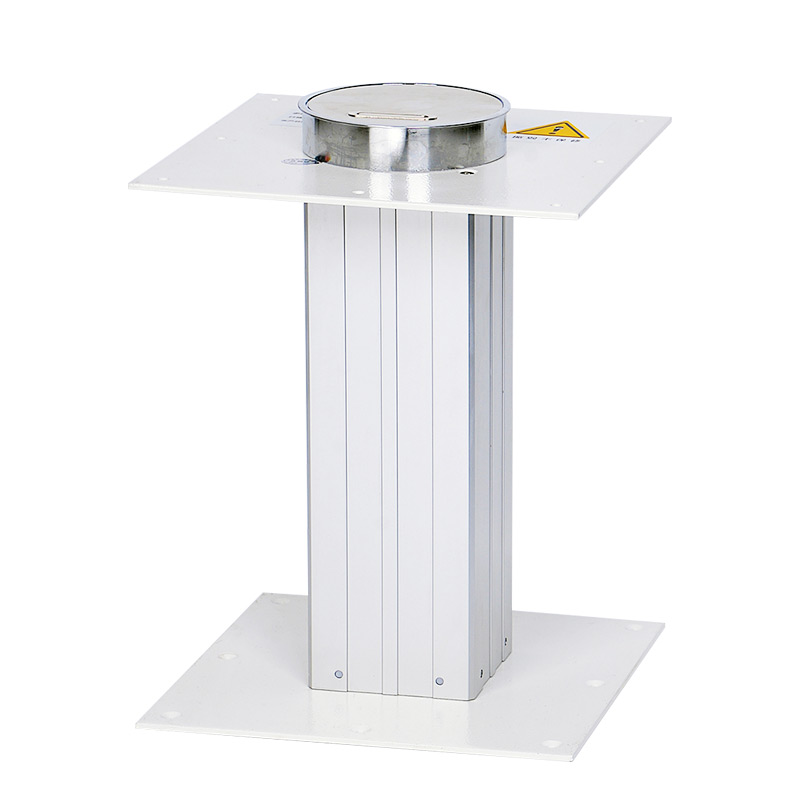

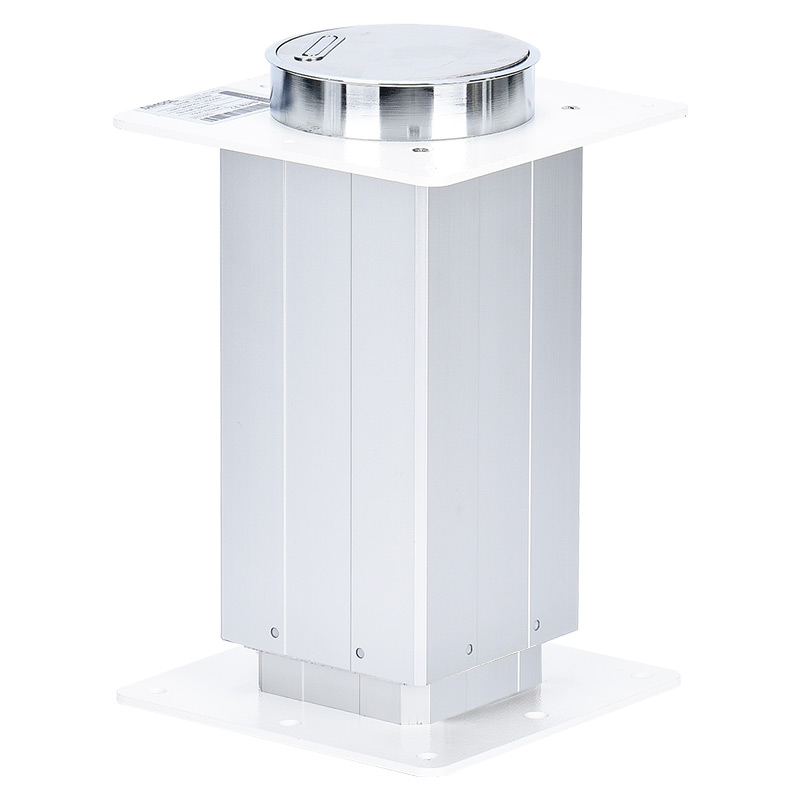

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LCM tatami manual lift is modified with an electric lift, and the motor mechanism is cancelled. The top of the manual lift has a circular transmission box with height of 26.2MM, and built-in metal handle. The transmission mechanism is driven up and down by hand. The lock mechanism can carry 200KG items. If you need a hole opener, please contact us.
The manual tatami elevator is divided into 260/310/360MM according to the initial height; the shell is divided into large aluminum 144/133/122MM, China Aluminum 113/104/95MM; the upper and lower mounting panels are large aluminum 200*200MM (290*290MM); China Aluminum 200 *200MM (245*245MM), you can match according to your own needs, and we also provide a variety of customized aluminum profile processing services.

Product features

● Aluminum alloy shell, impact resistance, durable
● Low noise
● Large expansion range
● Built-in limit switch
● Wide range of applications
● The functions of expanding, selecting Hall sensor, PC control, etc.
● Other specifications and sizes can be customized

Technical Parameters

ModelLCM260ALCM310ALCM360A
Panel Size200*200200*200200*200
ModelLCM260BLCM310BLCM360B
Panel Size180*180180*180180*180
Initial Height H (MM)260305355
Final Height FH(MM)555705810
Stroke Length S (MM)295400455
Section333
Speed5MM / Circle
Bearing Capacity200KG
Load Capacity2000N
ColorSilver White
PanelsPowder Coating
Note*Does not contain handle box, is the height of the upper and lower iron plate. Other specifications, sizes can be customized

Outline Dimension Drawing

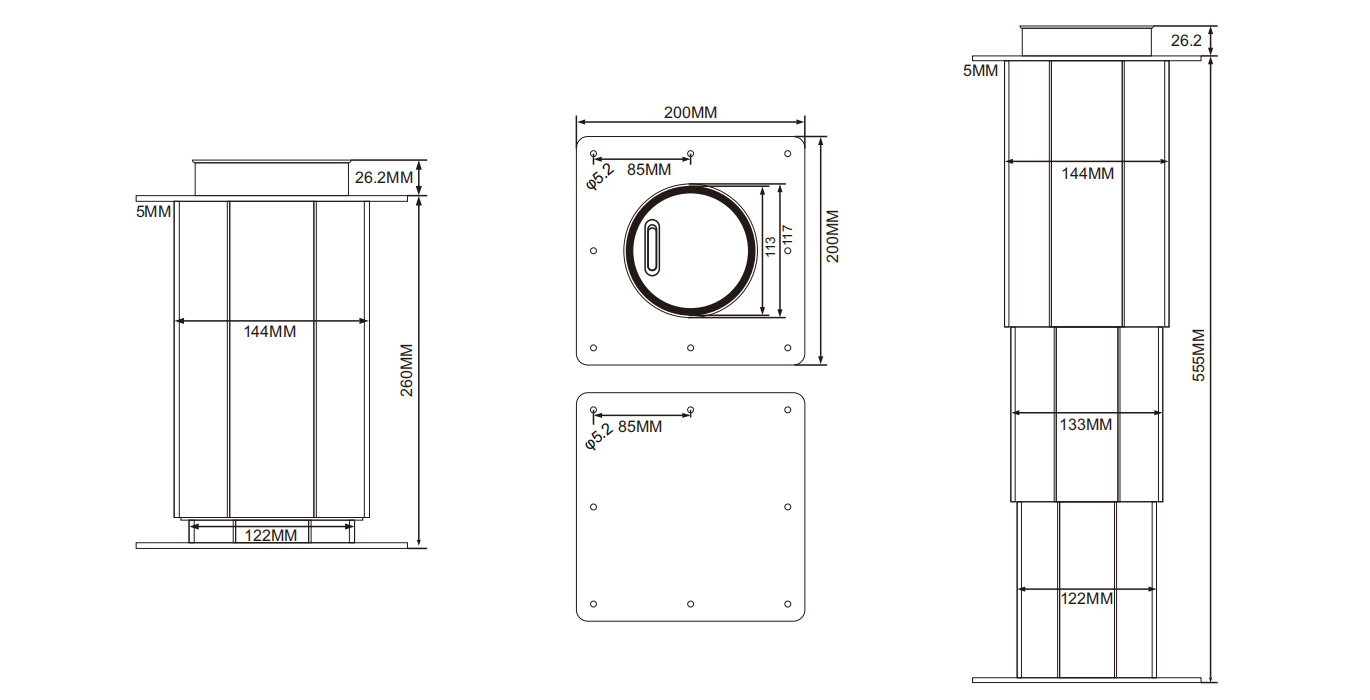

LCM-260A

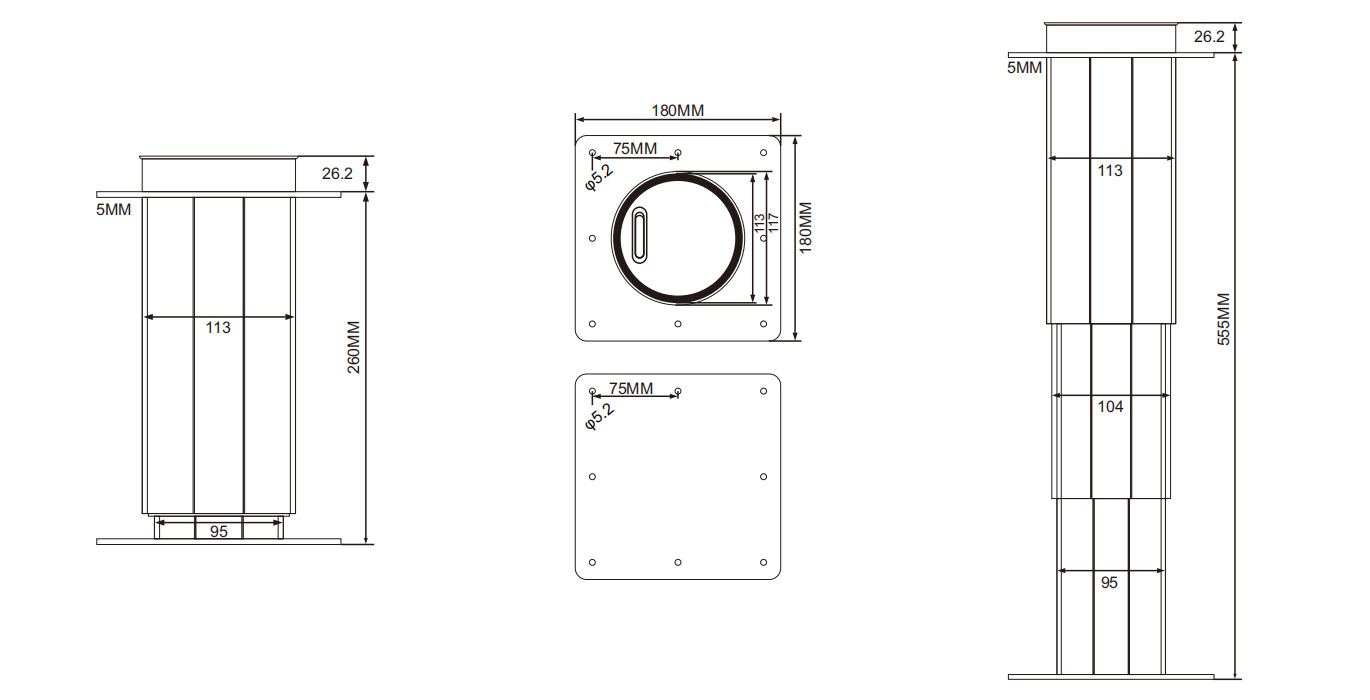

260A.jpgLCM-260B

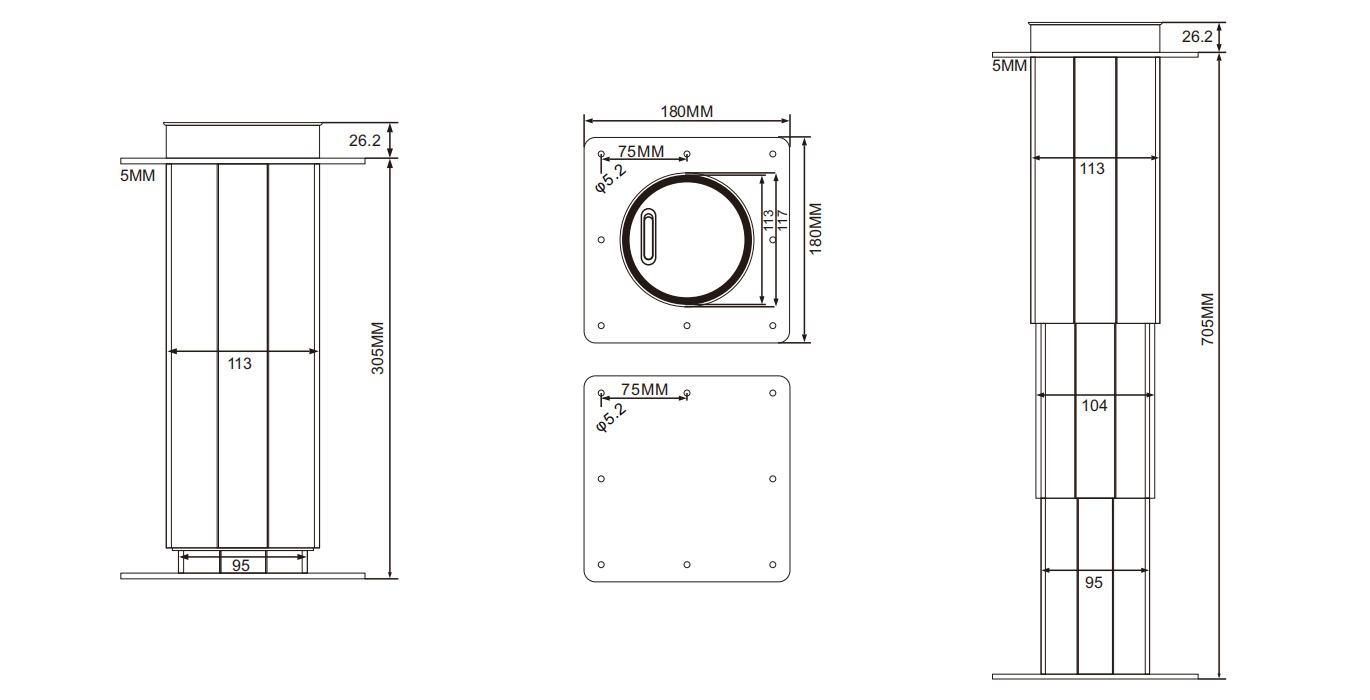

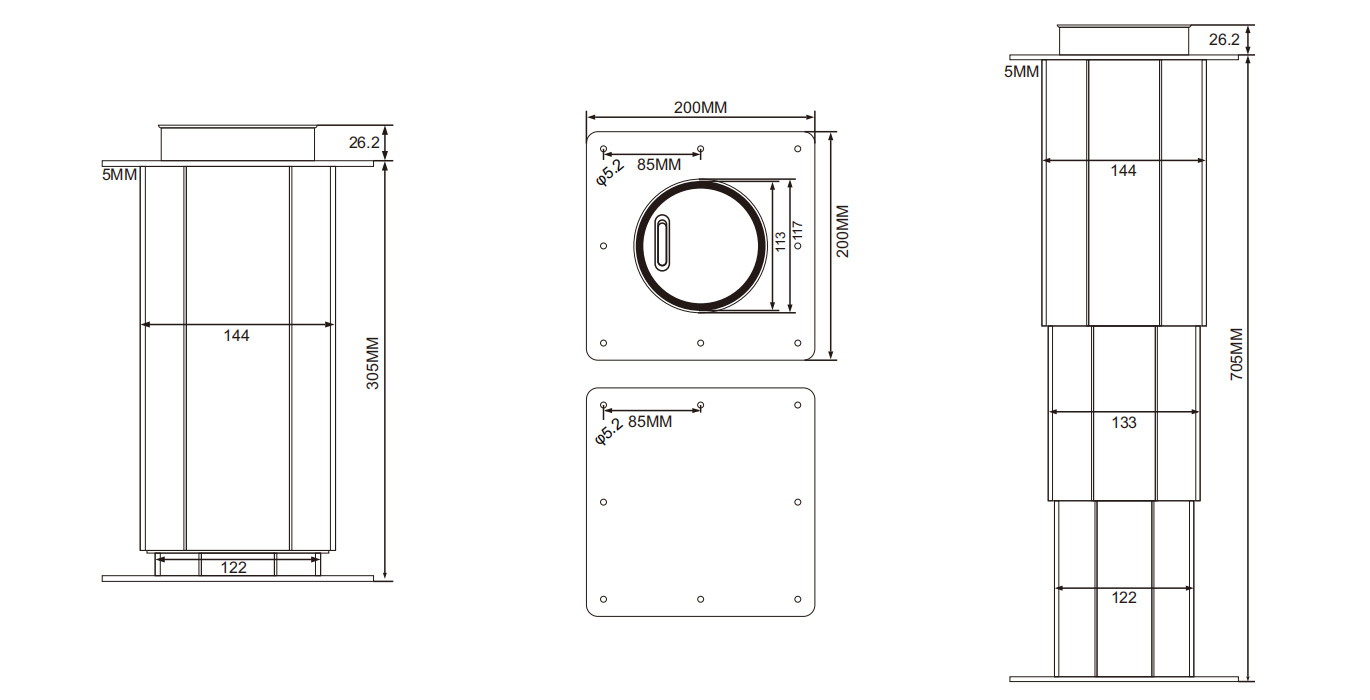

260B.jpgLCM-310A
310A.jpgLCM-310B

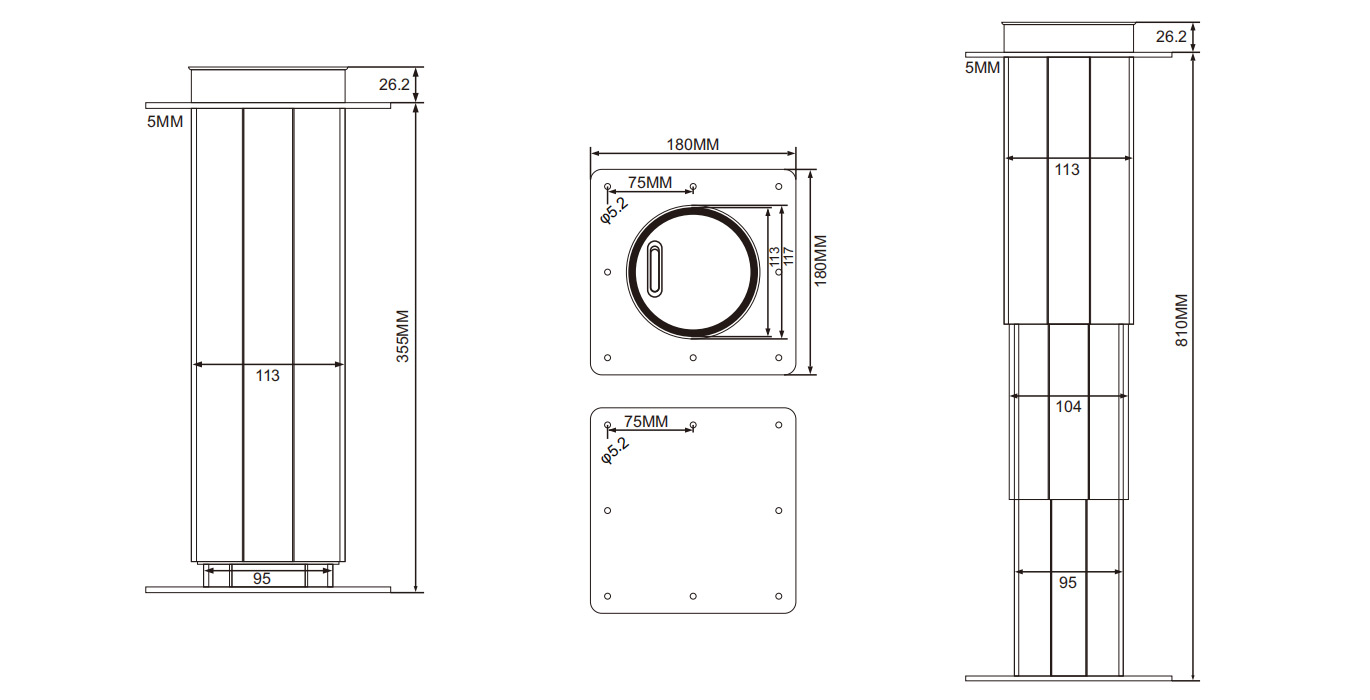

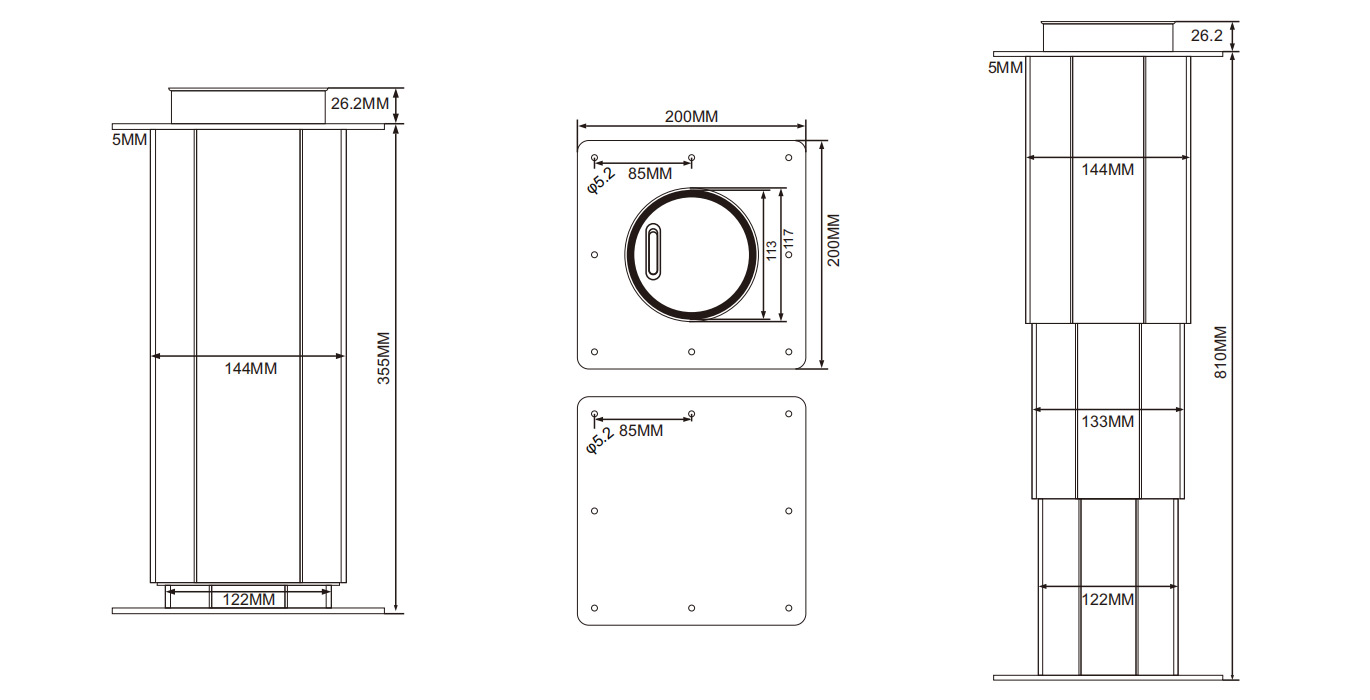

310B.jpgLCM-360A
360A.jpgLCM-360B
