LCEY Mobile Tatami Electric Lift

LCEY Mobile Tatami Electric Lift

LCEY mobile tatami electric lift, aluminum column width is 113/104/95MM 3 sections, panel width is 160*160*5MM, mobile tray is made of high hardness resin material, load capacity can reach 300kg, 4 silent roller.

Input Volatge: DC12~19V / DC24~32V
Maximum load:800N/80kg; 1200N/120kg
Operating Temperature: 0°C ~ +40°C
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
No-Load Speed: 15V-5MM/S|30V-5MM/S|30V-10MM/S

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

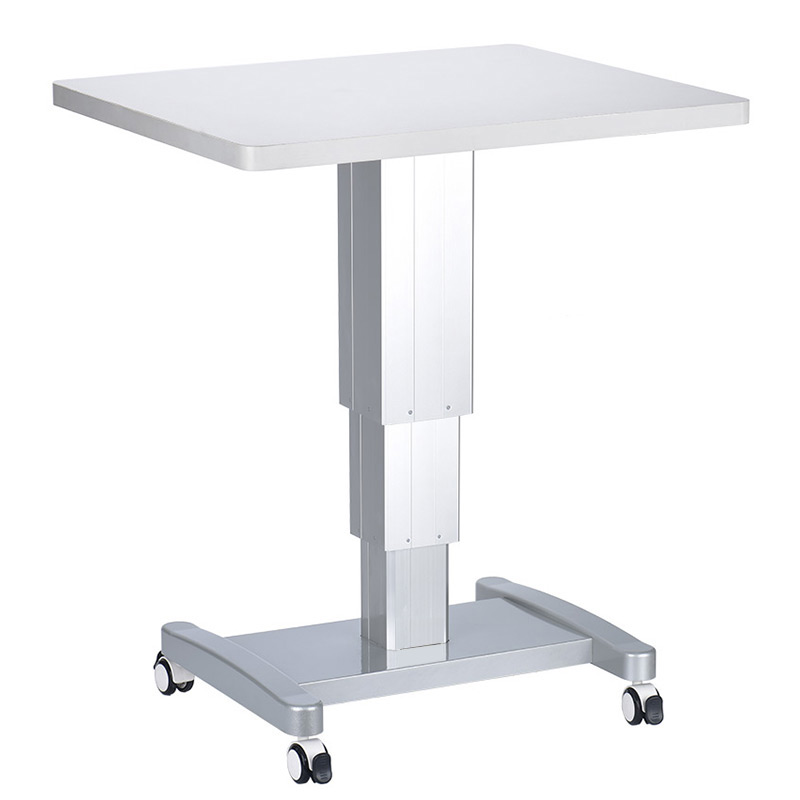

LCEY mobile tatami electric lift, aluminum column width is 113/104/95MM 3 sections, panel width is 160*160*5MM, mobile tray is made of high hardness resin material, load capacity can reach 300kg, 4 silent roller, This mobile desk is best choice for home and office.
This mobile electric lift has a maximum load capacity of 200kg, maximum speed of 20MM/S, built-in limit switch, it will automatically power off when it rises to the highest position, built-in self-locking mechanism, and the self-locking force of 2000N will not fall after power off.

Product features

● Aluminum alloy shell, impact resistance, durable
● Low noise
● Large expansion range
● Built-in limit switch
● Wide range of applications
● The functions of expanding, selecting Hall sensor, PC control, etc.
● Other specifications and sizes can be customized

Technical Parameters

ModelLCE260YLCE310YLCE360YLCE410Y
Panel Size160*160160*160160*160160*160
Initial Height H (MM)350400450500
Final Height FH(MM)640760890800
Stroke Length S (MM)290360440300
Section3332
VoltageDC24~32V / DC12~19V / Hall 24-32V
No-Load Speed15V-5MM/S   |   30V-5MM/S   |   30V-10MM/S
Max Load Capacity80KG   |   120KG   |   80KG
Operating Temperature0-40°C
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver White
MaterialBody Aluminum, Panel Iron
Optional FeaturesRebound or Pause When Encountering Obstacles
Note*Other specifications, aluminum shell color, and connection Panel Size can be customized.

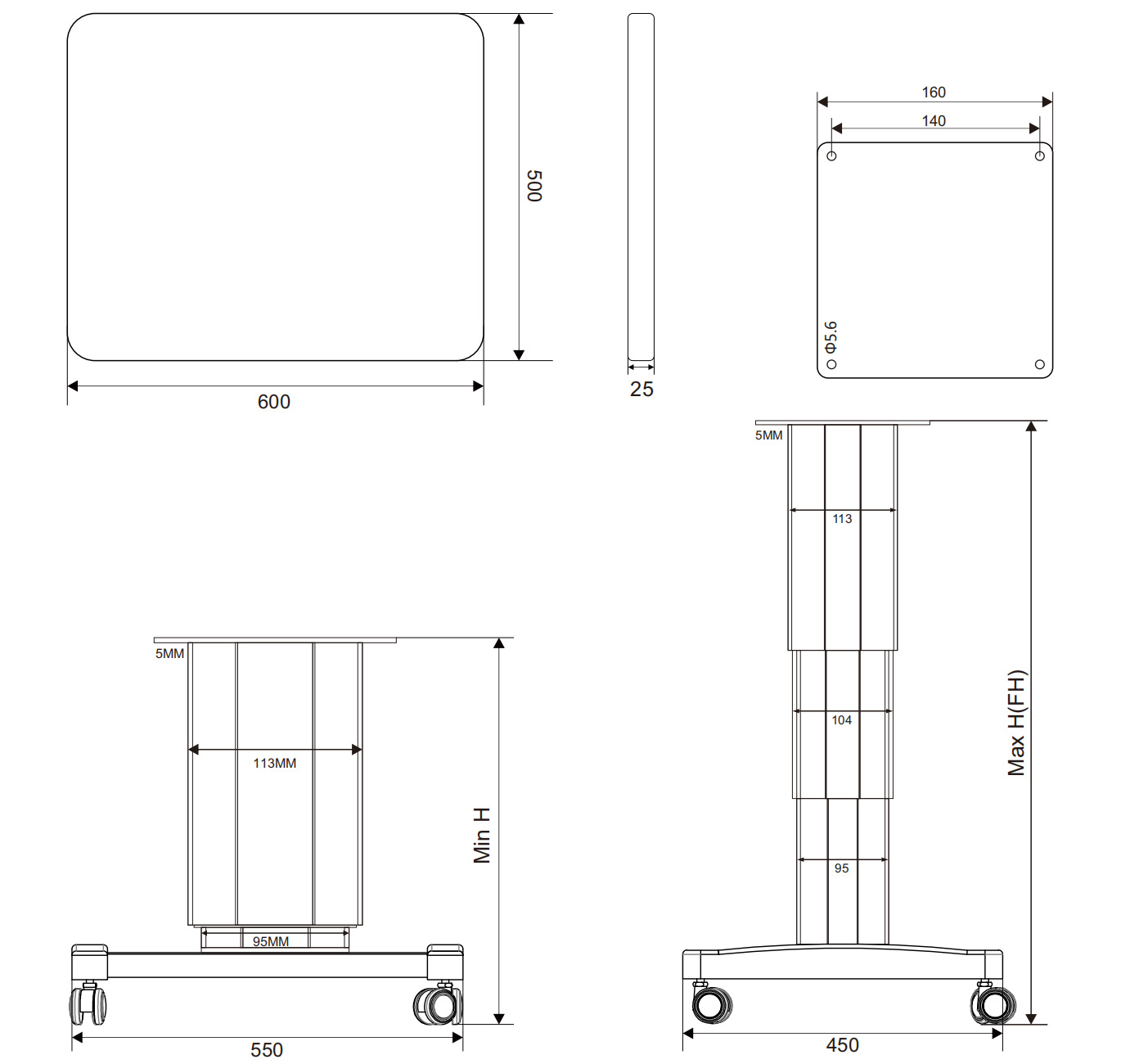

Outline Dimension Drawing
