LCE-IR Electric Lifting Column

LCE-IR Electric Lifting Column

LCE Iron panel tatami electric lift is driven by DC24V / DC12V brush motor, and the internal screw rod is rotated through a gear box to realize the up and down process.

Input Volatge: DC12~19V / DC24~32V
Maximum load:800N/80kg; 1200N/120kg
Operating Temperature: -15°C ~ +65°C
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
No-Load Speed: 15V-5MM/S|30V-5MM/S|30V-10MM/S

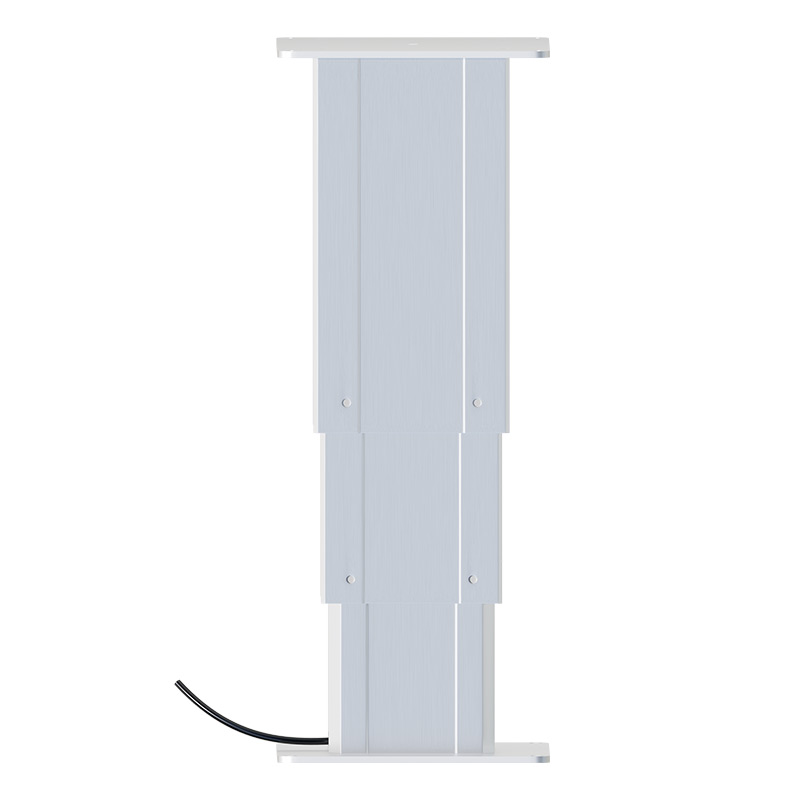

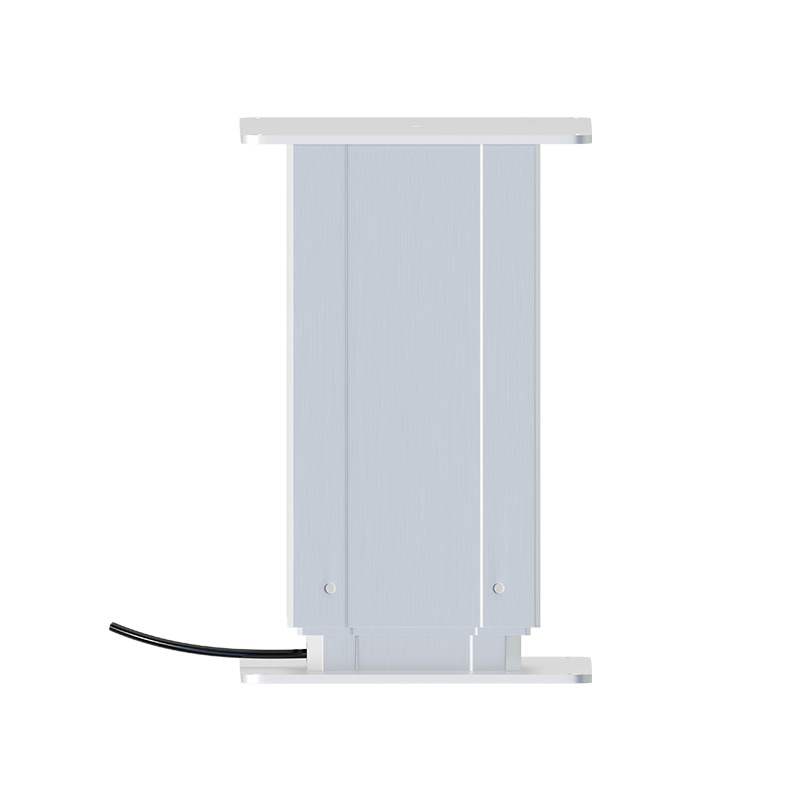

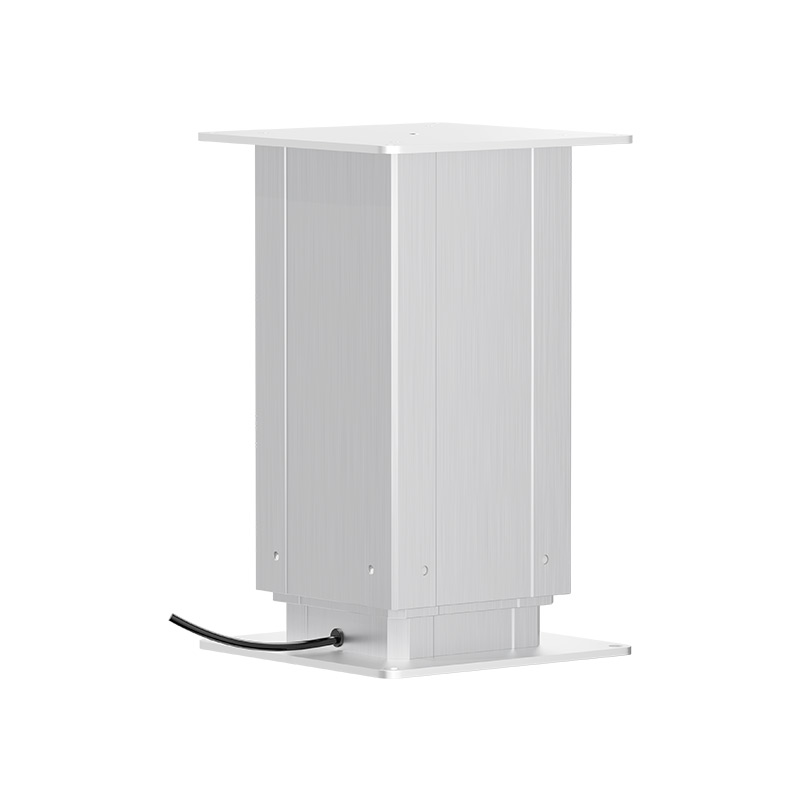

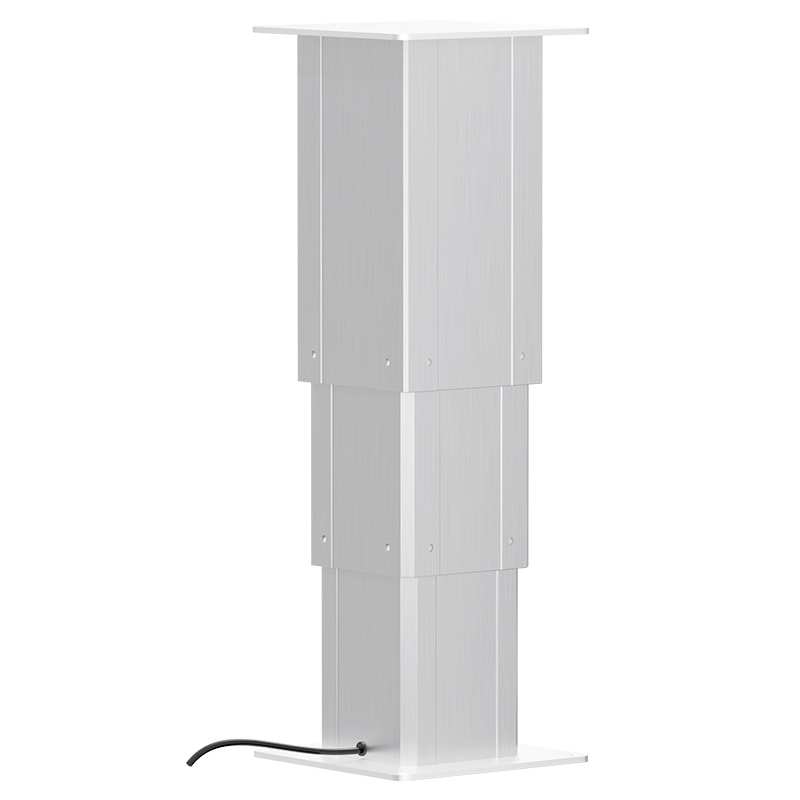

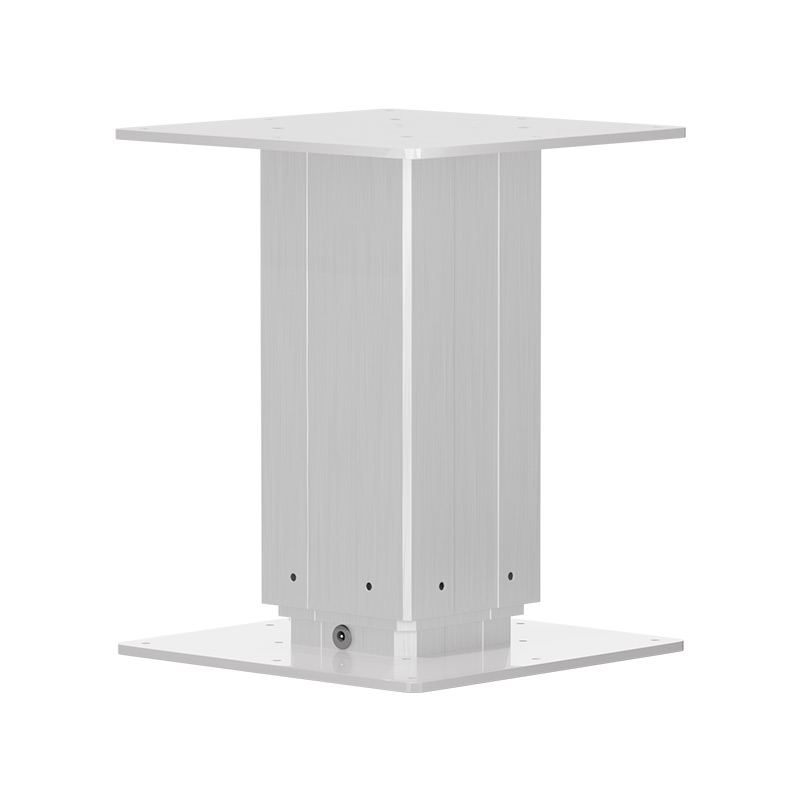

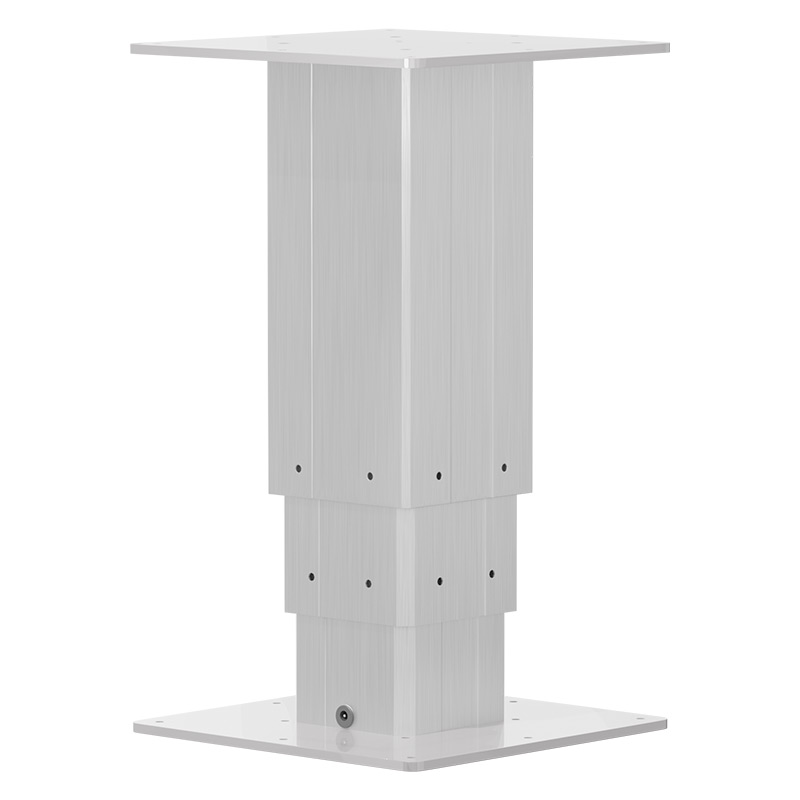

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LCE Iron panel tatami electric lift is driven by DC24V / DC12V brush motor, and the internal screw rod is rotated through a gear box to realize the up and down process. Our tatami lift has two lifting methods, one is wireless remote control, and the other is the controller switch. The center lifting column is made of all-aluminum materials, and the exterior is made of metal wire drawing. The tatami electric lift has a variety of safety functions, such as automatic power-off protection, temperature control motor protection, overload protection and other functions to ensure safe and reliable use.
LCE360/310/260 tatami lift use 3 section aluminum columns, LCE410 uses 2 section aluminum columns.

Product features

● Aluminum alloy shell, impact resistance, durable
● Low noise
● Large expansion range
● Built-in limit switch
● Wide range of applications
● The functions of expanding, selecting Hall sensor, PC control, etc.
● Other specifications and sizes can be customized

Technical Parameters

ModelLCE260ALCE310ALCE360ALCE410A
Panel Size200*200200*200200*200200*200
ModelLCE260BLCE310BLCE360BLCE410B
Panel Size160*160160*160160*160160*160
Initial Height H (MM)265315360420
Final Height FH(MM)540690790720
Stroke Length S (MM)275375430300
Section3332
No-Load Speed15V-5MM/S   |   30V-5MM/S   |   30V-10MM/S
Max Load Capacity80KG   |   120KG   |   80KG
Operating Temperature-15°C ~ +65°C
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver White
MaterialBody Aluminum, Panel Iron
Optional FeaturesRebound or Pause When Encountering Obstacles
NoteOther specifications, aluminum shell color, and connection Panel Size can be customized.
The Max Load of 260A/260B DC30V-5MM/S is less than 100kg.
Will Cause Abnormal Noise If Overload

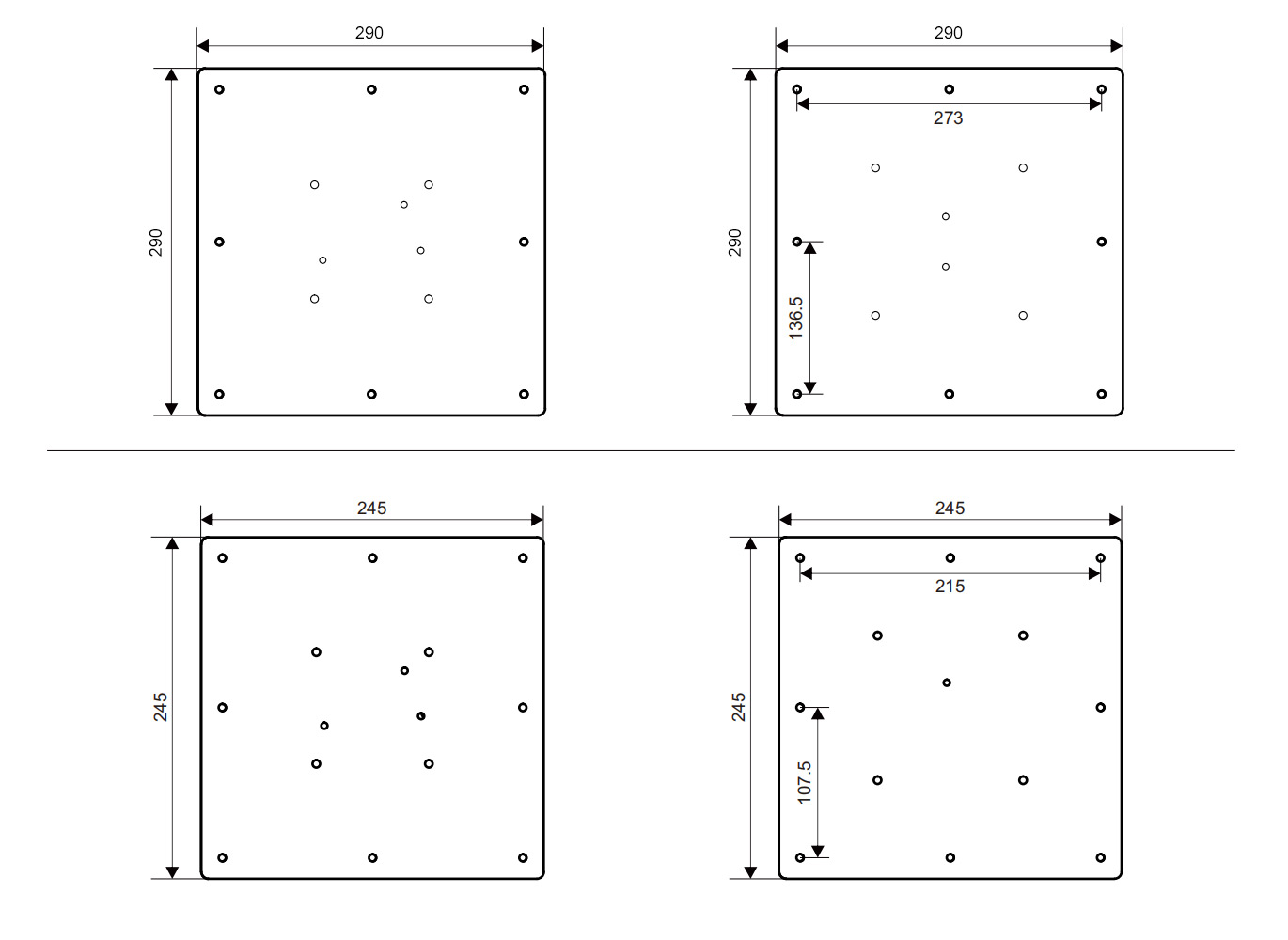

Outline Dimension Drawing

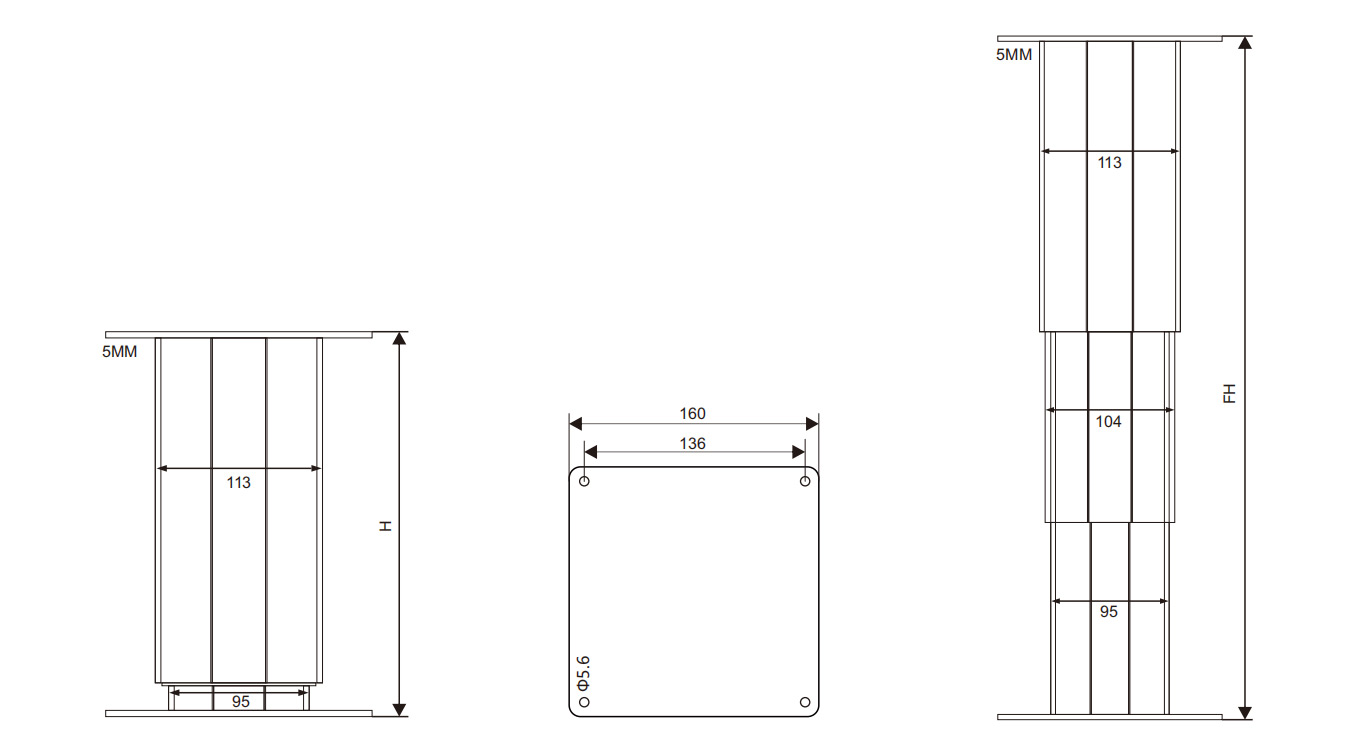

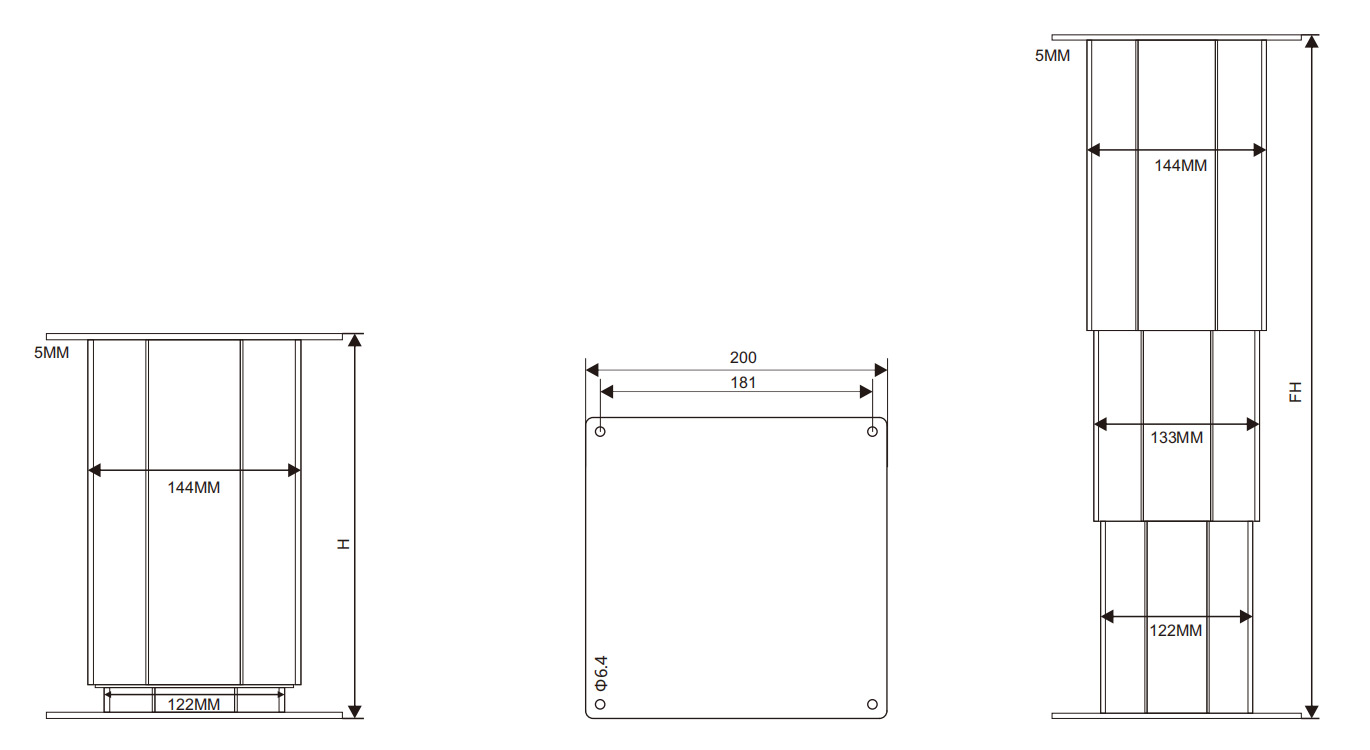

LCE260/310/360-A


LCE260/310/360-B

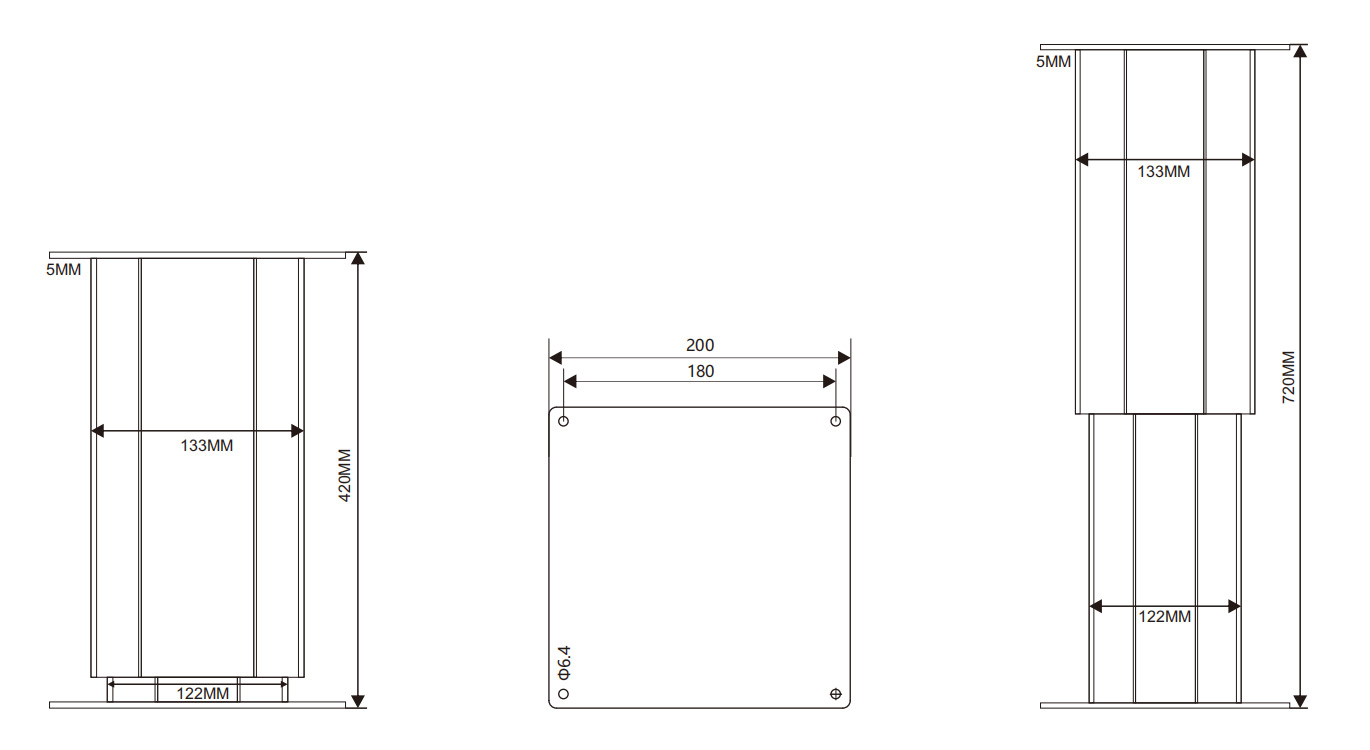

LCE410-A


LCE410-B


Outline Dimension Drawing
