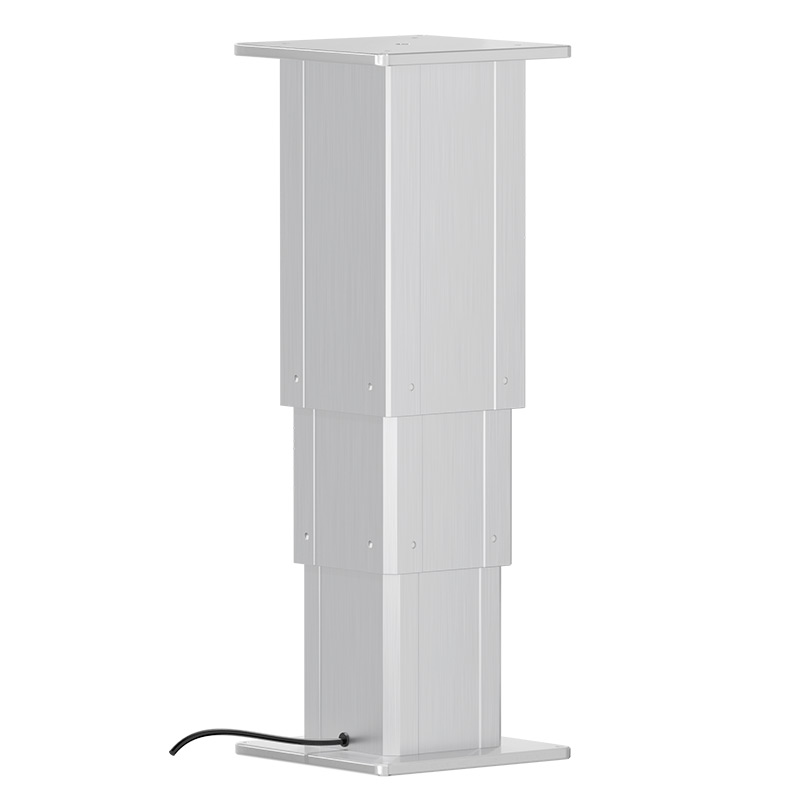

LCE-AL Electric Lifting Column

LCE Aluminum panel tatami electric lift is driven by DC24V / DC12V brush motor, and the internal screw rod is rotated through a gear box to realize the up and down process.

Input Volatge: DC12~19V / DC24~32V
Maximum load：800N/80kg; 1200N/120kg
Operating Temperature: -15°C ~ +65°C
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
No-Load Speed: 15V-5MM/S|30V-5MM/S|30V-10MM/S

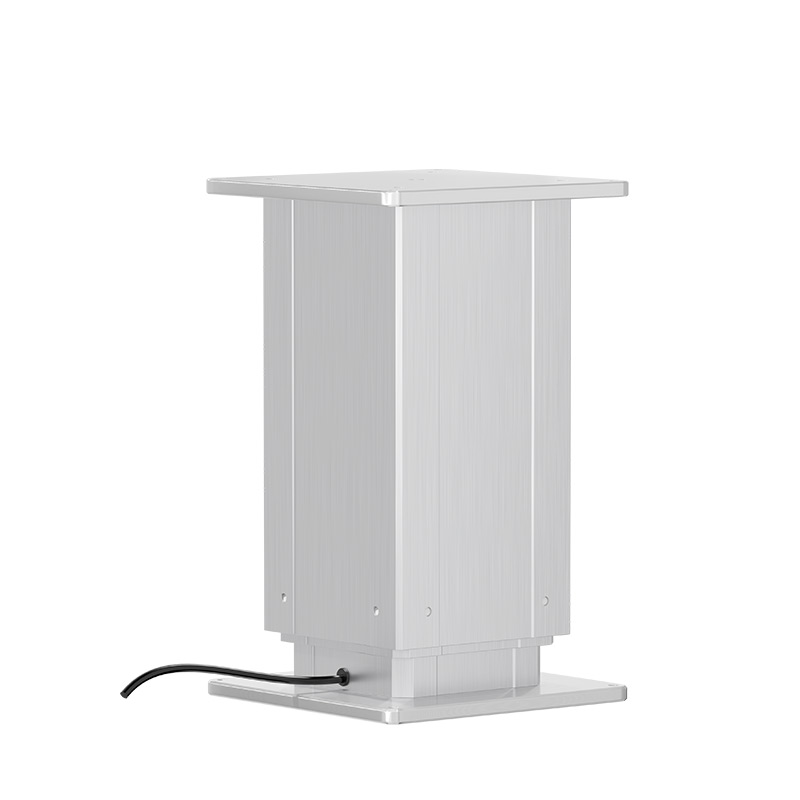

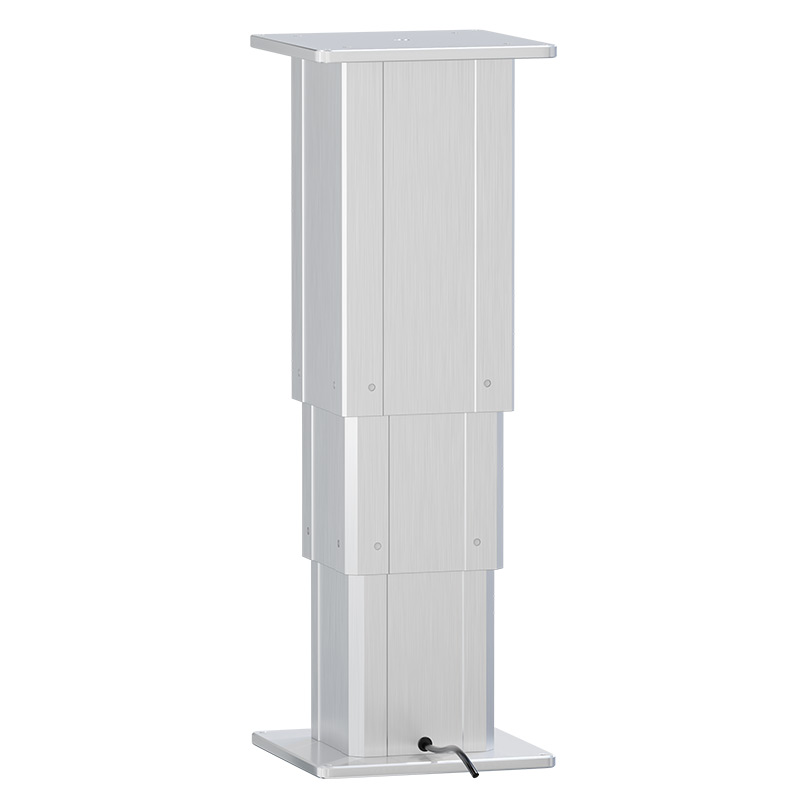

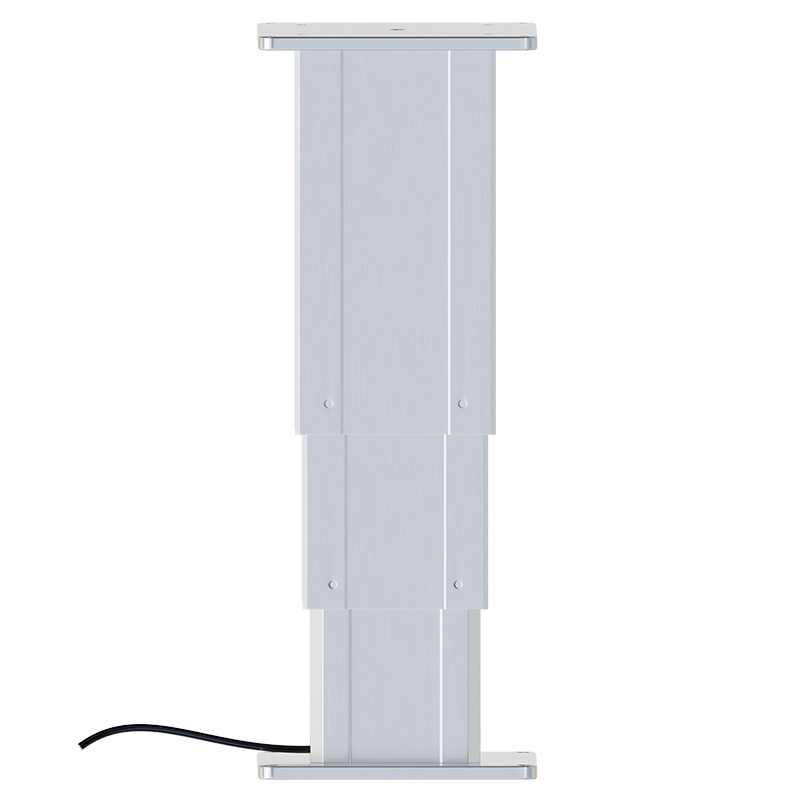

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Introduction

LCE Aluminum panel tatami electric lift is driven by DC 24V / DC12V brush motor, and the internal screw rod is rotated through a gear box to realize the up and down process. Our tatami lift has two lifting methods, one is wireless remote control, and the other is the controller switch. The center lifting column is made of all-aluminum materials, and the exterior is made of metal wire drawing. The tatami electric lift has a variety of safety functions, such as automatic power-off protection, temperature control motor protection, overload protection and other functions to ensure safe and reliable use.
LCE370/320/270 tatami lift use 3 section aluminum columns, LCE420 uses 2 section aluminum columns.

Product features

● Aluminum alloy shell, impact resistance, durable
● Low noise
● Large expansion range
● Built-in limit switch
● Wide range of applications
● The functions of expanding, selecting Hall sensor, PC control, etc.
● Other specifications and sizes can be customized

Technical Parameters

Model	LCE270A	LCE320A	LCE370A	LCE420A
Panel Size	200*200	200*200	200*200	200*200
Model	LCE270B	LCE320B	LCE370B	LCE420B
Panel Size	160*160	160*160	160*160	160*160
Initial Height H (MM)	275	325	375	435
Final Height FH (MM)	545	695	800	735
Stroke Length S (MM)	270	370	425	310
Section	3	3	3	2
Voltage	DC24~32V / DC12~19V / Hall
No-Load Speed	15V-5MM/S \| 30V-5MM/S \| 30V-10MM/S
Max Load Capacity	80KG \| 120KG \| 80KG
Operating Temperature	-15°C ~ +65°C
Limit Switches	Built-in
Operating Frequency	10% Work System, Maximum 1 Hour Continue Working
Color	Silver White
Material	Body Aluminum, Panel Iron
Optional Features	Rebound or Pause When Encountering Obstacles
Note	Other specifications, aluminum shell color, and connection Panel Size can be customized. The Max Load of 260A/260B DC30V-5MM/S is less than 100kg. Will Cause Abnormal Noise If Overload

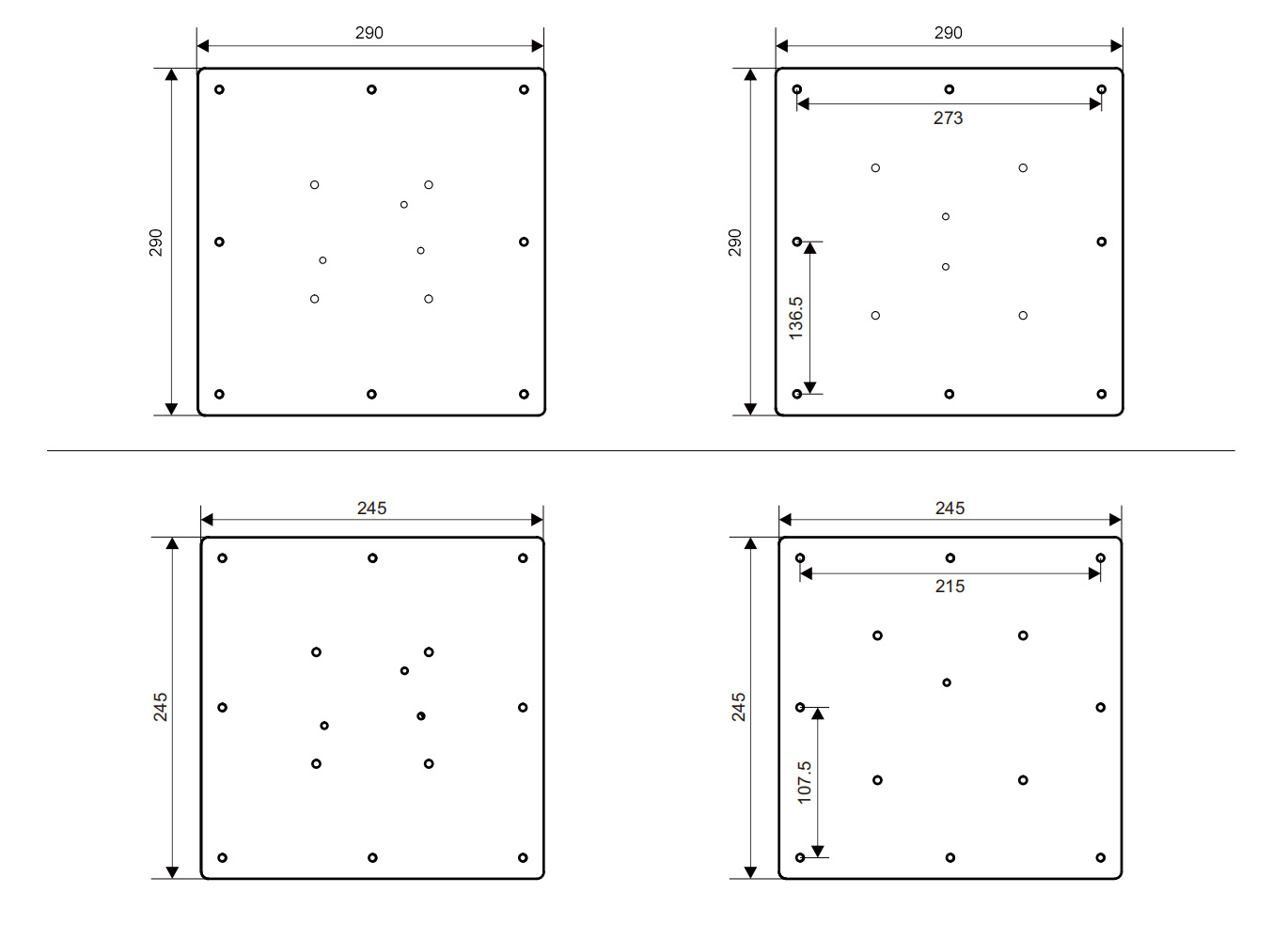

Outline Dimension Drawing

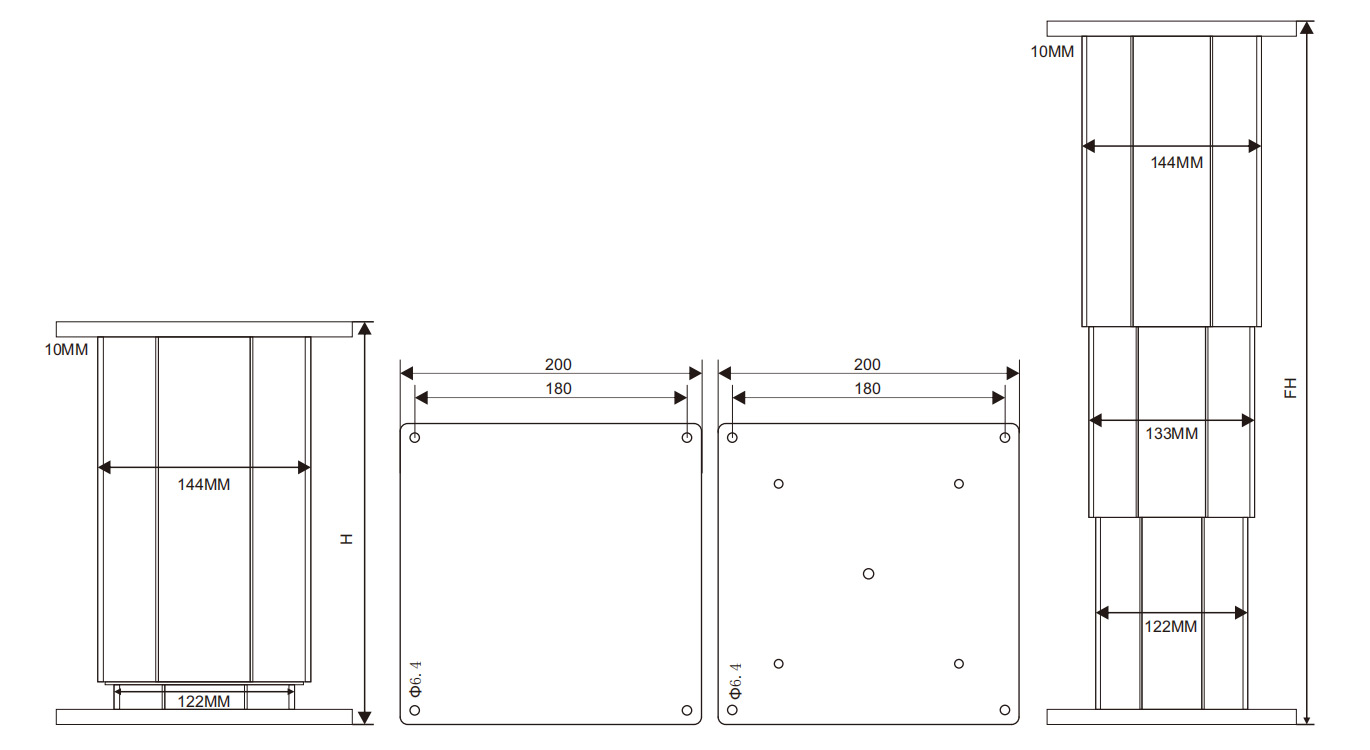

LCE270/320/370-A

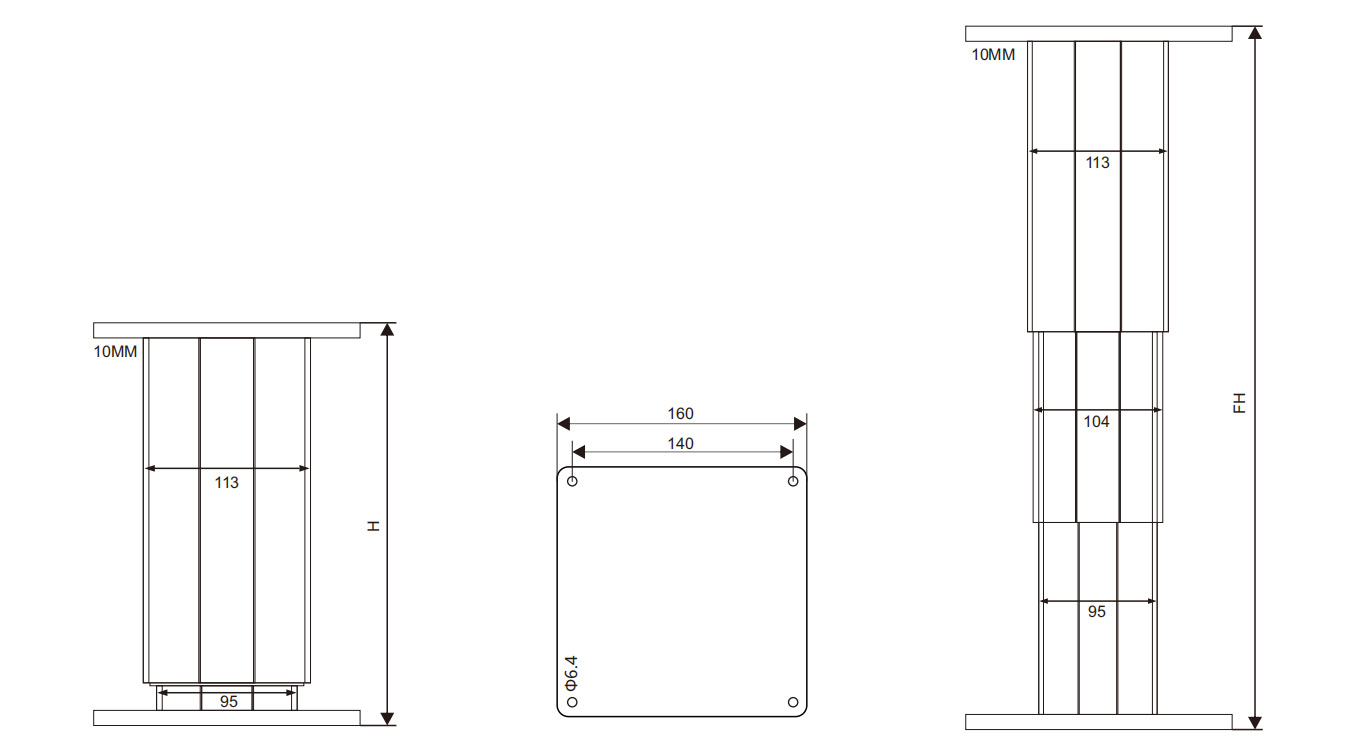

LCE270/320/370-B

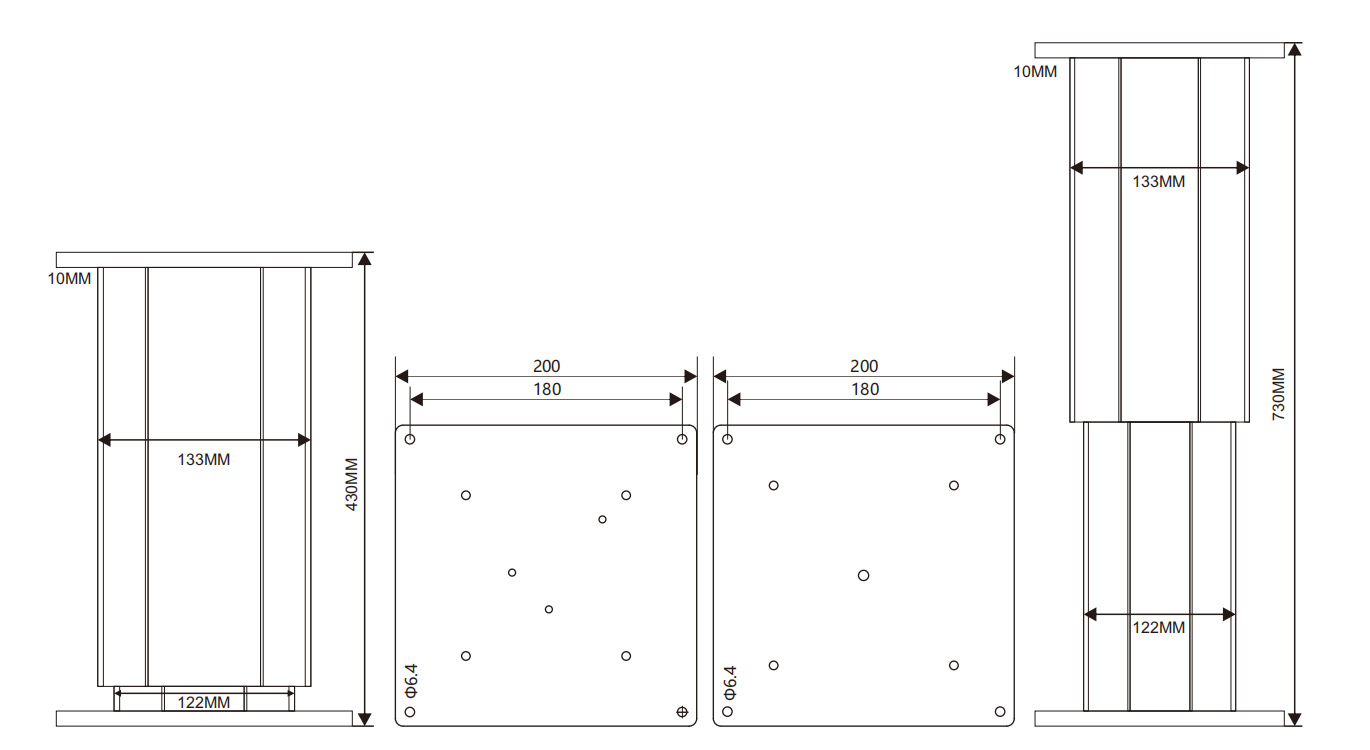

LCE420-A

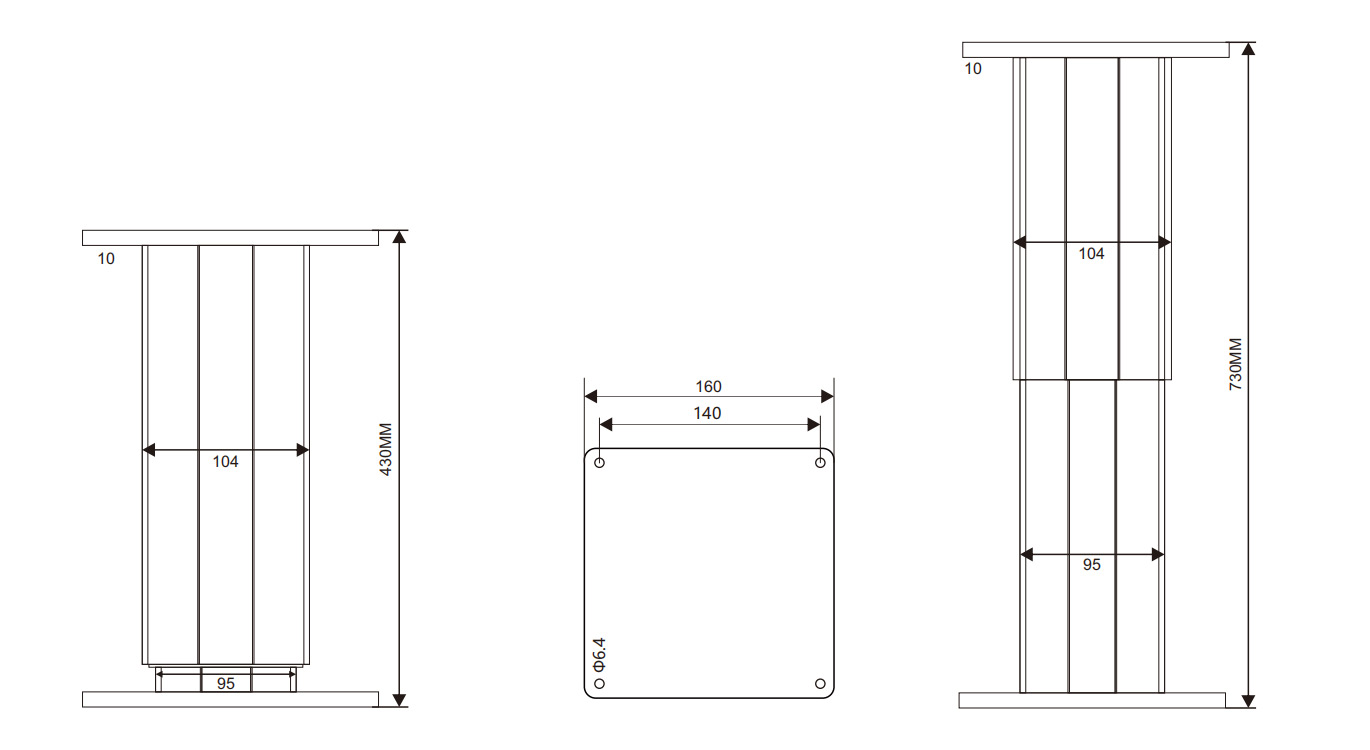

LCE420-B
