LC800-P Electric Lifting Column

LC800-P Electric Lifting Column

LC800 electric lifting column, maximum load 100kg, speed 25MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller.

Input Volatge: DC24~32V
Maximum load：1200N/120kg
No-load Speed: 25MM/S
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Stroke Length: 500/650mm

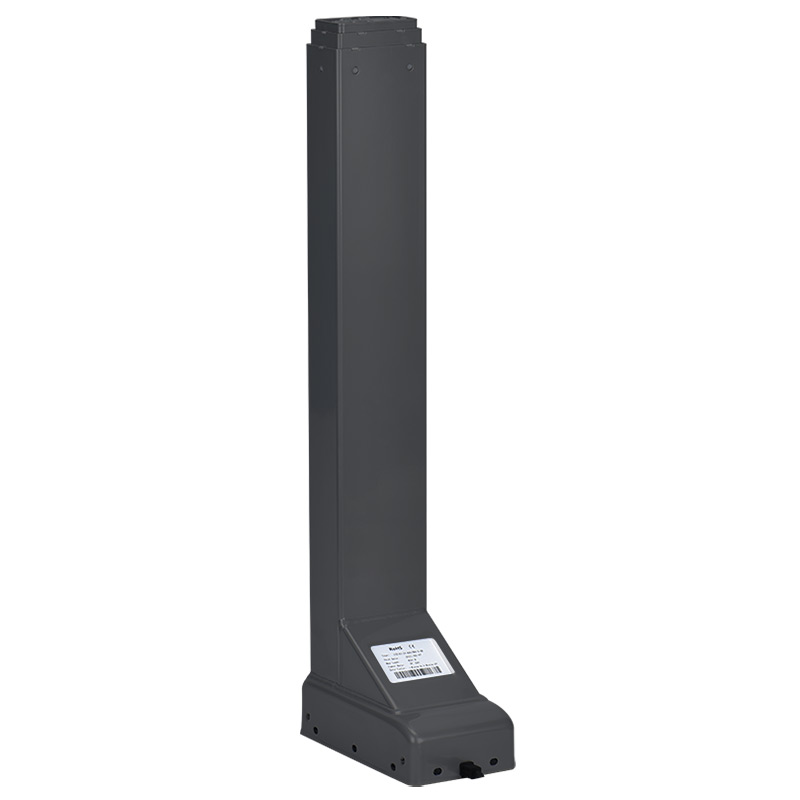

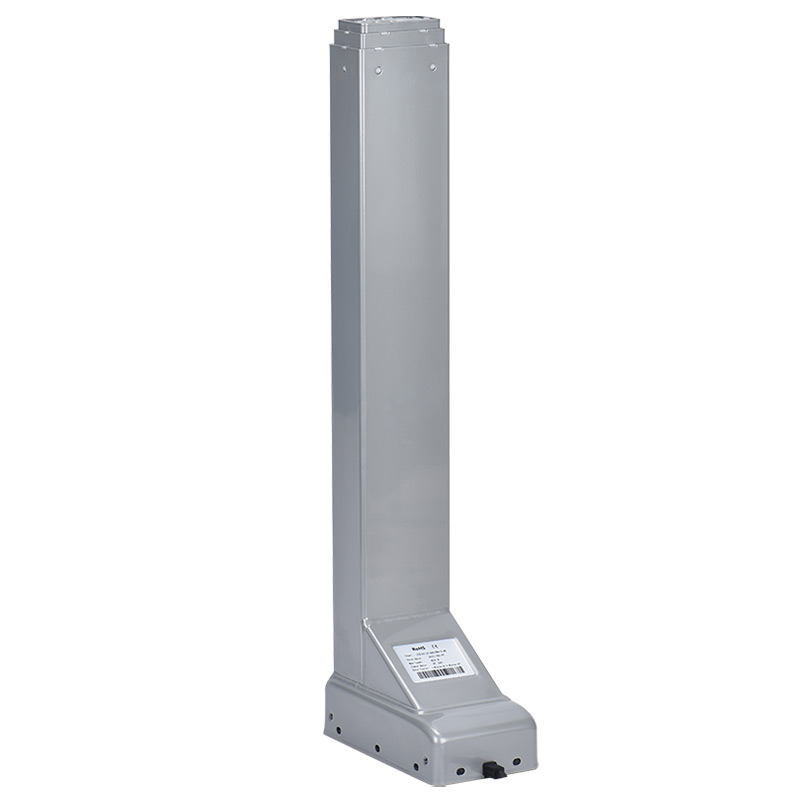

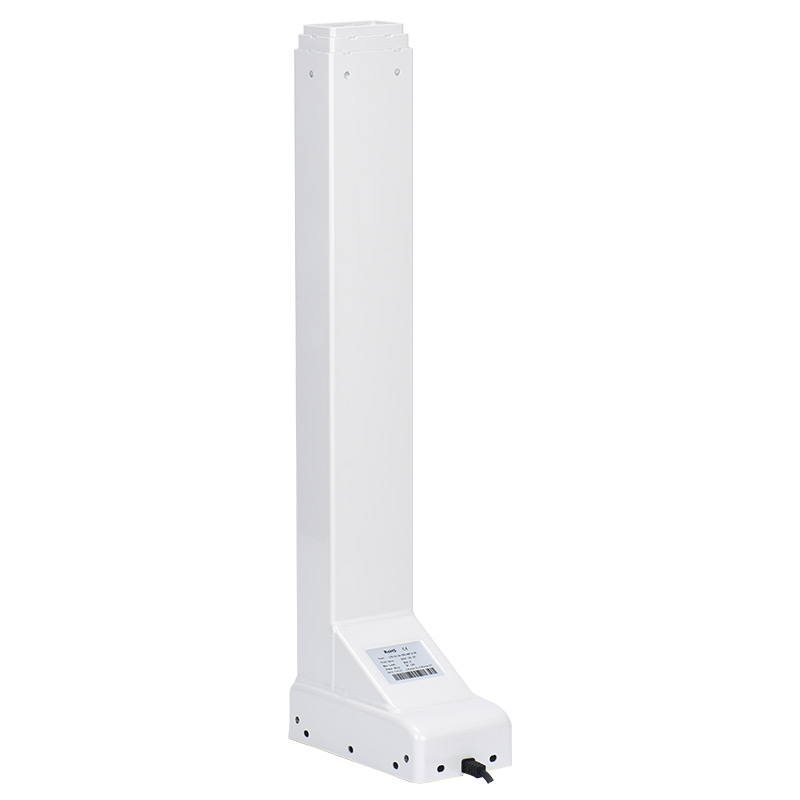

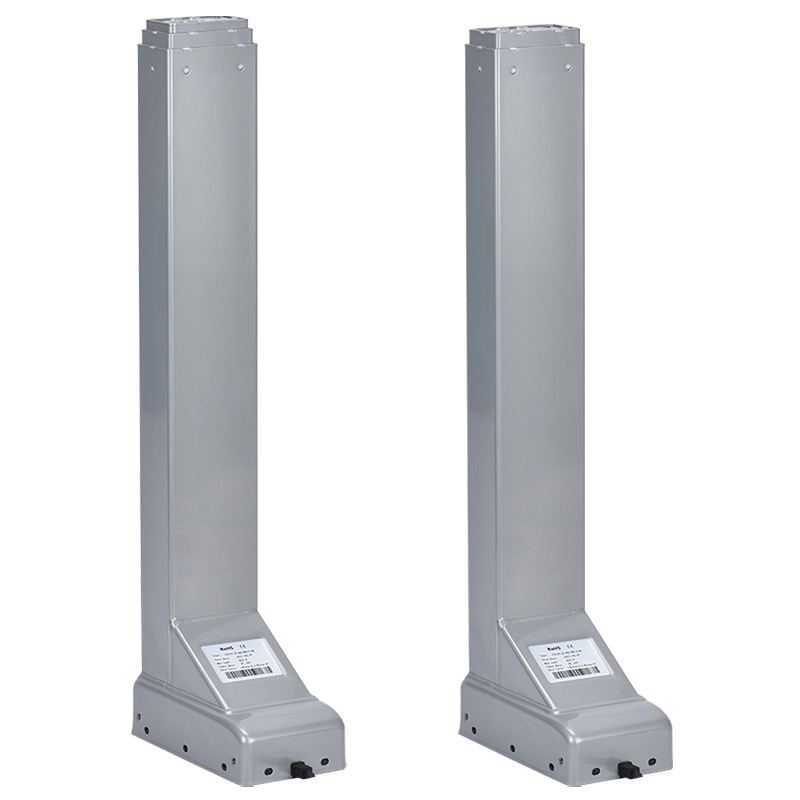

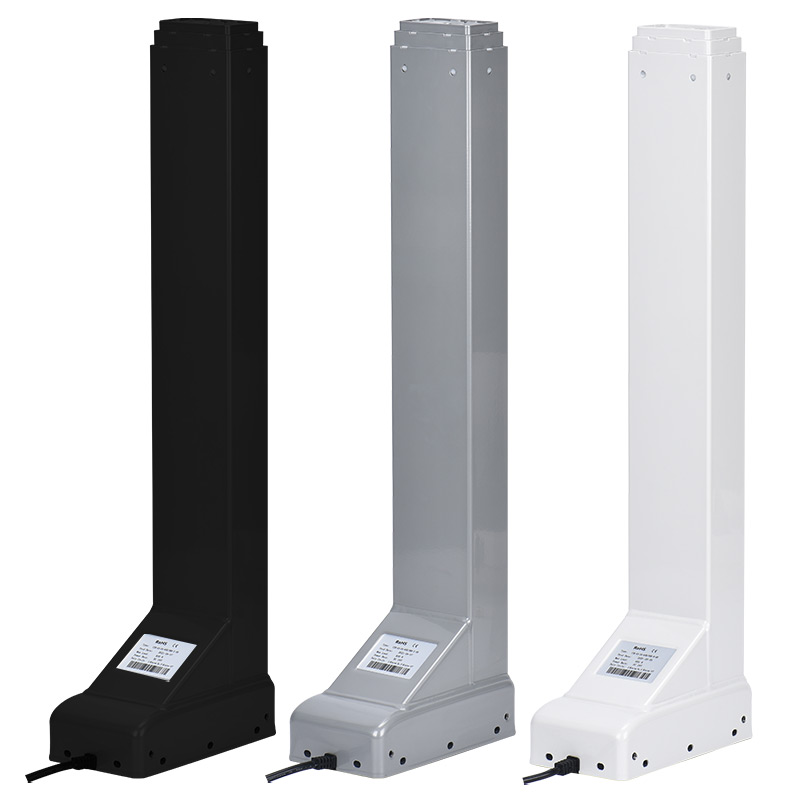

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LC800 electric lifting column, maximum load 100kg, speed 25MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 500MM/650MM. Suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places.

Technical Parameters

Model500P-EC650P-EC500P650P
Initial Height625MM560MM650MM560MM
Final Height1125MM1210MM1150MM1210MM
Stroke Length500MM650MM500MM650MM
Section2323
Input VoltageDC 24V - DC 32V
Load Pull Capacity800N/1000N1200N
Load Push Capacity800N/1000N1200N
Self-locking Capacity800N/1000N1200N
Maximum Power50W55W
No-Load Speed15MM/S / 7.5MM/S25MM/S
ColorRAL9005(Black)
Usage Frequency10% Work System, Maximum 1 Hour Continue Working
Ambient Temperature-10°C ~ 60°C
Optional FeaturesHall Sensor
Limit SwitchesNone
Install ScrewsM6*16MM, If the screw is too long, it will damage the motor
Rated Working Capacity80% of Maximum Load, Unable to maintain maximum load operation for a long time
Note2 columns lifting system and 4 columns lifting system, any columns cannot exceed 100KG load and needs to be kept fixed

Outline Dimension Drawing

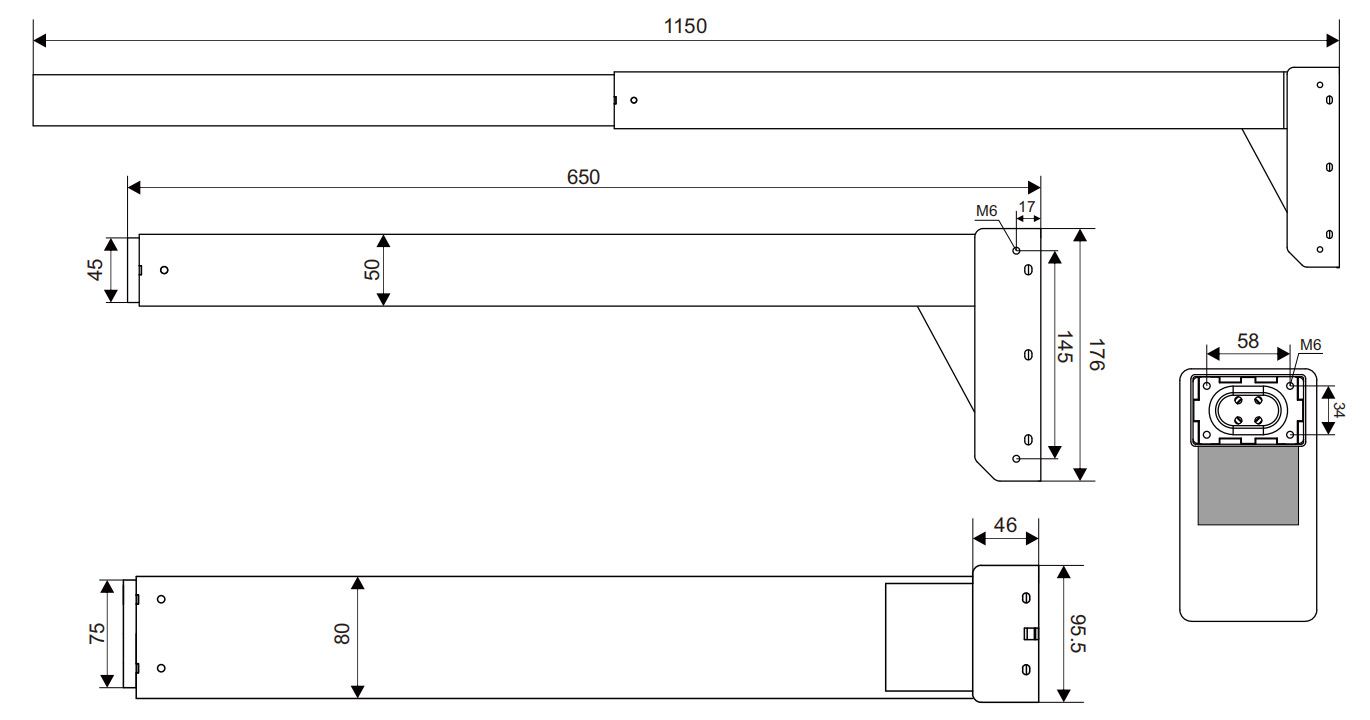

LC800-500P-C2

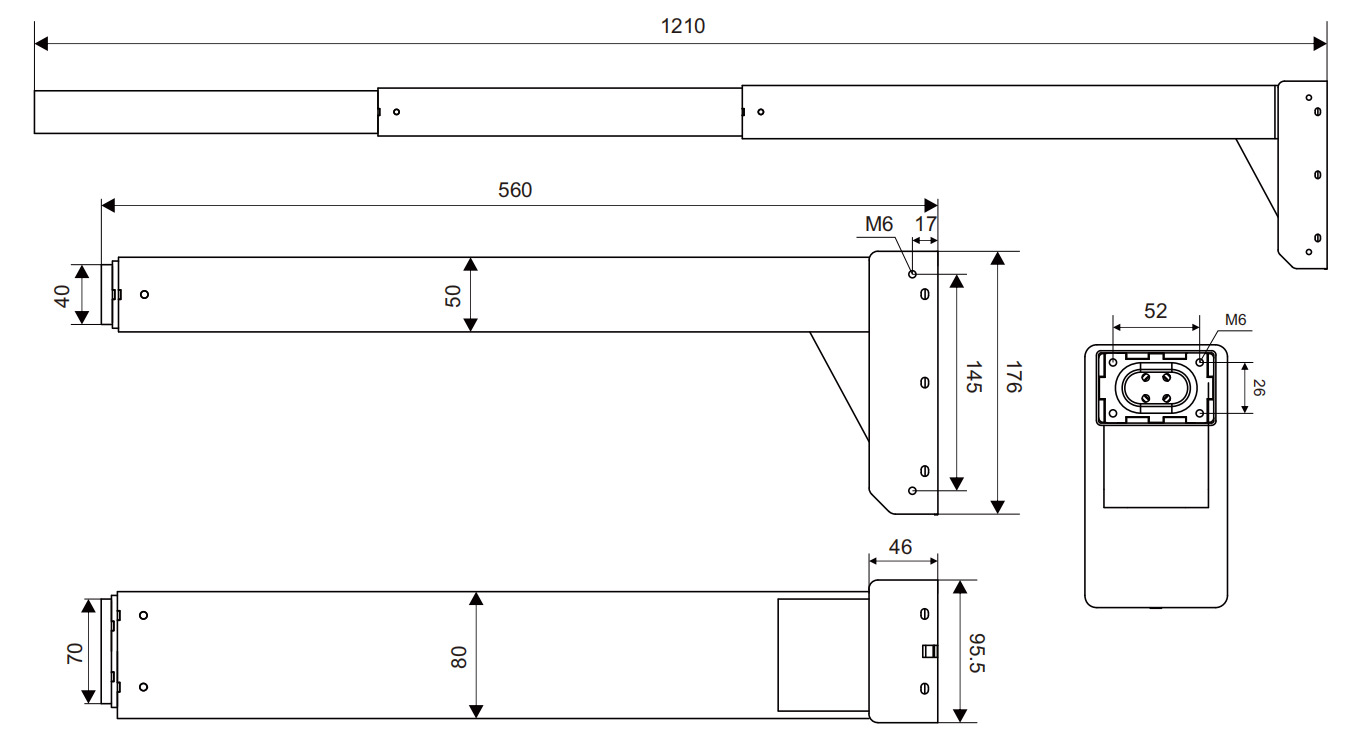

LC800-650P-C3
