LC800-O Electric Lifting Column

LC800-O Lifting Column

LC800-O electric lifting column, maximum load 100kg, speed 25MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 500MM/650MM.

Input Volatge: DC12~19V / DC24~32V
Maximum load：1200N/120kg
IP Grade: IP54
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~800mm

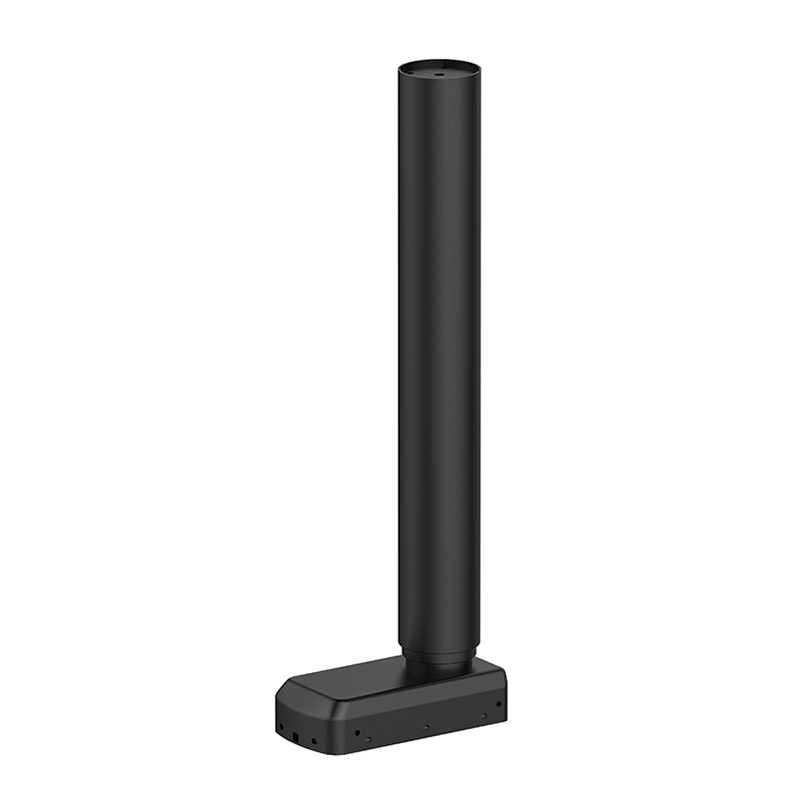

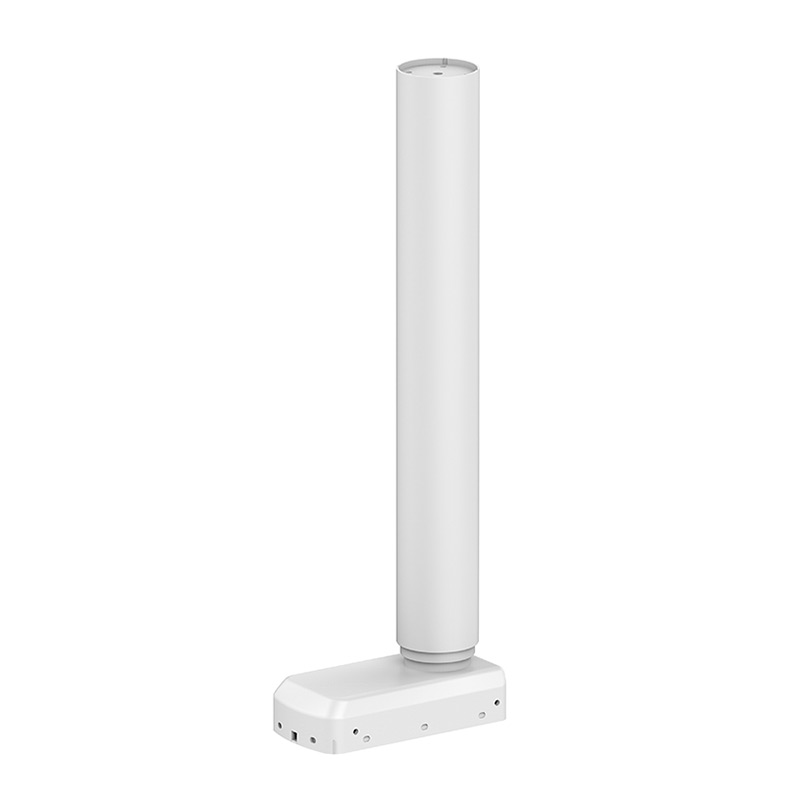

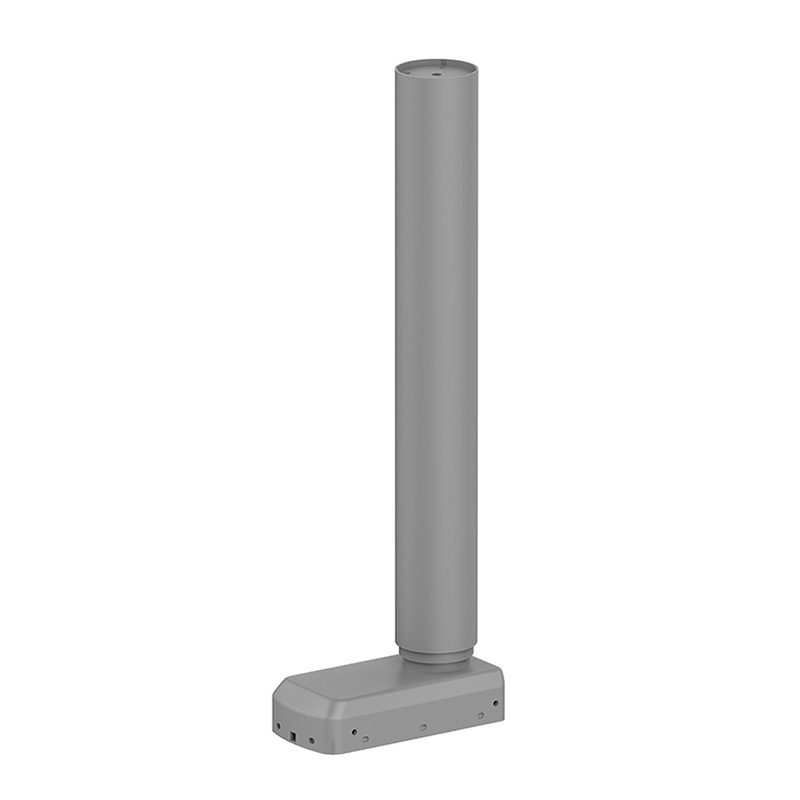

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LC800-O electric lifting column, maximum load 100kg, speed 25MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 500MM/650MM.
Suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places.

Technical Parameters

Model500O650O

Initial Height662MM575MM

Final Height1112MM1225MM

Stroke Length450MM650MM

Section23

Input VoltageDC 24V ~ DC 32V
Load Pull Capacity(N)800N/1000N1200N

Load Push Capacity(N)800N/1000N1200N

Self-locking Capacity(N)800N/1000N1200N

Maximum Power55W

No-load Speed25MM/S

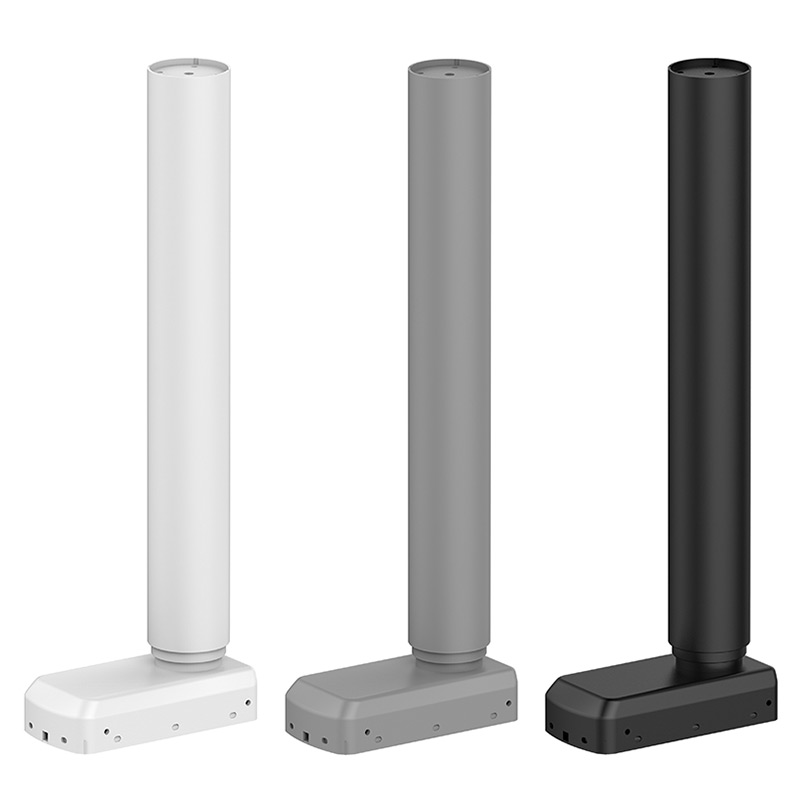

ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)

Usage Frequency10% Work System, Maximum 1 Hour Continue Working

Ambient Temperature-10°C to 60°C

Optional FeaturesHall Sensor

Limit SwitchesNone

Install ScrewsM6*16MM, If the screw is too long, it will damage the motor

Rated Working Capacity80% of Maximum Load, Unable to maintain maximum load operation for a long time

Note2 columns lifting system and 4 columns lifting system, any columns cannot exceed 200KG load and needs to be kept fixed

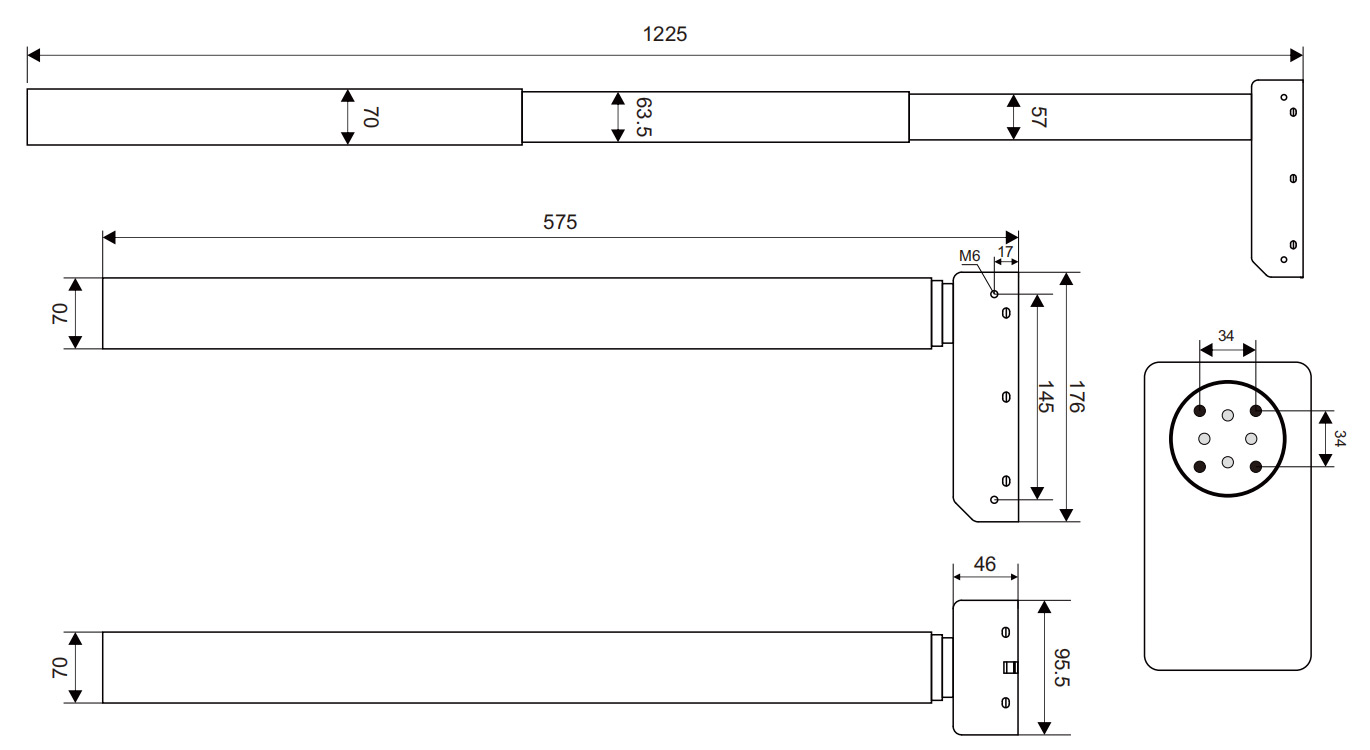

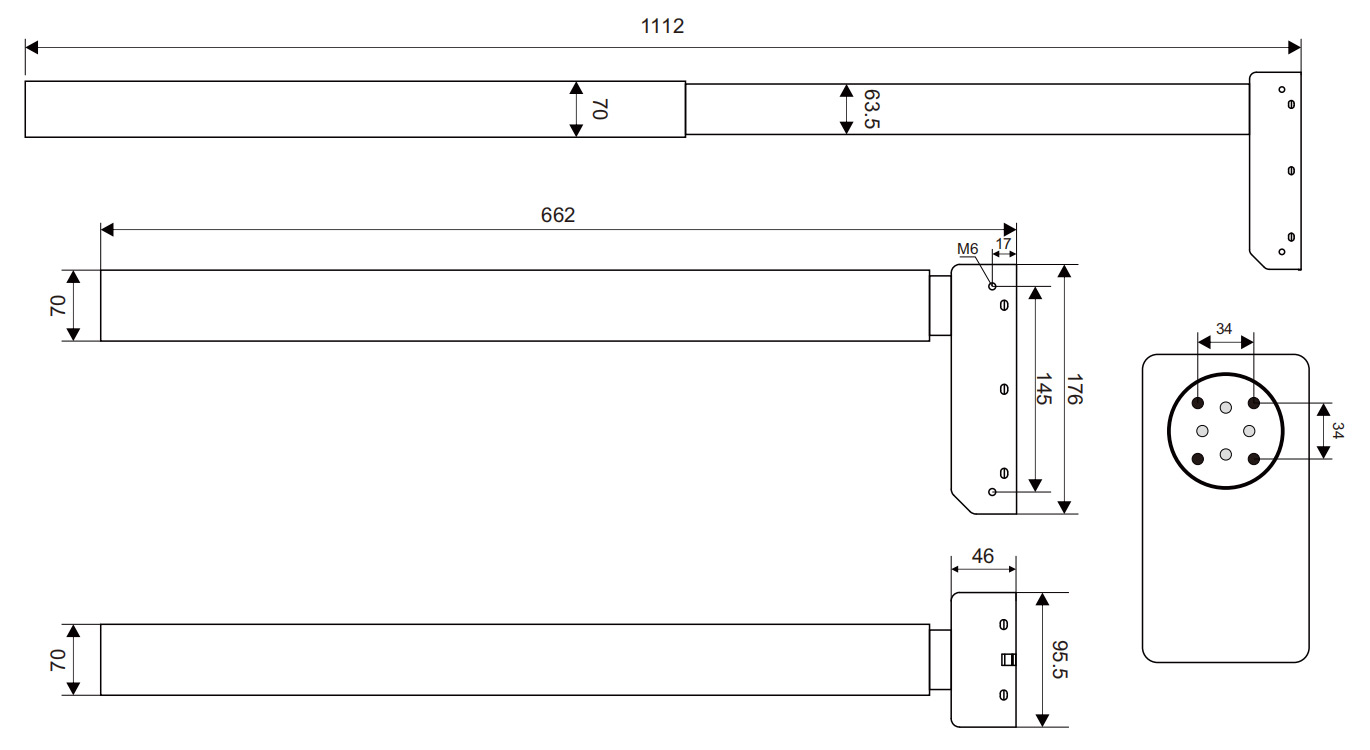

Outline Dimension Drawing

LC800-500O LC800-500O.jpg
