LC80 Electric Lifting Column

LC80 Electric Lifting Column

LC80 2 section/3 section cylindrical electric lifting column, cylindrical aluminum shell outer diameter is 80MM/60MM, 2 section circular column stroke range 200-800MM, 3 section circular column stroke range 2400-1600MM.

Input Volatge: DC24~32V
Maximum load:1500N/150kg
IP Grade: IP55
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Stroke Length: 200~800mm, 400~2000mm

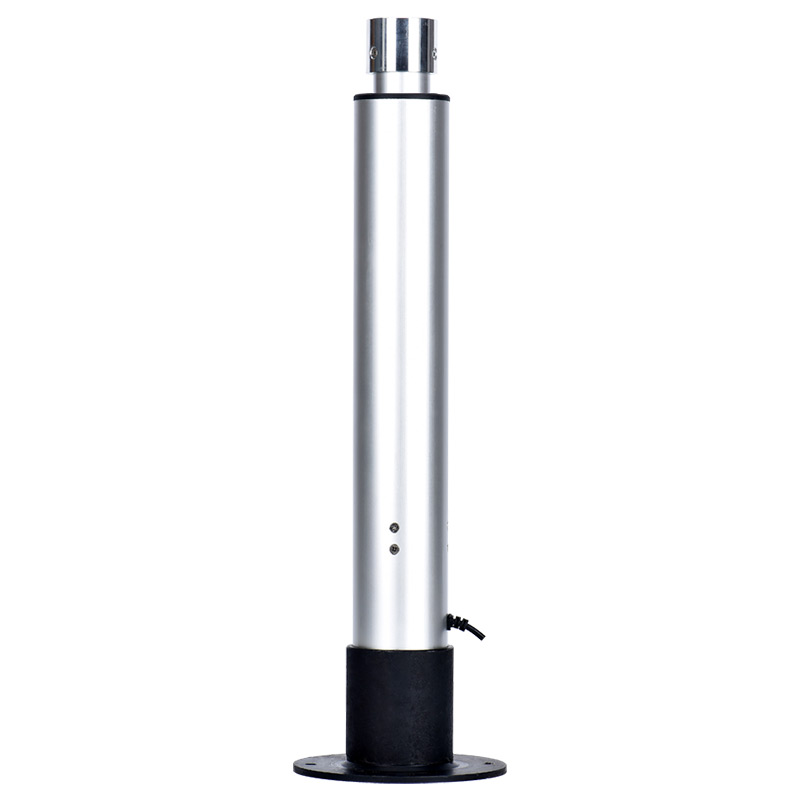

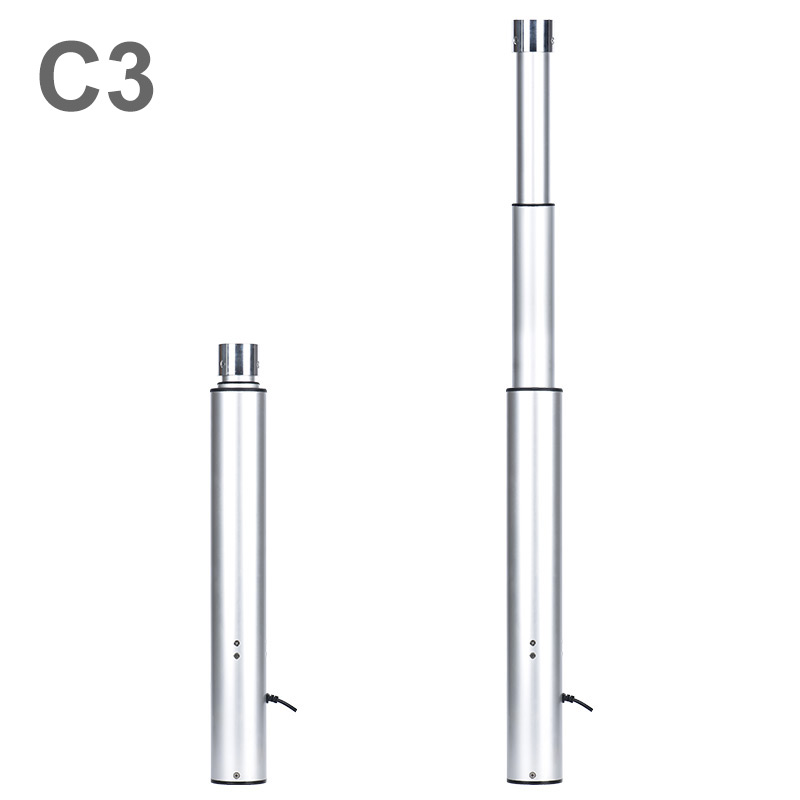

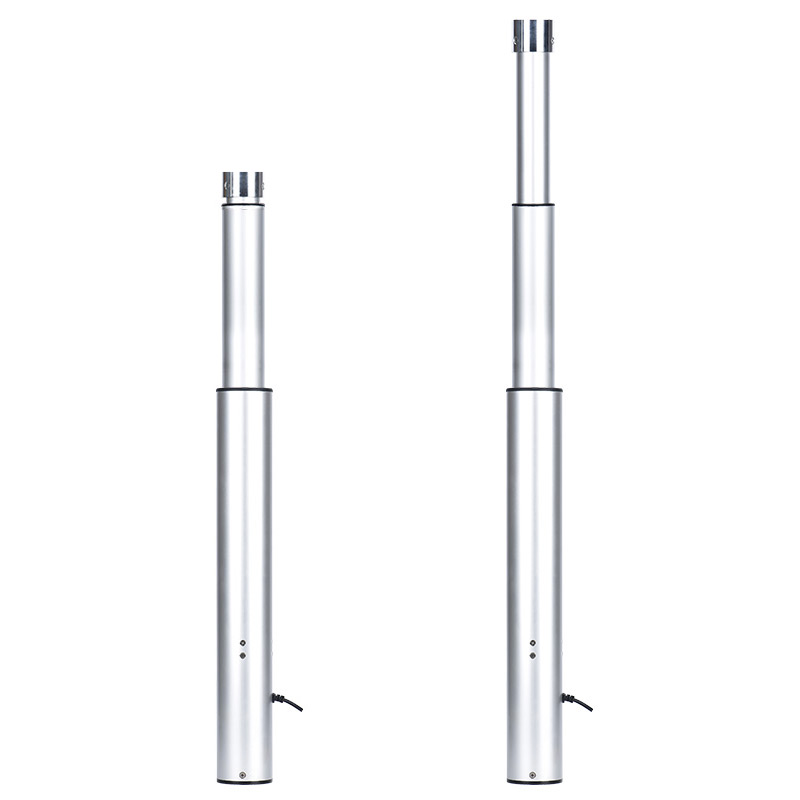

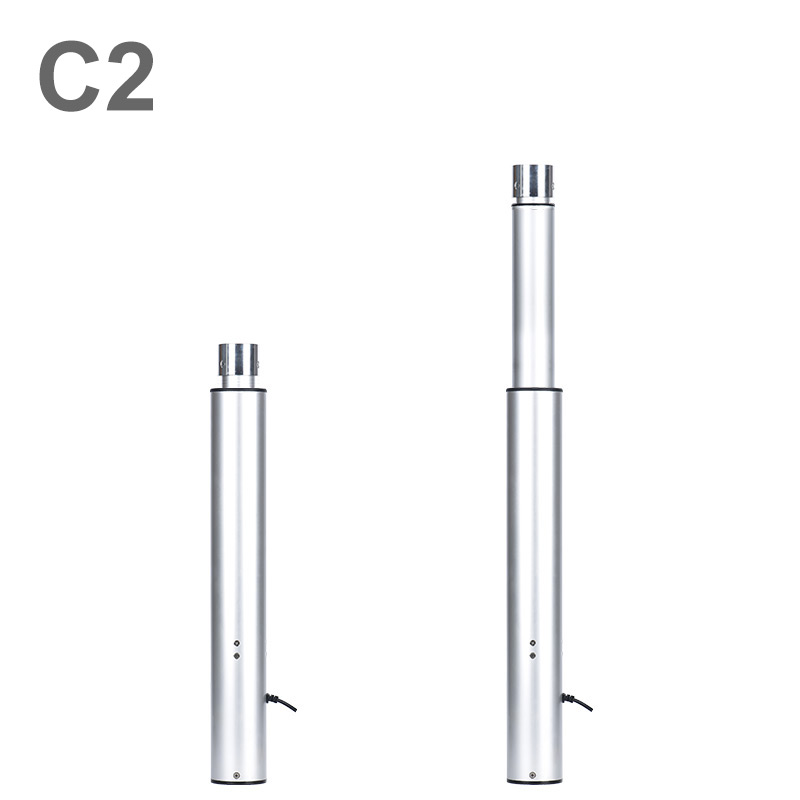

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

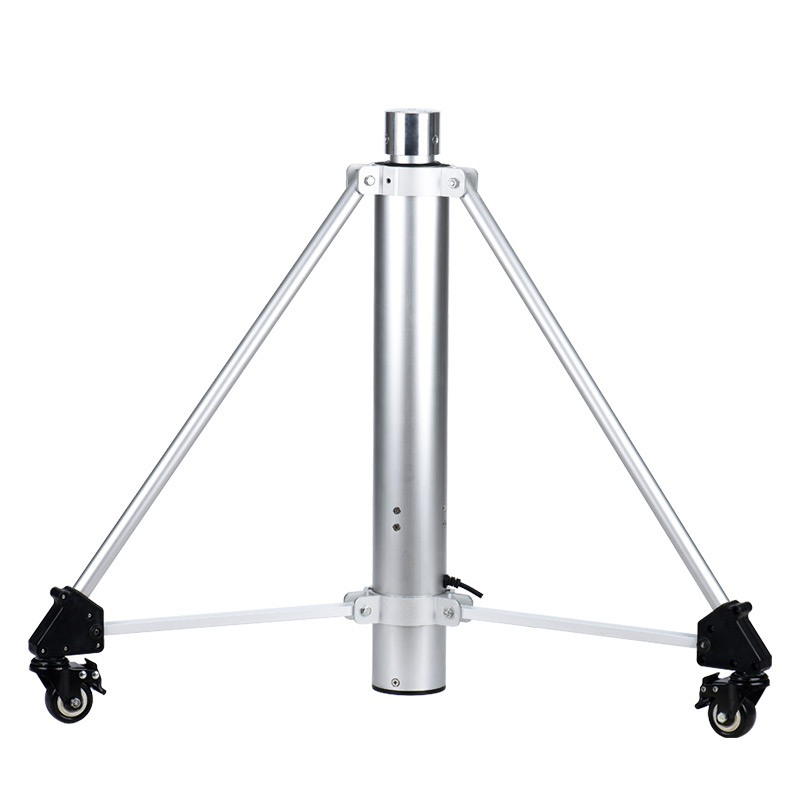

LC80 2 section/3 section cylindrical electric lifting column, cylindrical aluminum shell outer diameter is 80MM/60MM, 2 section circular column stroke range 200-800MM, 3 section circular column stroke range 2400-1600MM, column top has 3* M8 threaded hole, can also be installed with a flat plate, the bottom is embedded for installation, can be equipped with a triangle bracket with universal wheels, input voltage is DC12V/DC24V, maximum load capacity is 150KG, maximum speed is 36MM/S, built-in limit switch When it reaches the top, it will automatically power off to prevent locked-rotor operation, and the self-locking mechanism will not slide down after power off. The aluminum alloy shell adopts sandblasting and oxidation treatment, beautiful appearance.

TECHNICAL PARAMETERS

ModelLC80-C2-80LC80-C2-60LC80-C3-80LC80-C3-60
Section2233
Pipe Diameter (MM)80/6060/4880/60/4860/48/40
Stroke (MM)200-800200-800400-2000400-2000
VoltageDC24~32V
No-load Speed (MM/S)131736
Load Pull Capacity (N)15001000600
Load Push Capacity (N)15001000600
Current (A)0.70.91.3
Motor Speed300040004500
VoltageDC12~19V
No-load Speed (MM/S)131736
Load Pull Capacity (N)1000700400
Load Push Capacity (N)1000700400
Current (A)1.21.42.1
Motor Speed300040004500
Load Power120W
Operating Temperature-15°C~+65°C
IP GradeIP55
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver
PanelsPowder Coating

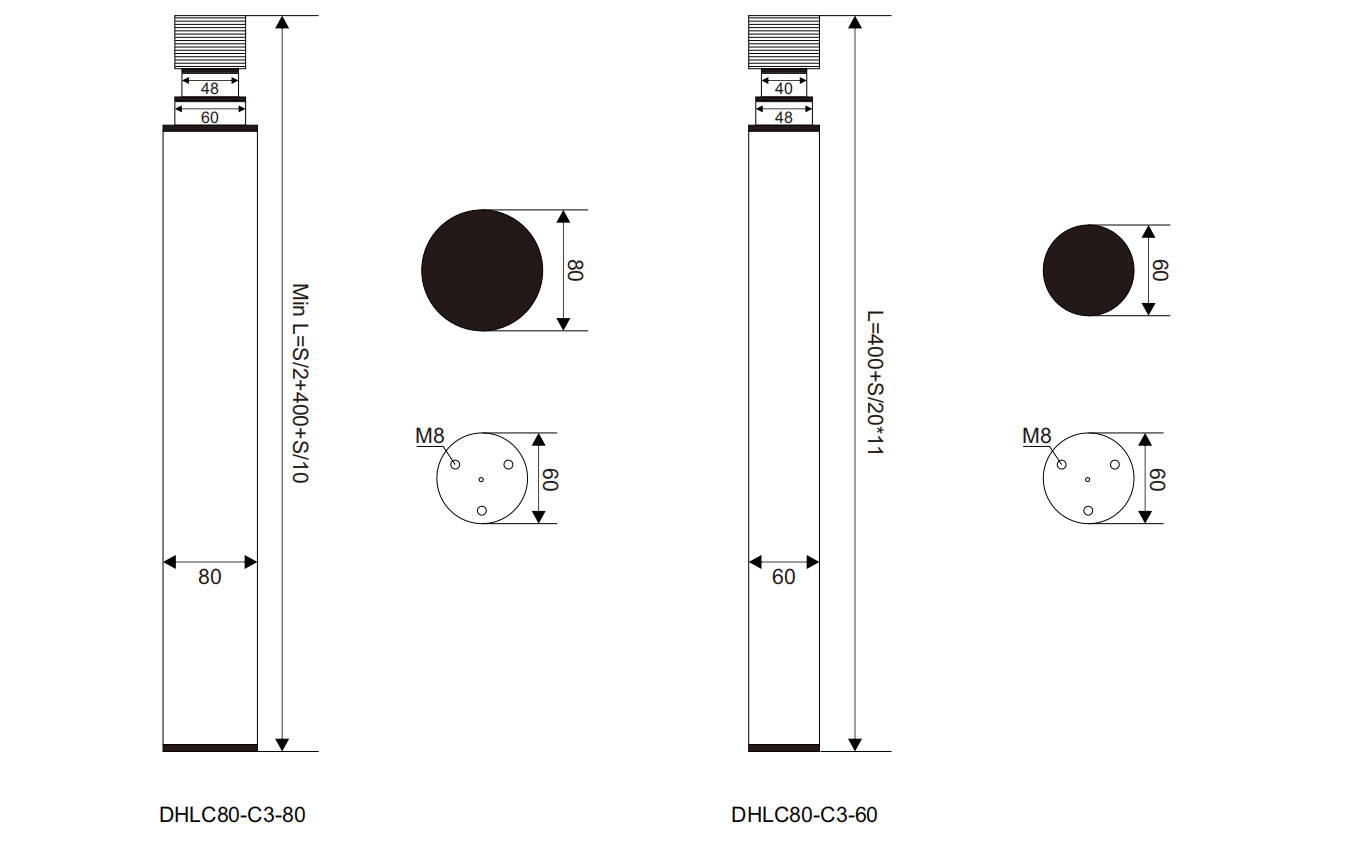

OUTLINE DIMENSION DRAWING


Stroke400600800100012001400160018002000
Min L62073084095010601170128013901500
Max L102013301640195022602570288031903500

LC80-C2 LC80-2.jpg

Stroke2003004005006007008009001000
Min L5206307408509601070118012901400
Max L7209301140135015601770198021902400

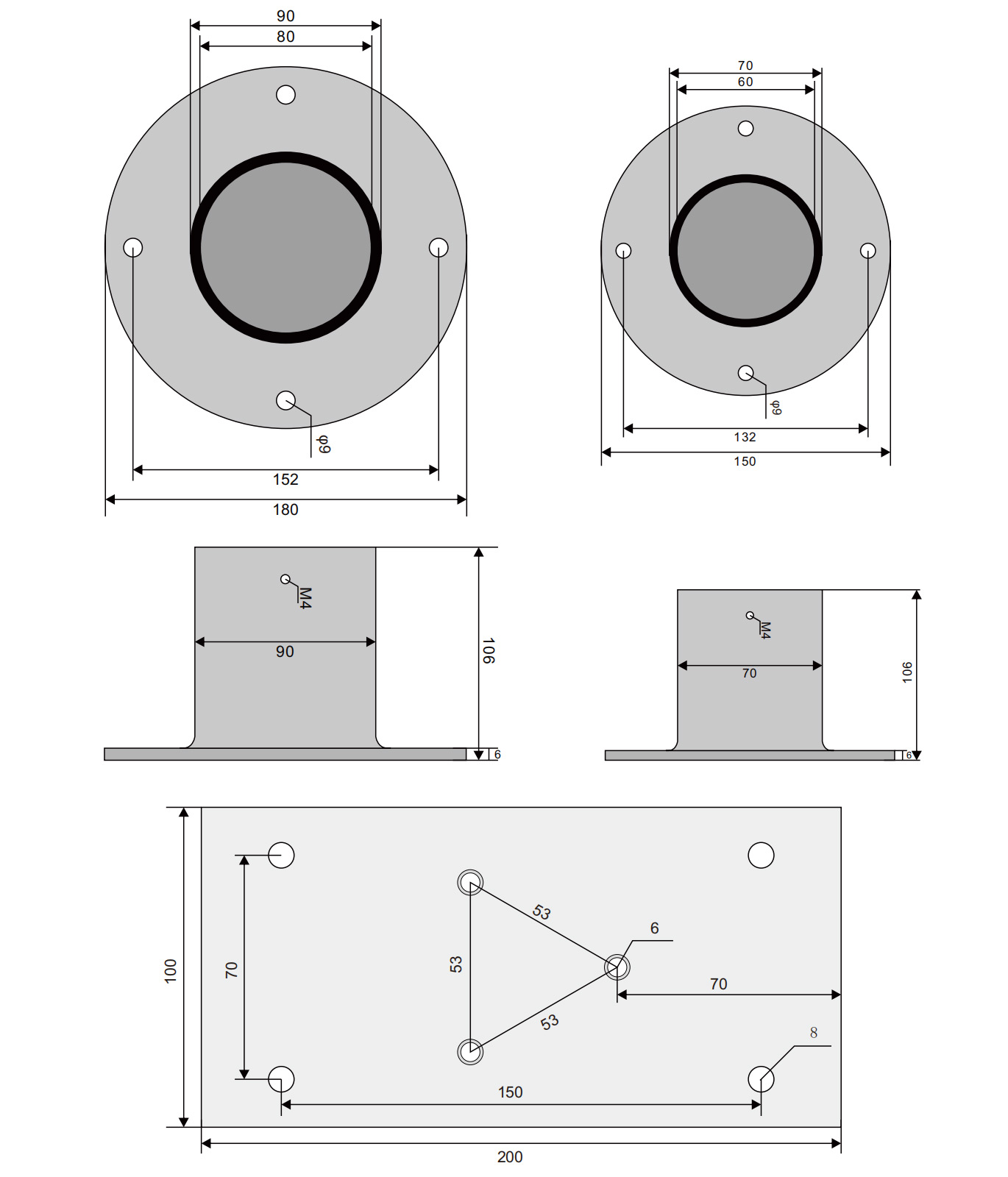

OUTLINE DIMENSION DRAWING
