LC7180-AL Eectric Lifting Column AL Panel

LC7180-AL Eectric Lifting Column AL Panel

LC7180 electric lifting column with large load capacity is suitable for home and industrial environments, with a maximum load capacity of 750KG, which can be used for the rise and fall of medical equipment/industrial equipment.

Input Volatge: DC12~19V / DC24~32V
Maximum load：7500N/750kg
IP Grade: IP54
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Stroke Length: 50~1400mm

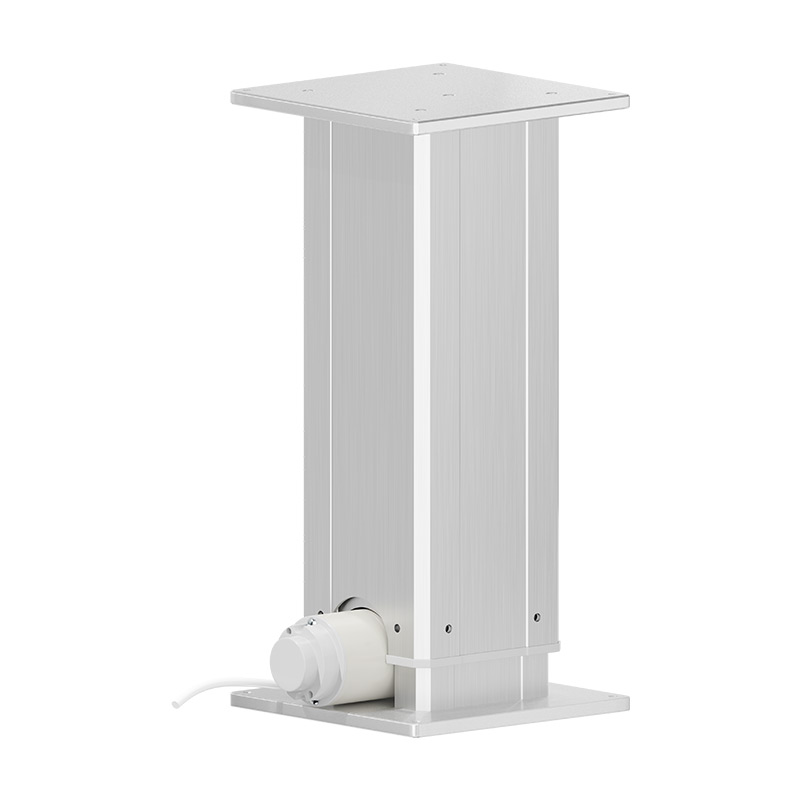

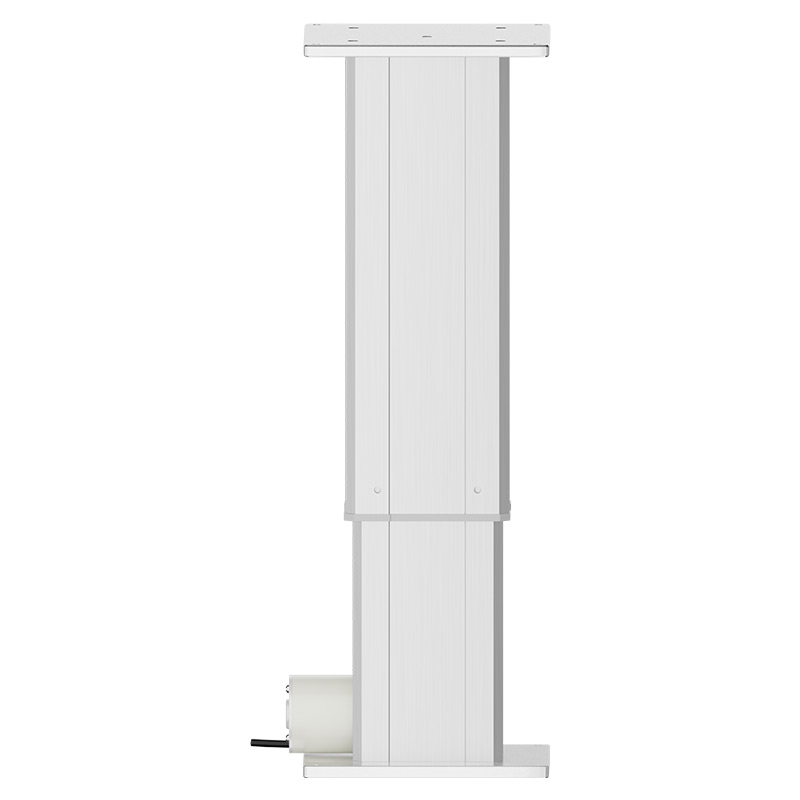

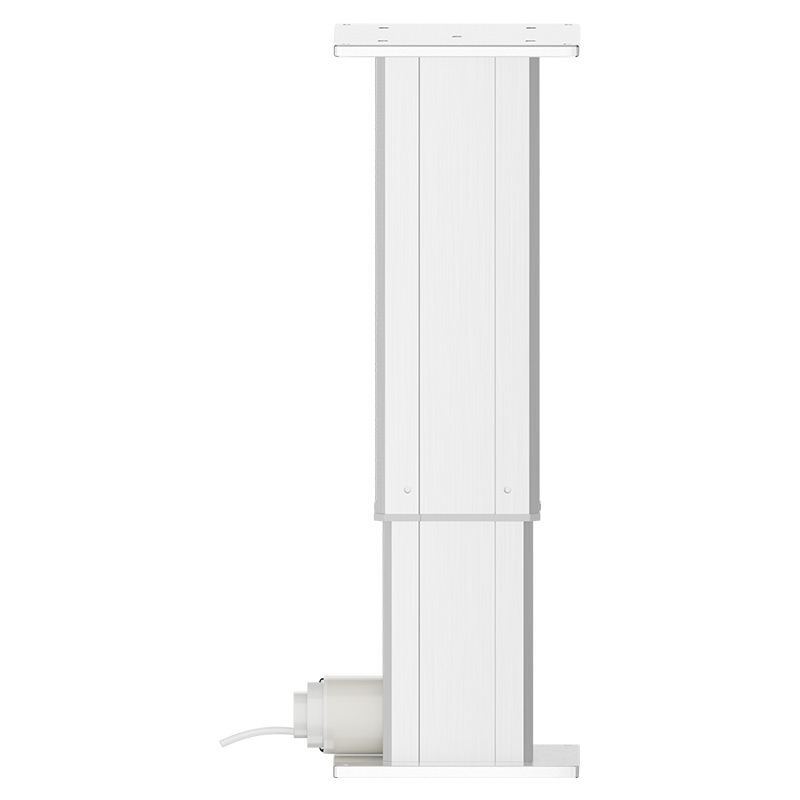

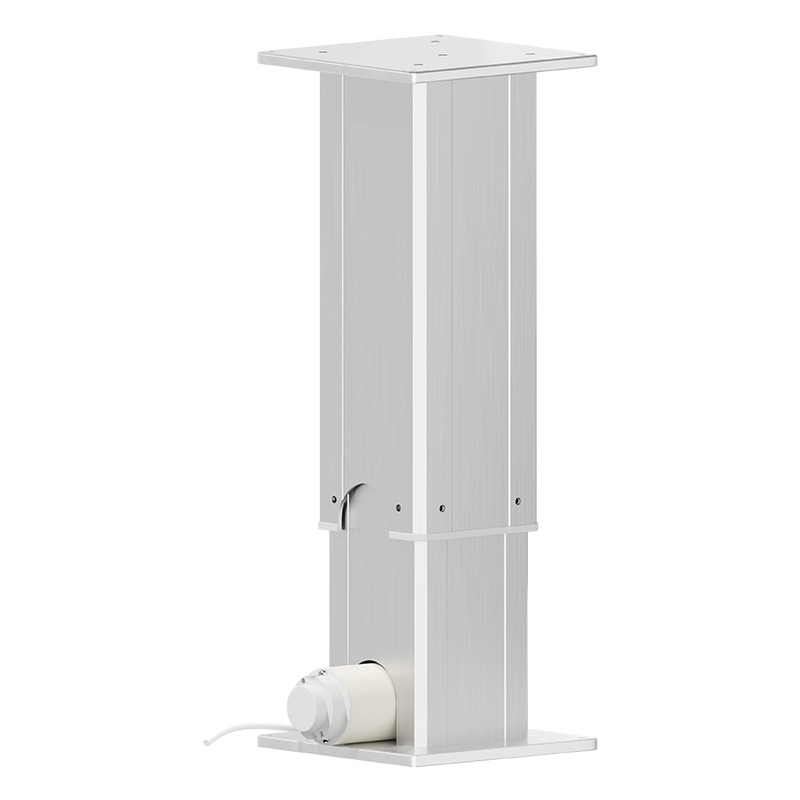

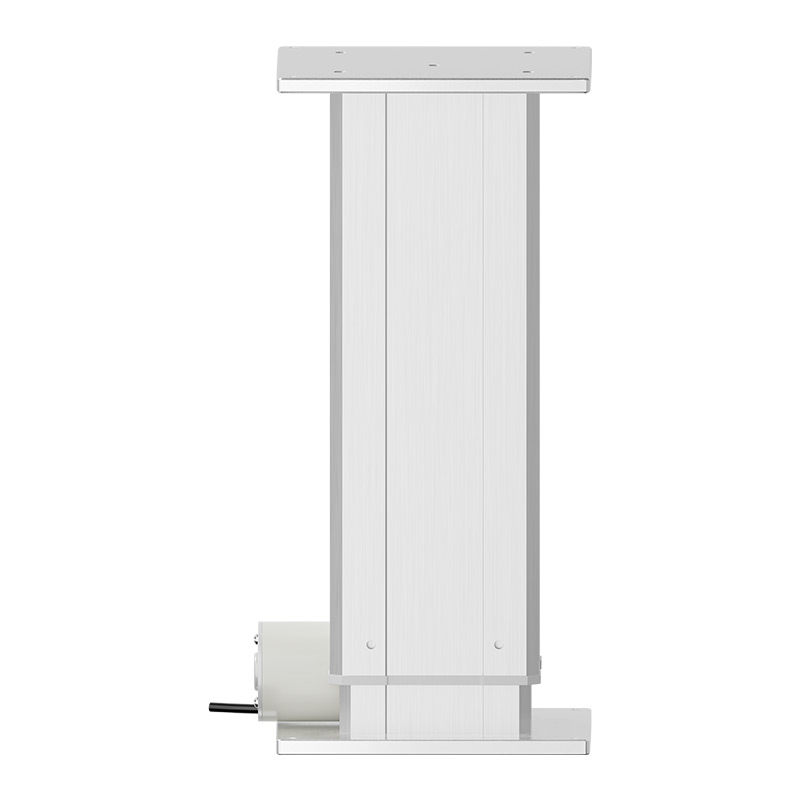

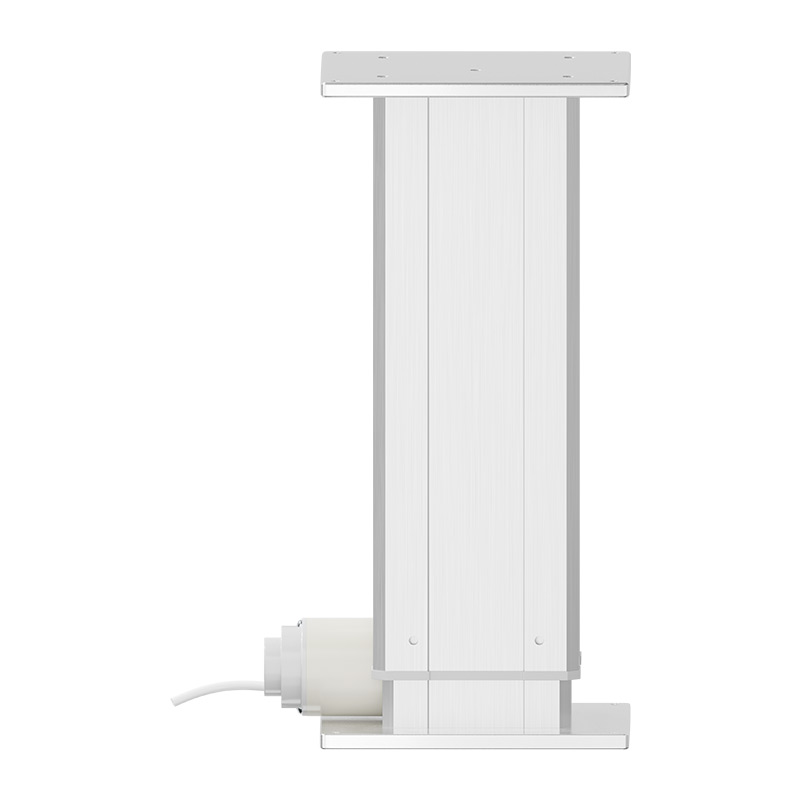

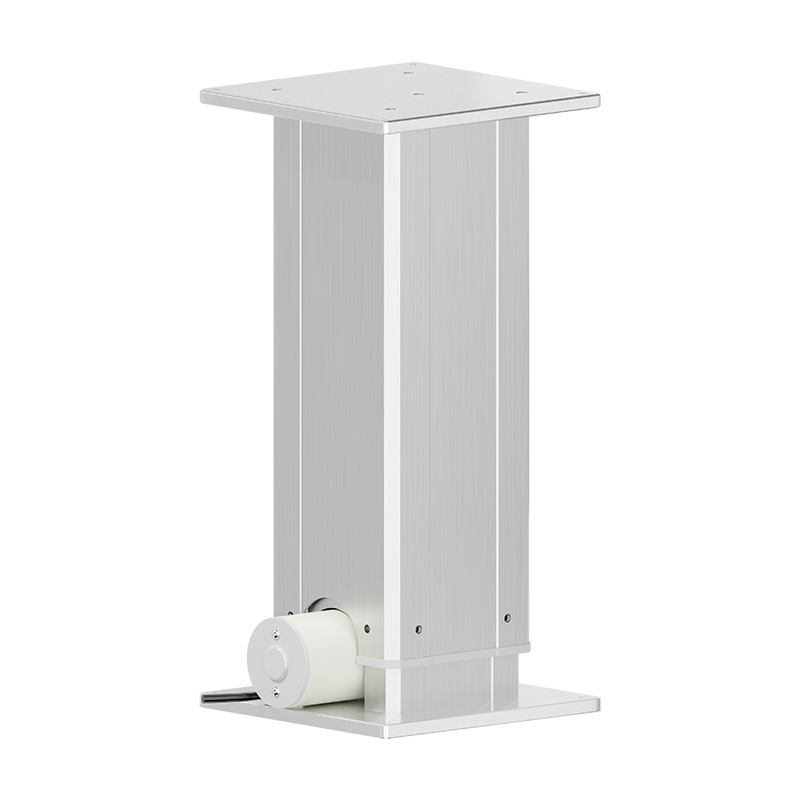

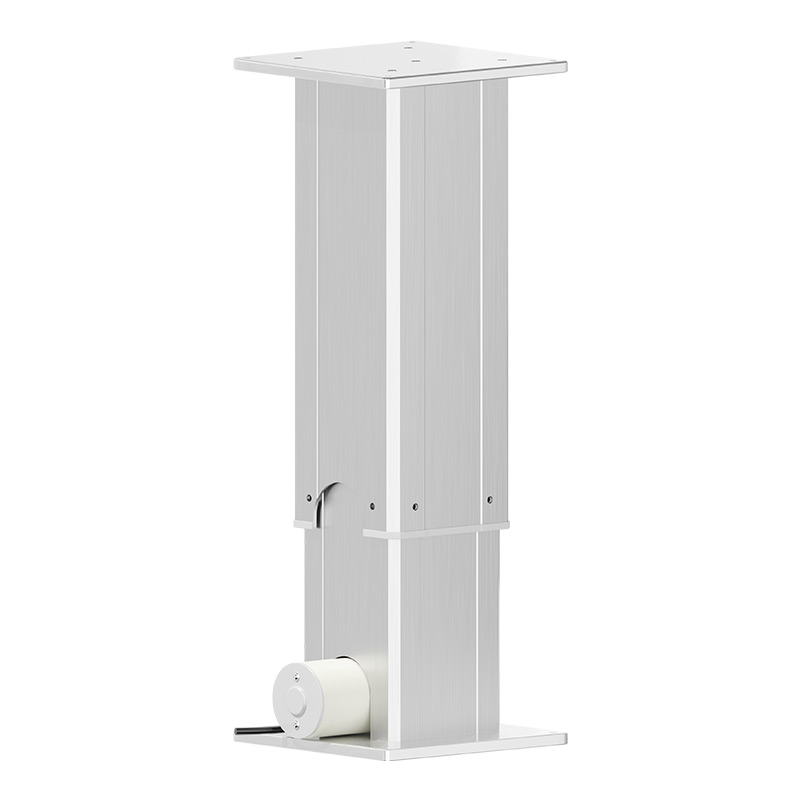

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LC7180 electric lifting column with large load capacity is suitable for home and industrial environments, with a maximum load capacity of 750KG, which can be used for the rise and fall of medical equipment/industrial equipment. The electric lifting column can be matched with the Hall controller to realize the synchronous operation of 2-4 columns. electric lifting column default panel is 200*200*5MM iron plate (200*200*10MM aluminum plate is optional), the shell adopts two-section aluminum column with a width of 133/123MM, and the product stroke height can be customized from 50-1400MM.

Product features

● Adopt aluminum alloy shell
● Protection Level: IP54
● Low noise and large expansion range
● Widely used

Technical Parameters

VoltageDC24~32V / DC12~19V
Speed (MM/S)3.34.591424
Load Pull Capacity (N)7500550027001800500
Load Push Capacity (N)7500550027001800500
Self-locking Capacity (N)7500550027001800500
Max Power84W-96W60W
Initial Height (MM)L=S+175(IR)(S＜500); L=S+190(IR)(S≥500)
Operating Temperature-10°C~+55°C
IP GradeIP54
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver White
PanelsPowder Coating
Stroke Length50mm-1400mm
Optional FeaturesRebound or Pause When Encountering Obstacles
Hall Sensor (only 24V)
Upper And Lower Limit Feedback

Outline Dimension Drawing

LC7180-A

LC7180-B
