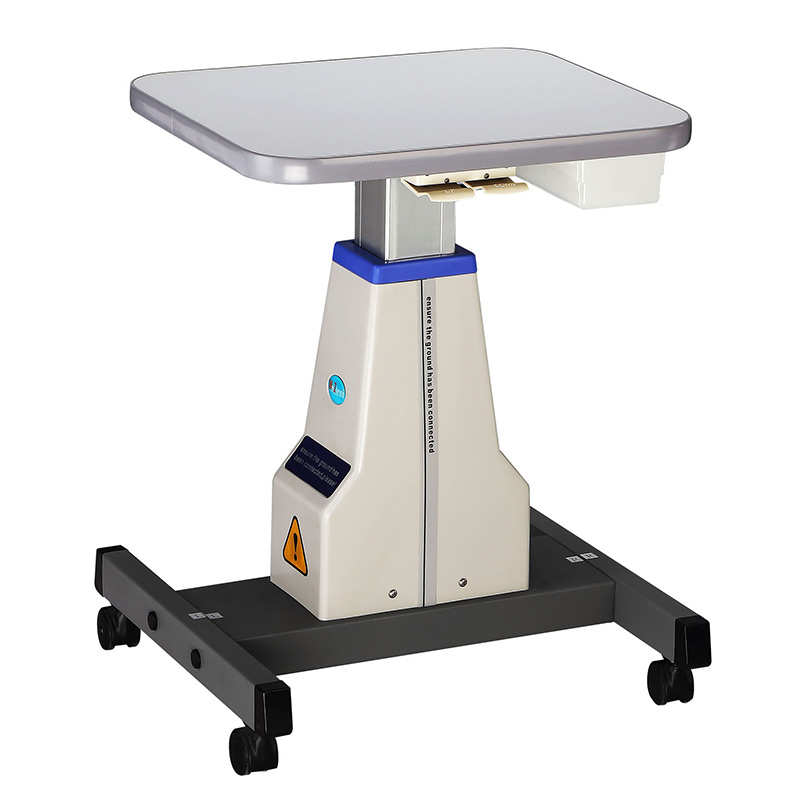

LC640 Movable Electric Optometry Table

LC640 Movable Electric Optometry Table

LC640 movable electric lift table is mainly used in medical ophthalmology optometry lift table, pet surgery lift table, laboratory lift table and other place.

Volatge: 220V / 50Hz or 110V 60Hz
Maximum load:600N/60kg
IP Grade: IP54
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Lifting Range: 630mm-820mm

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

LC640 movable electric lift table is mainly used in medical ophthalmology optometry lift table, pet surgery lift table, laboratory lift table and other places. It adopts AC220V/AC110V AC motor to drive the lift, the stroke range is 630-820MM, and the load capacity is 60KG.
This product has the characteristics of beautiful appearance, convenient operation, low noise and strong bearing capacity.

TECHNICAL PARAMETERS

Voltage220V / 50Hz or 110V 60Hz
Lifting Range630mm-820mm
Load Pull Capacity600N/60KG
Stroke190MM
Operating Temperature0°C~+40°C
IP GradeIP54
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver White
Power120W
Table SizeLength 480mm * Width 400mm
Net Weight19kg
Inner Box Size(MM)608(L)*530(W)*265 (H)

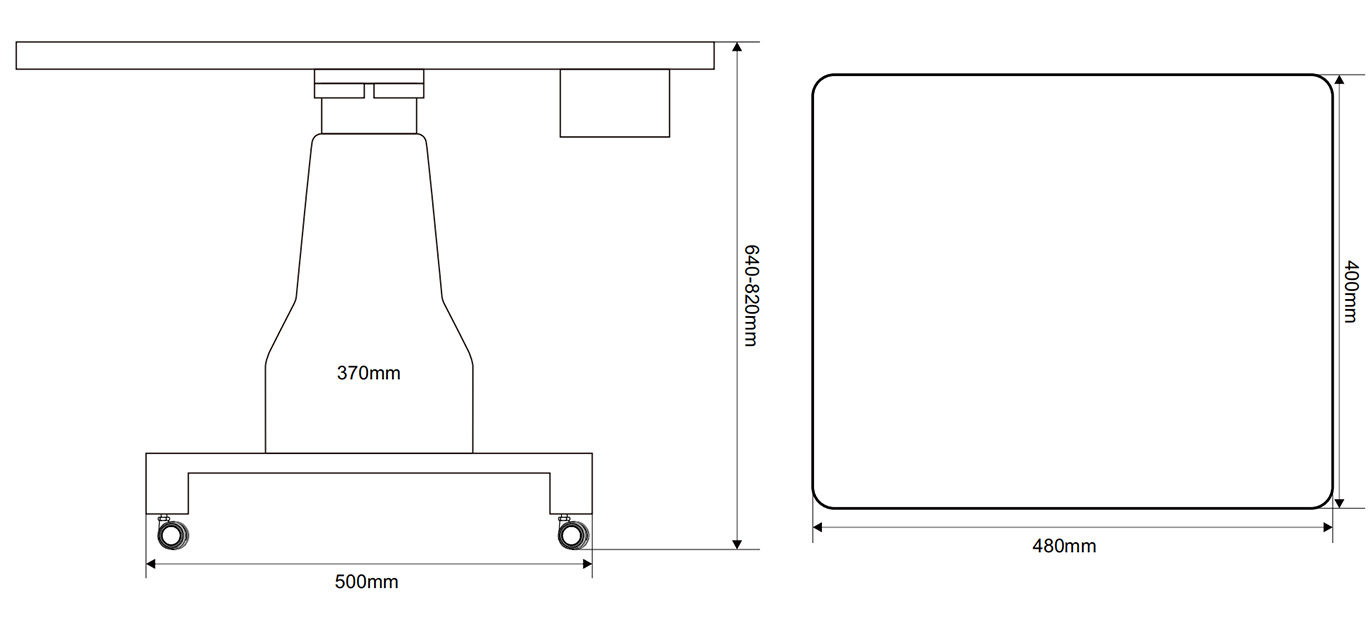

OUTLINE DIMENSION DRAWING
