LC2000 Electric Lifting Column

LC2000 Electric Lifting Column

LC2000 electric lifting column, maximum load 200kg, speed 18MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller.

Input Volatge: DC24~32V
Load Capacity：Max 140KG 1S / 200KG 2S / 300KG 4S
Maximum Speed: 18MM/S
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Maximum Power: 90W

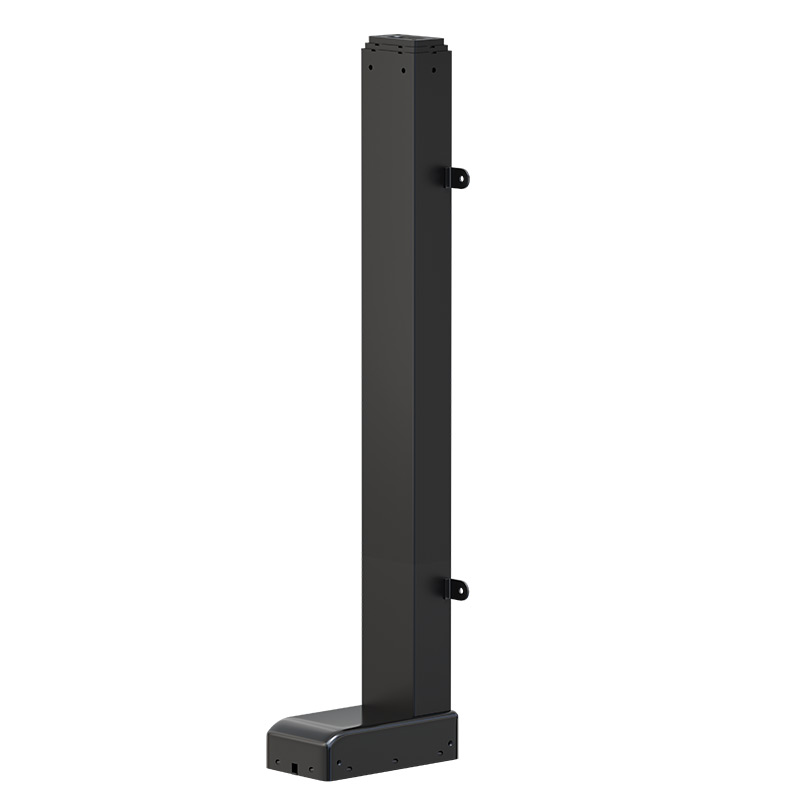

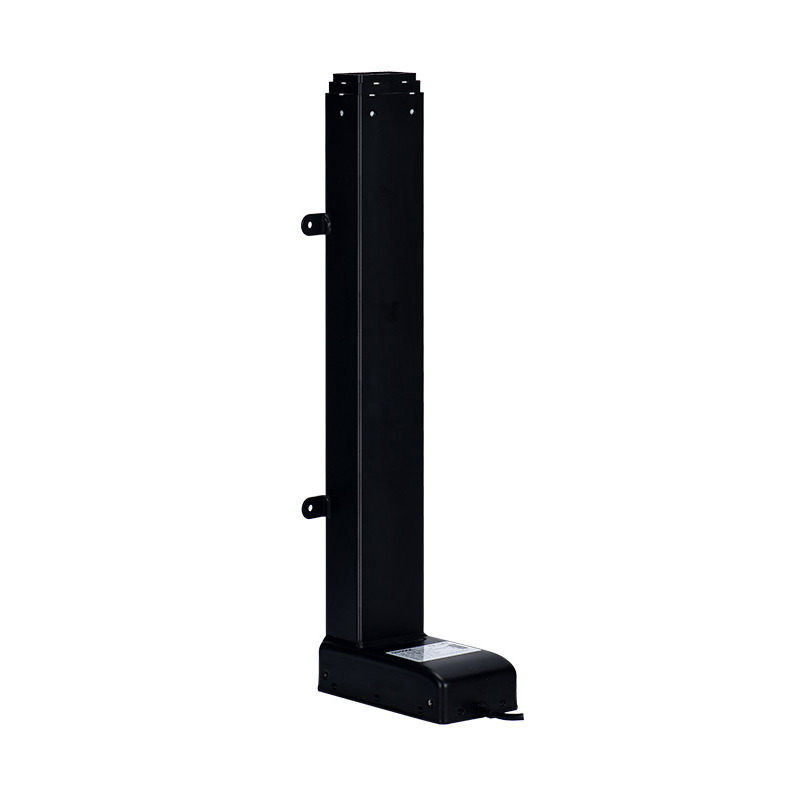

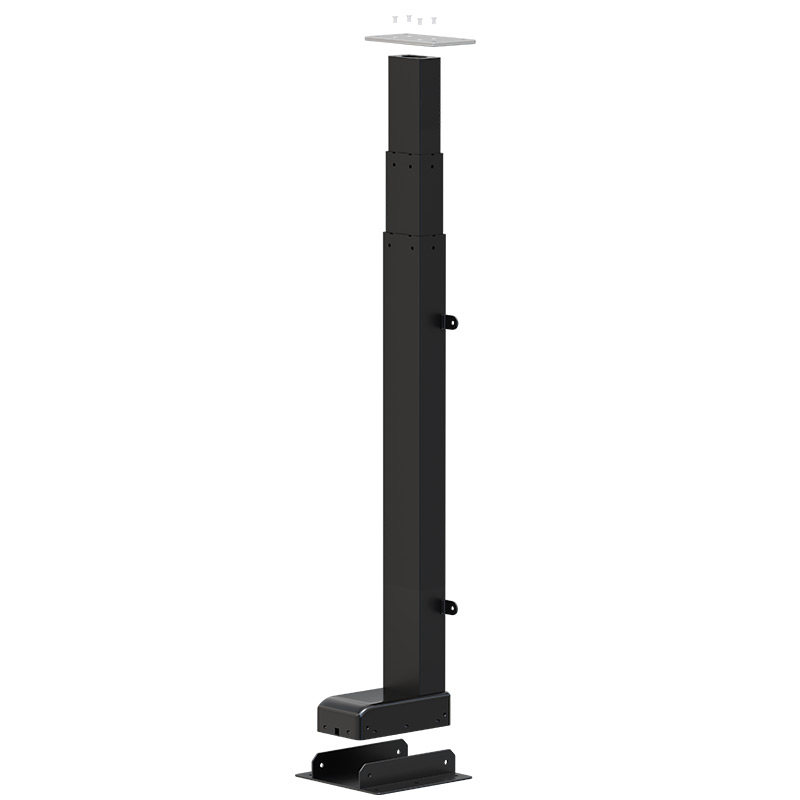

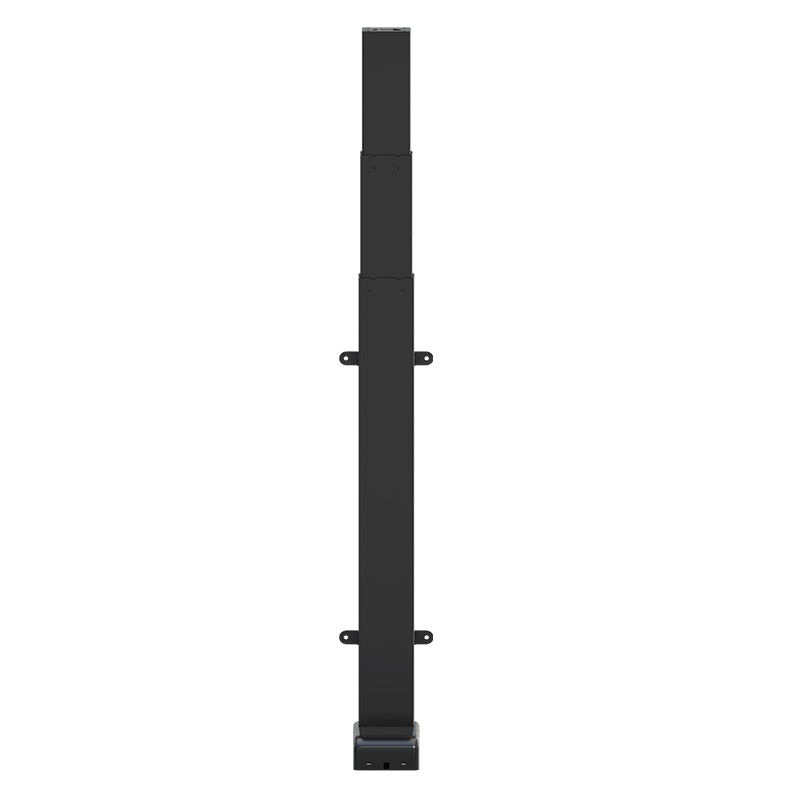

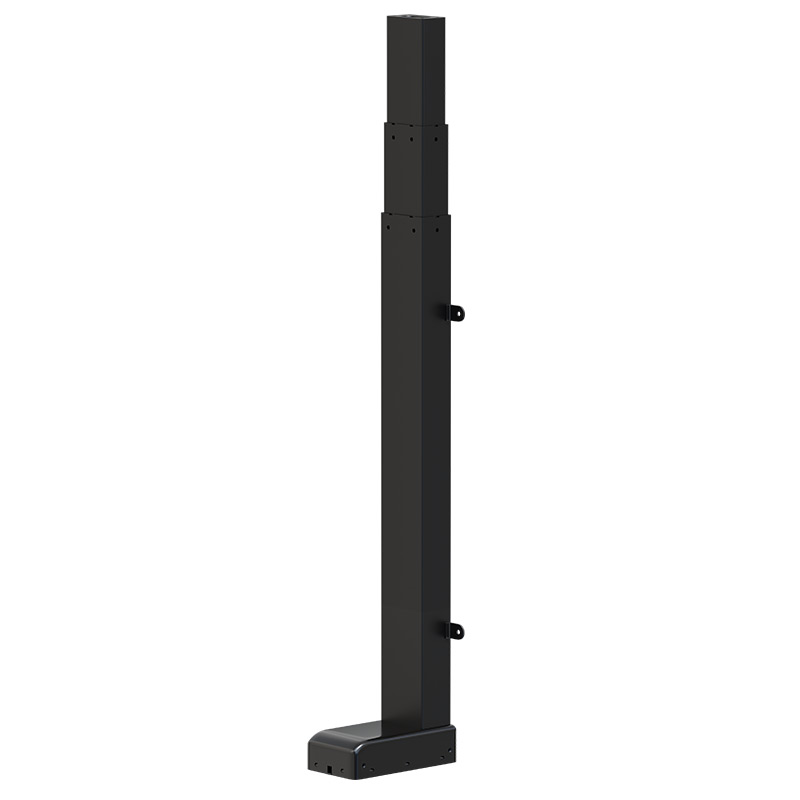

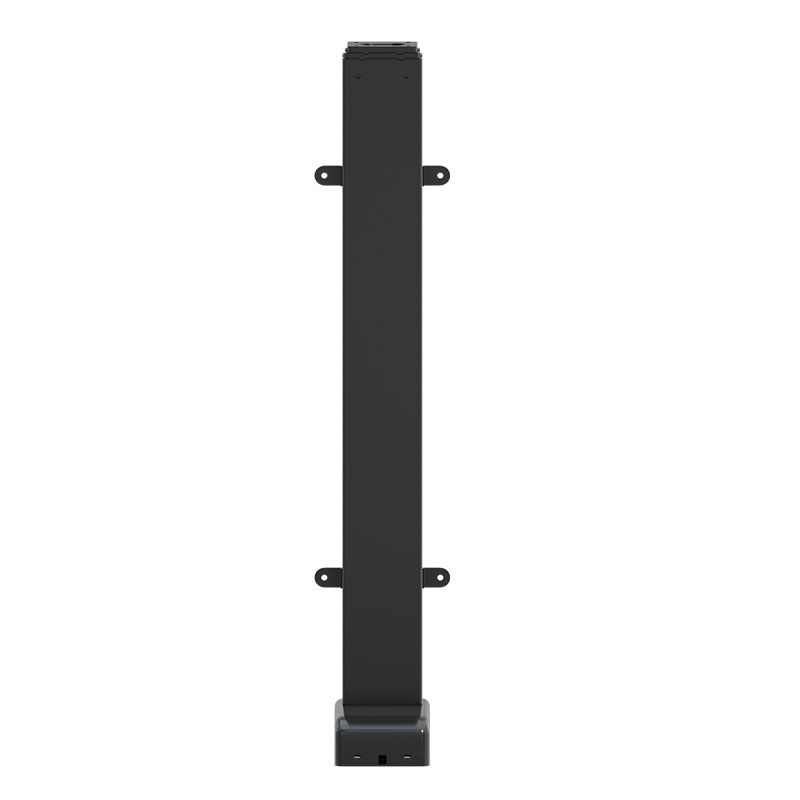

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LC2000 electric lifting column, maximum load 200kg, speed 18MM/S, built-in Hall sensor, infinite switch, need to be controlled by Hall controller. The electric lifting column is divided into 2 columns and 3 columns, and the stroke is divided into 450MM / 600MM / 800MM / 1100MM / 1400MM.
Suitable for furniture desks, industrial lift tables, photography tables, laboratory lift tables, TV lifts and other places

Technical Parameters

Model450L600P800L1100L1400L
Initial Height660MM560MM710MM850MM980MM
Final Height1110MM1160MM1510MM1950MM2380MM
Stroke Length450MM600MM800MM1100MM1400MM
Section23333
VoltageDC 24V ~ DC 32V
Load Capacity (N)Max 200KGMax 140KG 1S / 200KG 2S / 300KG 4S
Noise30dB
Maximum Power90W
Maximum Speed18MM/S

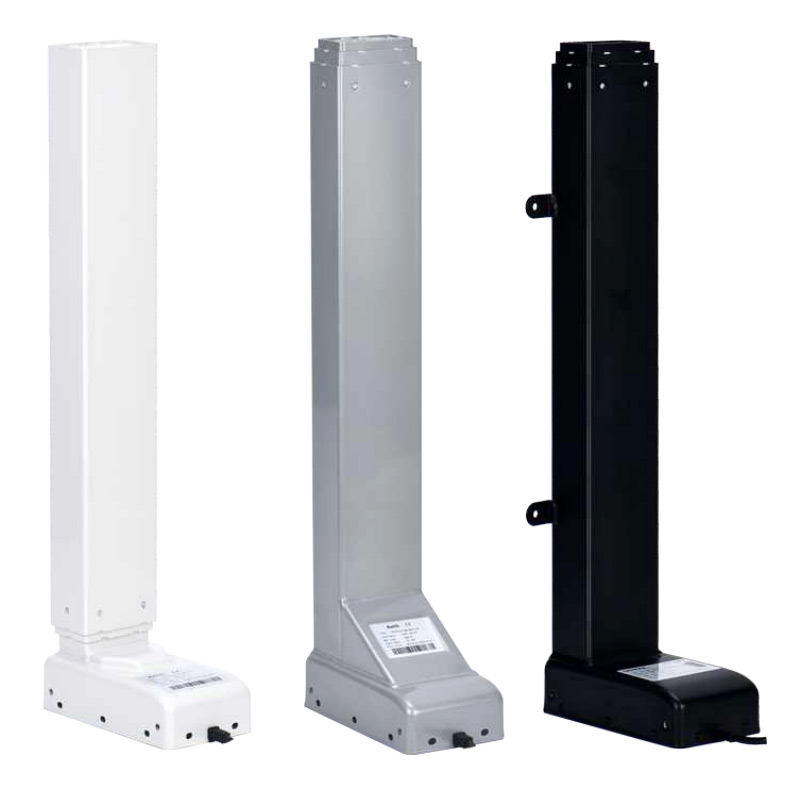

ColorRAL9005(Black) / RAL7045(Gray) / RAL9016(White)
Usage Frequency10% Work System, Maximum 1 Hour Continue Working
Ambient Temperature-10°C to 60°C
Optional FeaturesHall Sensor
Limit SwitchesNone
Install ScrewsM6*16MM, If the screw is too long, it will damage the motor
Rated Working Capacity80% of Maximum Load, Unable to maintain maximum load operation for a long time
Note2 columns lifting system and 4 columns lifting system, any columns cannot exceed 200KG load and needs to be kept fixed

Outline Dimension Drawing

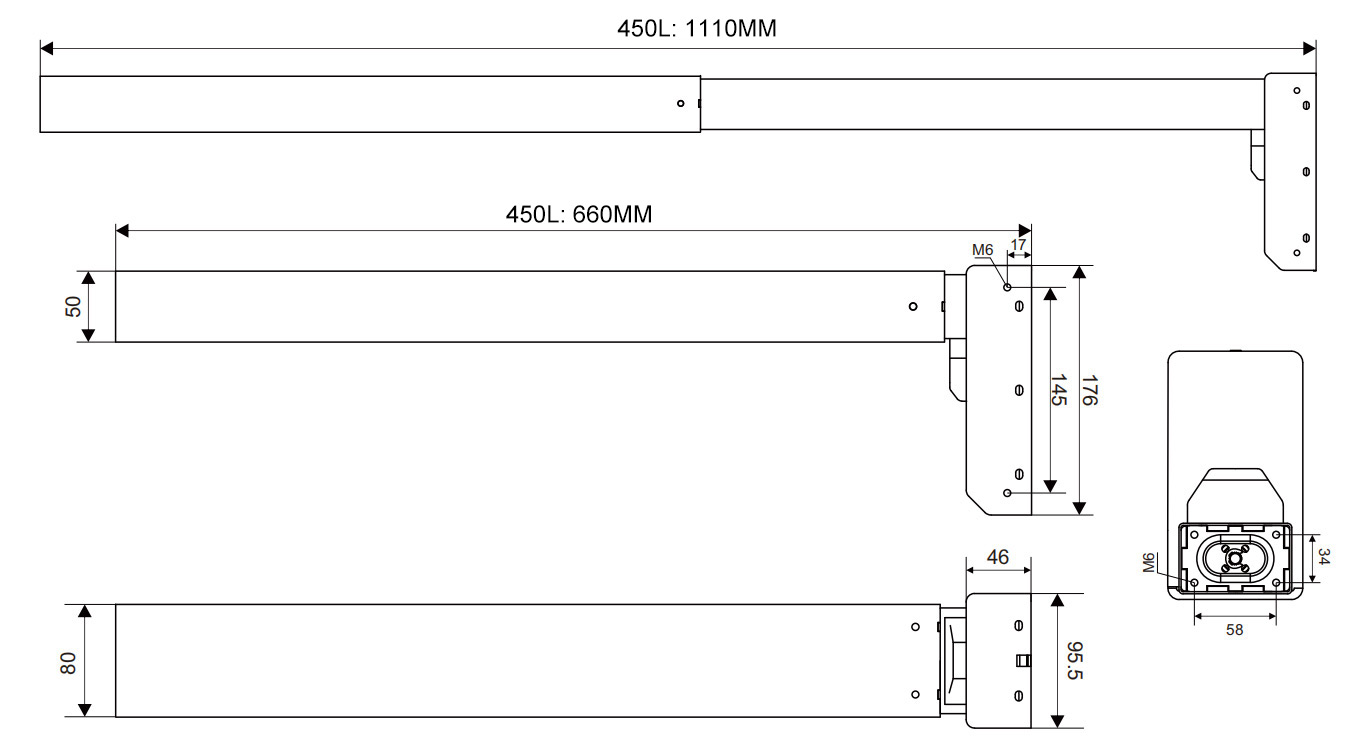

LC2000-450L

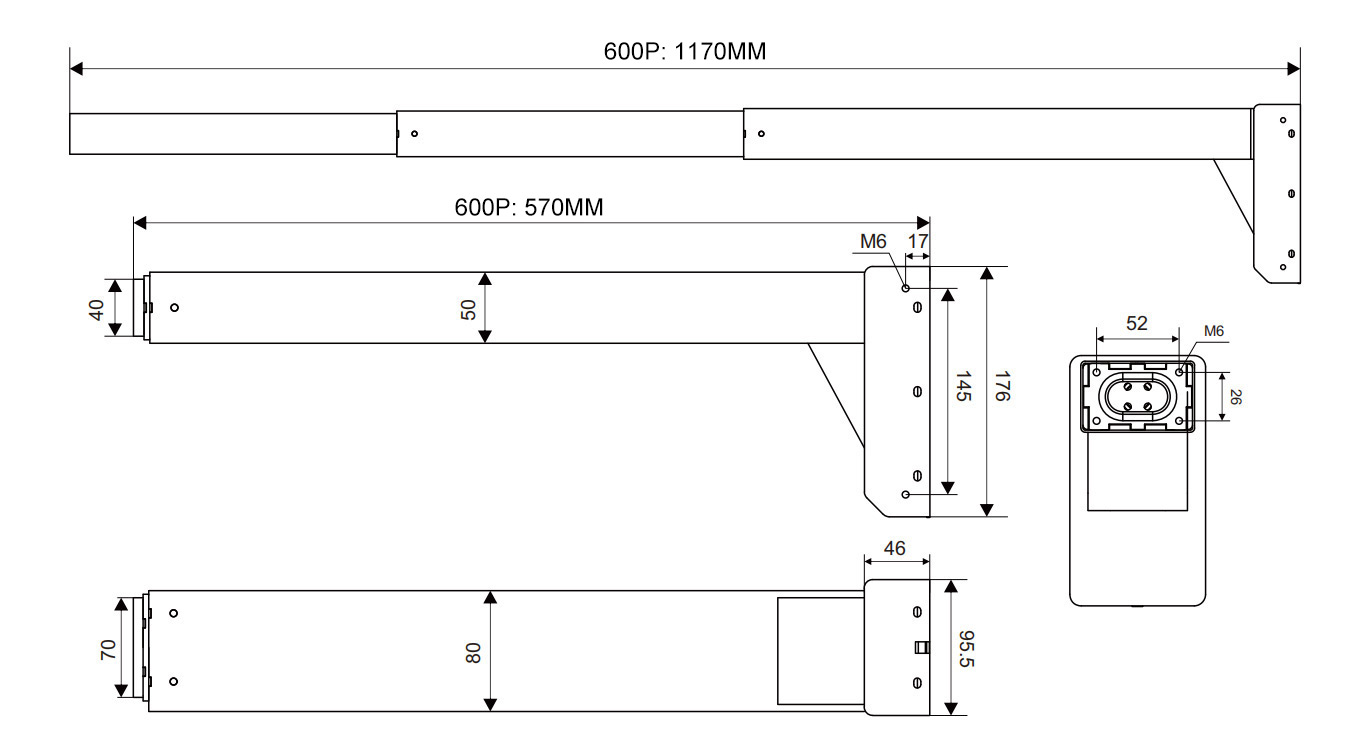

LC2000-600P

LC2000-800L

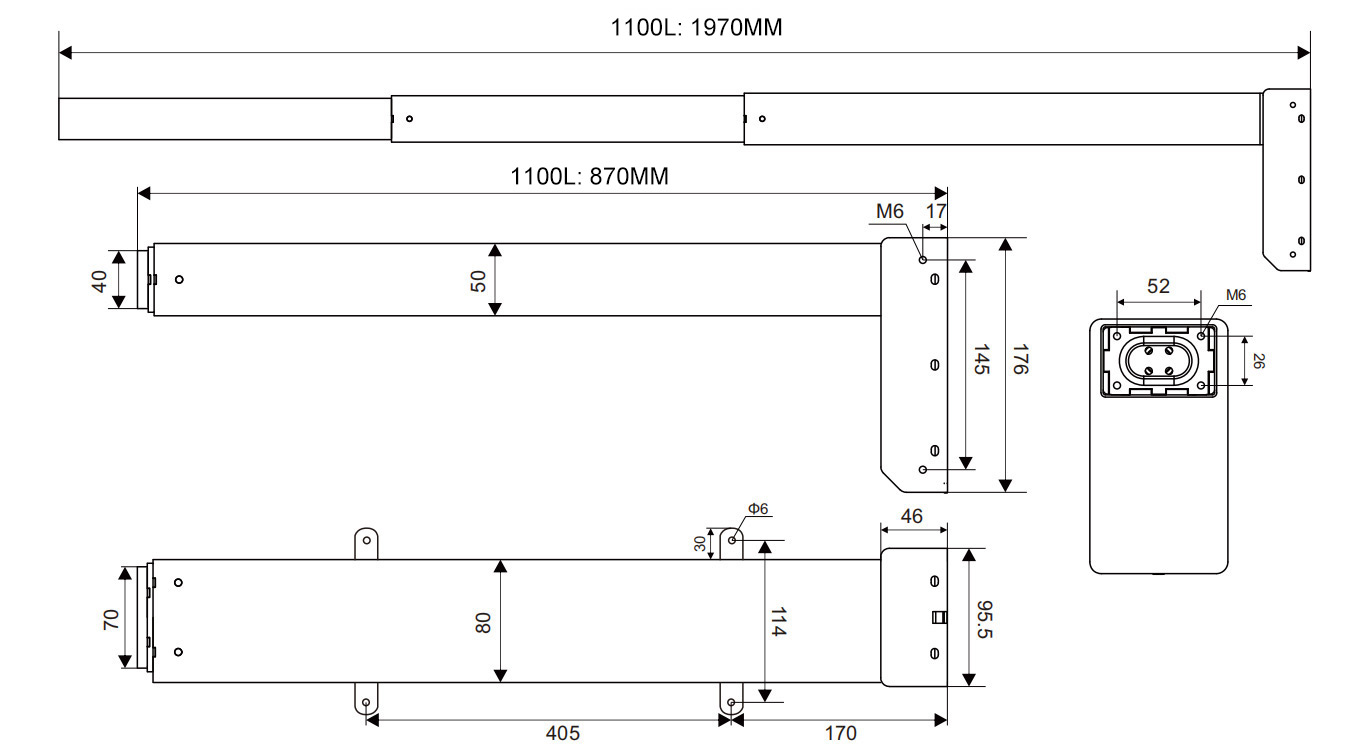

LC2000-1100L

LC2000-1400L
