LC1100Y Mobile Electric Lift Table

LC1100Y Mobile Electric Lift Table

LC1100Y mobile electric lifting column is composed of LC3000 lifting column and roller skating base. The base is made of integral die-casting resin material. The load capacity can reach more than 300KG.

Input Volatge: DC12~19V / DC24~32V
Maximum load：2700N/270kg
IP Grade: IP54
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Stroke Length: 50~1400mm

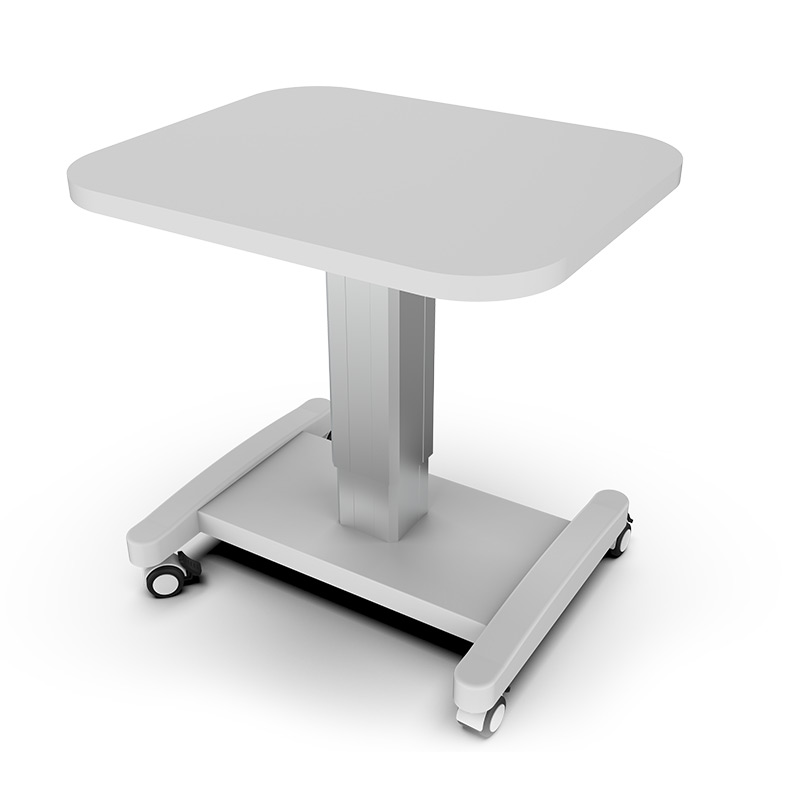

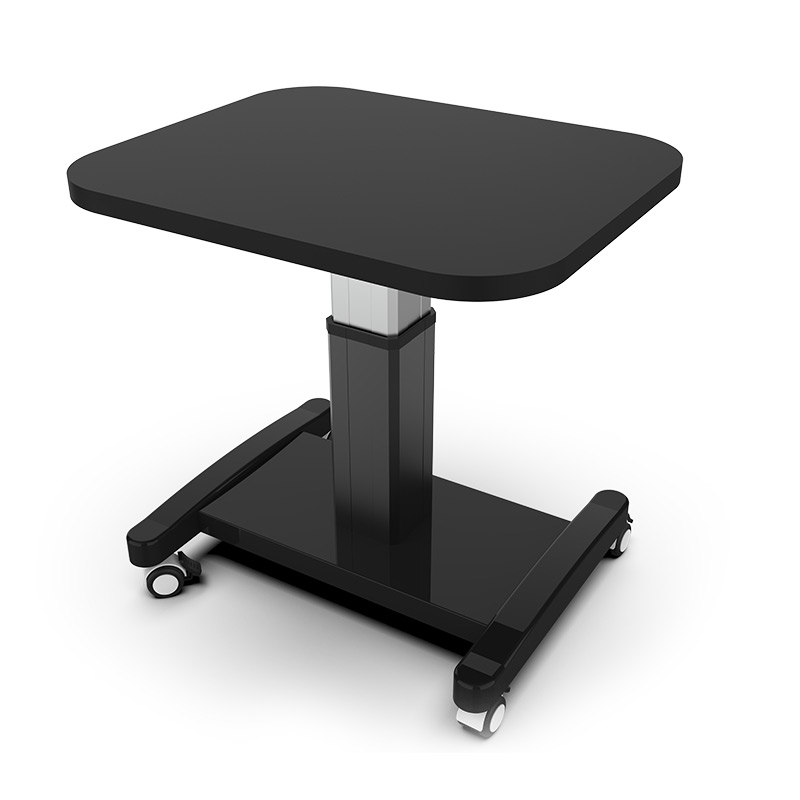

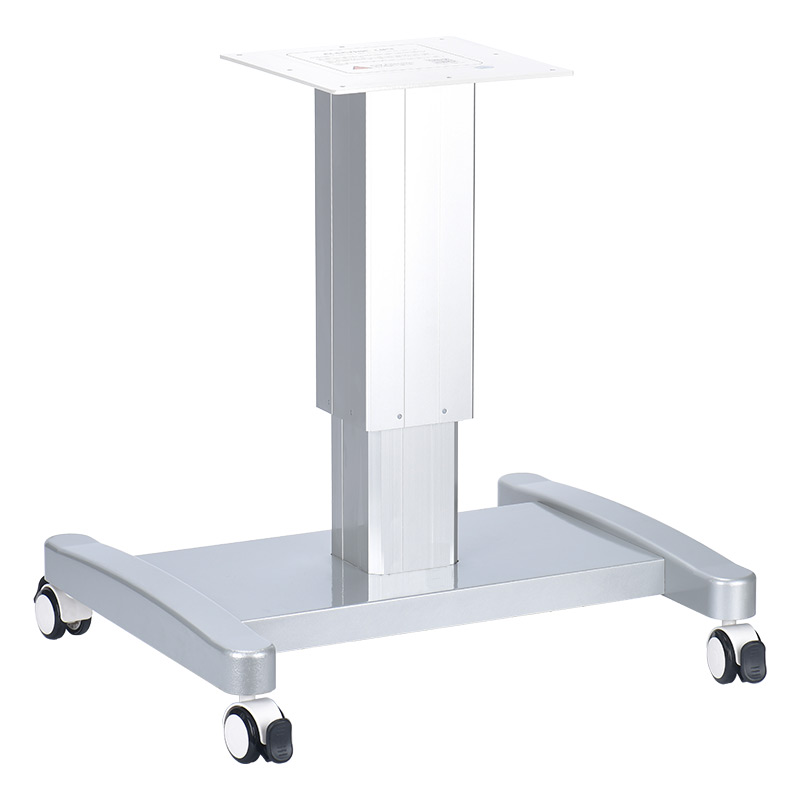

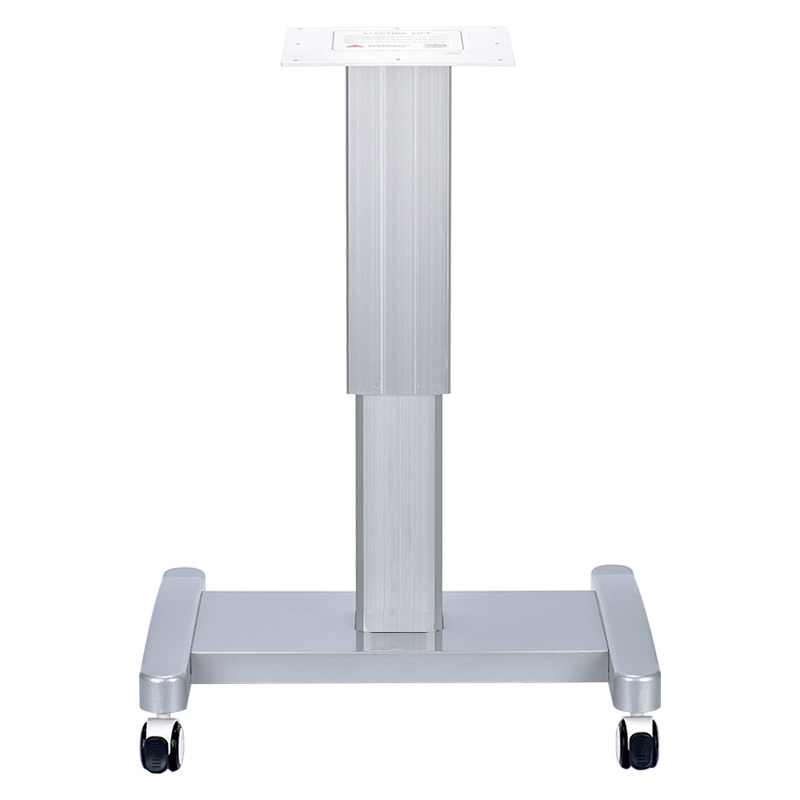

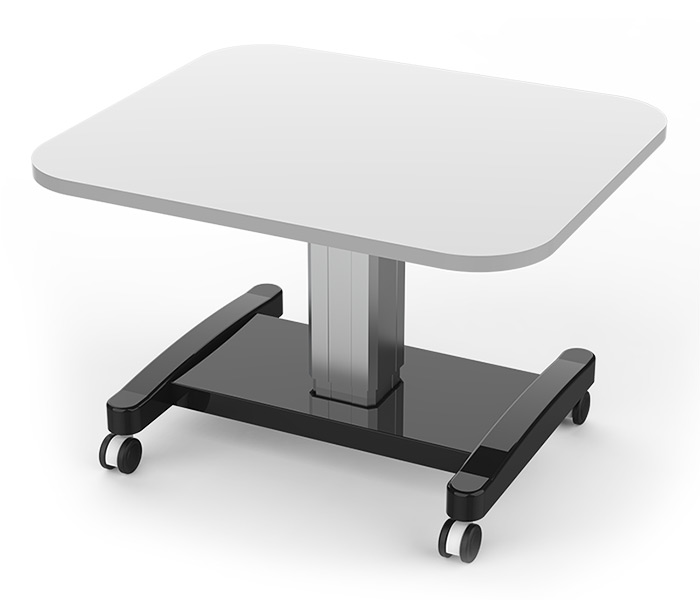

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Description

LC1100Y mobile electric lifting column is composed of LC3000 lifting column and roller skating base. The base is made of integral die-casting resin material. The load capacity can reach more than 300KG. It is equipped with four silent roller skates and has a beautiful appearance.
The movable electric lifting column table frame panel is divided into 245*245MM/160*160MM (default/material iron, thickness 5MM), the aluminum panel can be customized 10MM thick, and the table board is 500*600MM, which needs to be purchased separately, and the product can add IP66 Waterproof and dustproof/Hall sensor/limit feedback and other functions. The product adopts the characteristics of 24V motor with low power consumption, low noise and strong load capacity.

Technical Parameters

VoltageDC24~32V 60W

No-load Speed (MM/S)591320

Load Pull Capacity (N)27001200800500

Load Push Capacity (N)27001200800500

Self-Locking Capacity (N)27001200800500

VoltageDC12~19V 60W

No-load Speed （MM/S）5814

Load Pull Capacity (N)21001000400

Load Push Capacity (N)21001000400

Self-Locking Capacity (N)21001000400

Operating Temperature-25°C~+65°C

IP GradeIP54 / IP66

Limit SwitchesBuilt-in

Operating Frequency10% Work System, Maximum 1 Hour Continue Working

ColorSilver White

PanelsPowder Coating

Stroke Length50mm-1400mm

Optional FeaturesRebound or Pause When Encountering Obstacles
Hall Sensor (only 24V)
Upper And Lower Limit Feedback

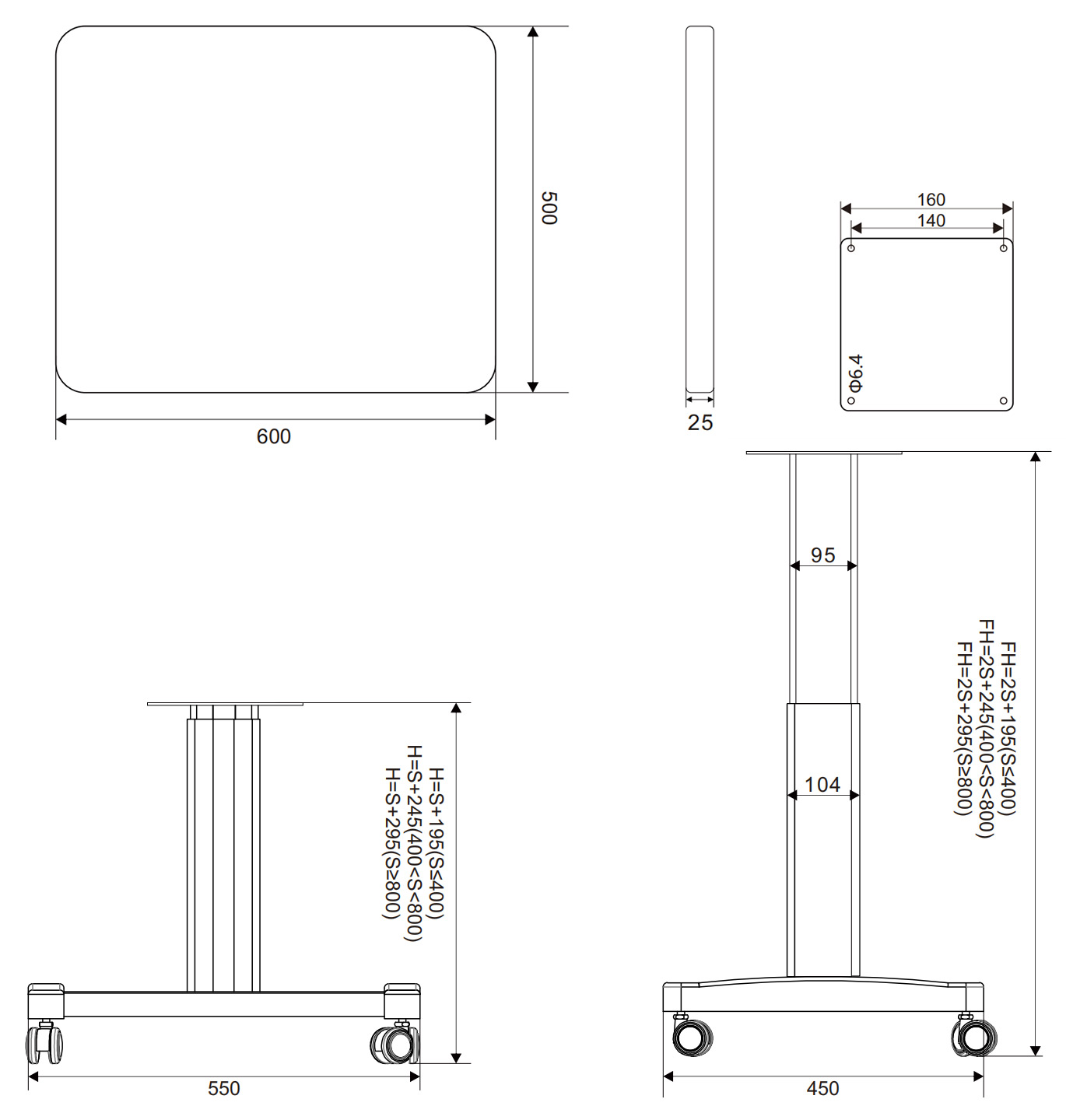

Outline Dimension Drawing
