LC1100-AL Electric Lifting Column

LC1100-AL Electric Lifting Column

LC1100 is a 2-section aluminum shell electric lifting column with a maximum load of 270kg and a maximum speed of 40MM/S. It can be treated with IP66 waterproof and dust-proof.

Input Volatge: DC12~19V / DC24~32V
Maximum load：2700N/270kg
IP Grade: IP54
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Stroke Length: 50~1400mm

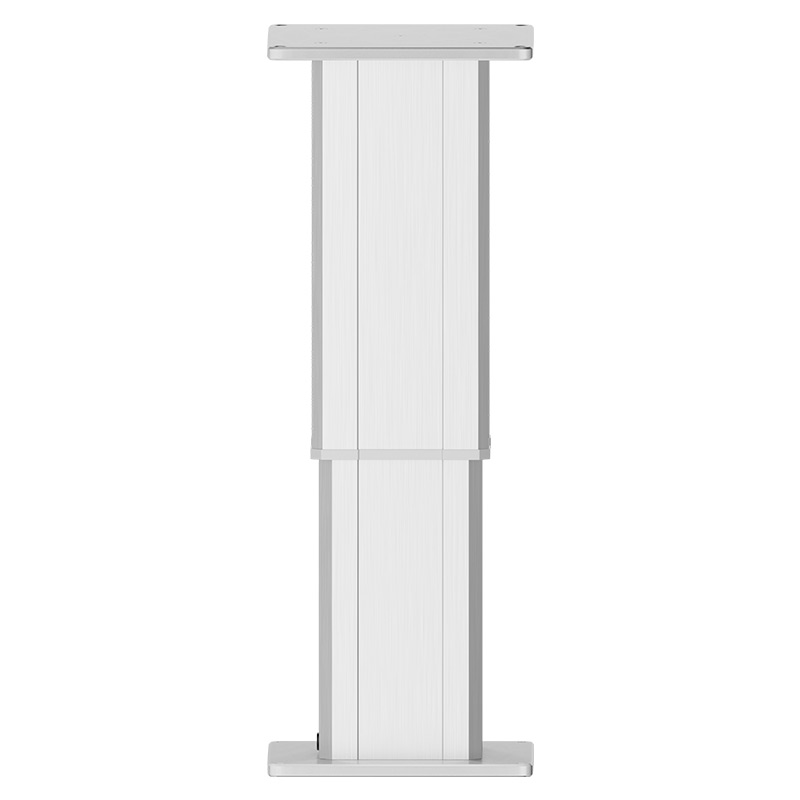

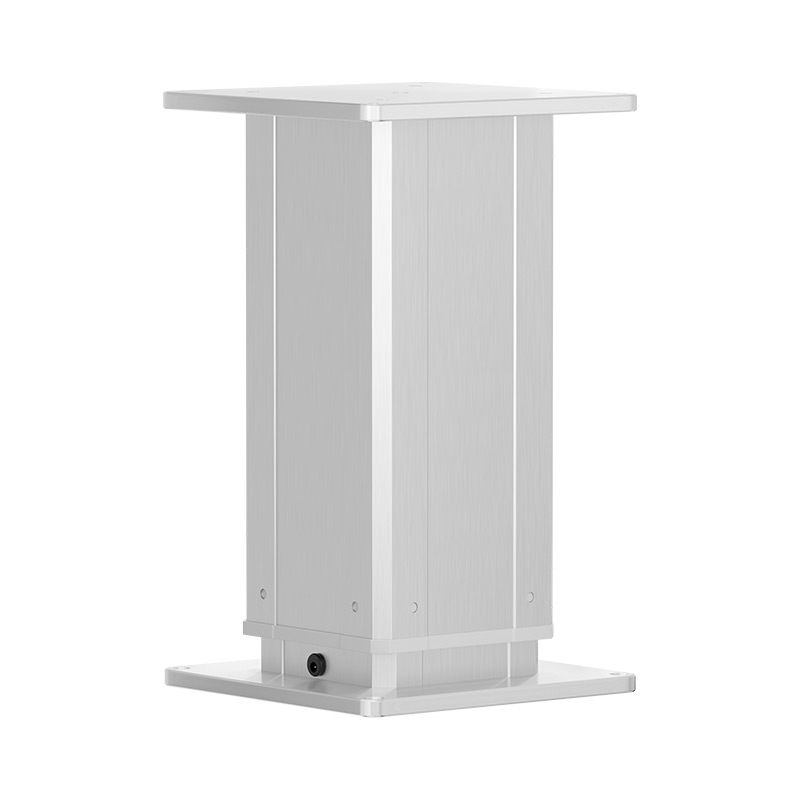

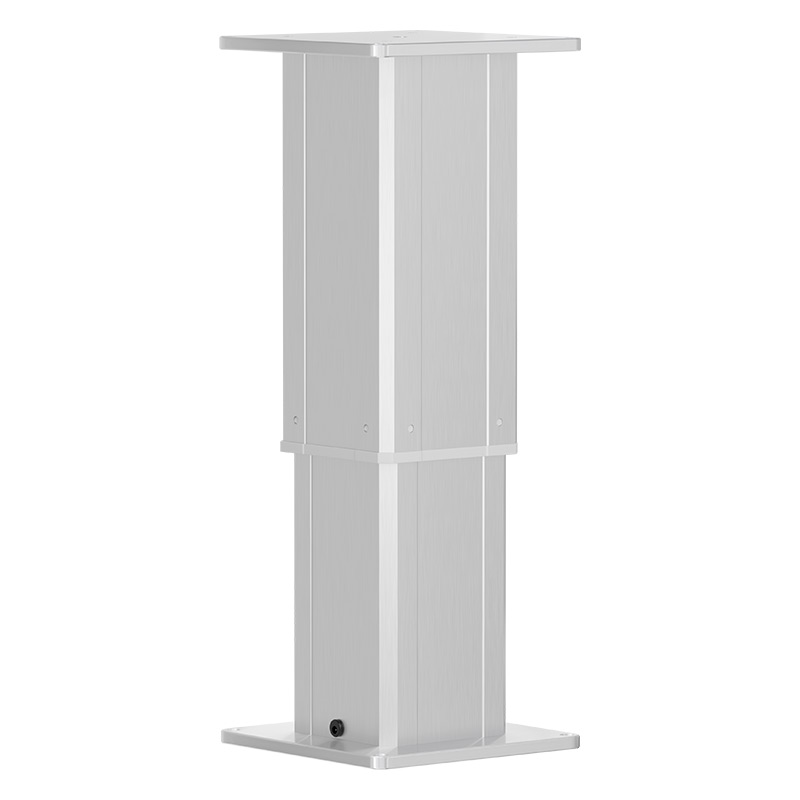

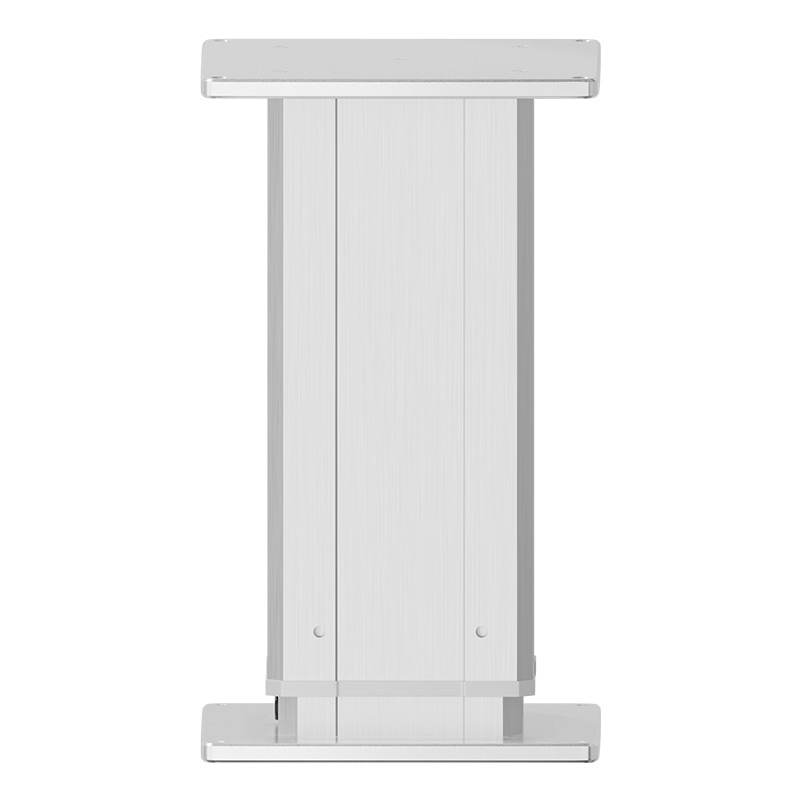

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LC1100 is a 2-section aluminum shell electric lifting column with a maximum load of 270kg and a maximum speed of 40MM/S. It can be treated with IP66 waterproof and dust-proof. 60W power, low noise and strong load capacity.
The products are divided into two types: large aluminum column and medium aluminum column. The width of the aluminum column body is 133/123MM, the panel size is 200/290MM, the medium aluminum column width is 104/95MM, the panel size is 152/245MM; the panel thickness is 5MM, The upper and lower panels are made of iron materials and treated with white spray paint.

Product features

● Adopt aluminium alloy shell
● Protection Level: IP54
● Low noise
● Large expansion range
● Rich expansion, optional Hall sensor and other components

Technical Parameters

VoltageDC24~32V 60W
No-load Speed (MM/S)5913203240
Load Pull Capacity (N)27001200800500200100
Load Push Capacity (N)27001200800500200100
Self-Locking Capacity (N)27001200800500200120
VoltageDC12~19V 60W
No-load Speed（MM/S）58142025
Load Pull Capacity(N)21001000400200100
Load Push Capacity(N)21001000400200100
Self-Locking Capacity(N)21001000400200100
Initial Height(mm)L =S+120, S ≤ 400;
L=S+170,  400 ＜ S ＜ 800;
L=S+220,  S ≥ 800
Operating Temperature-25°C~+65°C
IP GradeIP54 / IP66
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorSilver White
PanelsPowder Coating
Stroke Length（mm）50mm-1400mm
Optional FeaturesRebound or Pause When Encountering Obstacles
Hall Sensor (only 24V)
Upper And Lower Limit Feedback

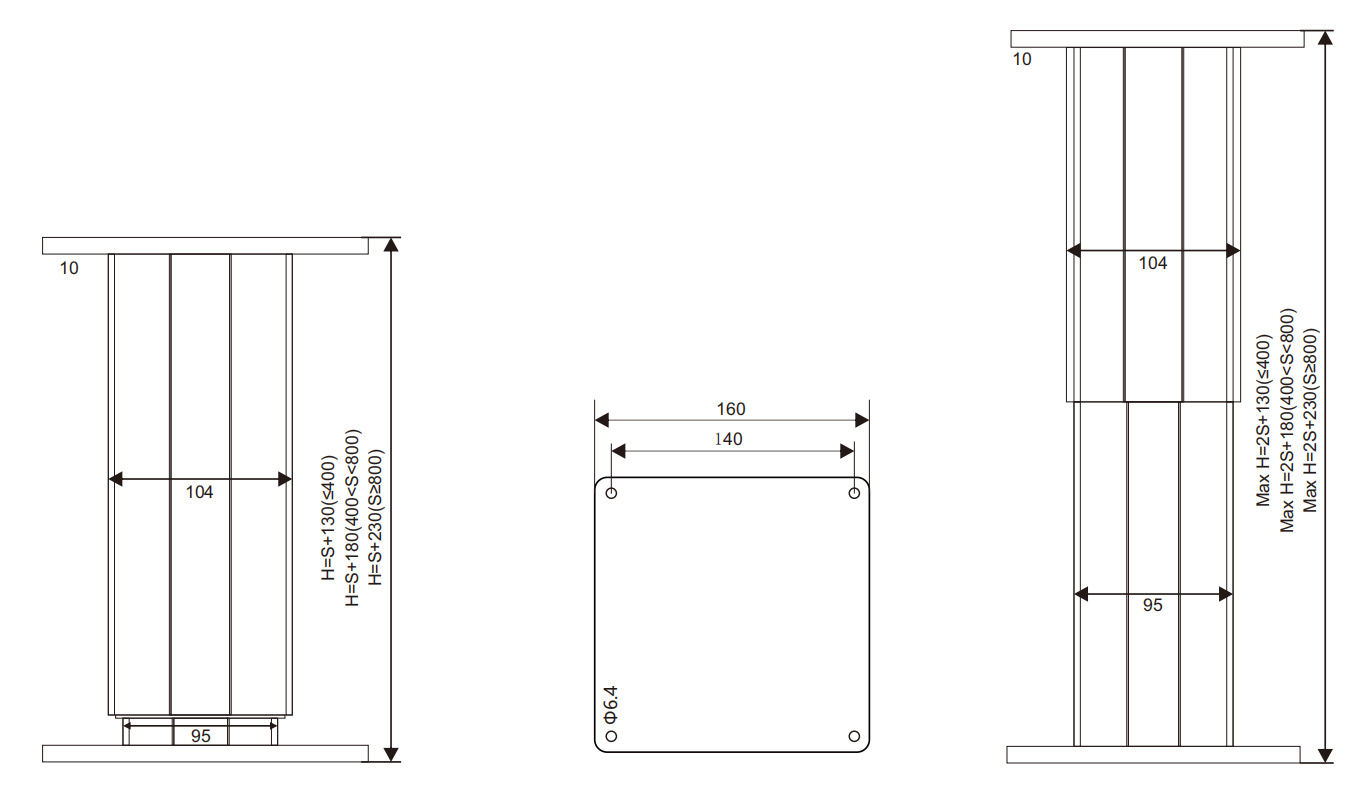

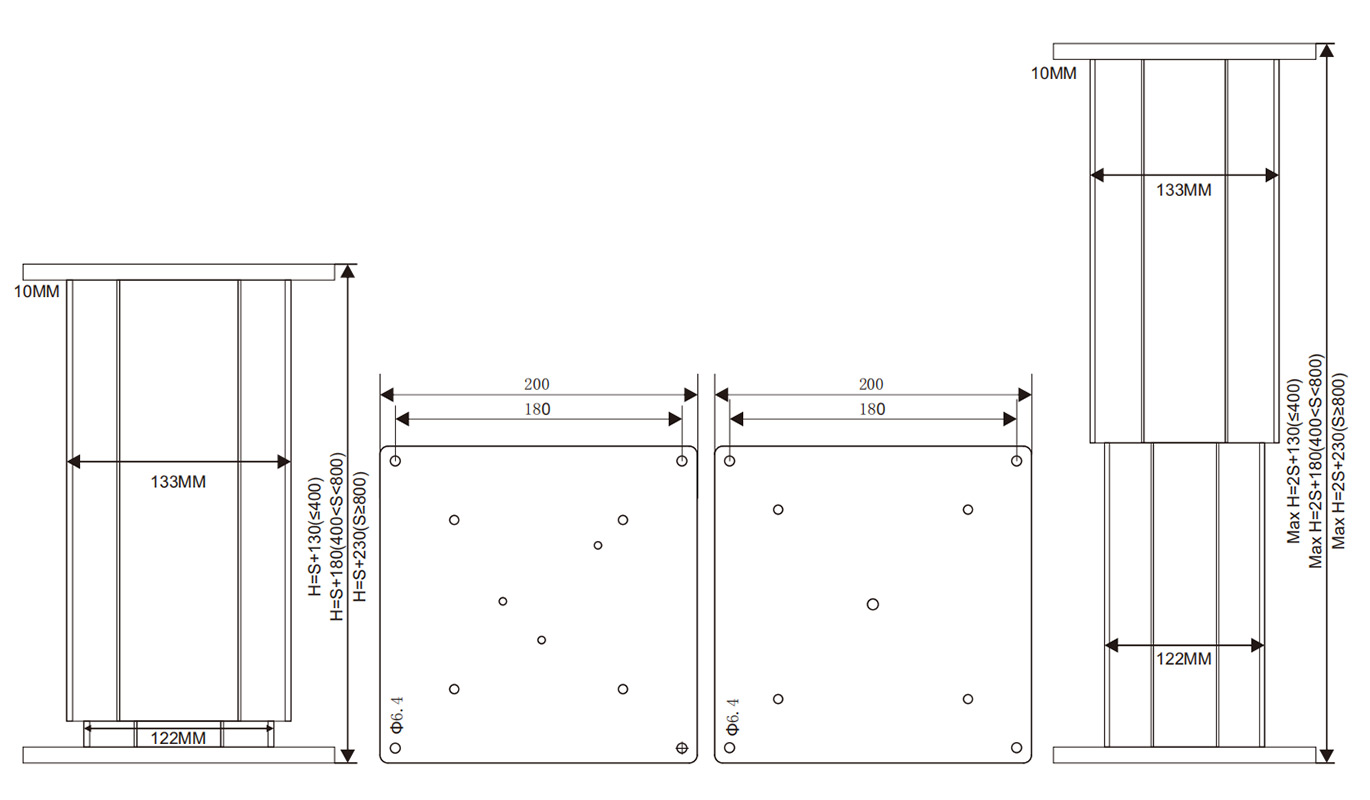

Outline Dimension Drawing

LC1100-A1

LC1100-A2

LC1100-B1

LC1100-B2
