LB Electric Lifting Bracket

LB Electric Lifting Bracket

LB electric lifting bracket is mainly used in tatami storage beds, heavy cabinet doors, and hidden cabinet doors. The electric linear actuator is matched with the lifting bracket to realize the raising and lowering of the panel.

Input Volatge: DC12~19V / DC24~32V
Maximum load:50/80/120/150kg
IP Grade: IP43
Operating Frequency: 10% Work System, Maximum 1 Hour Continue Working
Operating Temperature: -10°C~+60°C

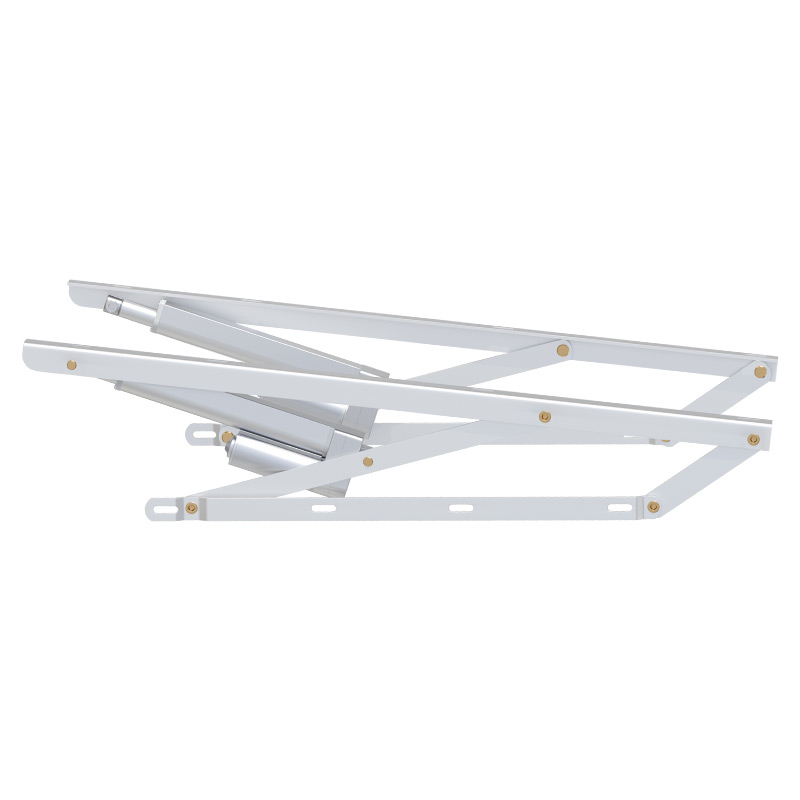

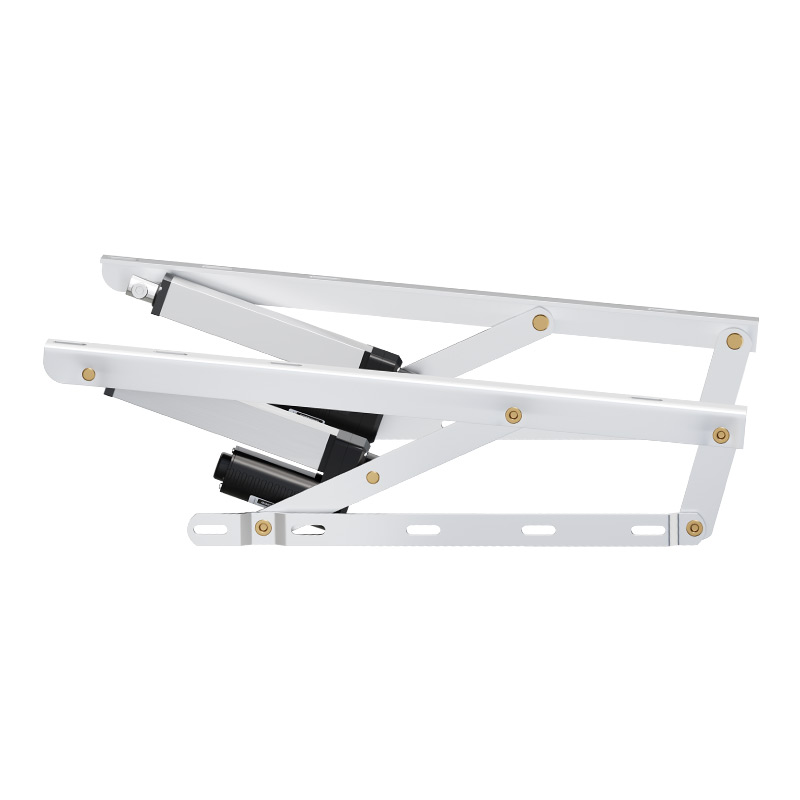

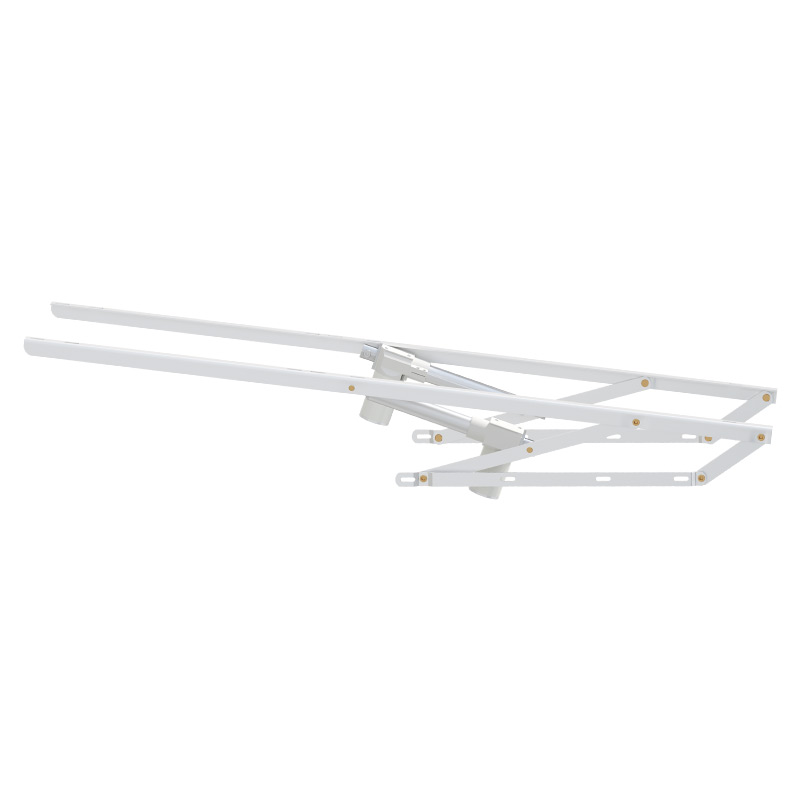

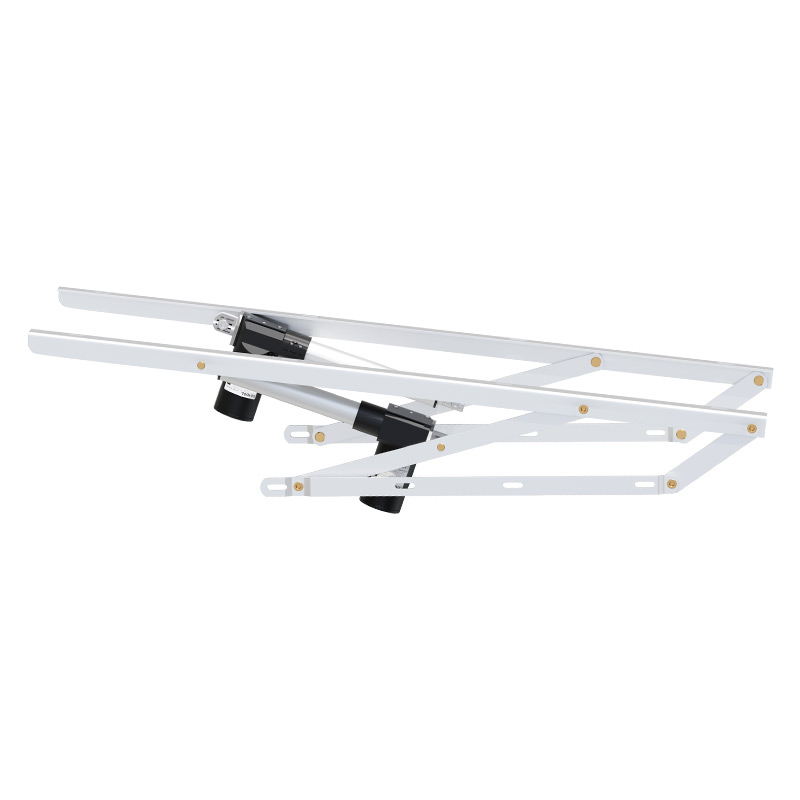

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

LB electric lifting bracket is mainly used in tatami storage beds, heavy cabinet doors, and hidden cabinet doors. The electric linear actuator is matched with the lifting bracket to realize the raising and lowering of the panel. According to the length of the bracket, it is divided into four specifications: 61/90/110/150CM, the thickness of the bracket is 5MM, and the opening and closing angle is 0-45°. This bed box electric lift is controlled by 24V or 12V power supply, and the load capacity is 80-150kg.
When using two tatami electric lifts at the same time, please pay attention to test first, avoid one to rise and the other to not move, which will damage the board

TECHNICAL PARAMETERS

ModelLB-60LB-90LB-110LB-150
Load Capacity50KG80KG120KG150KG
Speed1.43°/s0.88°/s0.88°/s0.9°/s
Length (MM)61090011001500
Open Angle40°44°44°45°
Installation Angle-3.1°-2°-1°
VoltageDC12~19V or DC24~32V
Operating Temperature-10°C~+60°C
IP GradeIP43
Limit SwitchesBuilt-in
Operating Frequency10% Work System, Maximum 1 Hour Continue Working
ColorWhite or Balck

OUTLINE DIMENSION DRAWING

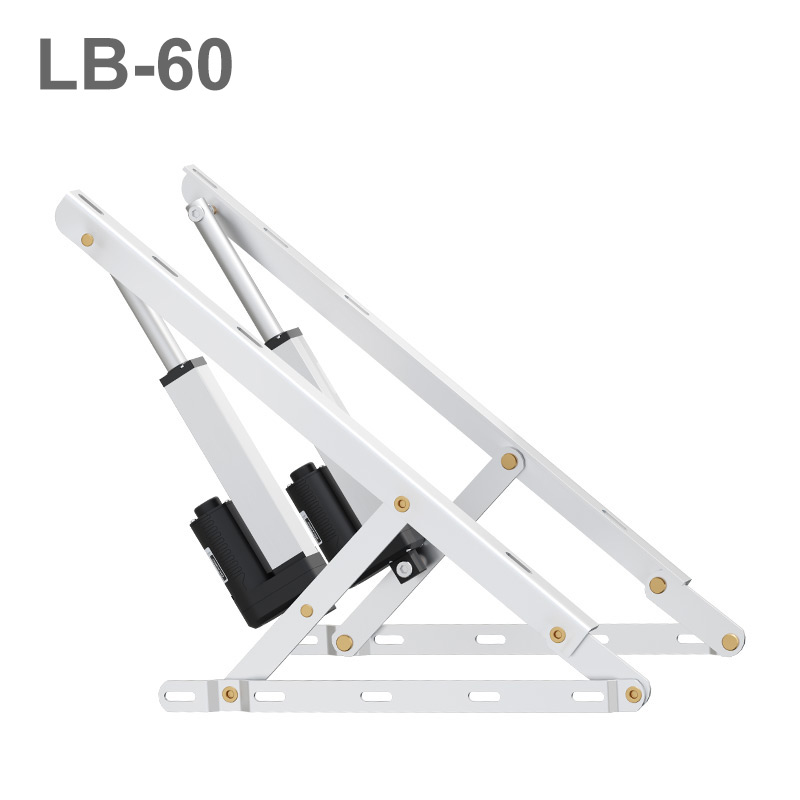

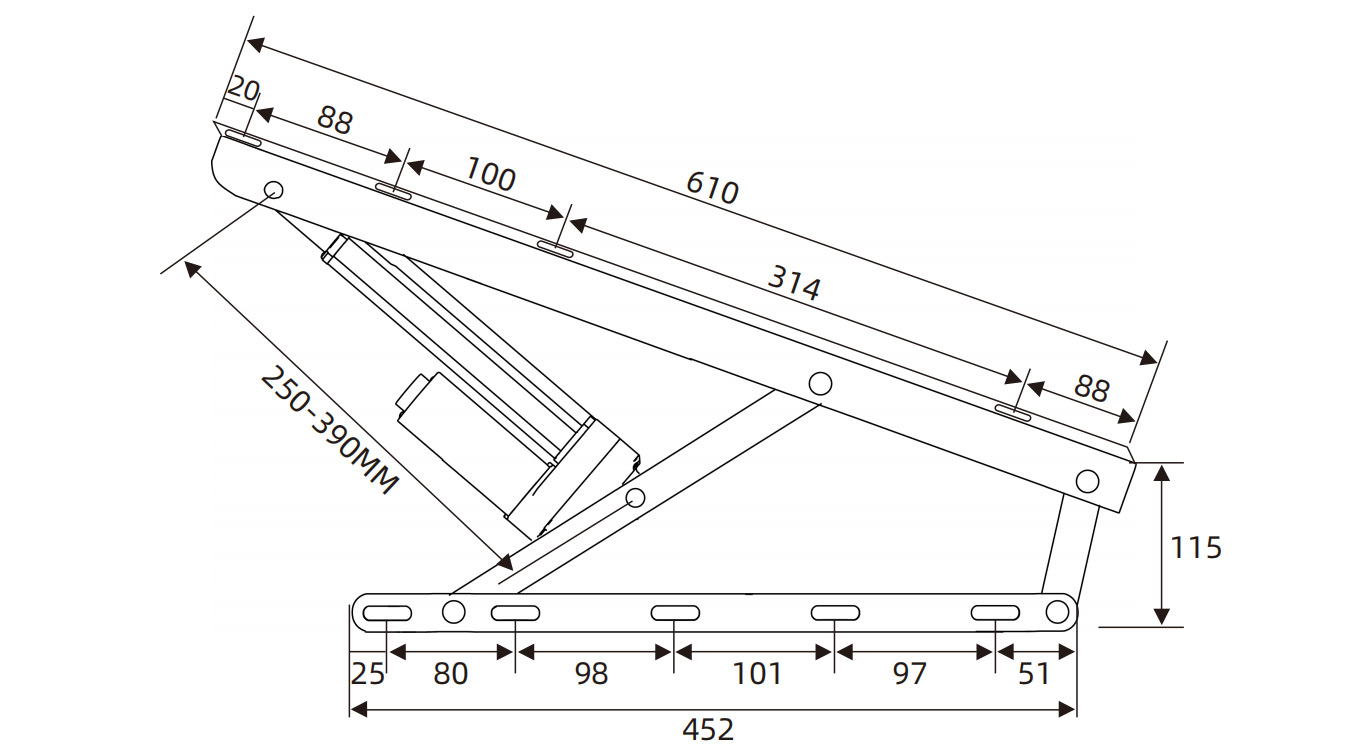

LB-60 LB-60.jpg

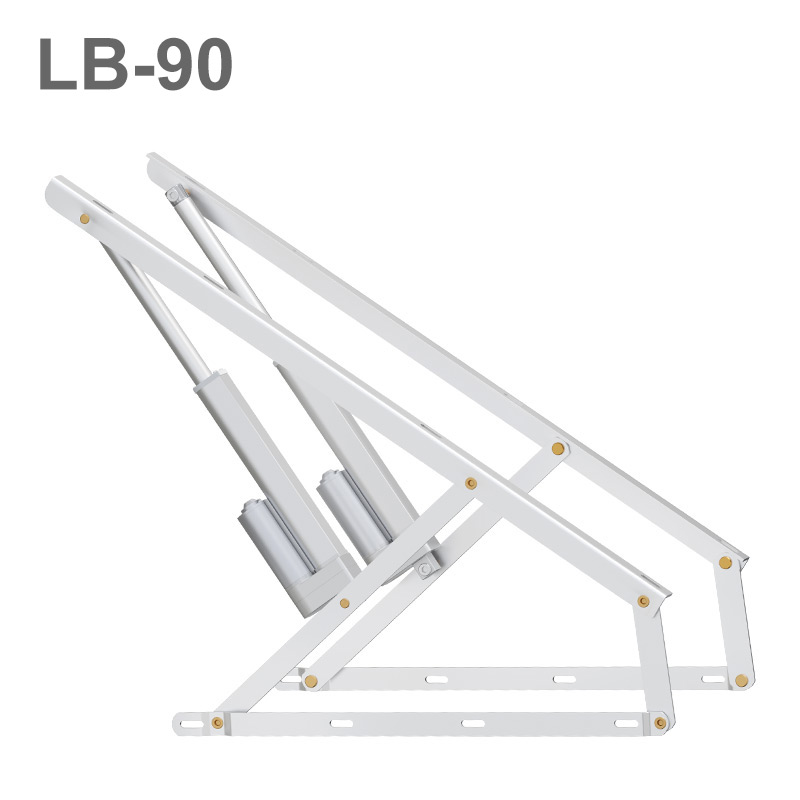

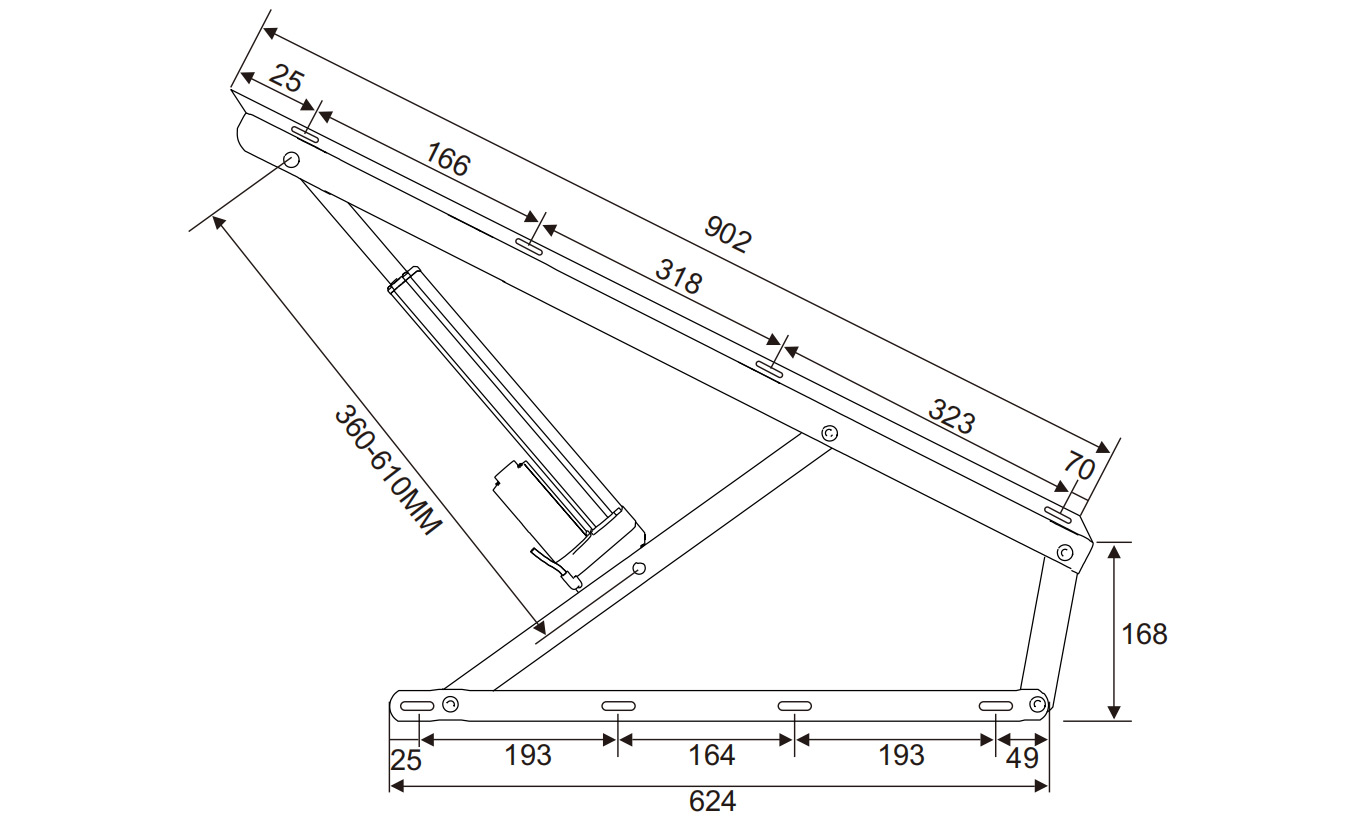

LB-90 LB-90.jpg

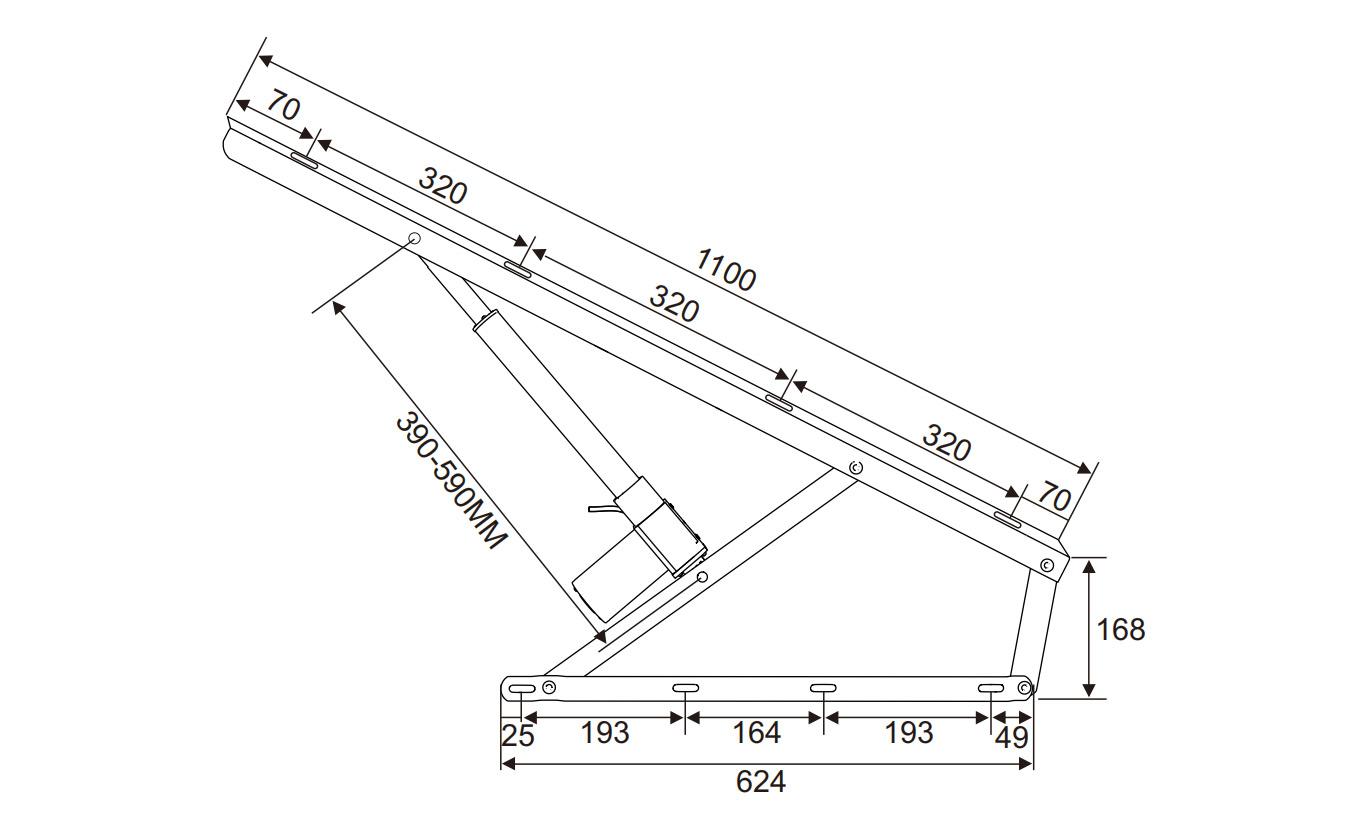

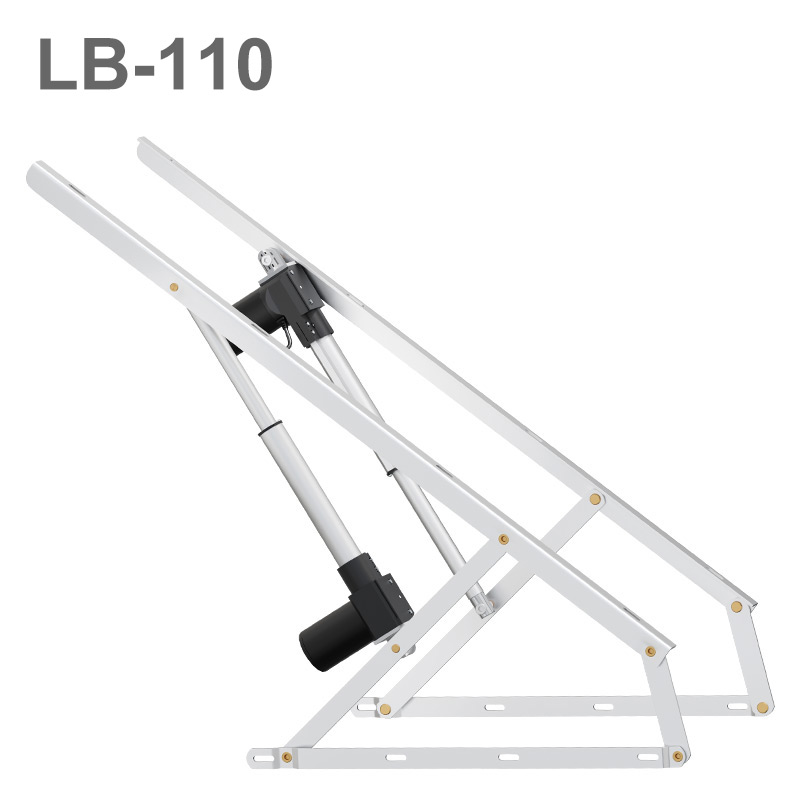

LB-110 LB-110.jpg

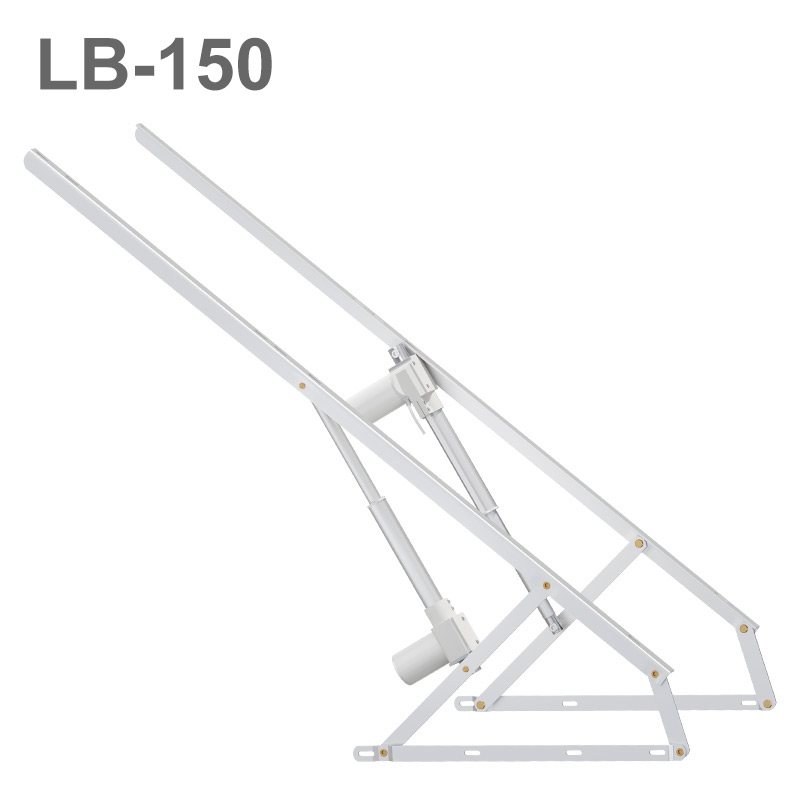

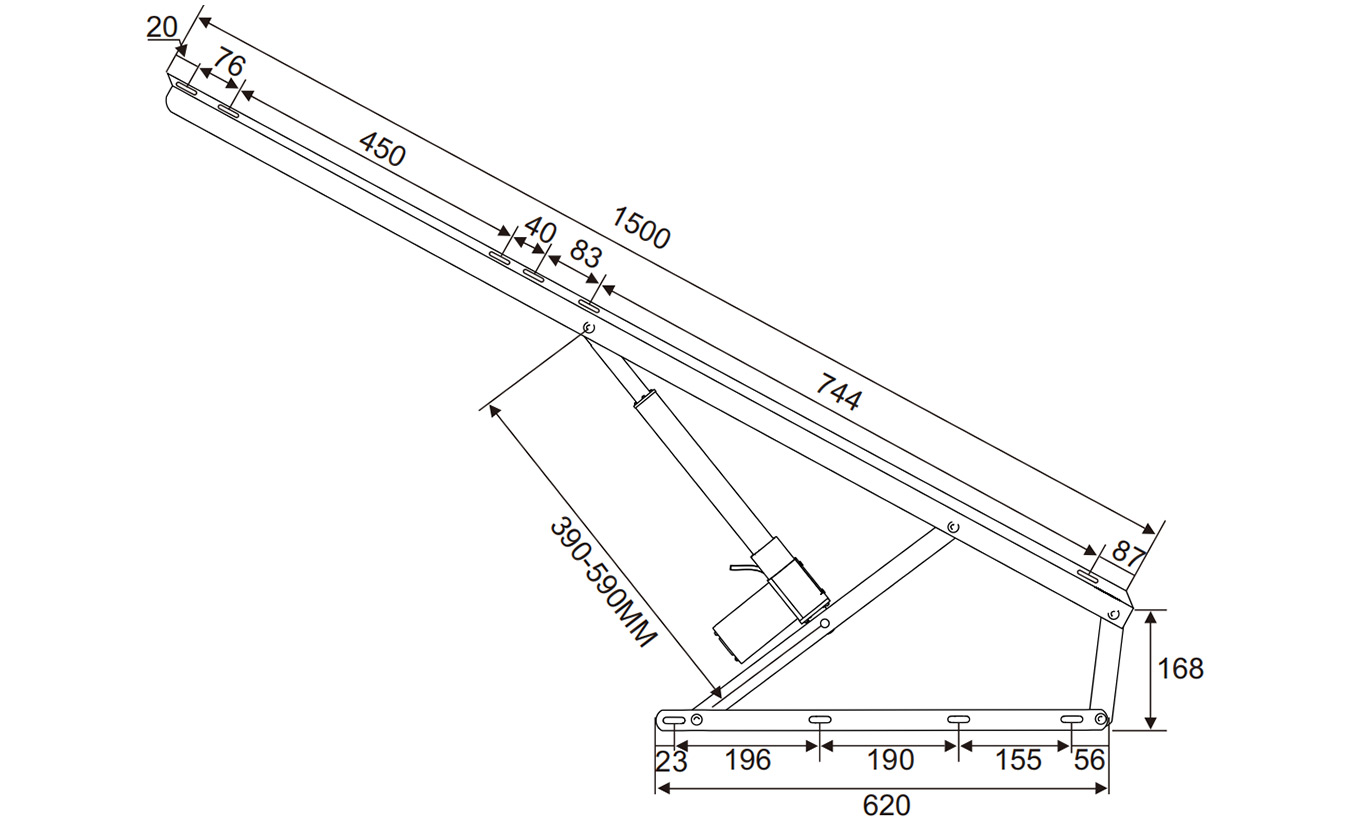

LB-150 LB-150.jpg
