LA8000L Electric Linear Actuator

LA8000L Electric Linear Actuator

LA8000L is a high-thrust electric linear actuator. The center telescopic tube is designed with 304 stainless steel tube and plastic dust cover. The center tube is not fixed and can be rotated.

Input Volatge: DC12~19V / DC24~32V
Maximum load:8000N/800kg
IP Grade: IP54
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~1000mm

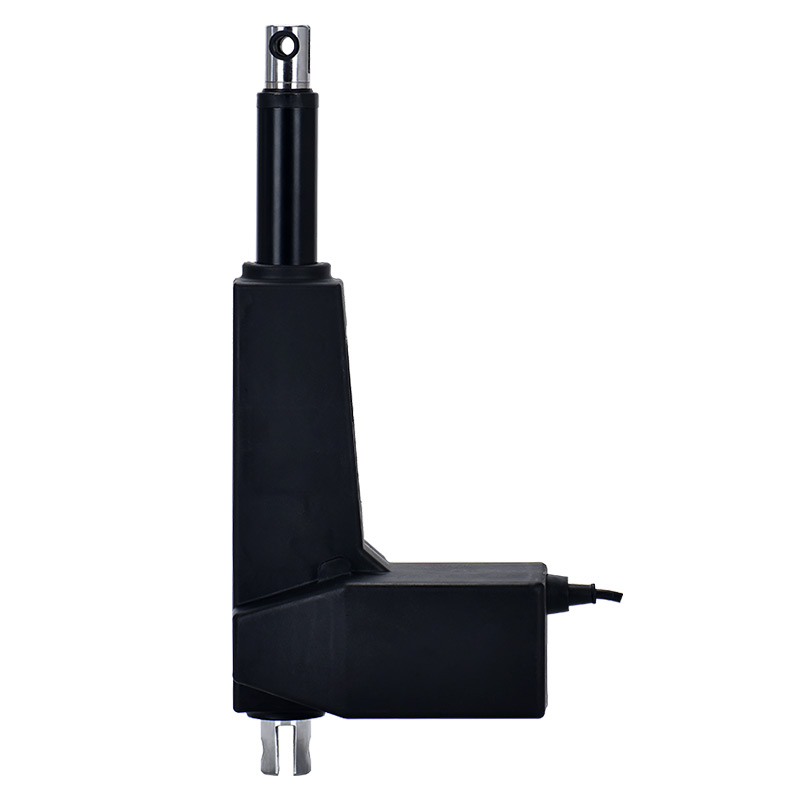

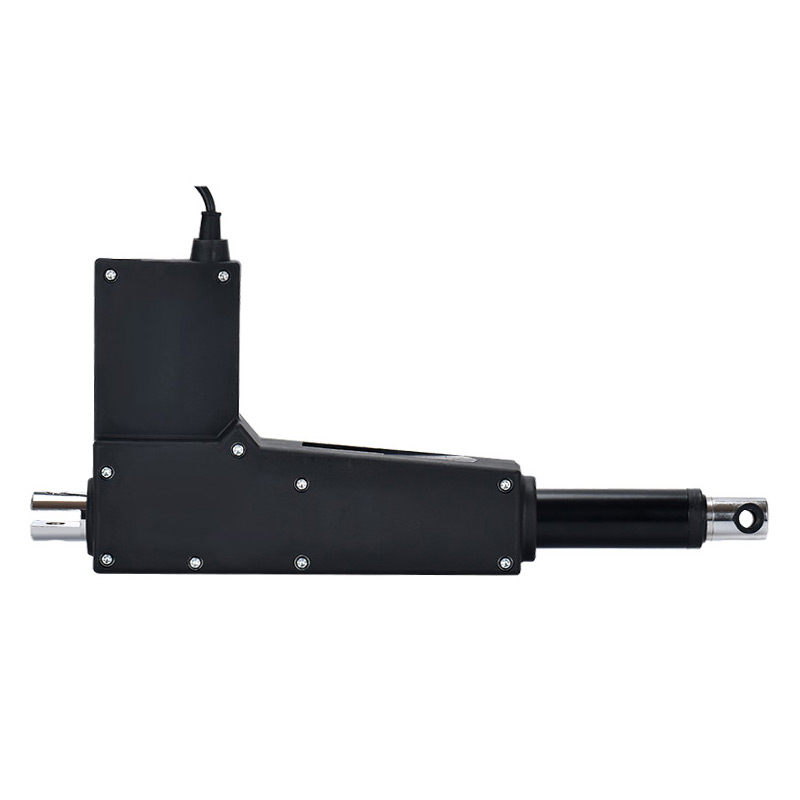

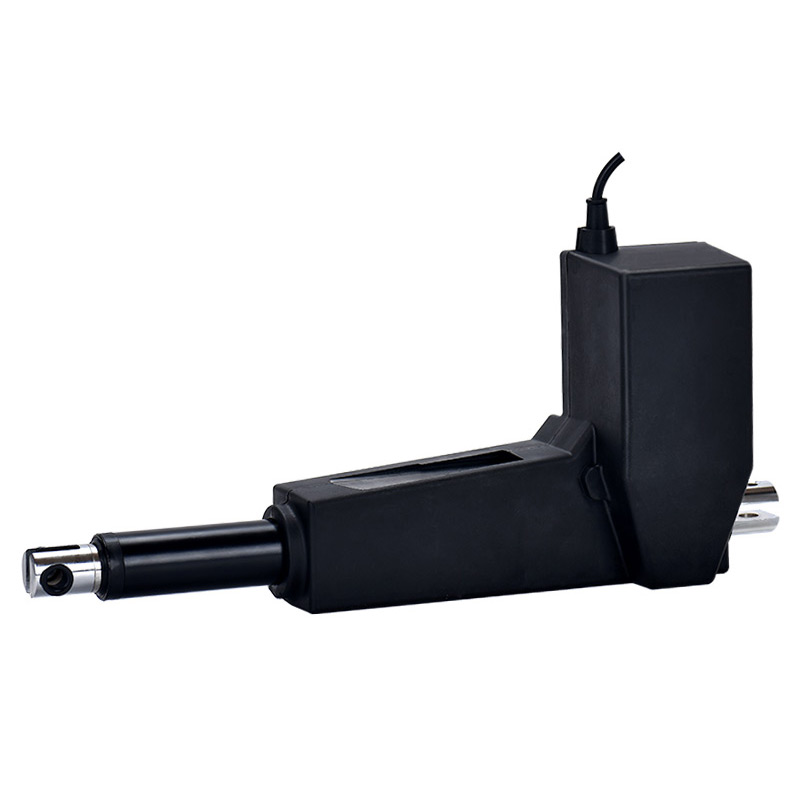

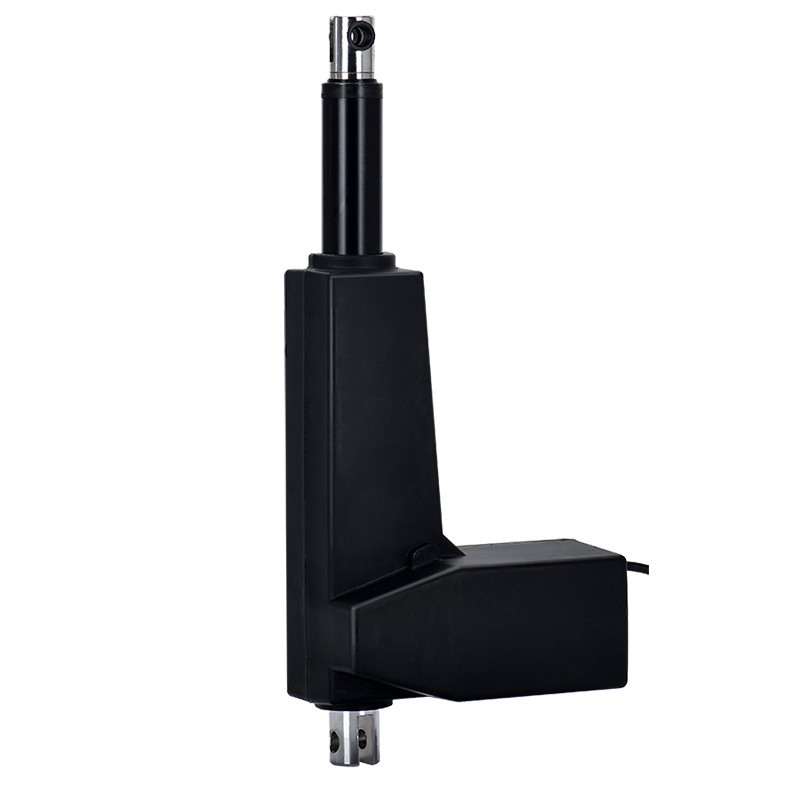

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 12V/24V

Maximum load:8000N/800kg

Maximum Speed:60mm/s

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP54

Operating Frequency:10% max 2min. continuous use

Operating Temperature:-25°C~+65°C

Noise index:≤40dB

Manual function: not support

Introduction

LA8000L is a high-thrust electric linear actuator. The center telescopic tube is designed with 304 stainless steel tube and plastic dust cover. The center tube is not fixed and can be rotated. It is installed with Ф10 ears. It is equipped with a 60W silent high-power DC motor. It uses plastic gears. The maximum load is 8000N and the maximum speed is 36MM/S. The stroke is optional from 50MM to 800MM. Other non-standard itineraries can be customized according to needs.
Mainly used in massage chairs, massage beds, nursing beds, window openers and other places.

Technical Parameters

VoltageDC24~32V / DC12~19V
No-load Speed (MM/S)5810152024304060
Load Pull Capacity (N)70006000500030002500200015001200400
Load Push Capacity (N)80007000600040003000250020001500500
Self-locking Capacity (N)80007000600040003000250020001500500
Stroke Length50mm-1000mm (Optional >400mm)
Motor Power150W
Operating Temperature-25°C~+65°C
Operating Frequency10% max 2min. continuous use
ColorBlack And White
Limit SwitchesBuilt-in
Protection ClassIP54

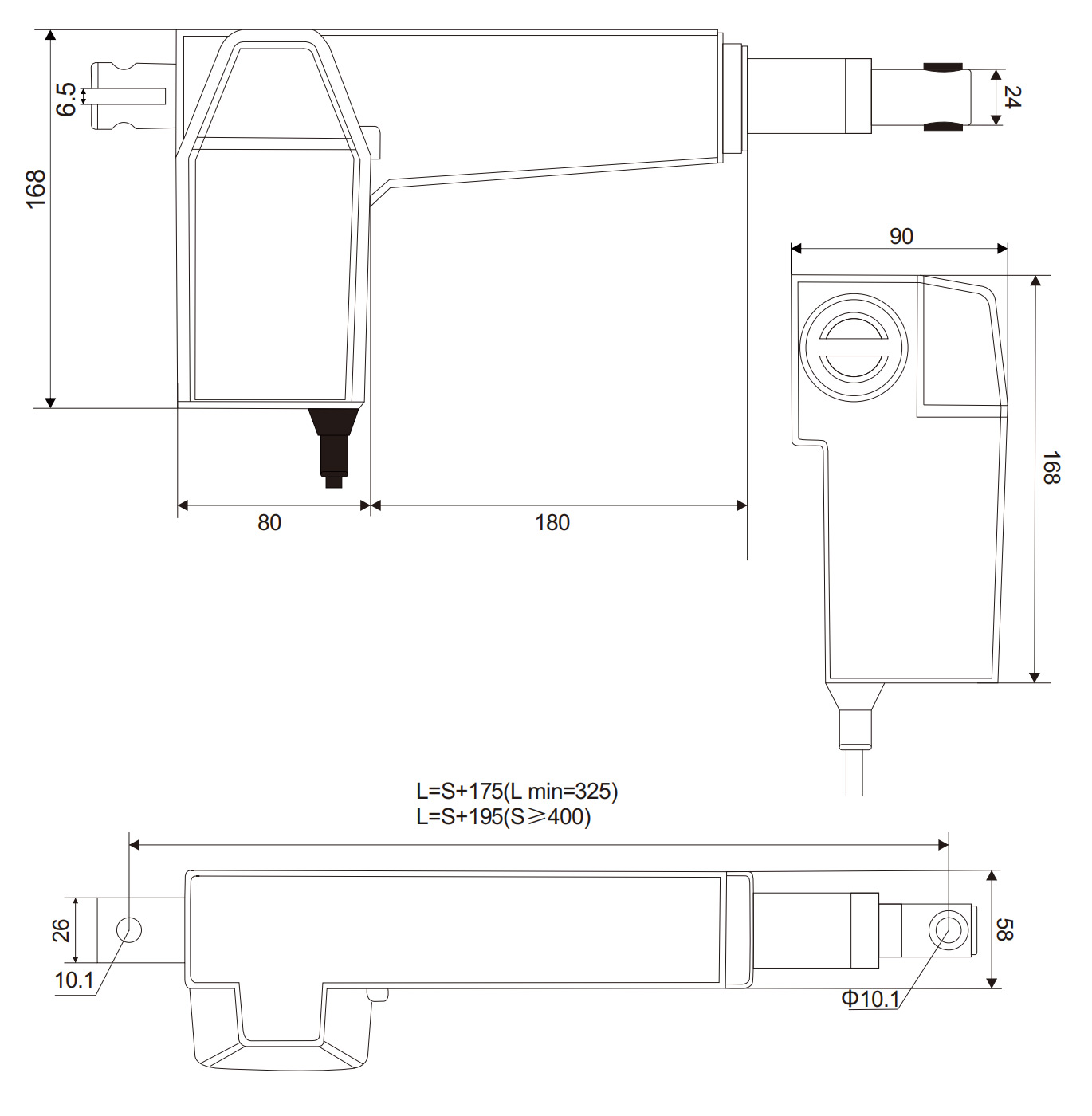

Outline Dimension Drawing
