LA8000 Electric Linear Actuator

LA8000 Electric Linear Actuator

LA8000 is an improved high-power electric linear actuator based on the LA6000 series. The maximum load is 8000N, and the self-locking load capacity can reach 800KG.

Input Volatge: DC12~19V / DC24~32V
Maximum load:8000N/800kg
IP Grade: IP43
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~1000mm

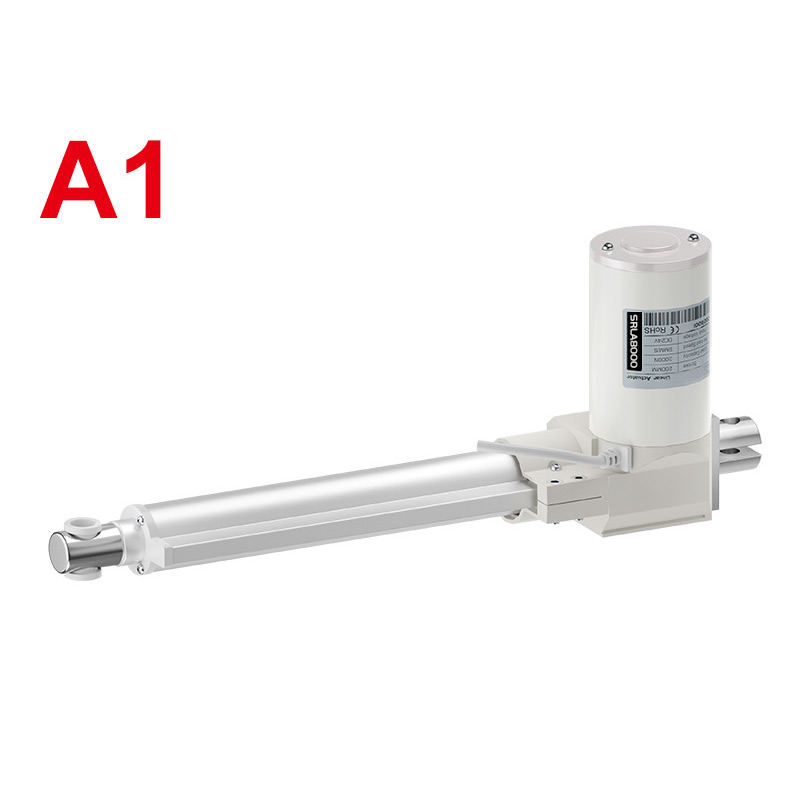

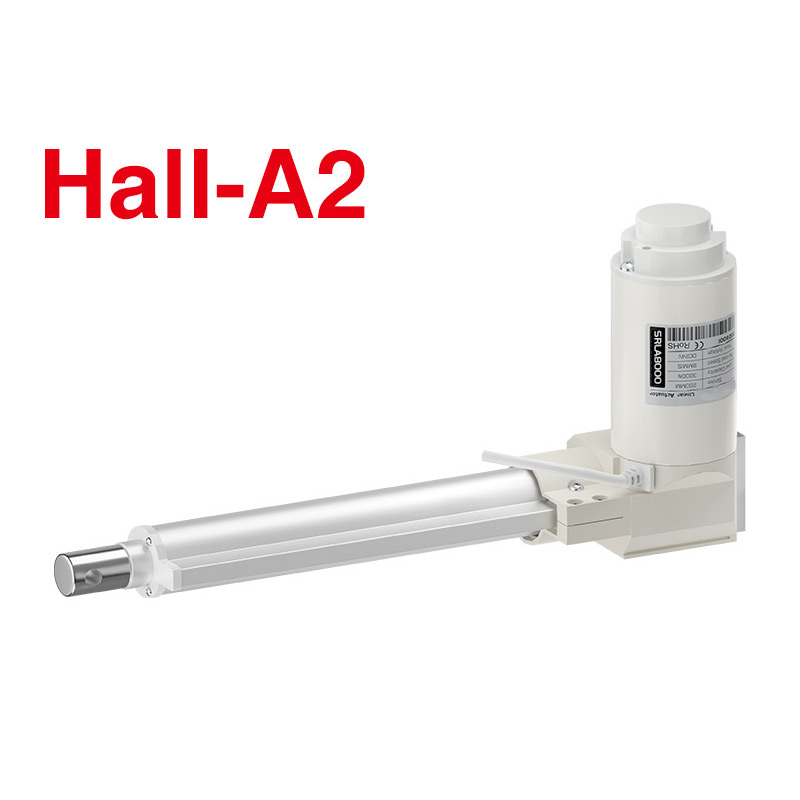

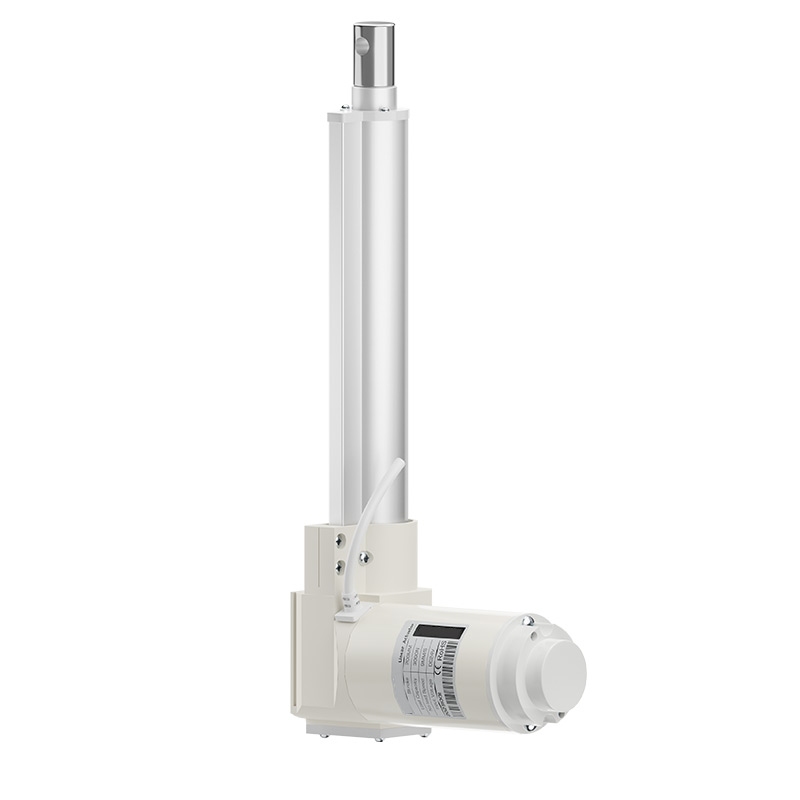

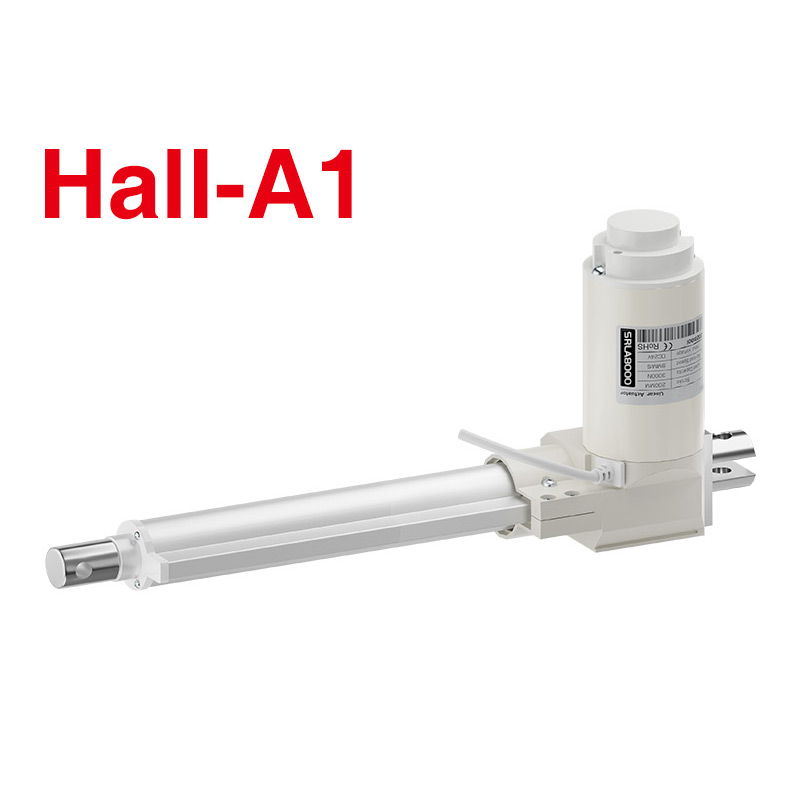

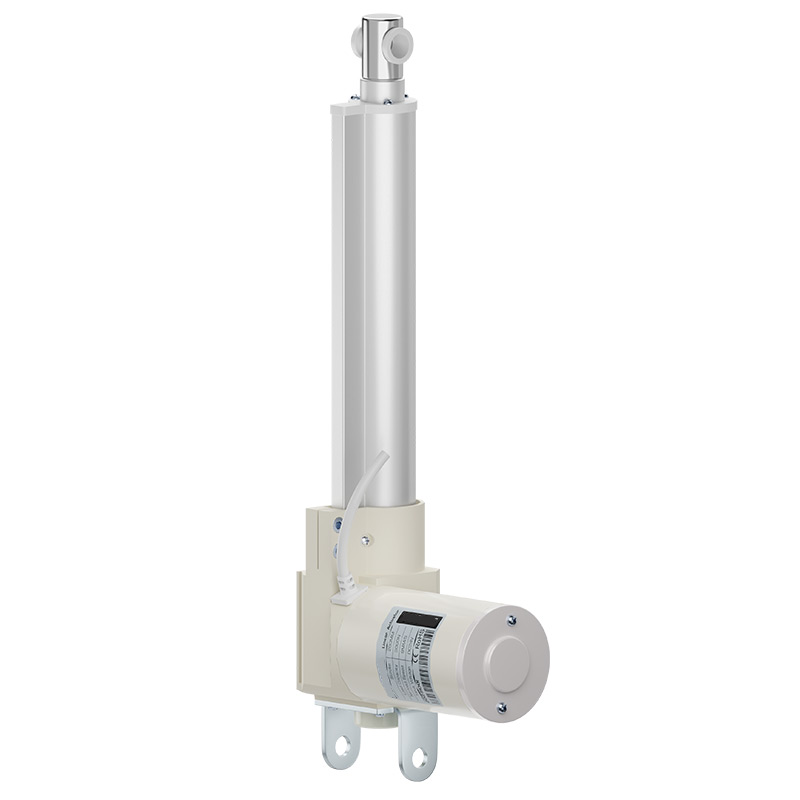

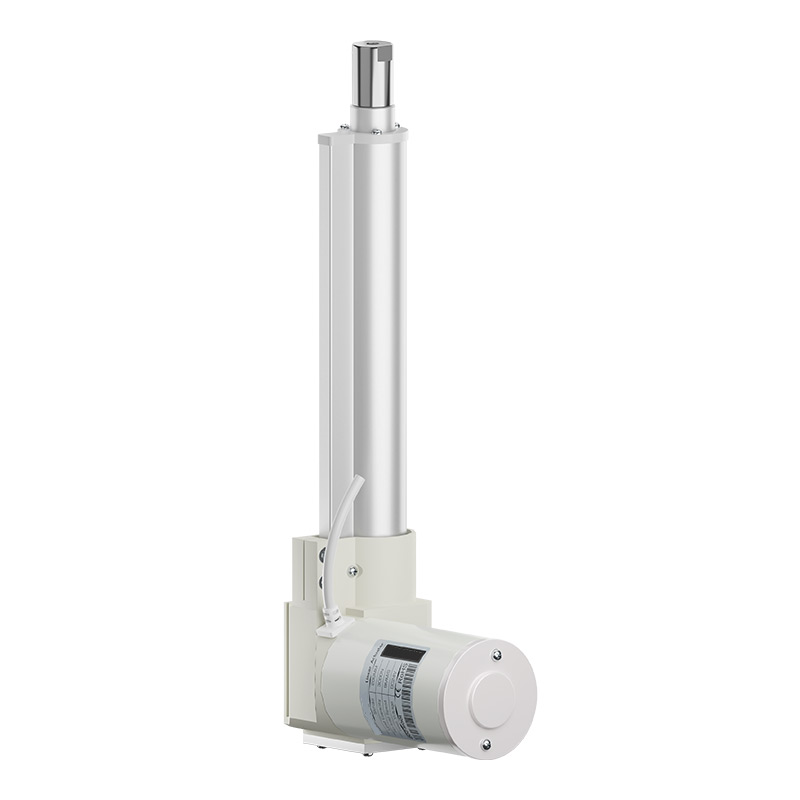

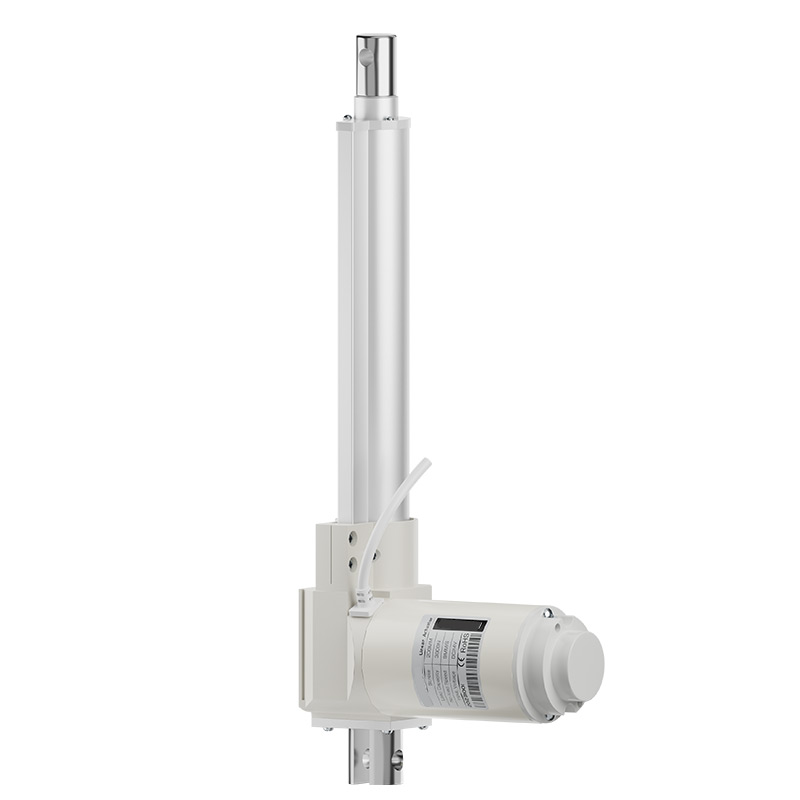

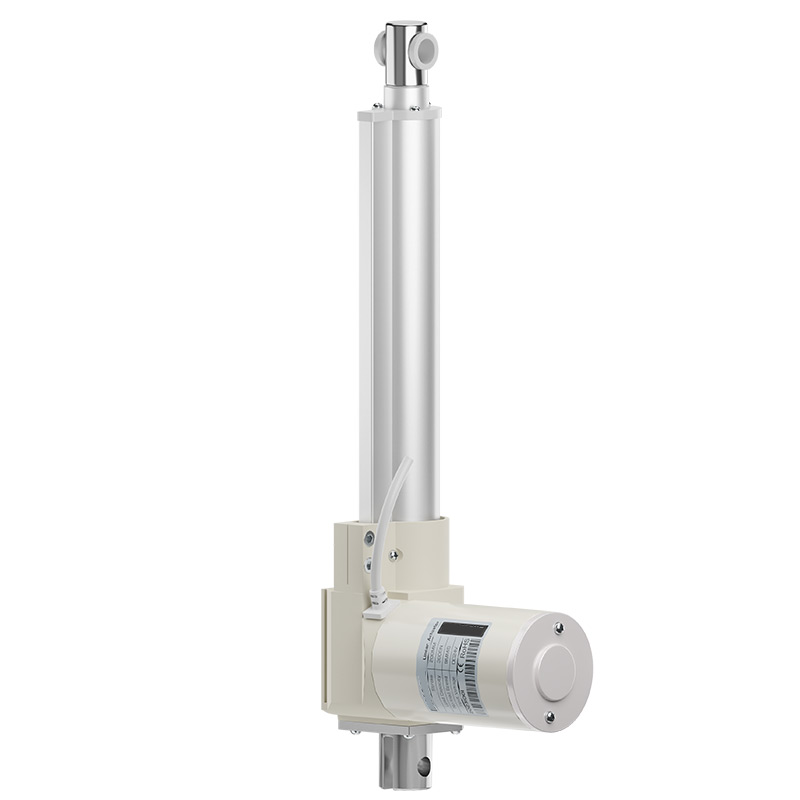

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 12V/24V

Maximum load:8000N/800kg

Maximum Speed:25mm/s

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP43

Operating Frequency:10%,2min.on/18min.off

Operating Temperature: 0°C~+40°C

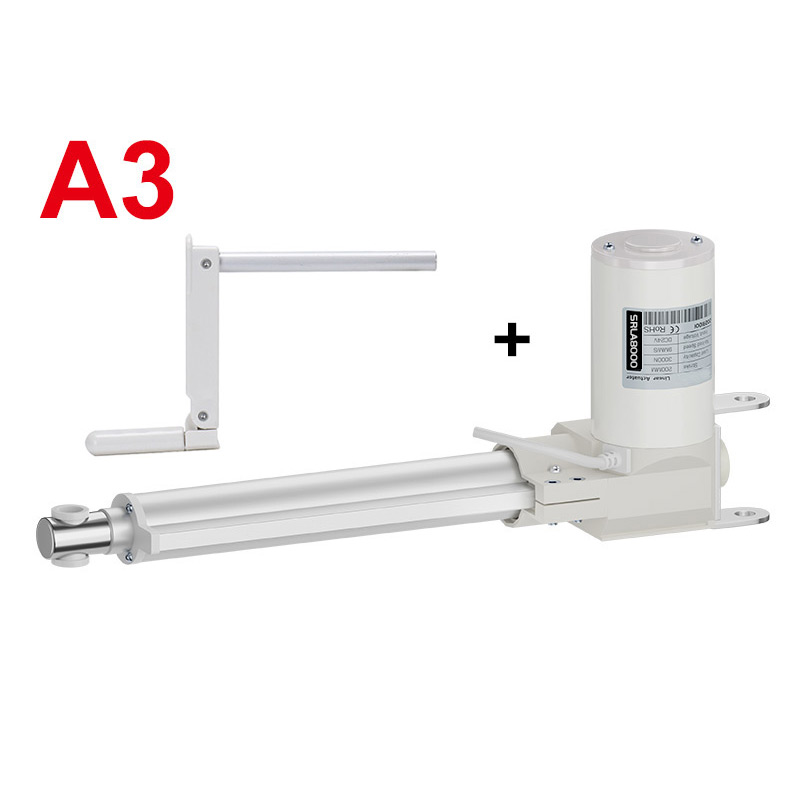

Manual function: not support except A3 type

Introduction

LA8000 is an improved high-power electric linear actuator based on the LA6000 series. The maximum load is 8000N, and the self-locking load capacity can reach 800KG. The self-locking force of the LA6000 series is low, and the load force will be retracted after the upper and lower installations are powered off.
8000N electric linear actuator has two structures, one is electric DC24V or DC12V for operation, the other is DC electric and manual operation.

VoltageDC12~19V / DC24~32V
No-load Speed (MM/S)3.34.591525
Load Pull Capacity(N)8000600030002000800
Load Push Capacity(N)8000600030002000800
Self-locking Capacity(N)8000600030002000800
Stroke Length (mm)50mm-1000mm
Motor PowerDC24V 96W | DC 12V 96W
Limit switchesBuilt-in
Operating Frequency10% max 2min. continuous use
Operating Temperature0°C~+40°C
IP GradeIP43
Noise<30dB
Inner TubeAluminum Tube
Lead Screw typeType T
MaterialStainless steel tube and stainless steel tail
Mechanical LifeMore than 300,00 times
Optional Configuration1.Hall Sensor    2.Magnetic Induction Switch   3.Upper and lower limit feedback   4.304 Stainless Steel Pipe

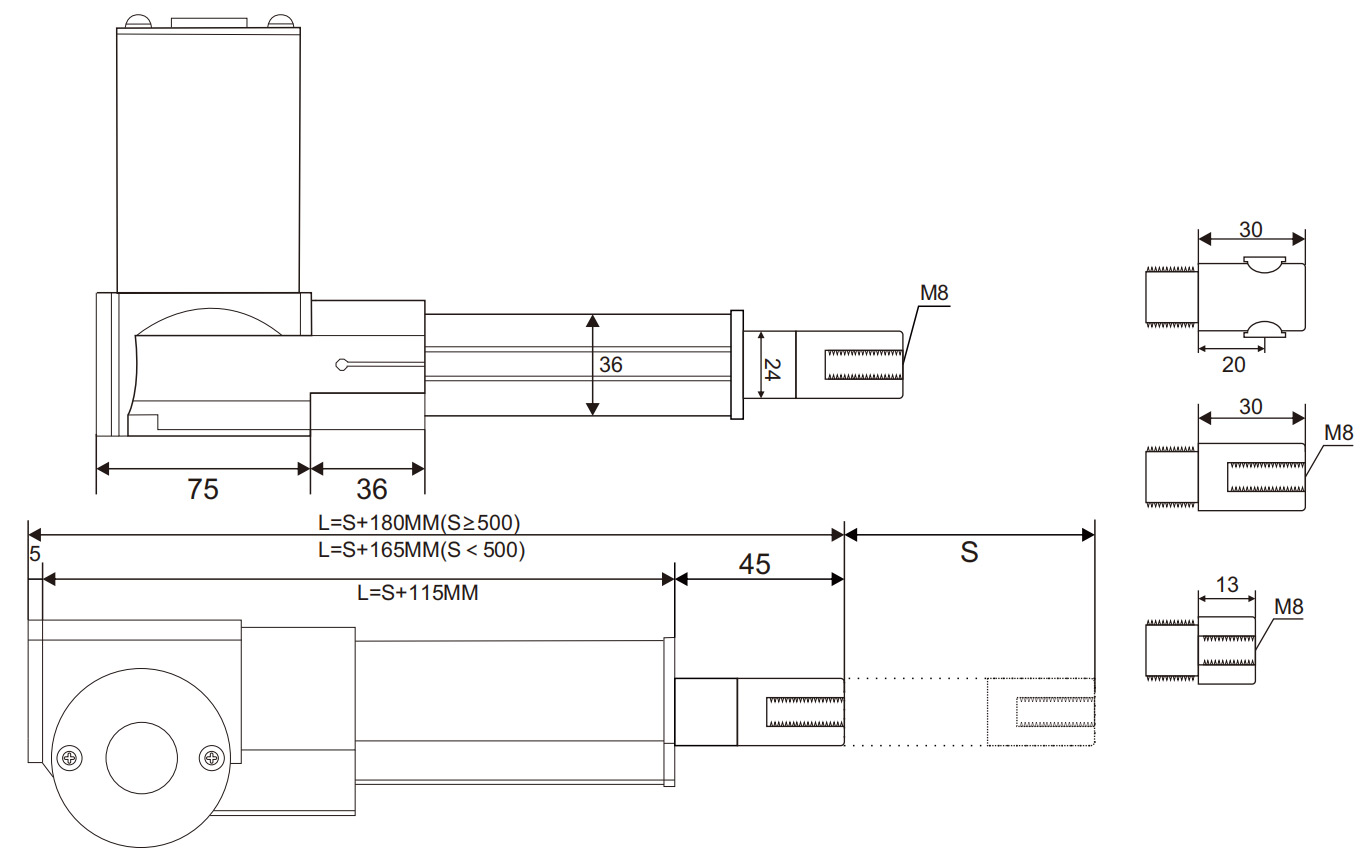

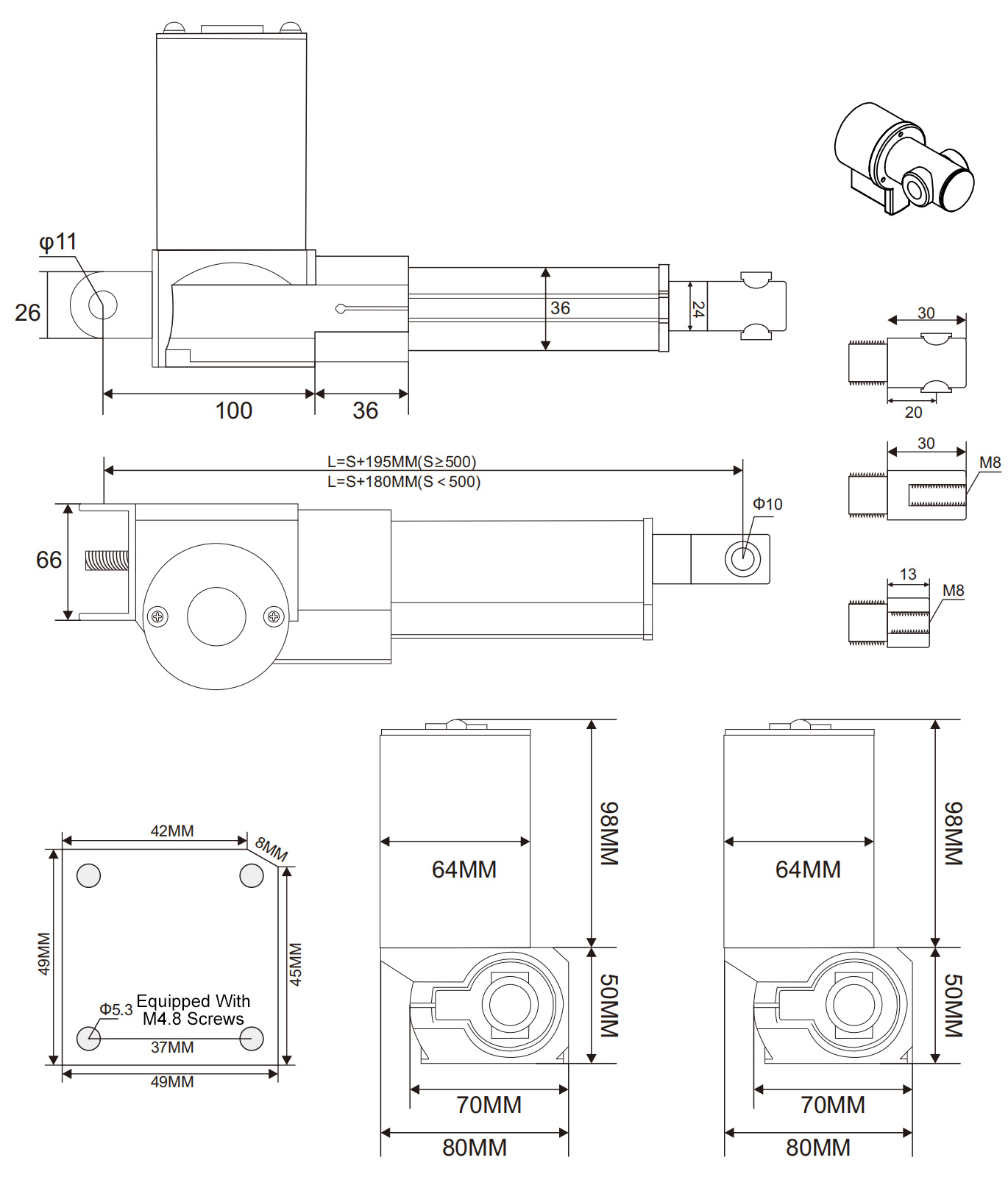

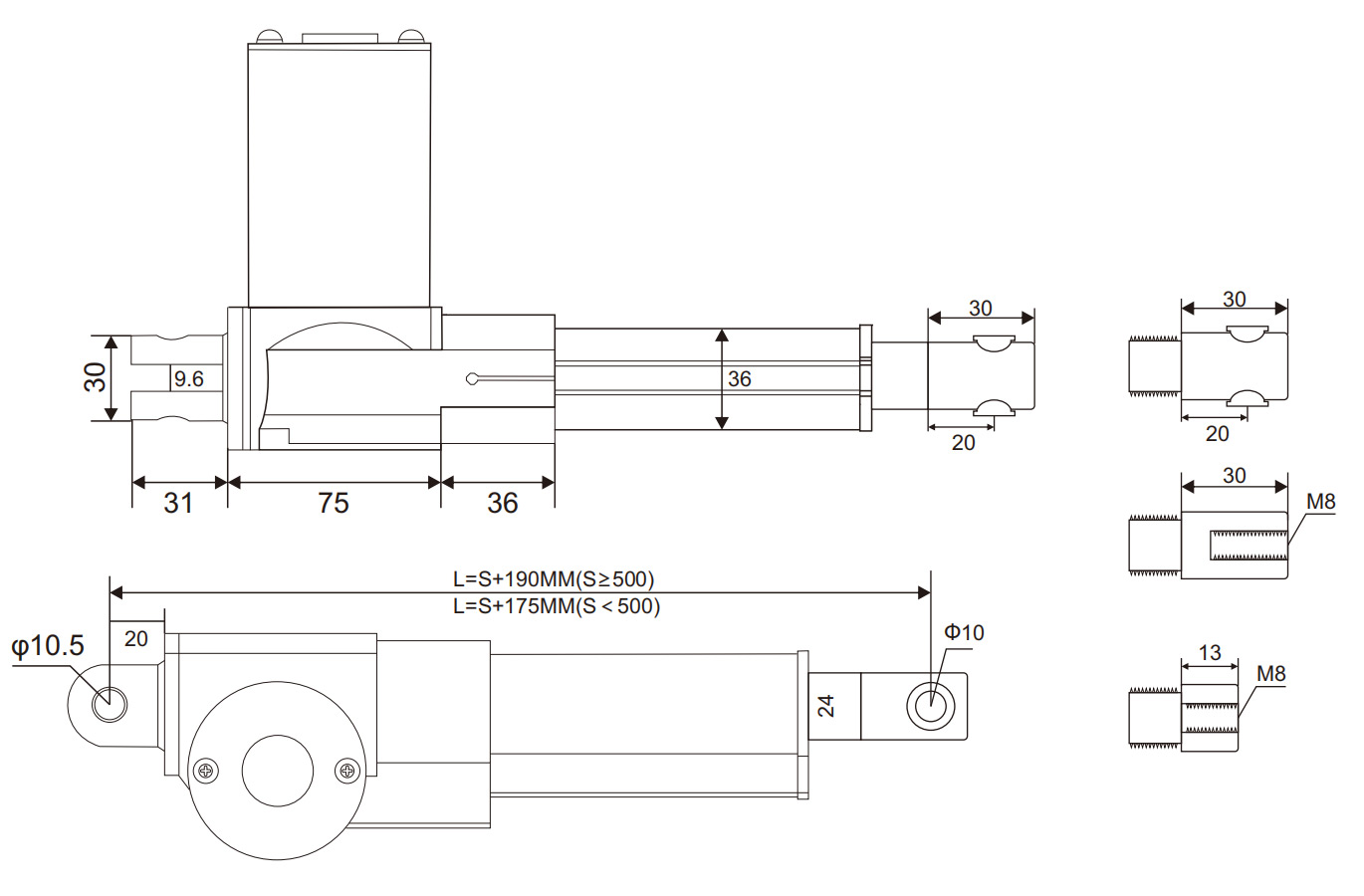

Outline Dimension Drawing

LA8000-A1

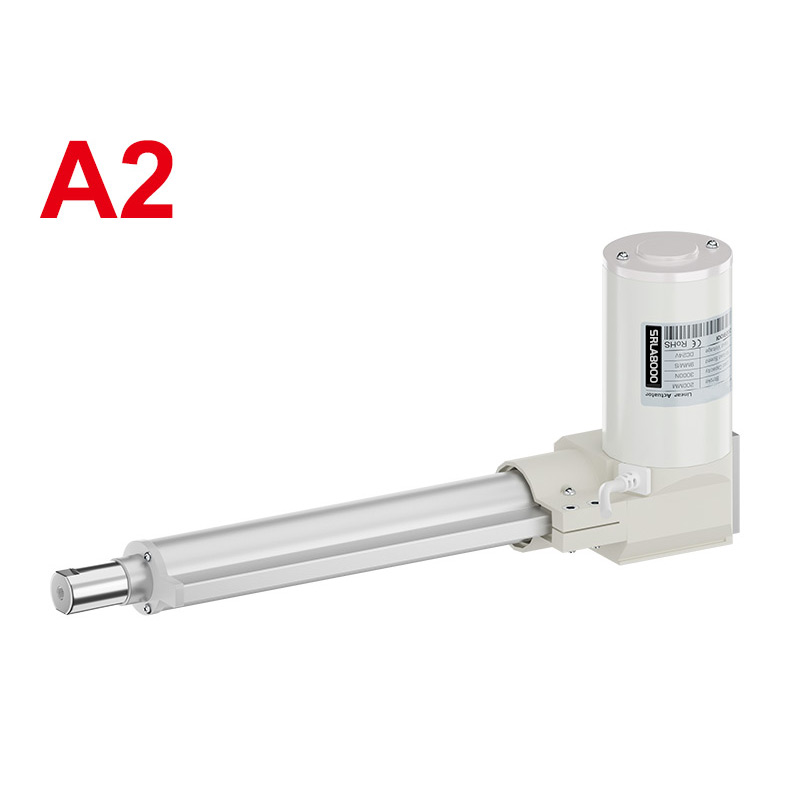

LA8000-A2


LA8000-A3
