LA6000P Electric Linear Actuator

LA6000P Electric Linear Actuator

LA6000P is an electric linear actuator with sliding table. It is equipped with a 60W high-power permanent magnet DC motor with a maximum load of 6000N and a maximum speed of 28MM/S.

Input Volatge: DC12~19V / DC24~32V
Maximum load:6000N/600kg
IP Grade: IP43
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~1000mm

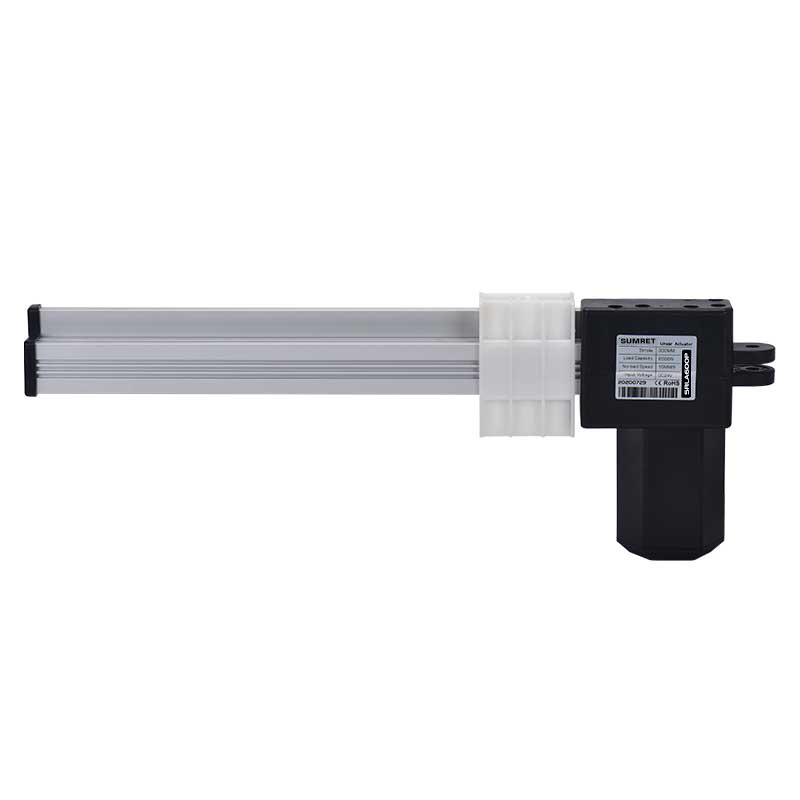

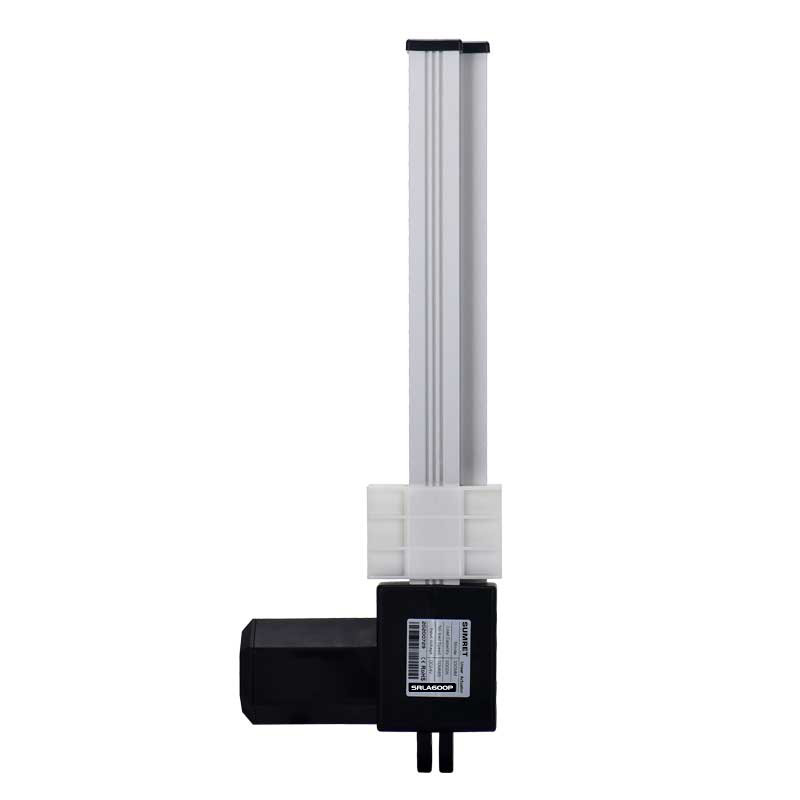

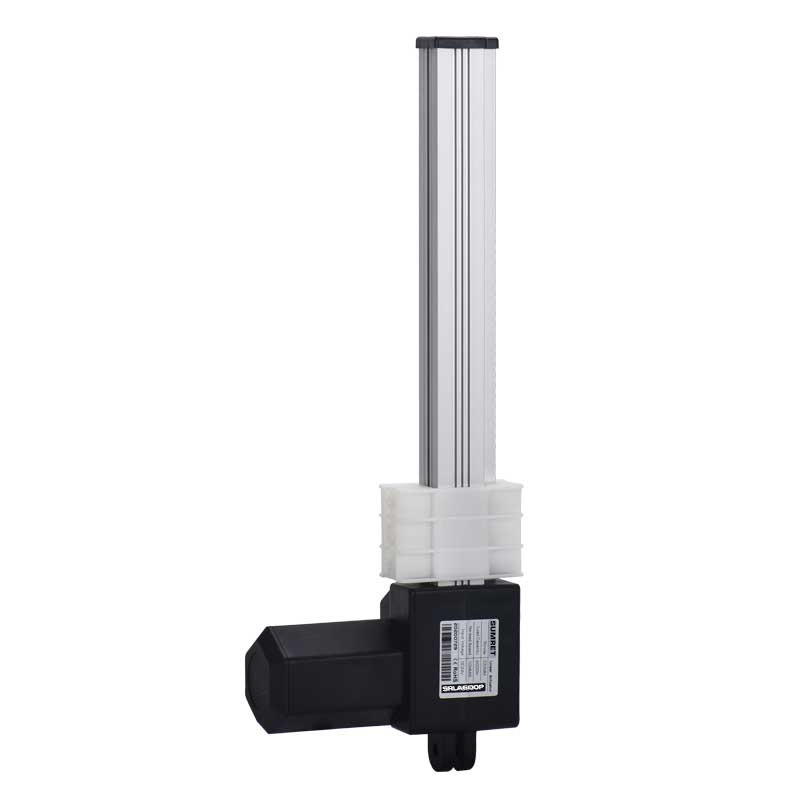

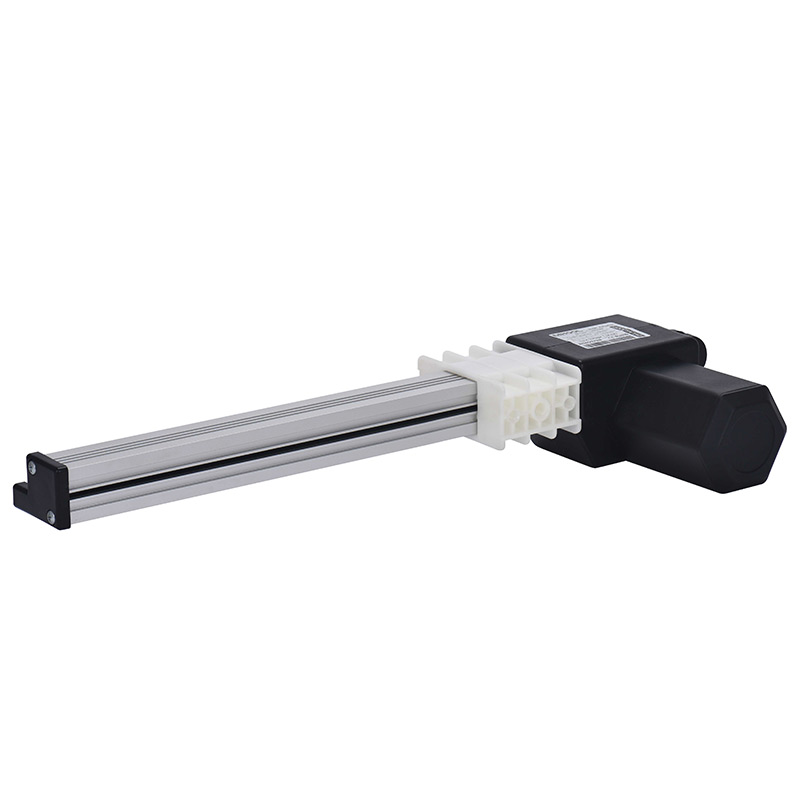

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 12V/24V

Maximum load:6000N/600kg

Maximum Speed:28mm/s

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP43

Operating Frequency:10% max 2min. continuous use

Operating Temperature: -10°C~+55°C

Manual function: not support

Introduction

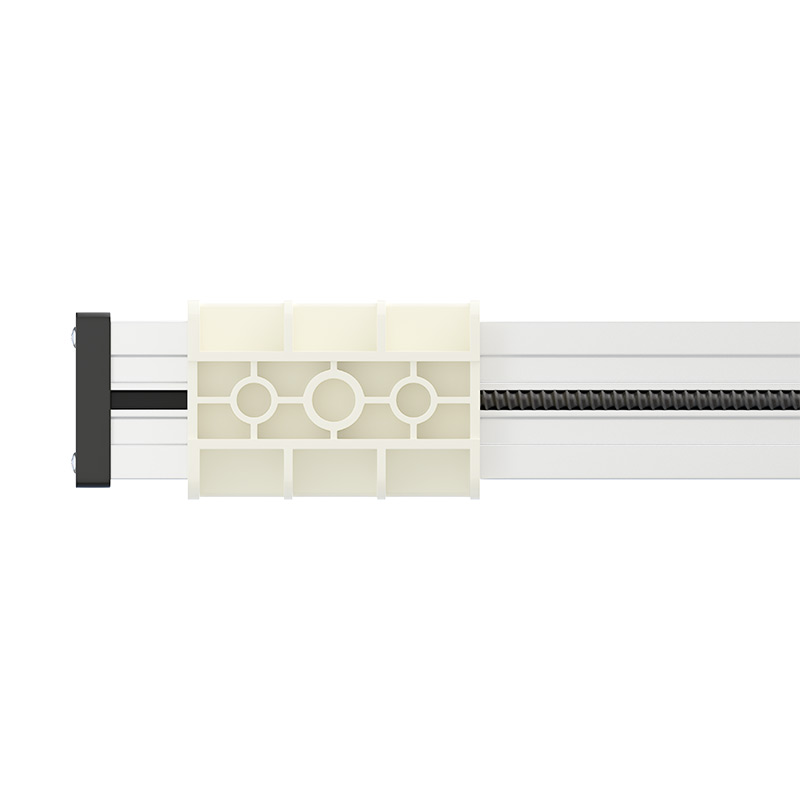

LA6000P is an electric linear actuator with sliding table. It is equipped with a 60W high-power permanent magnet DC motor with a maximum load of 6000N and a maximum speed of 28MM/S. The sliding table has 2 M8 threaded and 1 M10 threaded mounting holes, the front end of the actuator has a mounting bracket, and the tail has M10 lifting lugs. The stroke range is 50-1000MM, which can be customized according to customer needs.
Flat push type electric actuators are widely used in lifting TV stands, functional sofas, massage chairs, moxibustion beds, etc.

Technical Parameters

VoltageDC12~19V / DC24~32V
No-load Speed (MM/S)56912.528
Load Pull Capacity (N)60004000300020001000
Load Push Capacity (N)60004000300020001000
Self-locking Capacity (N)4000400040001000500
Stroke Length30MM-1000MM
Motor Power100W
Operating Temperature-10°C~+55°C
Operating Frequency10% max 2min. continuous use
ColorBlack and off-white
Limit SwitchesBuilt-in
Protection ClassIP43
MaterialAluminum
Noise30dB
Lead Screw TypeTurbine screw
Mechanical LifeMore than 10,000 times

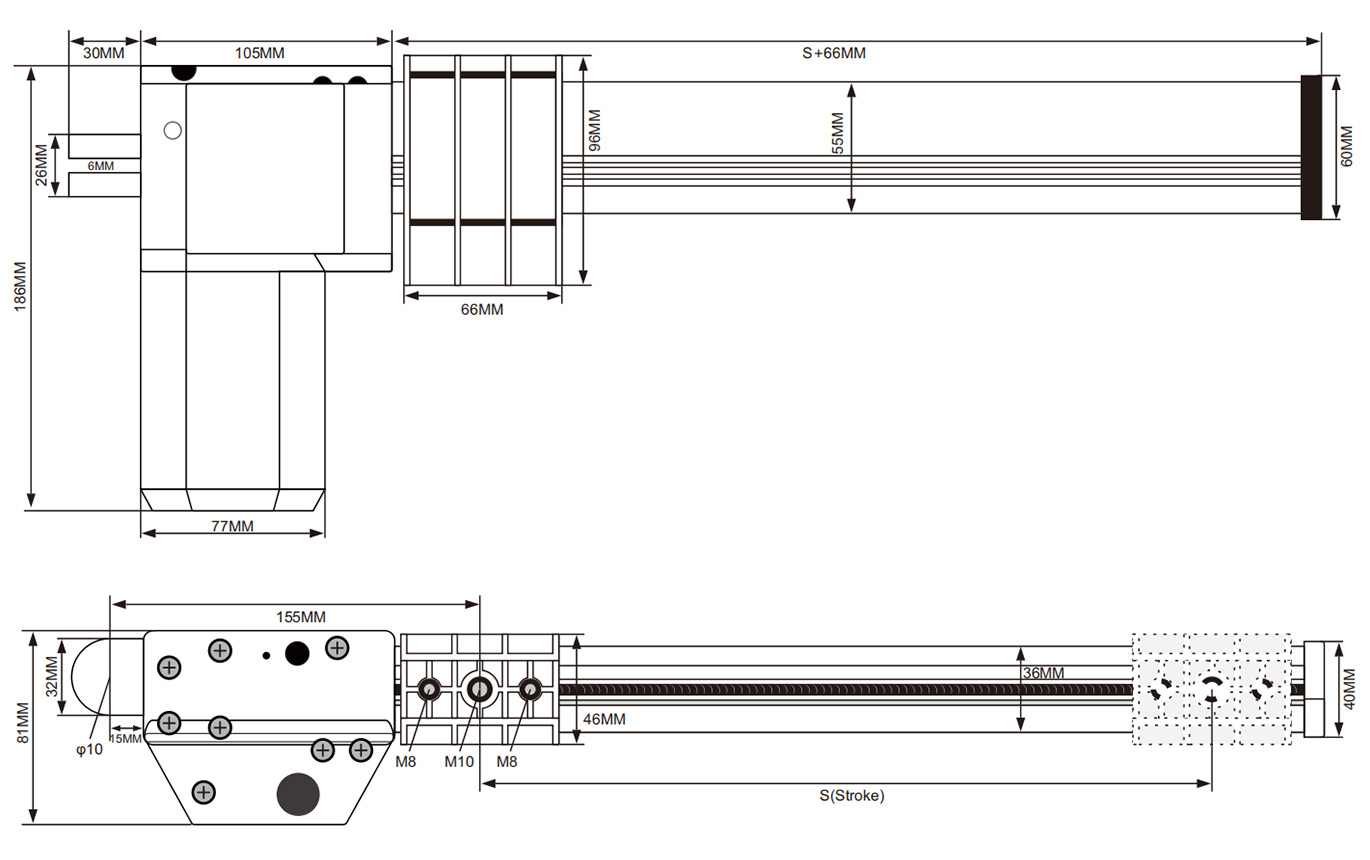

Outline Dimension Drawing
