LA57 Stepper Electric Linear Actuator

LA57 Stepper Electric Linear Actuator

LA57 type electric putter is a highly efficient mechanical system, to produce thrust output high wear resistance of thrust unit parts, guarantee the long time, under the environment of high reliability.

Input Volatge: DC9~32V
Maximum load:1750N/175kg
IP Grade: IP43
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~1000mm

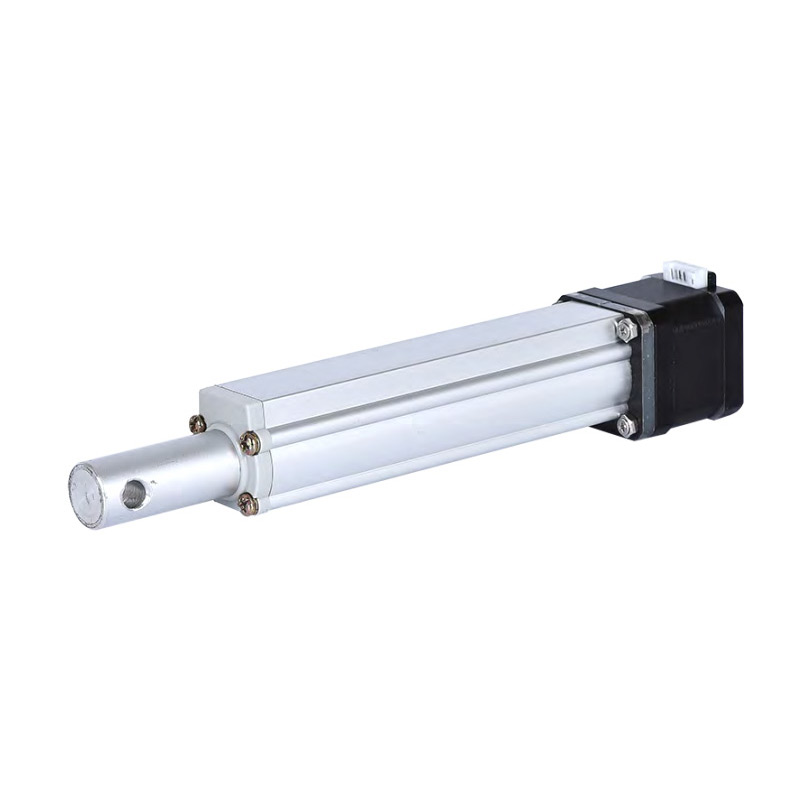

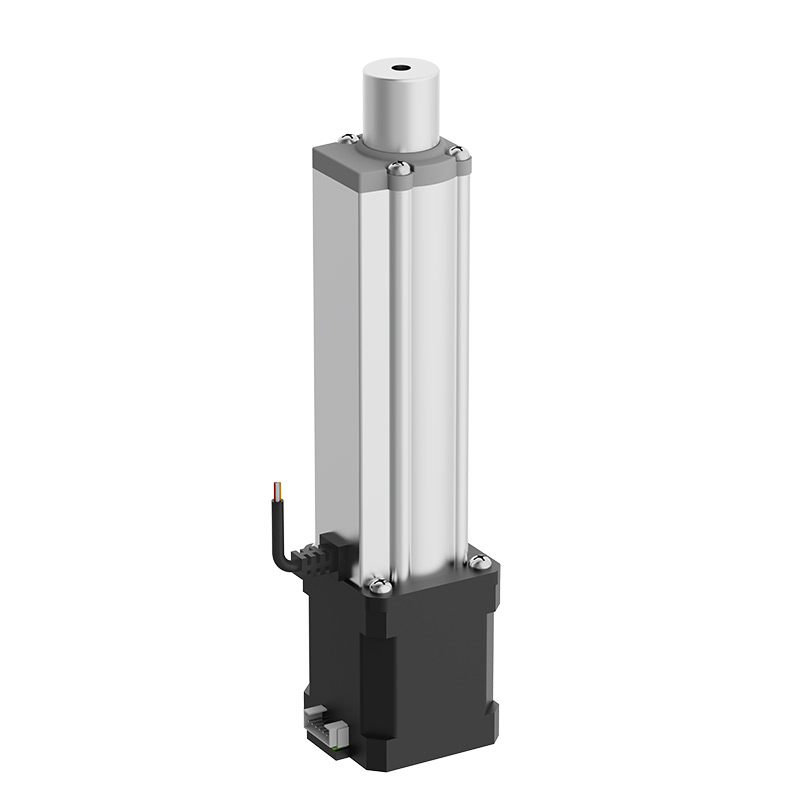

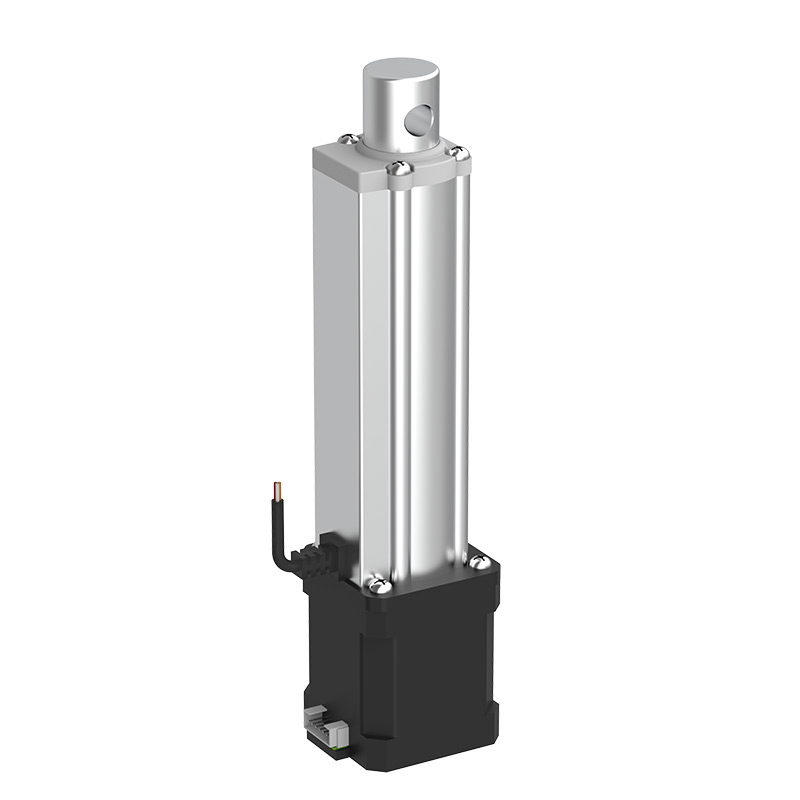

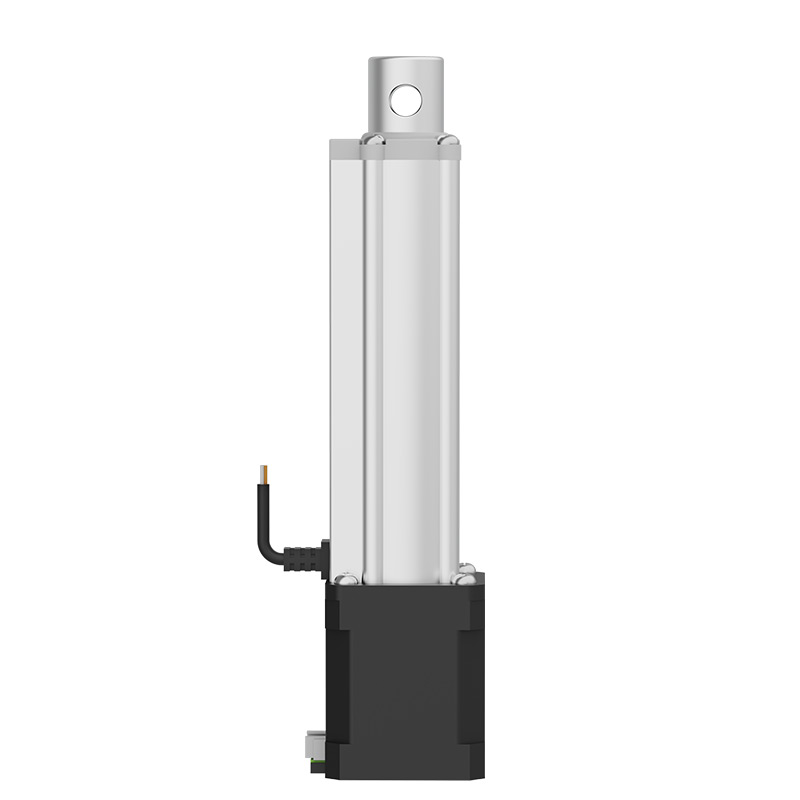

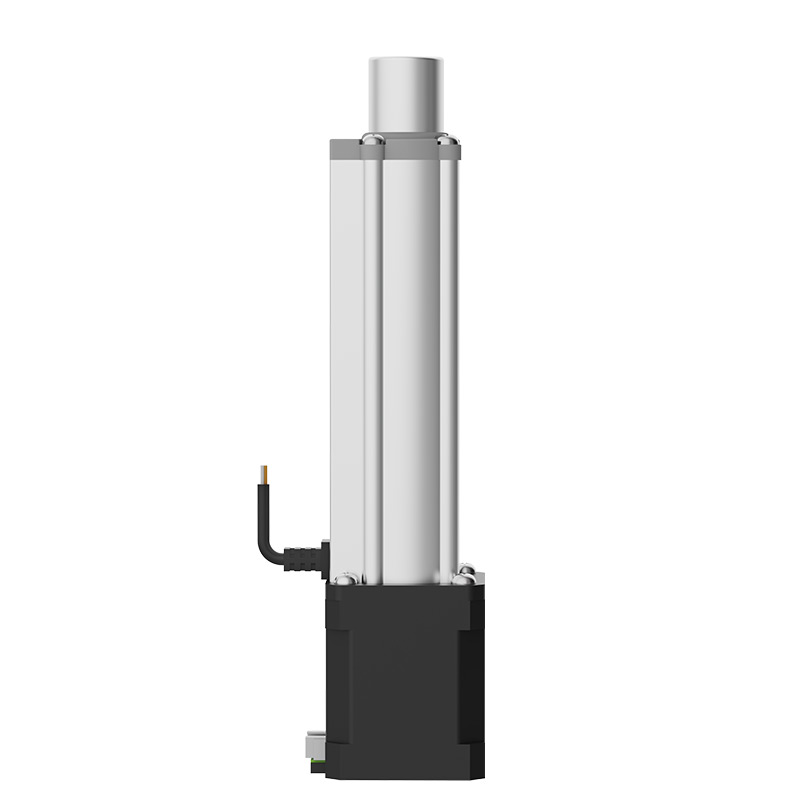

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 9~32V

Maximum load:1750N/175kg

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP43

Operating Frequency:10%,2min.on/18min.off

Operating Temperature: 0°C~+40°C

Manual function: not support

Introduction

LA57 type electric putter is a highly efficient mechanical system, to produce thrust output high wear resistance of thrust unit parts, guarantee the long time, under the environment of high reliability, full of mechanical principle to ensure no any medium leakage (not frozen), conform to the requirements of the safety and environmental protection, resting not consume energy, operation and maintenance cost is low.

Technical Parameters

VoltageDC9-32V
Motor57HB11357HB10057HB8257HB7657HB5457HB41
Motor Torque3.5NM3.1NM2.5NM2.3NM1.3NM0.64NM
Maximum Thrust (N)1750155012501150650320
Stroke Length50mm-1000mm
Limit SwitchesBuilt-in
Operating Frequency)10%max 2min. continuous use
Operating Temperature0°C~+40°C
IP GradeIP43
Inner TubeAluminum tube
Lead Screw TypeType T
MaterialAluminum
Noise30dB
Mechanical LifeMore than 30,000 times

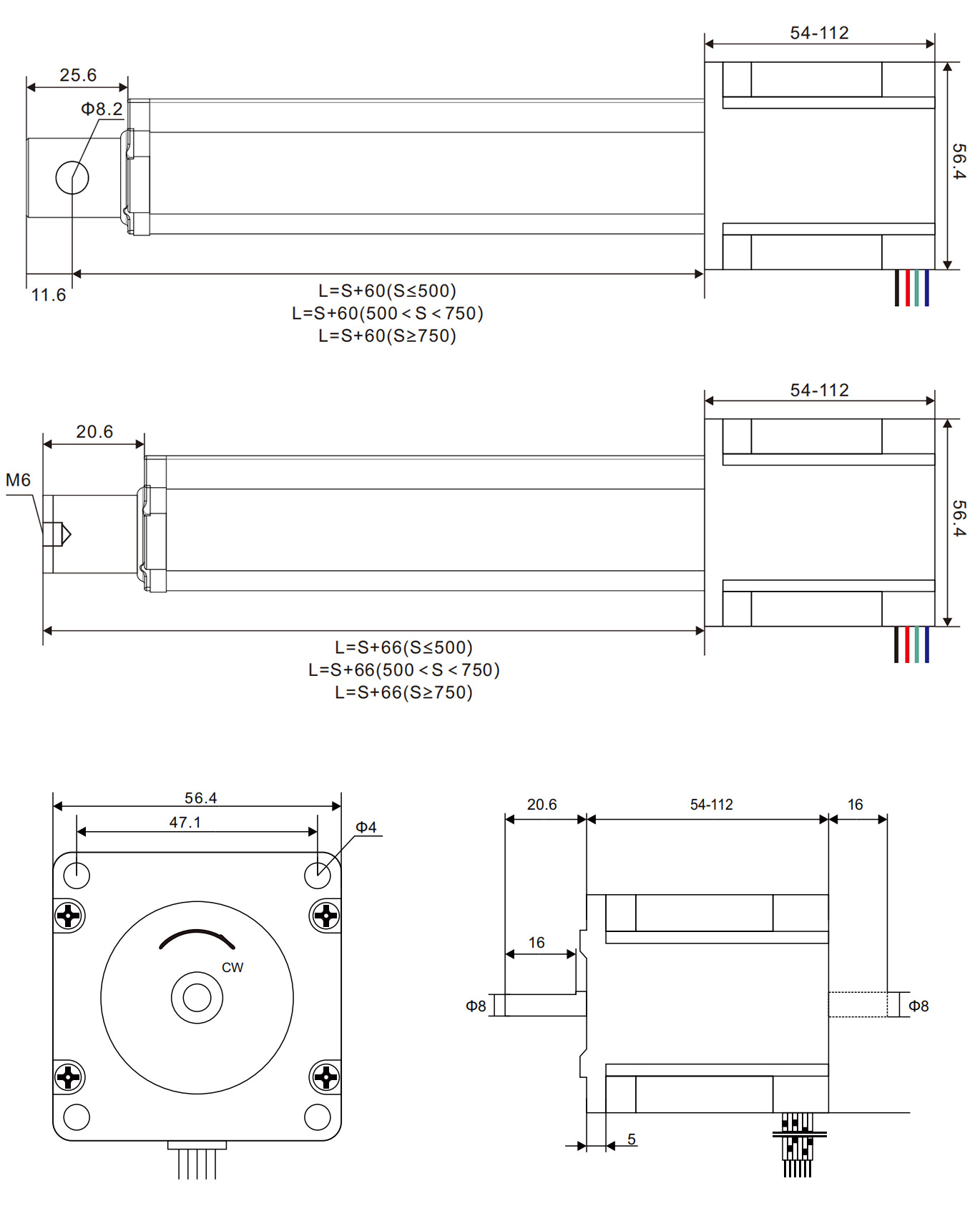

Outline Dimension Drawing
