LA45 Electric Linear Actuator

LA45 series straight rod electric linear actuators has four pipe diameters such as 20MM/30MM/33MM/45MM, and the waterproof grade can reach IP65.

Input Volatge: DC12~19V / DC24~32V
Maximum load：150N/15kg
IP Grade: IP65
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 5~800mm

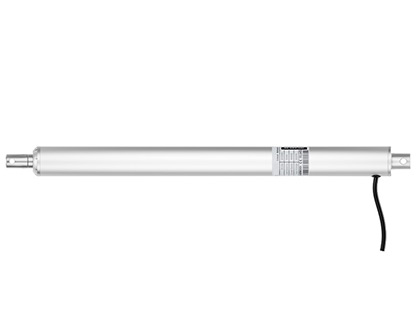

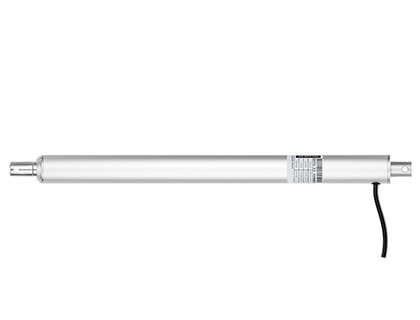

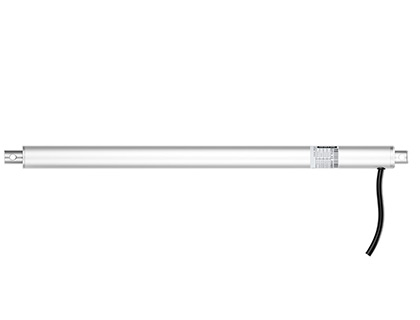

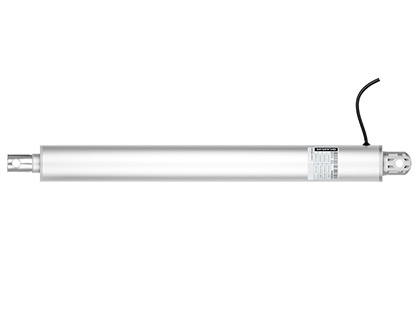

Product Images

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

Product Specifications
Product Details
Size Weight
Related Data
Product Video

Product features

Lead Screw Type：Trapezoidal thread

Input voltage：DC 12V/24V

Maximum load：150N/15kg

Maximum Speed：15mm/s

Maximum Stroke：400mm

Limit Switches：Built-in

Protection Level：IP65

Operating Frequency：10%，2min.on/18min.off

Operating Temperature： 0°C~+60°C

Manual function: not support

Introduction

Different pipe diameters has different load capacities which use different motors. 20MM The maximum load of pipe diameter is 150N, the maximum load of 30MM pipe diameter is 300N, the maximum load of 33MM pipe diameter is 500N, and the maximum load of 45MM pipe diameter is 3500N. This straight rod electric actuator can support 12V 24V voltage and can be customized in various specifications and stroke.

Technical Parameters

Operating Temperature	-10°C~+60°C	Operating Frequency	10% max 2min.continuous use
Limit Switches	Built-in	Inner Tube	Aluminum Tube
IP Grade	IP65	Lead Screw Type	Type T
Material	Aluminum	Noise	＜35dB
Mechanical Life	More than 50,000 times

LA45-20
Voltage	DC24~32V			DC12~19V
Load Push Capacity(N)	150	100	40	150	100	40
No-load Speed (MM/S)	4	10	15	4	10	15
Load Speed (MM/S)	3	6	10	3	6	10
No-load Current (A)	0.06	0.05	0.05	0.12	0.1	0.1
Load Current (A)	0.25	0.18	0.2	0.5	0.36	0.4
Stroke Length (mm)	5mm-400mm

LA45-30
Voltage	DC24~32V				DC12~19V
Load Push Capacity(N)	300	200	120	70	200	120	70
No-load Speed (MM/S)	4	6	12	20	6	12	20
Load Speed (MM/S)	3	4	8	15	4	8	15
No-load Current (A)	0.12	0.1	0.1	0.1	0.2	0.2	0.2
Load Current (A)	0.4	0.35	0.4	0.35	0.5	0.5	0.5
Stroke Length (mm)	10mm-600mm

LA45-33
Voltage	DC24~32V				DC12~19V
Load Push Capacity(N)	500	400	300	200	500	400	300	200
No-load Speed (MM/S)	4	8	12	25	4	8	12	25
Load Speed (MM/S)	3	6	9	20	3	6	9	20
No-load Current (A)	0.15	0.15	0.17	0.2	0.25	0.3	0.35	0.4
Load Current (A)	0.4	0.5	0.6	0.7	0.6	0.55	0.65	0.7
Stroke Length (mm)	30mm-600mm

LA45-45
Voltage	DC24~32V				DC12~19V
Load Push Capacity(N)	3500	2000	1500	1000	3000	1500	1200	800
No-load Speed (MM/S)	3	5	7.5	10	2	4	5	8
Load Speed (MM/S)	1.7	3.5	4.5	6	1.5	3.5	4.5	6
No-load Current (A)	0.2	0.4	0.35	0.35	0.4	0.66	0.6	0.6
Load Current (A)	2.5	2.3	2	2	4	3.5	3	3
Stroke Length (mm)	50mm-800mm

Outline Dimension Drawing

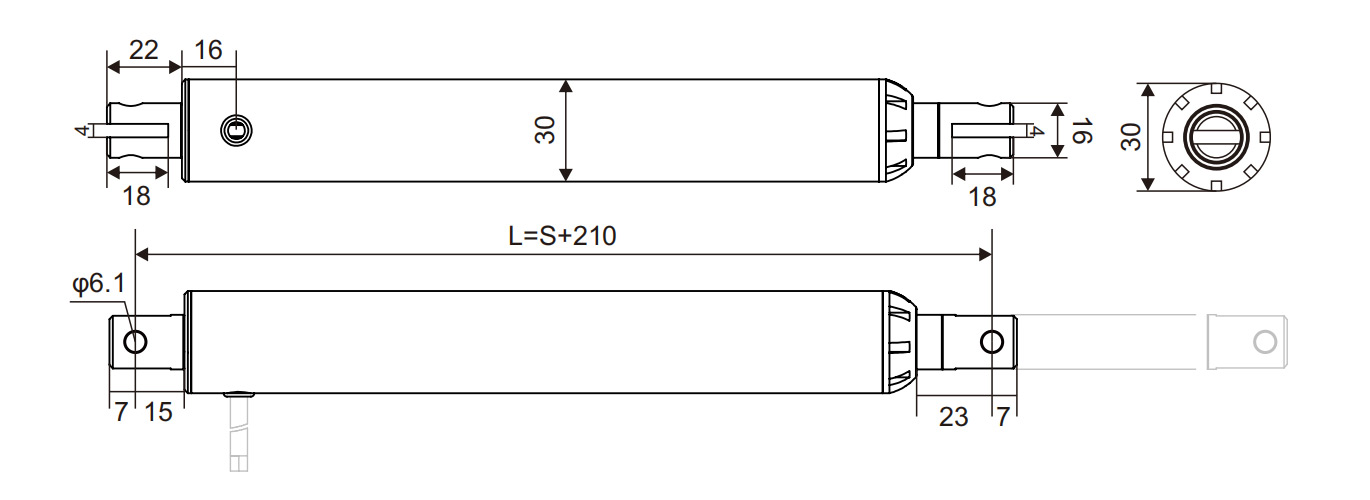

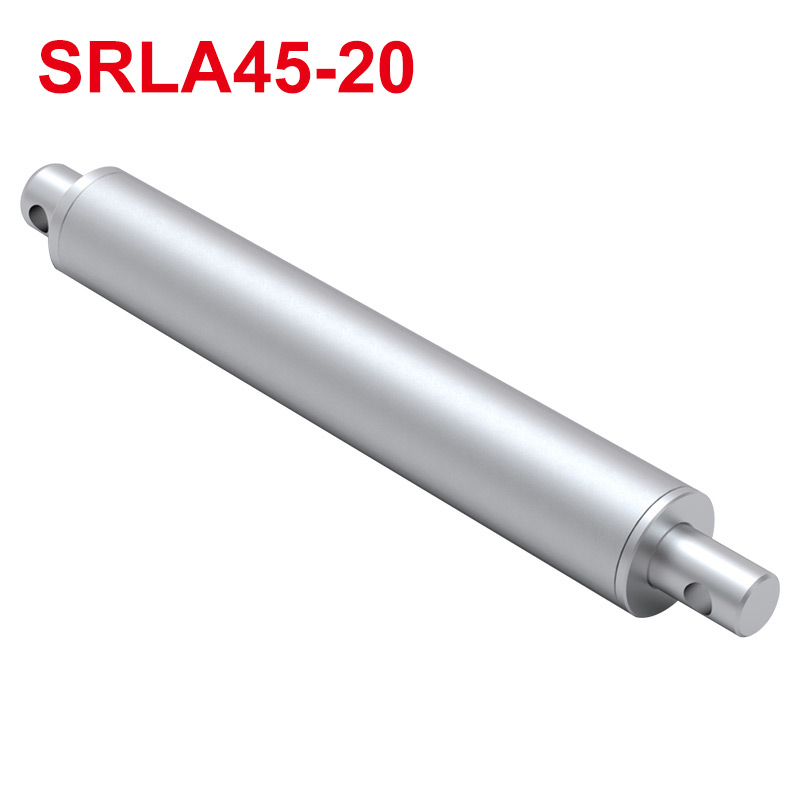

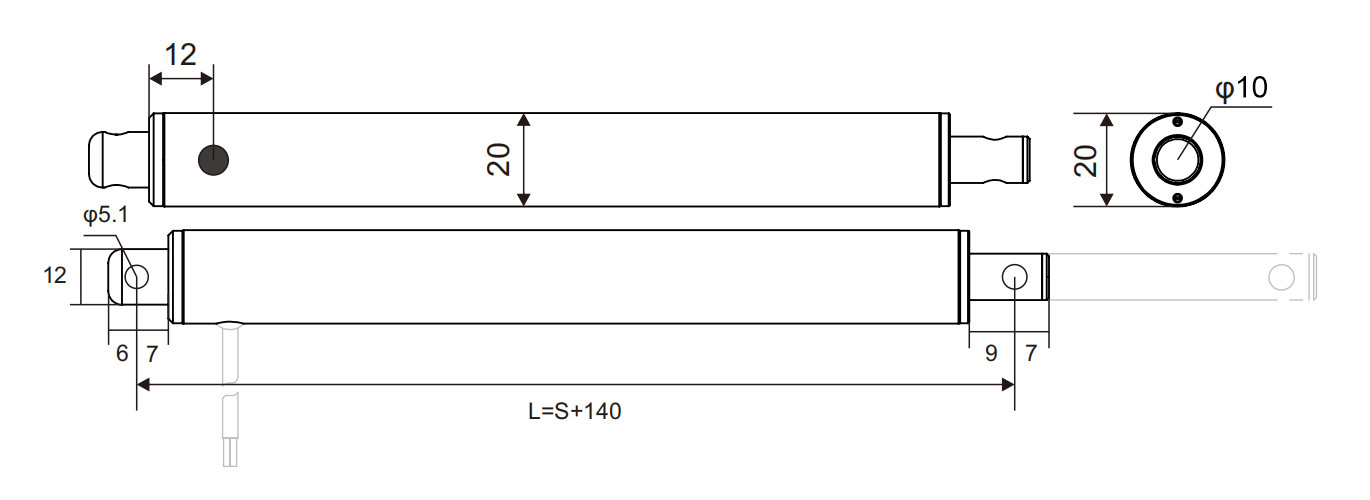

SRLA45-20

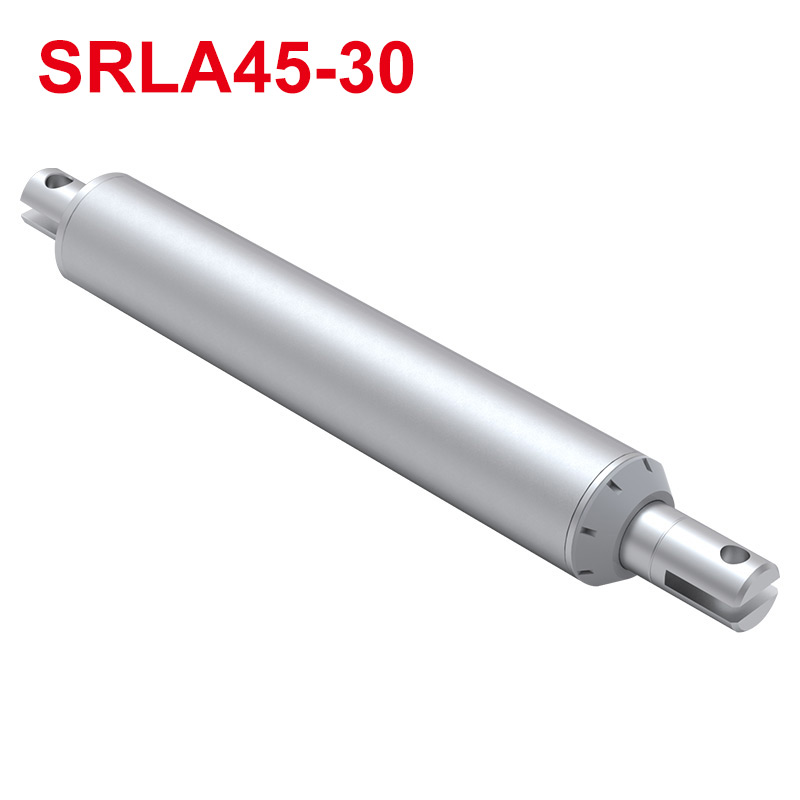

SRLA45-30

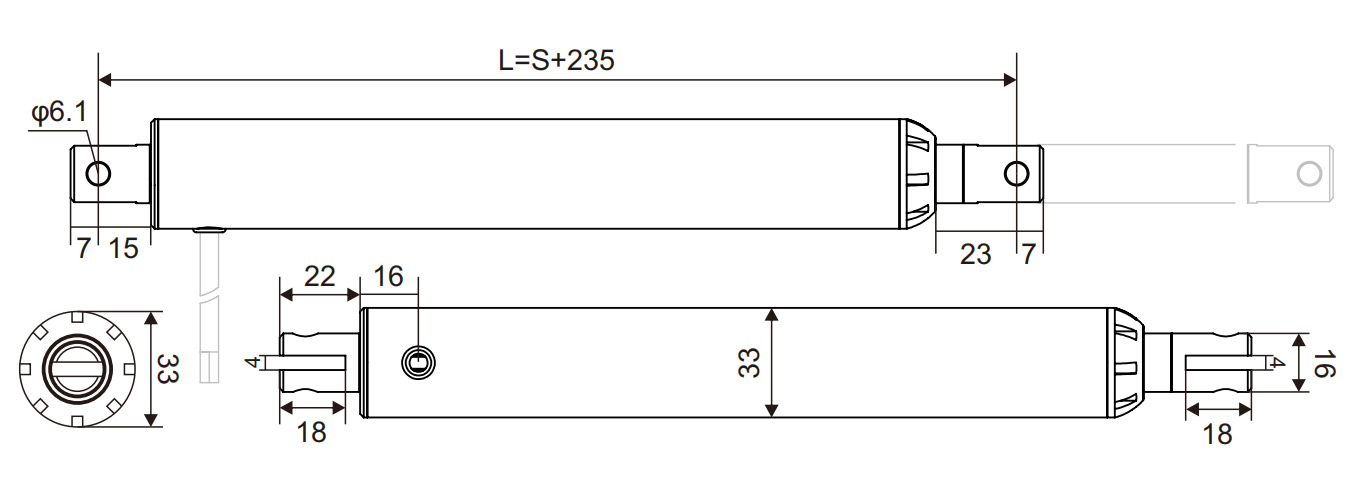

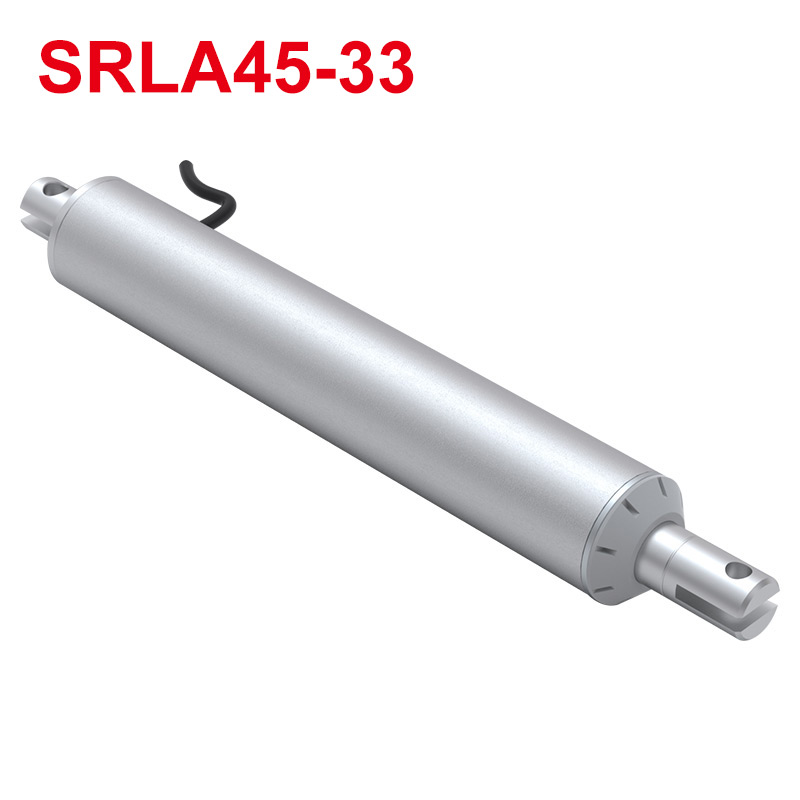

SRLA45-33

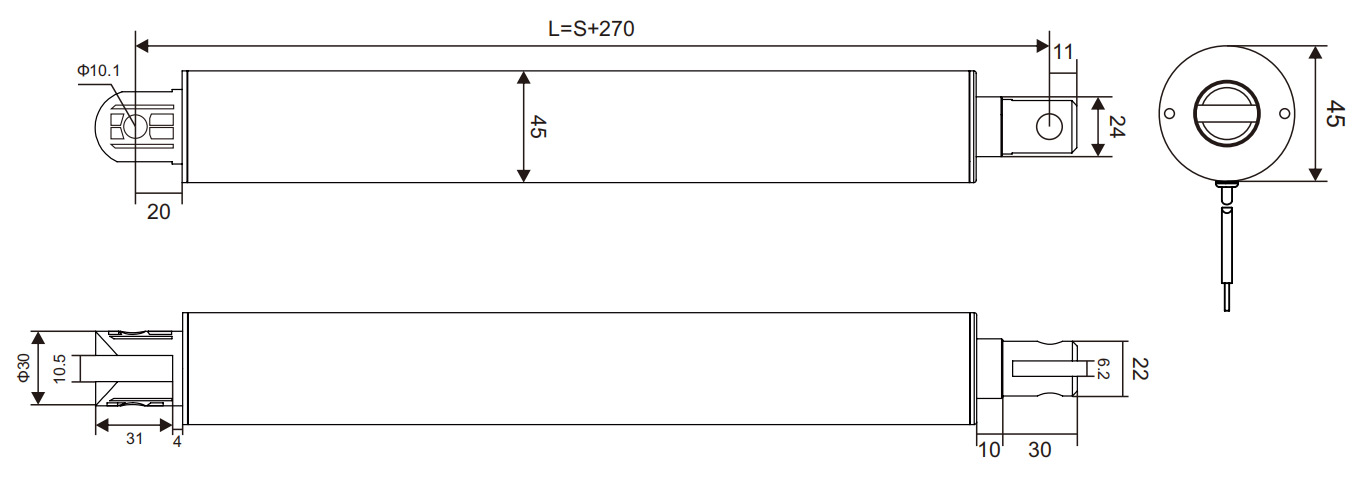

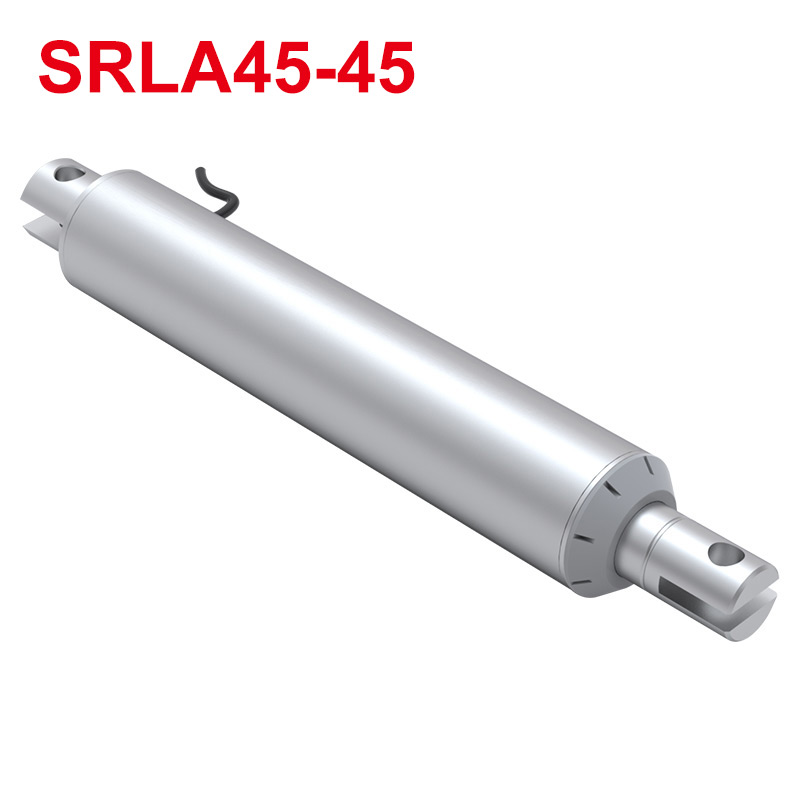

SRLA45-45
