LA42 Stepper Electric Linear Actuator

LA42 Stepper Electric Linear Actuator

LA42 is an electric linear actuator driven by 42 stepper motor, maximum load 400N and maximum speed 80MM/s.

Input Volatge: DC9~32V
Maximum load:400N/40kg
IP Grade: IP43
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~800mm

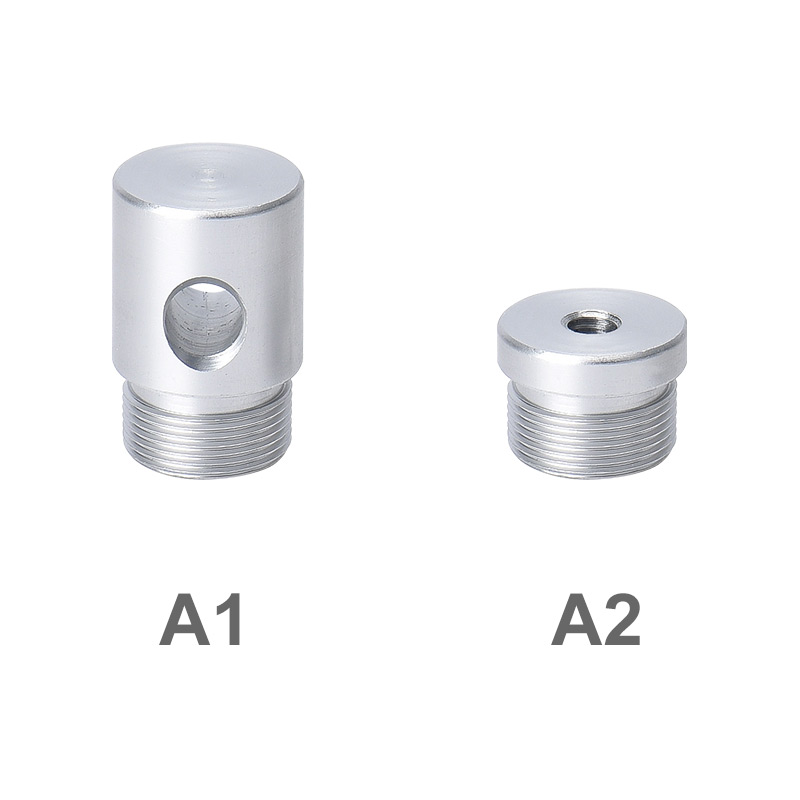

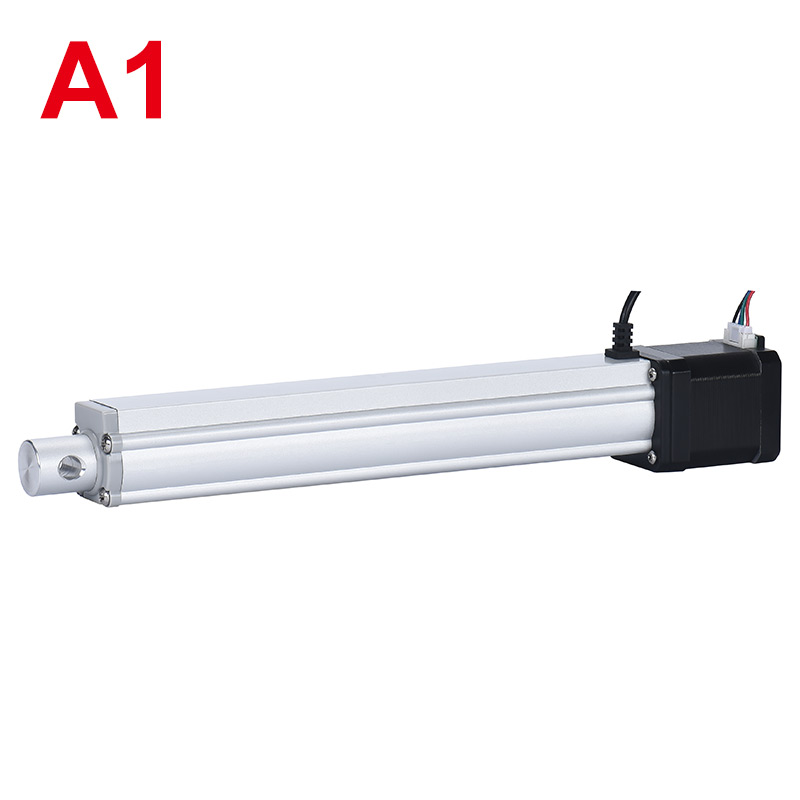

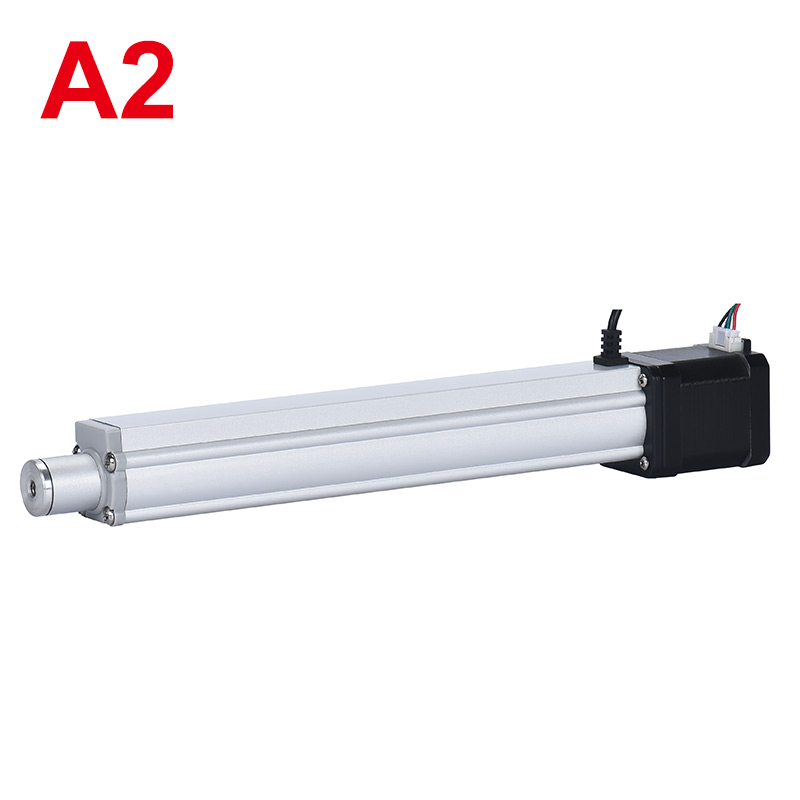

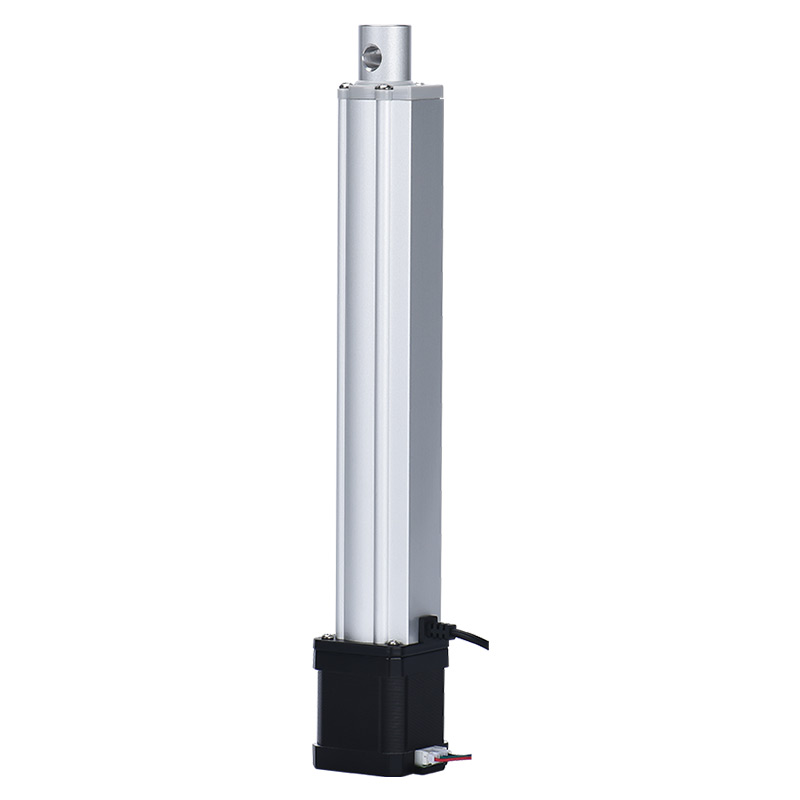

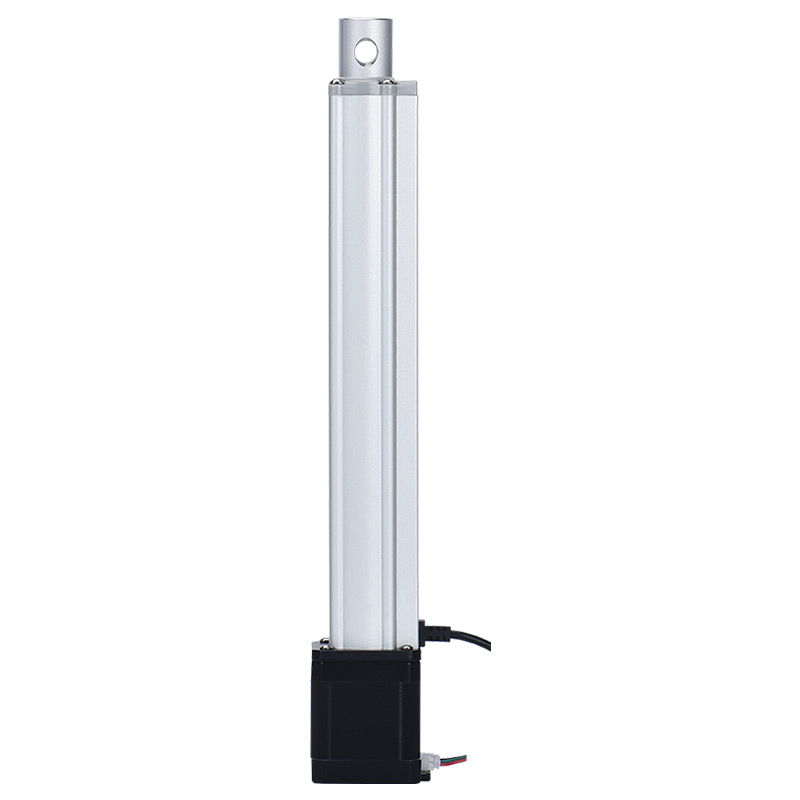

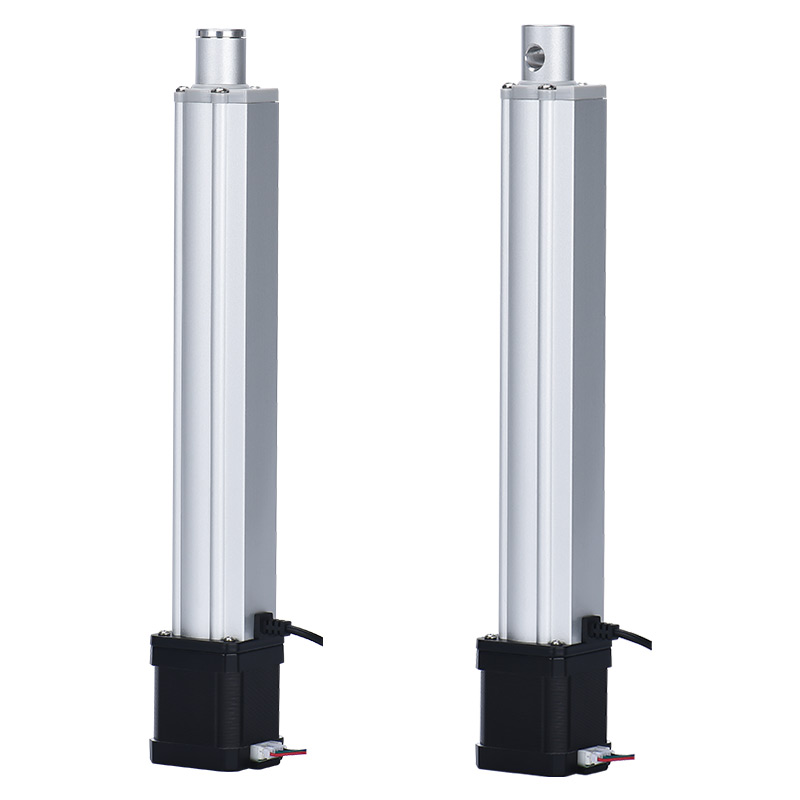

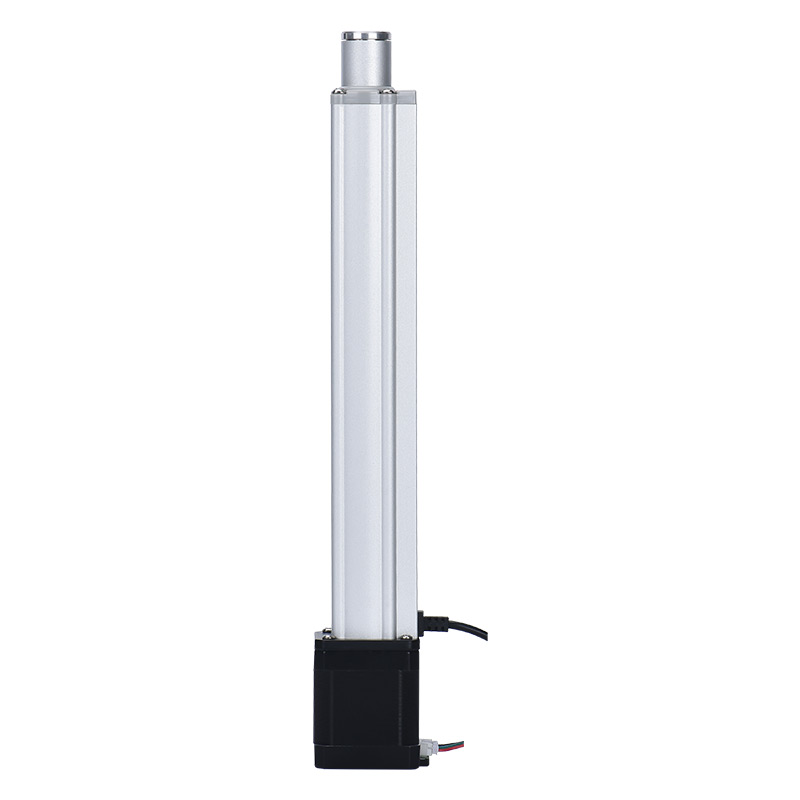

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 9~32V

Maximum load:400N/40kg

Maximum Speed:80mm/s

Maximum Stroke:800mm

Limit Switches:Without (Optional)

Protection Level:IP43

Operating Frequency:10%,2min.on/18min.off

Operating Temperature: 0°C~+40°C

Manual function: not support

Introduction

LA42 is an electric linear actuator driven by 42 stepper motor, maximum load 400N and maximum speed 80MM/s. The motor end is controlled by a 4-pin lead wire (A+ A- B+ B-), and the screw part is out of the wire. For the three leads (Yellow: Public Port | Red: Lower Limit Switch | White: Upper Limit Switch) to play the role of limit feedback, the stepper motor actuator needs to be matched with the driver and the controller for lifting, and the drive current needs to be greater than 2A.
Stepper motor linear actuator are mainly used in 3D printers, inkjet printing, 3D three-dimensional models and other environments that require constant speed adjustment.

Technical Parameters

VoltageDC9-32V
Motor42HB6042HB4842HB4042HB34
Motor Torque0.89NM0.6NM0.46NM0.31NM
Maximum Thrust (N)400300200150
Max Speed (MM/S)80604030
Inner TubeAluminum Tube
Operating Temperature0°C~+40°C
Stroke Length50mm-800mm
Limit SwitchesWithout (Optional)
Lead Screw TypeT Type Five Head Screw Rod
IP GradeIP43
MaterialAluminum
Noise30dB
Mechanical LifeMore than 30,000 times

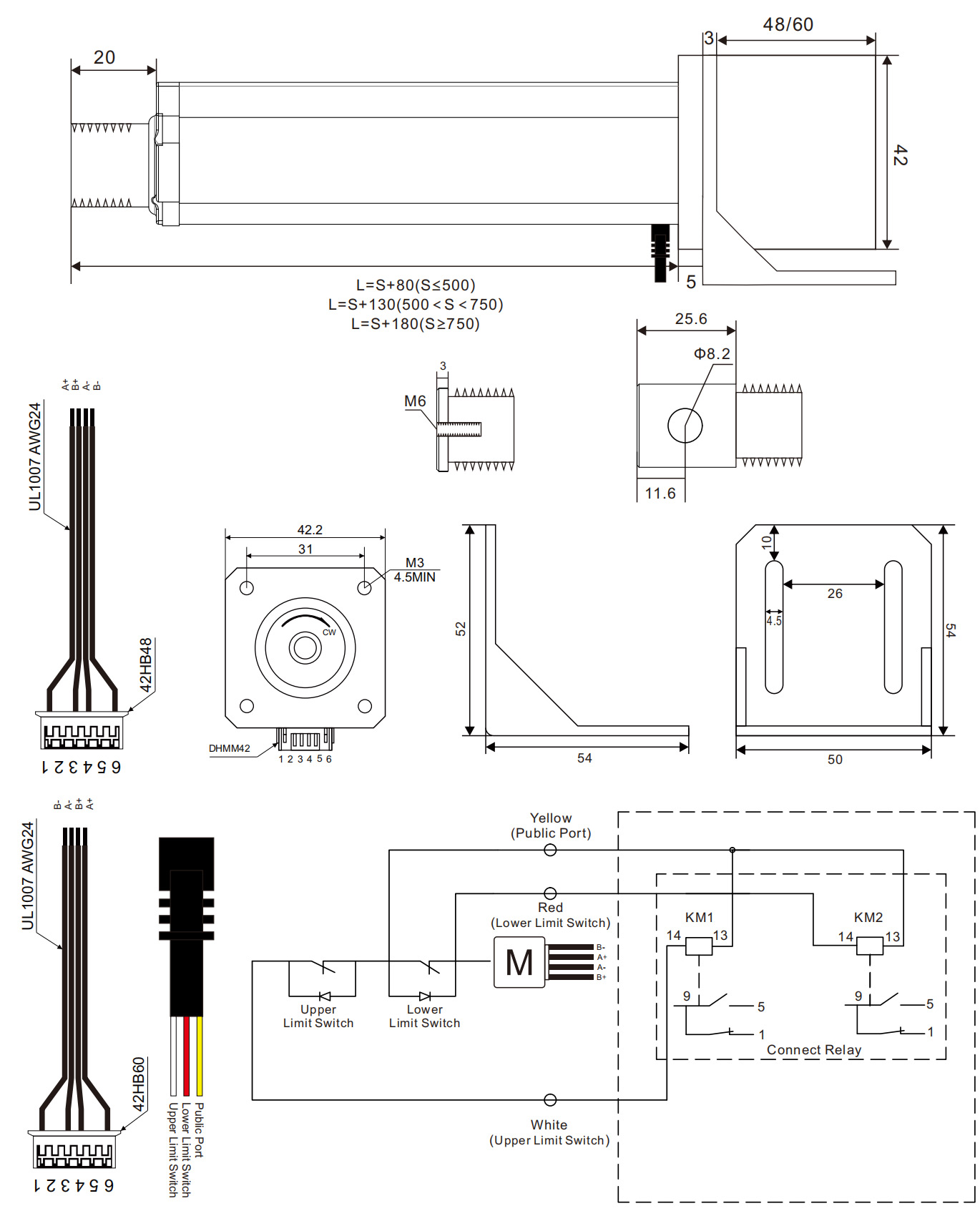

Outline Dimension Drawing
