LA4000 Electric Linear Actuator

LA4000 Electric Linear Actuator

LA4000 electric push rod is a product used in industrial and agricultural machinery. It can be installed in the automatic control system of Windows such as construction vehicles, cleaning vehicles, ships and cargo holds.

Input Volatge: DC12~19V / DC24~32V
Maximum load:4000N/400kg
IP Grade: IP43
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~1000mm

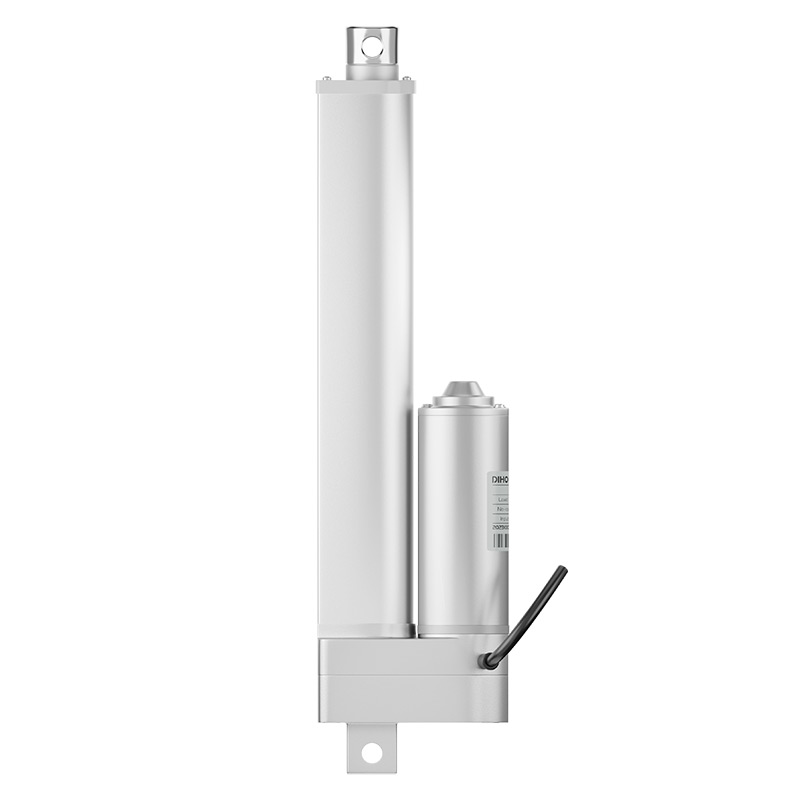

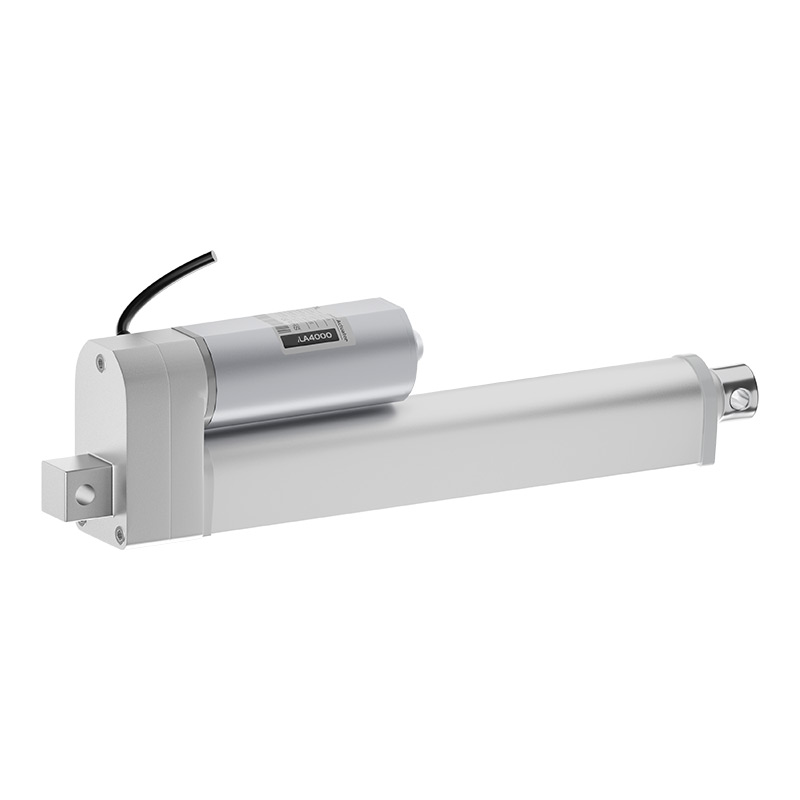

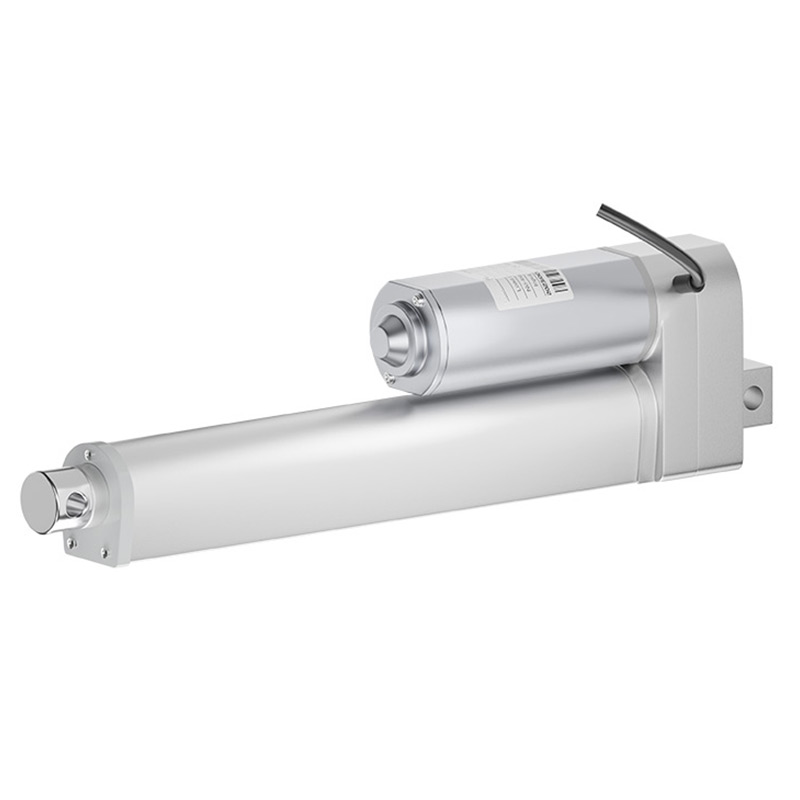

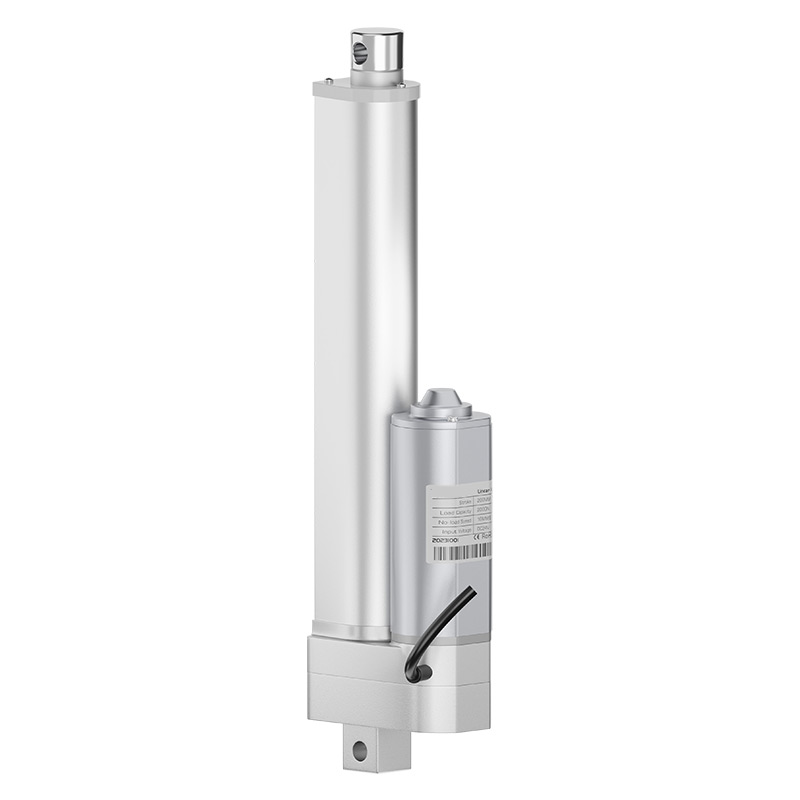

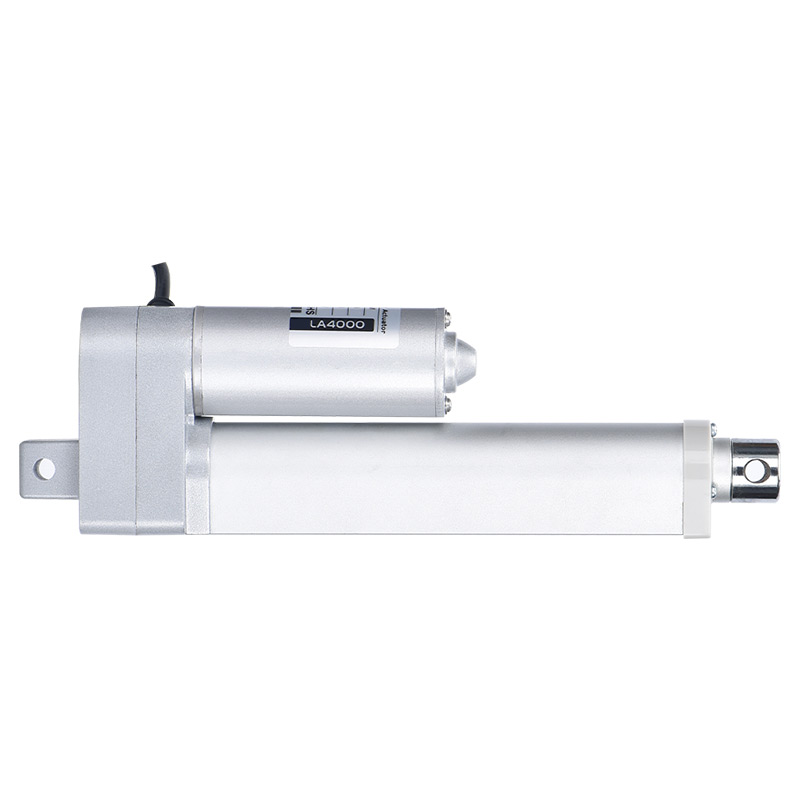

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Features

Lead Screw Type:Trapezoidal thread
Input voltage:DC 12V/24V
Maximum load:4000N/400kg
Maximum Speed:20mm/s
Maximum Stroke:1000mm
Limit Switches:Built-in
Protection Level:IP43
Operating Frequency:10% max 60min. continuous use
Operating Temperature:0°C~+40°C
Manual function: not support

Introduction

LA4000 electric push rod is a product used in industrial and agricultural machinery. It can be installed in the automatic control system of Windows such as construction vehicles, cleaning vehicles, ships and cargo holds. Small capacity, compact design, high protection level, its installation is not restricted by terrain or distance, not only energy saving and easy to automatic operation.

Technical Parameters

VoltageDC24~32V / DC12~19V
No-load Speed (MM/S)5101520
Load Pull Capacity (N)400020001300800
Load Push Capacity (N)400020001300800
Self-locking Capacity (N)400020001300800
Stroke Length50-1000MM (>800MM Stroke Max Load 2000N)
Noise30dB
Motor PowerDC24V 72W | DC12V 72W
Limit SwitchesBuilt-in
Operating Frequency10% max 60min. continuous use
Operating Temperature0°C~+40°C
IP GradeIP43
Inner TubeAluminum Tube
Lead Screw TypeType T
Mechanical LifeMore than 50,000 times
Optional Configuration1.Hall Sensor        2.Magnetic Induction Switch       3.Upper and lower limit feedback

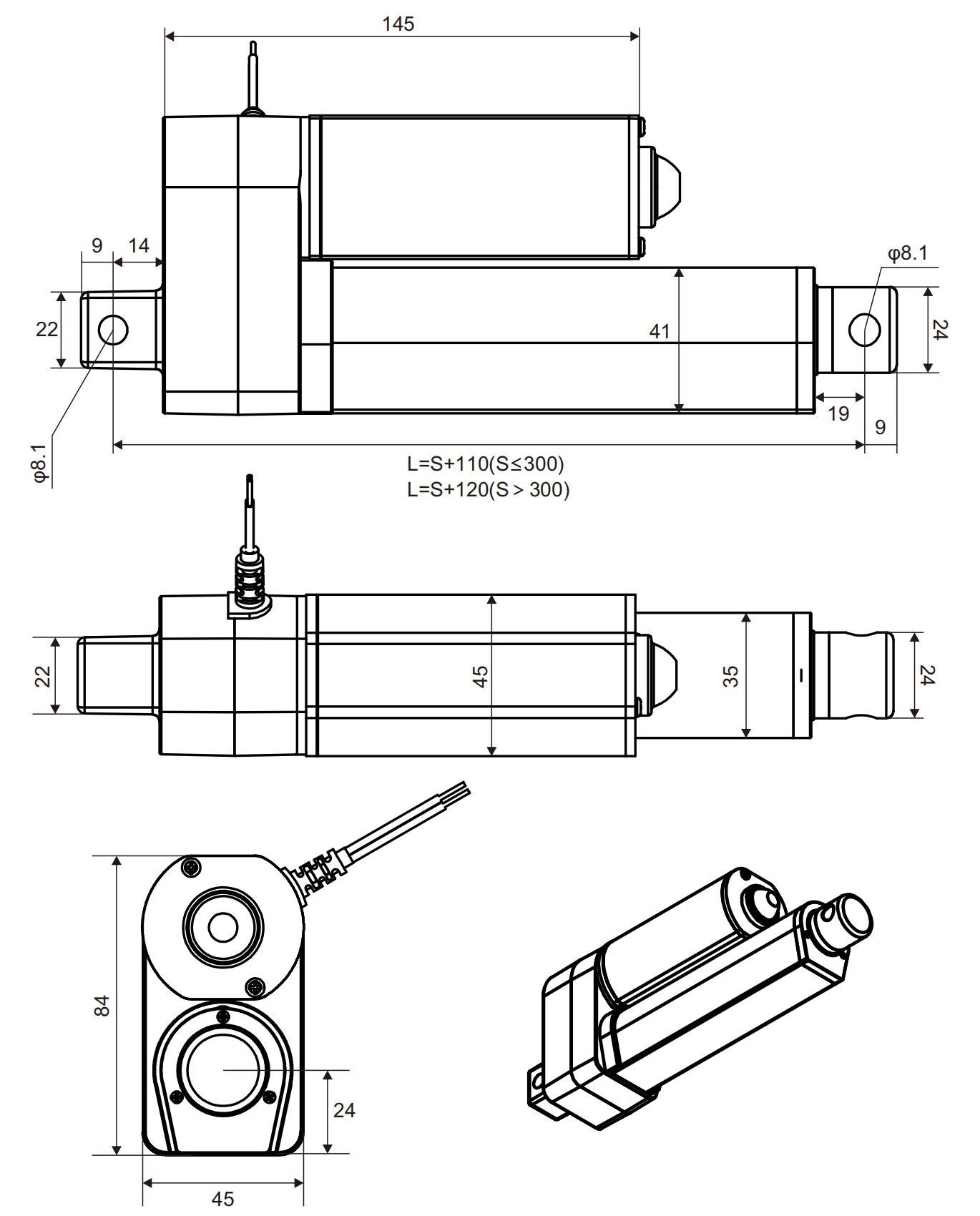

Outline Dimension Drawing
