LA35 Electric Linear Actuator

LA35 Electric Linear Actuator

LA35 is a pen type electric linear actuator with a compact design. The diameter of the actuator is 35MM, the maximum load capacity is 2500N, the maximum speed is 22MM/S.

Input Volatge: DC12~19V / DC24~32V
Maximum load:2500N/250kg
Operating Temperature:0℃~+40℃
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~1000mm

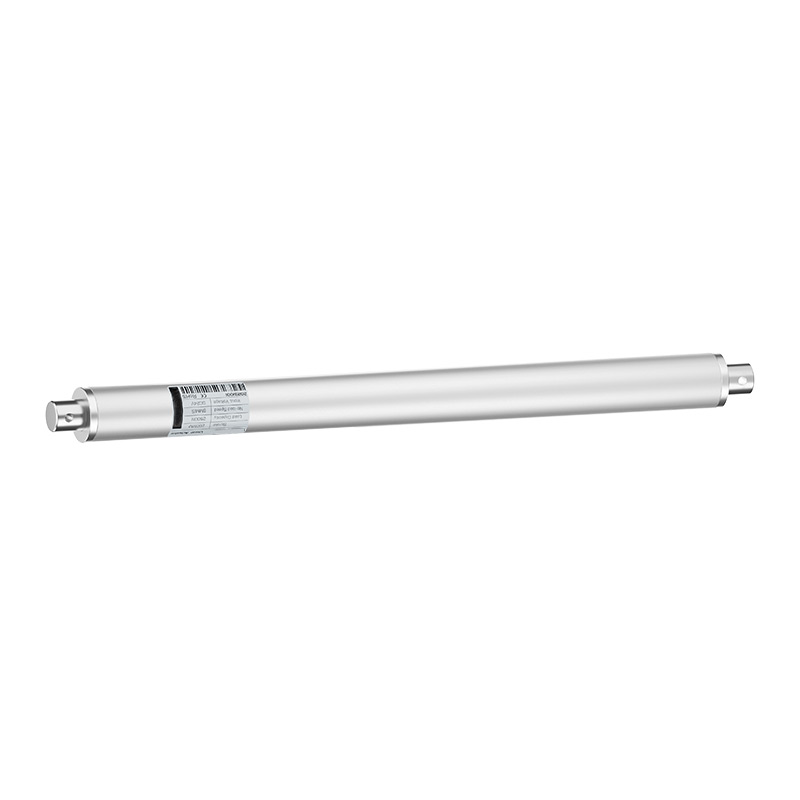

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Lead Screw Type:Trapezoidal thread

Input voltage:DC 12V/24V

Maximum load:2500N/250kg

Maximum Speed:22mm/s

Maximum Stroke:1000mm

Limit Switches:Built-in

Protection Level:IP56

Operating Frequency:10%,2min.on/18min.off

Operating Temperature:0℃~+40℃

Manual function: not support

Introduction

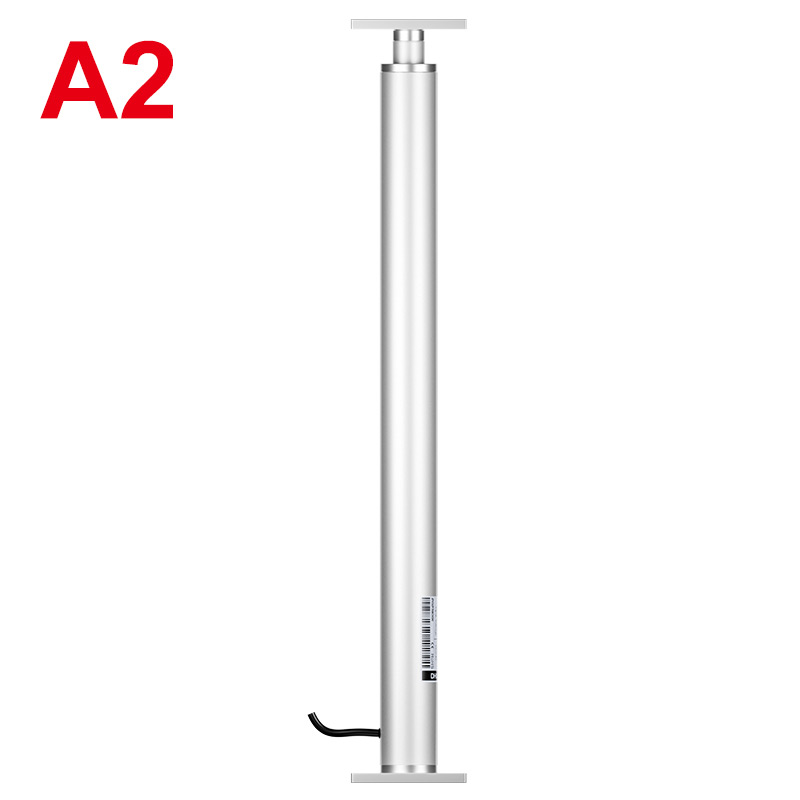

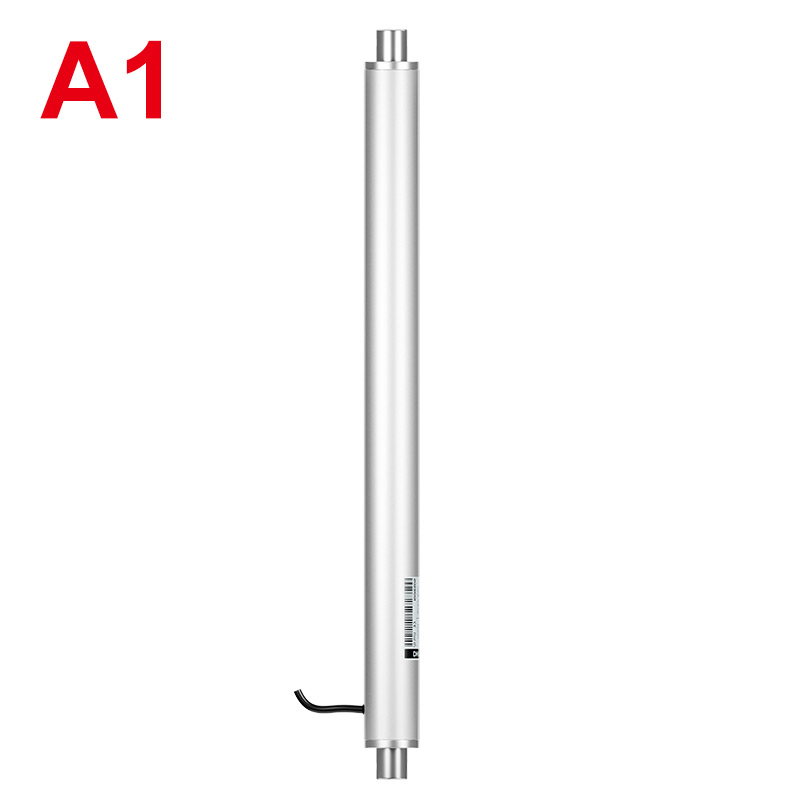

LA35 is a pen type electric linear actuator with a compact design. The diameter of the actuator is 35MM, the maximum load capacity is 2500N, the maximum speed is 22MM/S, and the maximum length can be customized from 10-1500MM, it has built-in limit switch. There is 2 installation(A1,A2) method, A1 type means Ф8 lug installation method, A2 type means flat end installation method.
The aluminum tube is made of high-quality aluminum alloy material, and has a beautiful appearance through oxidation treatment.

Technical Parameters

VoltageDC24~32V
No-load Speed (MM/S)81522
Load Pull Capacity (N)250018001000
Load Push Capacity (N)250018001000
Self-locking Capacity (N)250018001000
VoltageDC12~19V
No-load Speed (MM/S)81522
Load Pull Capacity (N)20001500800
Load Push Capacity (N)20001500800
Self-locking Capacity (N)20001500800
Stroke Length50mm-1000mm
Operating Temperature0℃~+40℃
Limit SwitchesBuilt-in
Operating Frequency10% max 2min. continuous use
Inner TubeAluminum Tube
Lead Screw TypeType T
Optional ConfigurationIP66 Waterproof

Outline Dimension Drawing

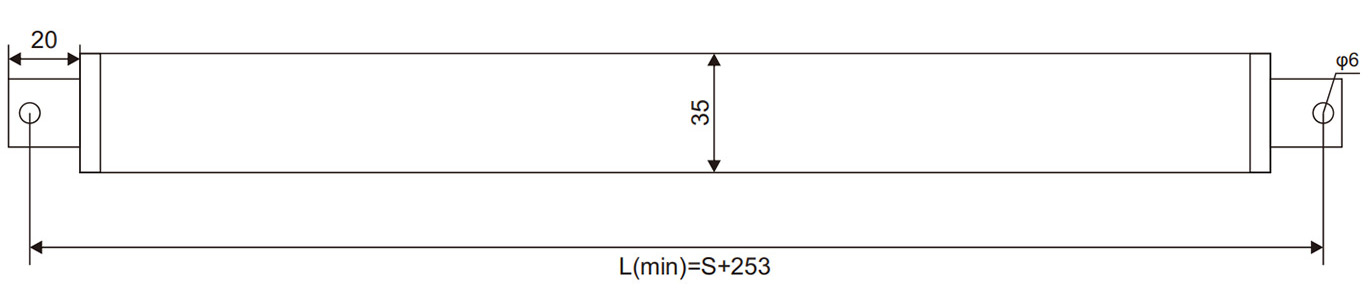

LA35-A1

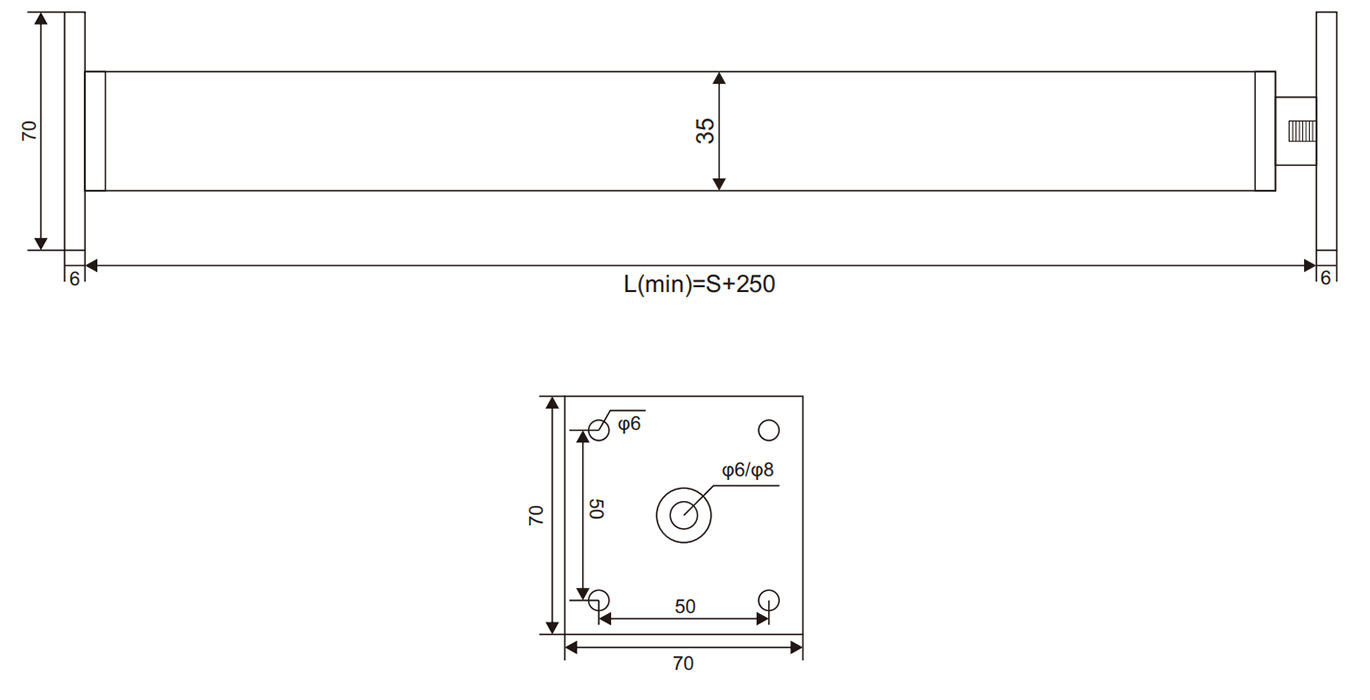

LA35-A2
