LA3000P Electric Linear Actuator

LA3000P Electric Linear Actuator

LA3000P is a self-developed high-thrust electric sliding table linear actuator. The product With 60W Power Motor, maximum load of 300kg, and minimum installation distance of 105mm.

Input Volatge: DC12~19V / DC24~32V
Maximum load:3000N/300kg
Operating Temperature: -20°C~+65°C
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~1000mm

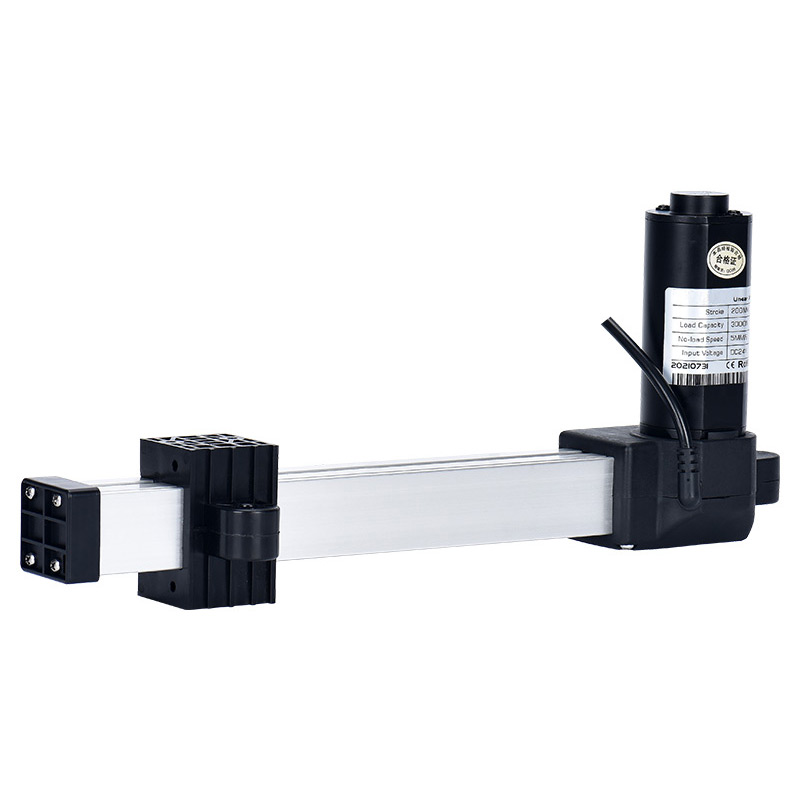

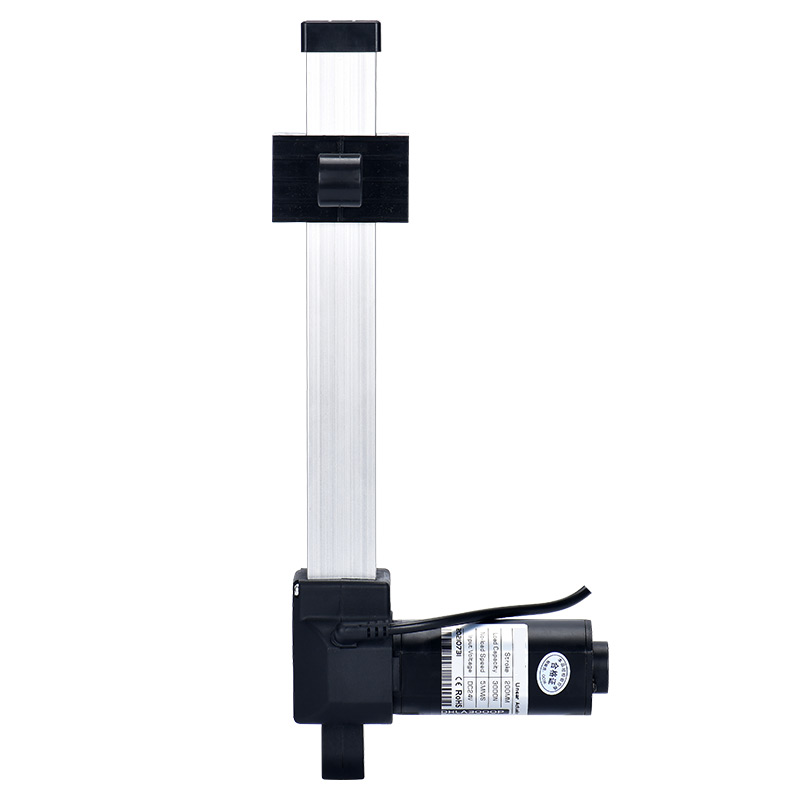

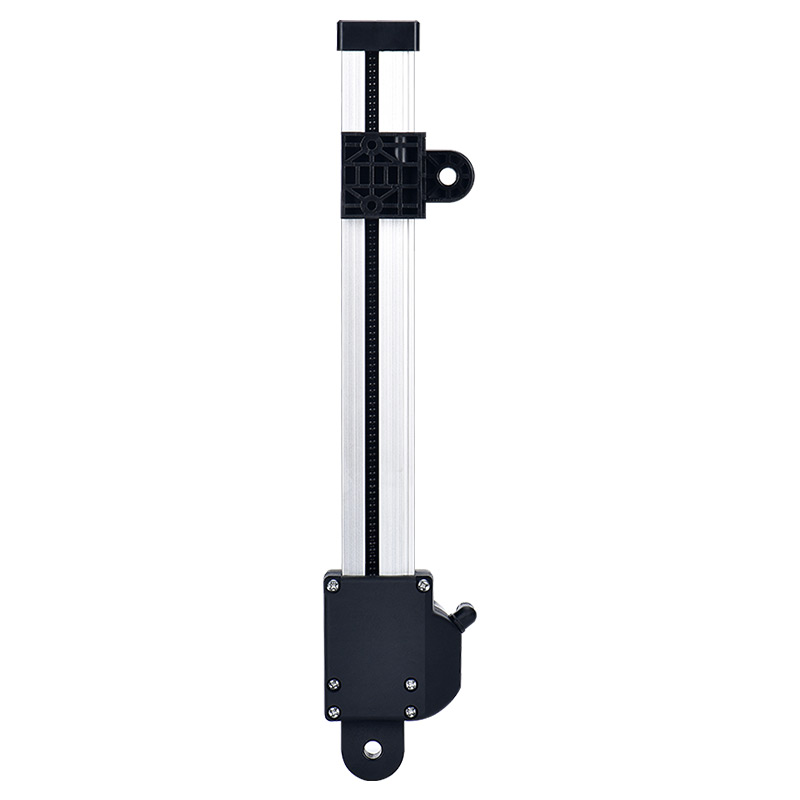

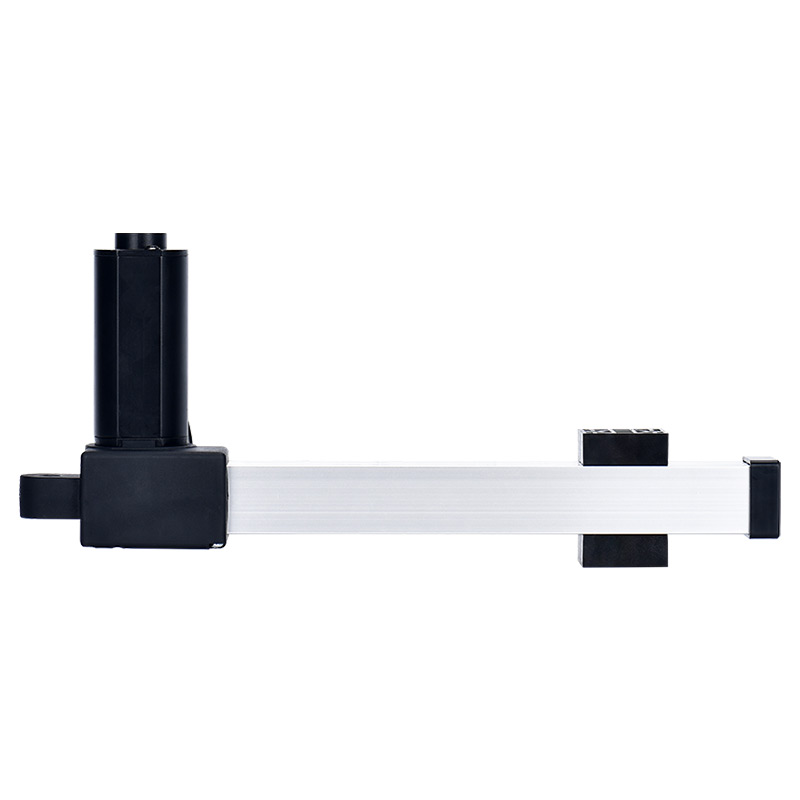

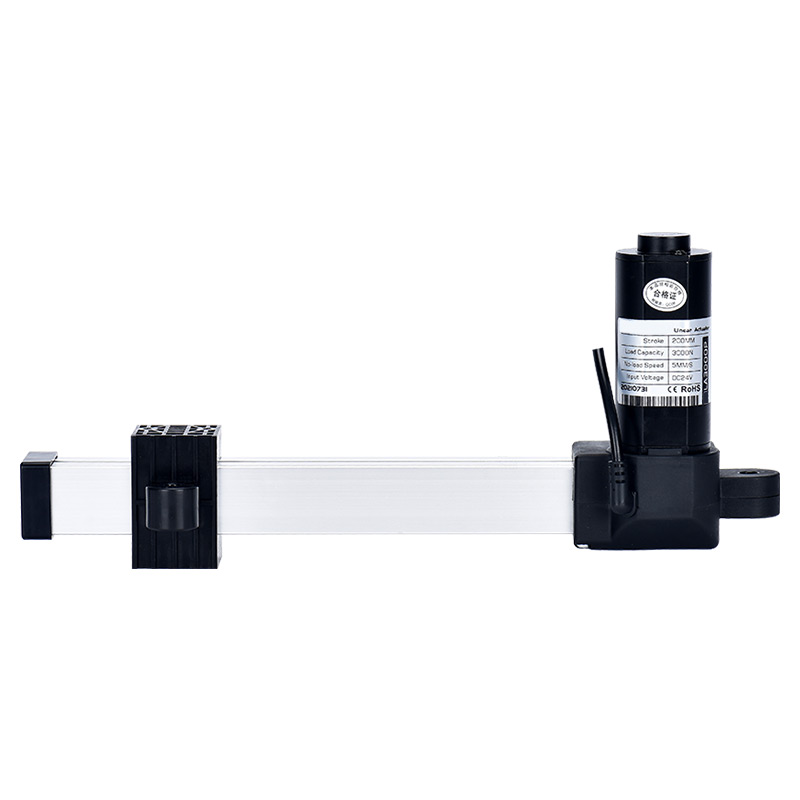

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

LA3000P is a self-developed high-thrust electric sliding table linear actuator. The product With 60W Power Motor, maximum load of 300kg, and minimum installation distance of 105mm. The stroke can be customized according to customer needs. This product has a compact installation size, a high-horsepower permanent magnet DC motor, and an ultra-quiet design. Suitable for medical, furniture, industrial and other industries.
Hall: DC24V 5MM/S 10MM/S 20MM/S

TECHNICAL PARAMETERS

VoltageDC24~32V
No-load Speed (MM/S)5101315203040526688
Load Pull Capacity (N)3000150012001000800600400300250150
Load Push Capacity (N)3000150012001000800600400300250150
Self-locking Capacity (N)51225405122540512
VoltageDC12~19V
No-load Speed (MM/S)51020304066
Load Pull Capacity (N)24001000600400300200
Load Push Capacity (N)24001000600400300200
Self-locking Capacity (N)24001200800600400300
Stroke Length30MM-1000MM
Operating Temperature-20°C~+65°C
Limit SwitchesBuilt-in
Operating Frequency10% max 2min. continuous use
Inner TubeAluminum tube
Lead screw TypeType T
Optional Configuration1.Hall Sensor    2.Upper And Lower Limit Feedback
The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces

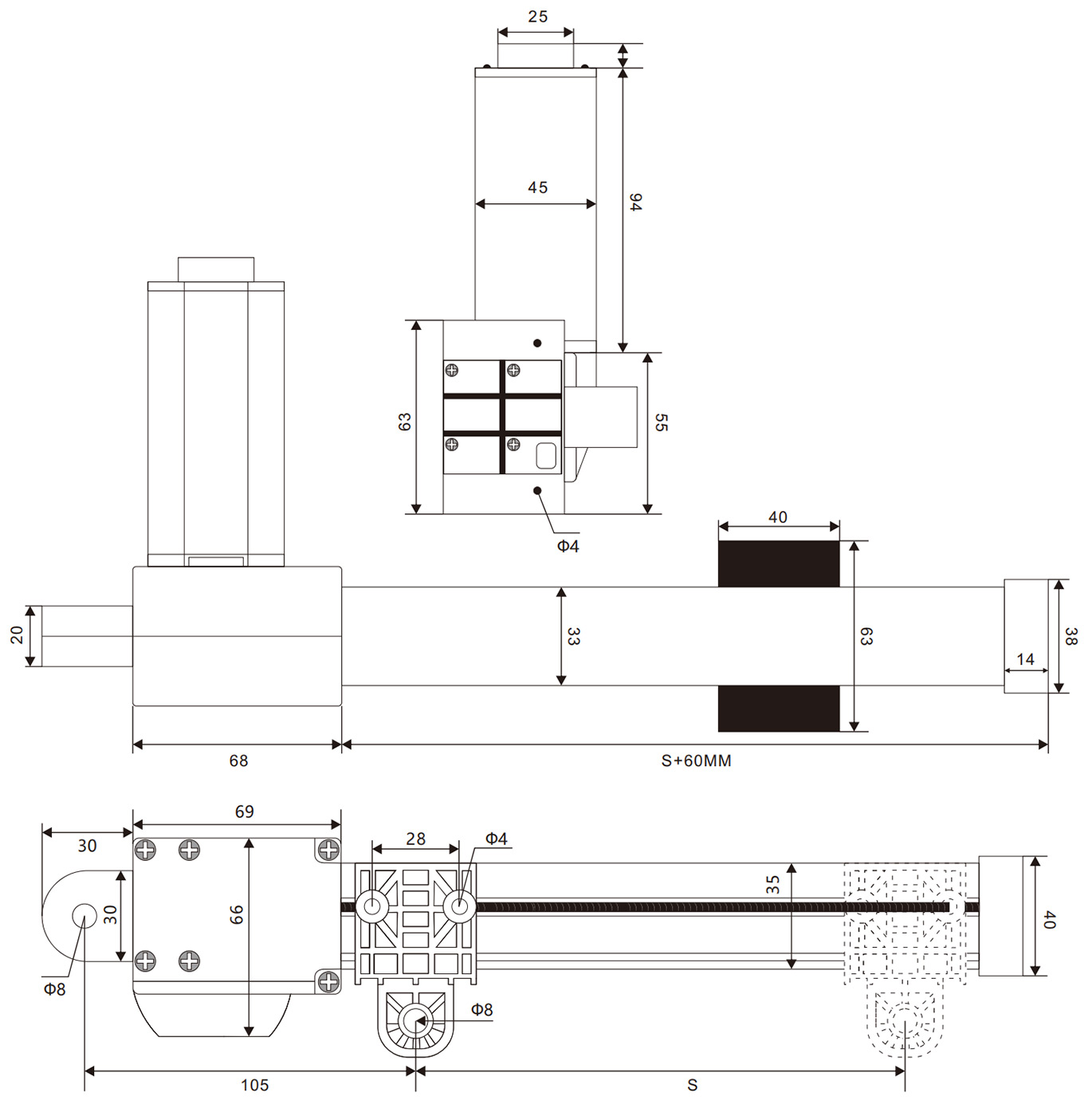

OUTLINE DIMENSION DRAWING
