LA3000L Electric Linear Actuator

LA3000L Electric Linear Actuator

LA3000L is a small motor and large thrust electric linear actuator. The product uses square aluminum tube, which is easy to install, is equipped with a 60W ultra-quiet high-power motor, uses a plastic gear, the maximum load is 3000N, the maximum speed is 88MM/S, and the stroke is available from 30MM to 1600MM.

Input Volatge: DC12~19V / DC24~32V
Maximum load：3000N/300kg
Operating Temperature: -20°C~+65°C
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~1000mm

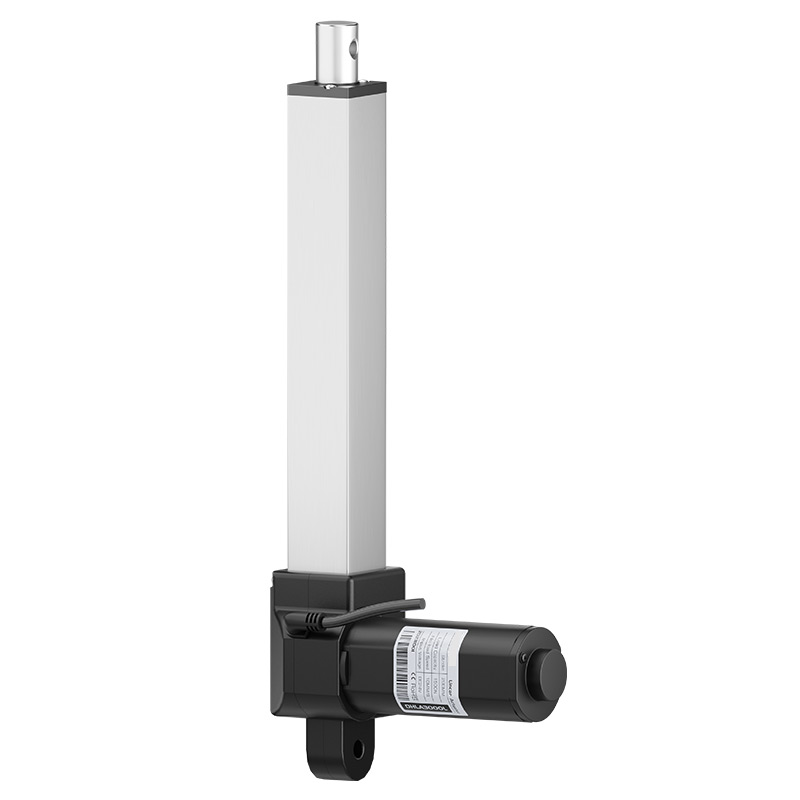

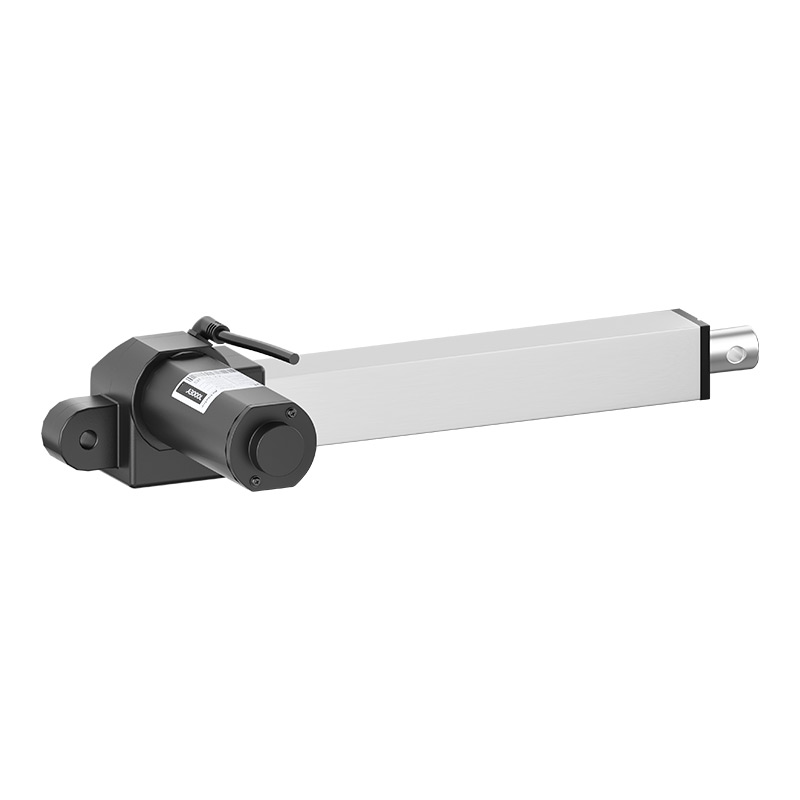

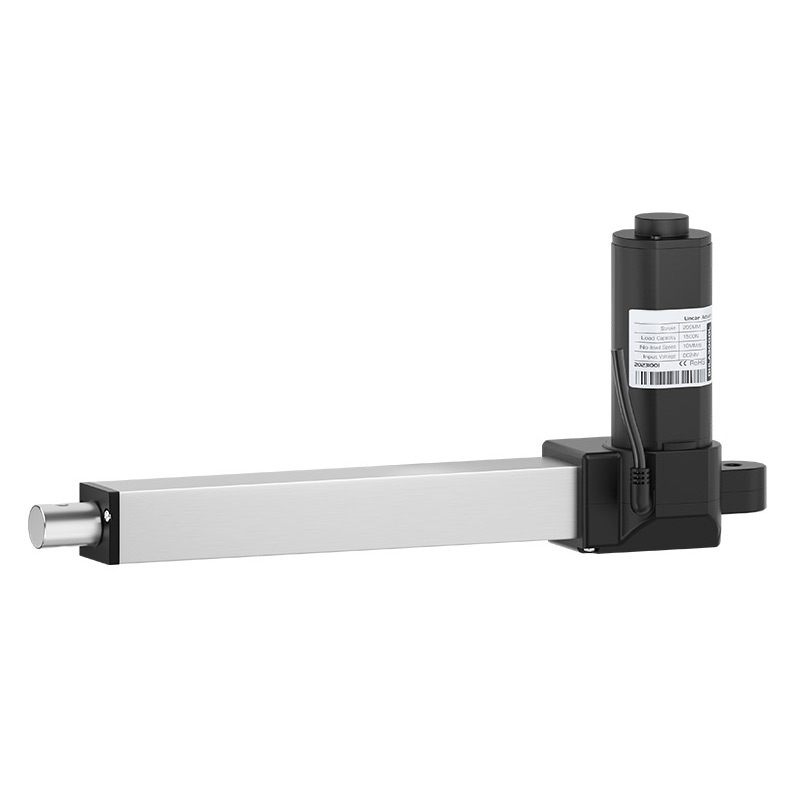

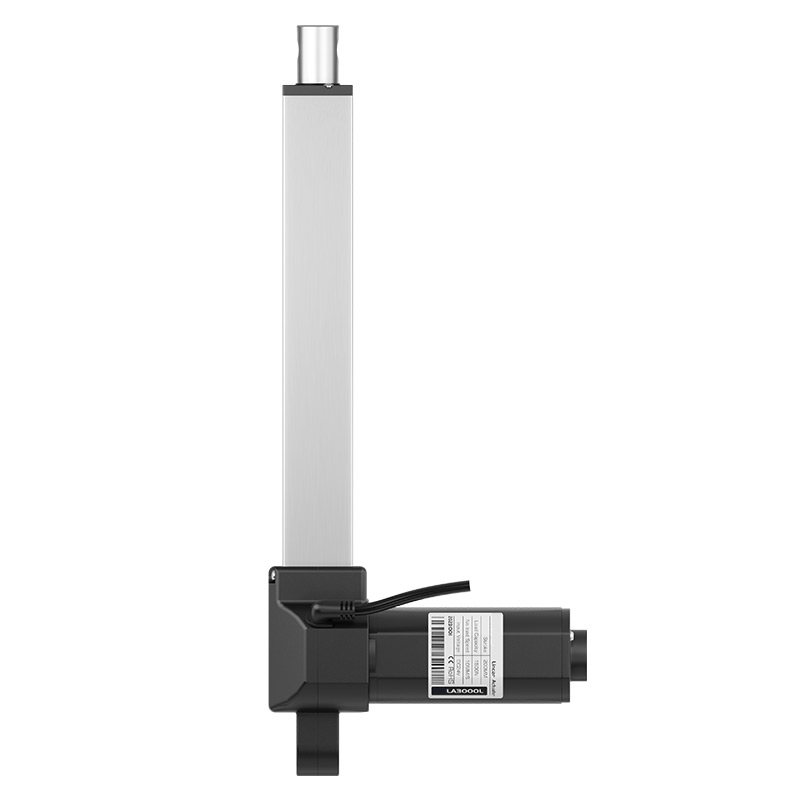

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

LA3000L is a small motor and large thrust electric linear actuator. The product uses square aluminum tube, which is easy to install, is equipped with a 60W ultra-quiet high-power motor, uses a plastic gear, the maximum load is 3000N, the maximum speed is 88MM/S, and the stroke is available from 30MM to 1600MM. Other non-standard itineraries can be customized according to needs. Used in equipment such as agriculture, construction, mining, highway engineering, railways, medical treatment, furniture, automated robots, etc. Can be used for controls, valves, covers, packers, etc.

TECHNICAL PARAMETERS

VoltageDC24~32V
No-load Speed (MM/S)5101315203040526688
Load Pull Capacity (N)3000150012001000800600400300250150
Load Push Capacity (N)3000150012001000800600400300250150
Load Push Capacity (N)3000150012001000800600400300250150
VoltageDC12~19V
No-load Speed (MM/S)51020304066
Load Pull Capacity (N)24001200600400300200
Load Push Capacity (N)24001200600400300200
Load Push Capacity (N)24001200600400300200
Stroke Length30-1000MM ( 500MM Stroke Max Load 2000N)
Operating Temperature-20°C~+65°C
Limit SwitchesBuilt-in
Operating Frequency10% max 2min. continuous use
Inner TubeAluminum tube
Lead screw TypeType T
Optional Configuration1.Hall Sensor   2.Magnetic Induction Switch   3.Upper And Lower Limit Feedback
The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces

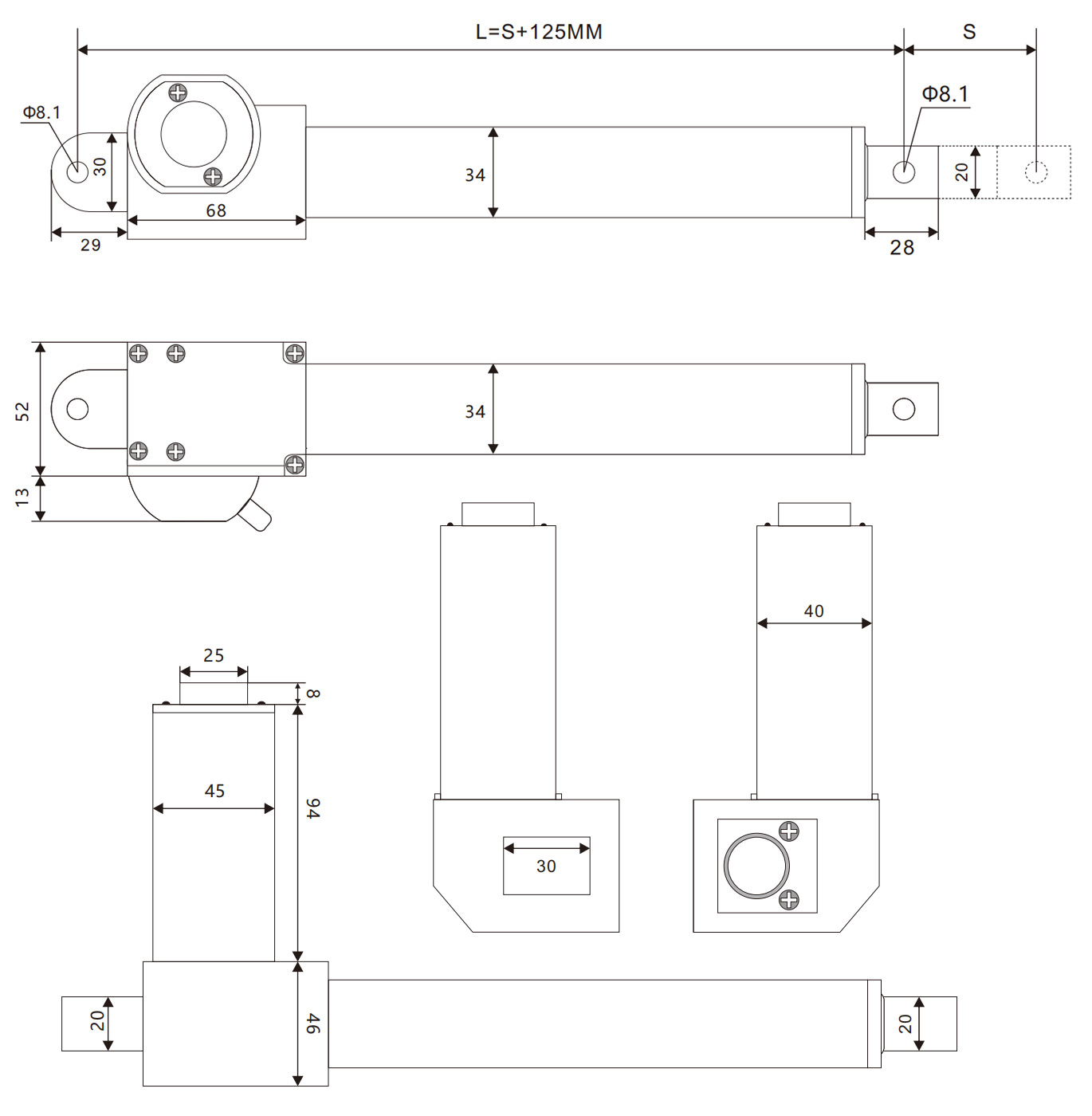

OUTLINE DIMENSION DRAWING
