LA3000 Electric Linear Actuator

LA3000 Electric Linear Actuator

LA3000 is newly developed 25dB low-noise design. It adopts 60W high-torque permanent magnet DC motor with a maximum load of 3000-3500N, the maximum speed can reach 110MM/S.

Input Volatge: DC12~19V / DC24~32V
Maximum load：3000N/300kg
Operating Temperature: -25°C~+85°C
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~1600mm

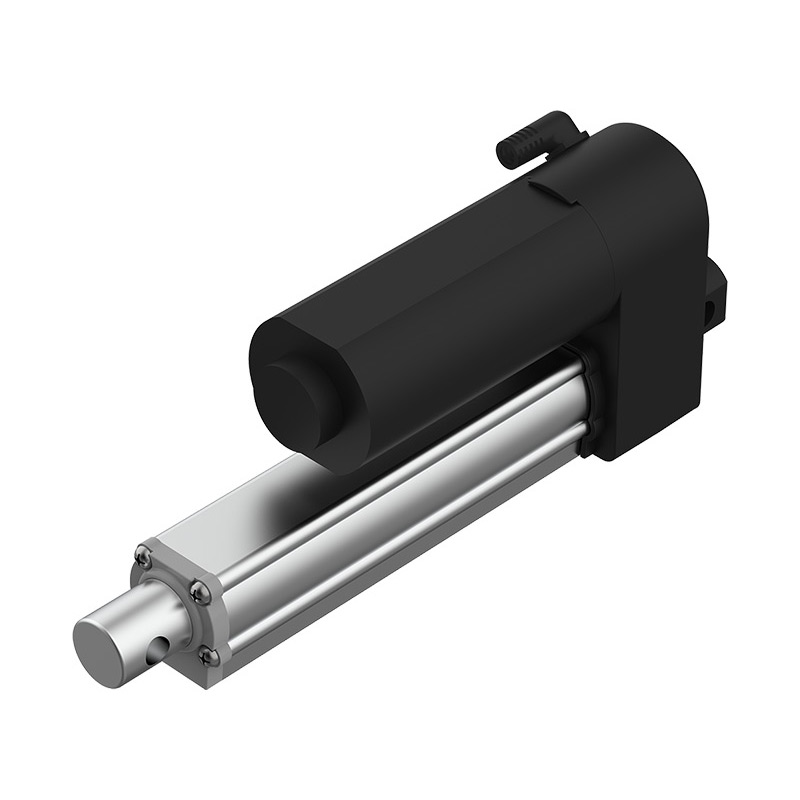

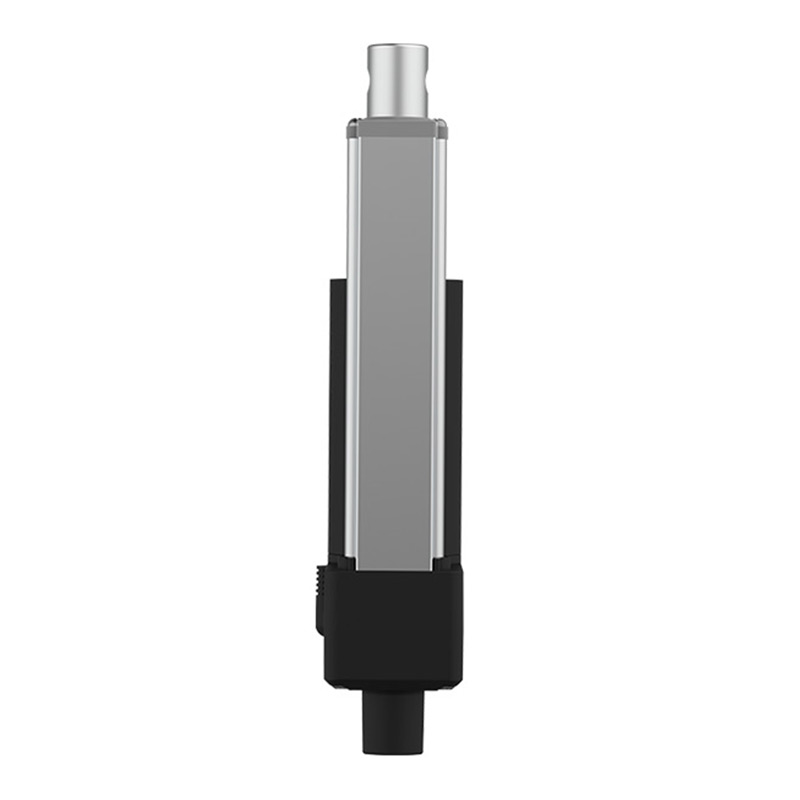

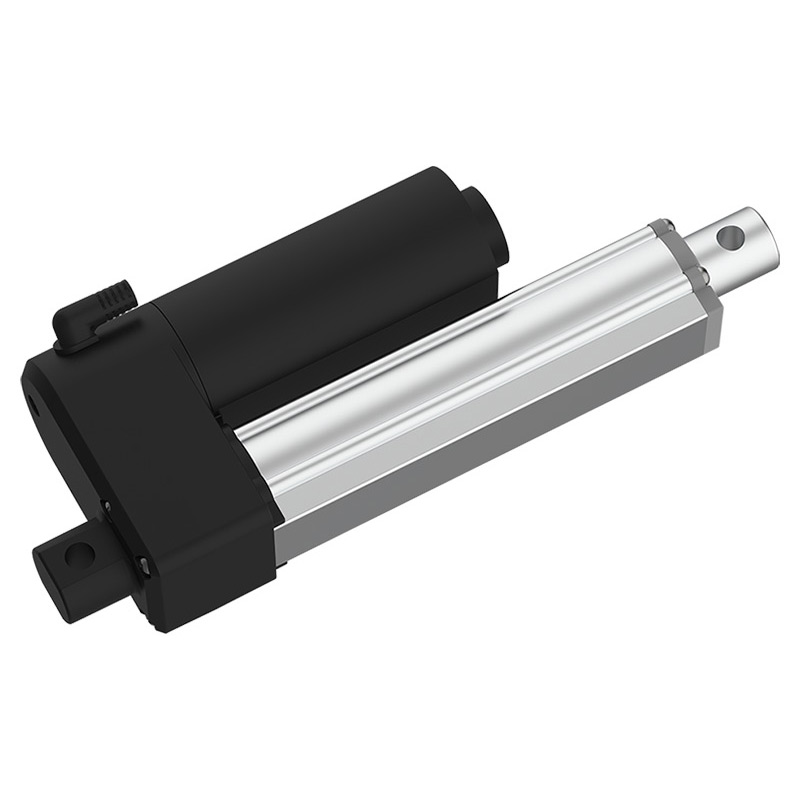

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Introduction

LA3000 is newly developed 25dB low-noise design. It adopts 60W high-torque permanent magnet DC motor with a maximum load of 3000-3500N, the maximum speed can reach 110MM/S. It is a high-quality electric linear actuator. This product has stable operation, the same thrust and pull, and is adaptable to the environment Good performance, novel design, small size and high precision.
LA3000 electric linear actuator outer aluminum tube is treated with 27 oxidation processes, which has high hardness and a more beautiful appearance, Optional 304 stainless steel tube inner tube can be used in harsh industrial. environments.

Technical Parameters

VoltageDC24~32V
No-Load Speed (MM/S)51015203040506688110
Load Pull Capacity (N)300014001000800500400300200150100
Load Push Capacity (N)300014001000800500400300200150100
Self-locking Capacity (N)300014001000800500400300200150100
VoltageDC12~19V
No-load Speed (MM/S)51020304066
Load Pull Capacity (N)24001200600400300150
Load Push Capacity (N)24001200600400300150
Self-locking Capacity (N)24001200600400300150
Stroke Length30MM~1600MM
Operating Temperature-25°C~+85°C
Limit SwitchesBuilt-in
Operating Frequency10% max 2min continuous use
Inner TubeAluminum tube
Lead screw TypeType T
Installation MethodM6/M8/M10 ScrewFlat PlateФ6.2 / Ф8.2 / Ф10.2 Lifting Lug
Optional Configuration1.Hall Sensor 2.Magnetic Induction Switch 3.Upper And Lower Limit Feedback 4.304 Stainless Steel Pipe 5.IP66 Waterproof

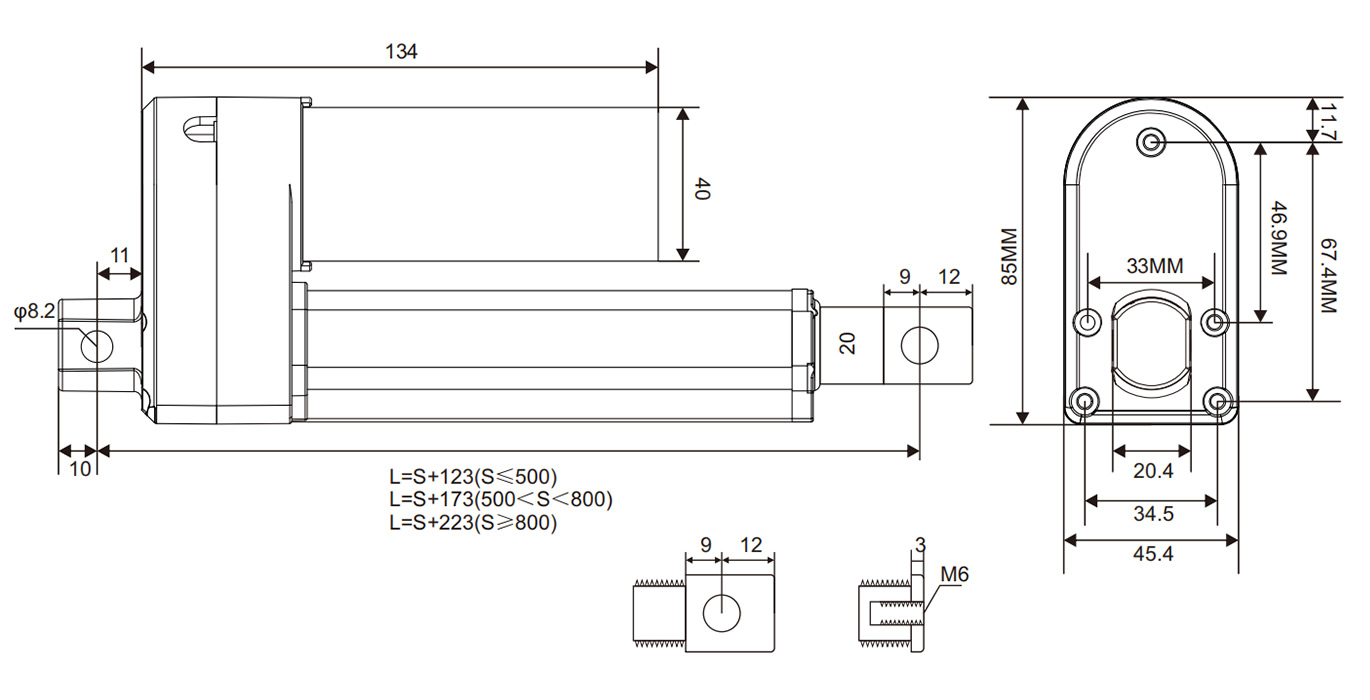

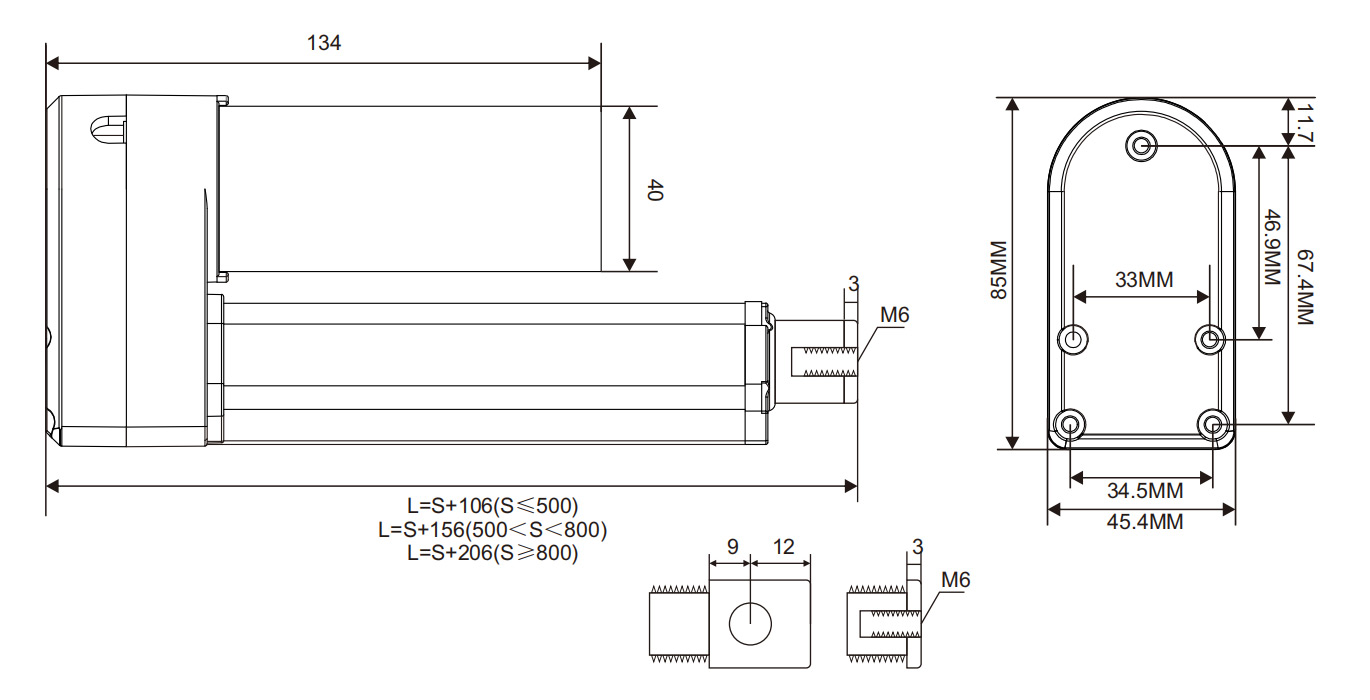

Outline Dimension Drawing

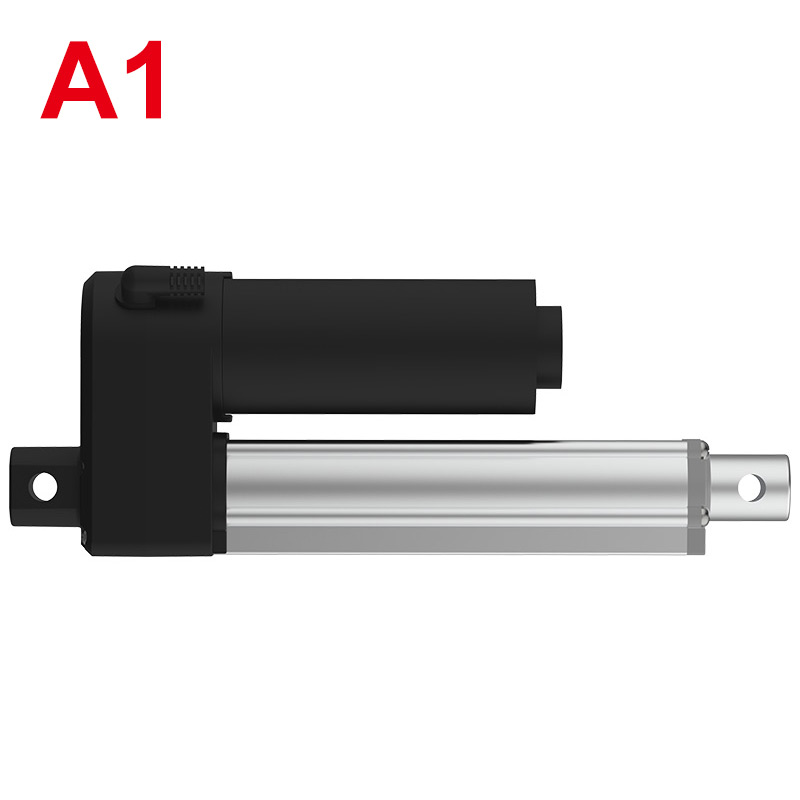

LA3000-A1

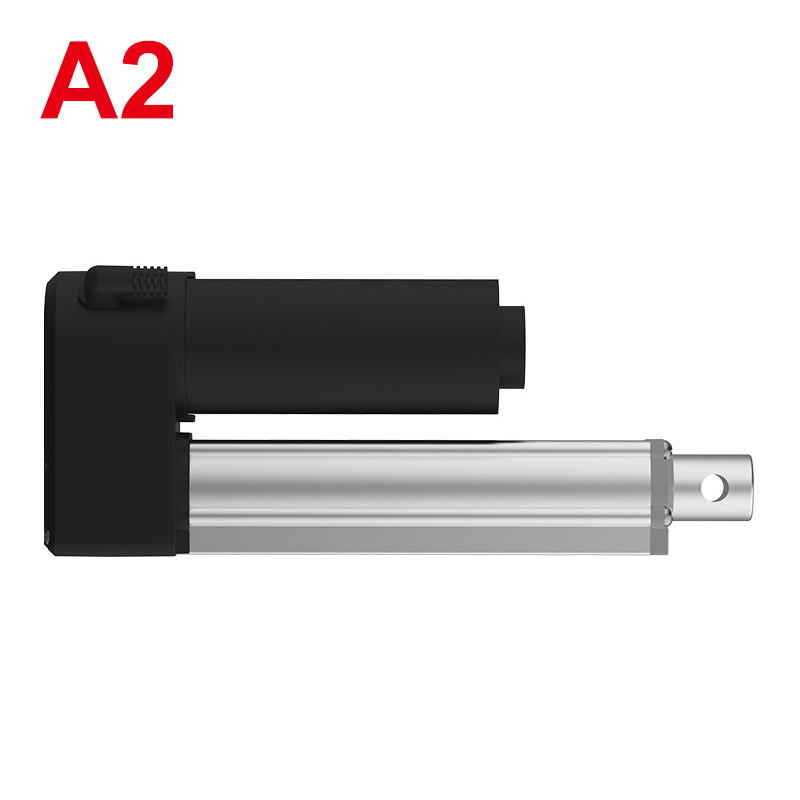

LA3000-A2
