LA1300L Electric Linear Actuator

LA1300L Electric Linear Actuator

LA1300L is a product specially developed and designed for the furniture and medical industries. This product has a compact installation size, uses a high horsepower permanent magnet DC motor, and has an ultra-quiet design.

Input Volatge: DC12~19V / DC24~32V
Maximum load：1500N/150kg
Max. Speed: 66mm/s
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~1000mm

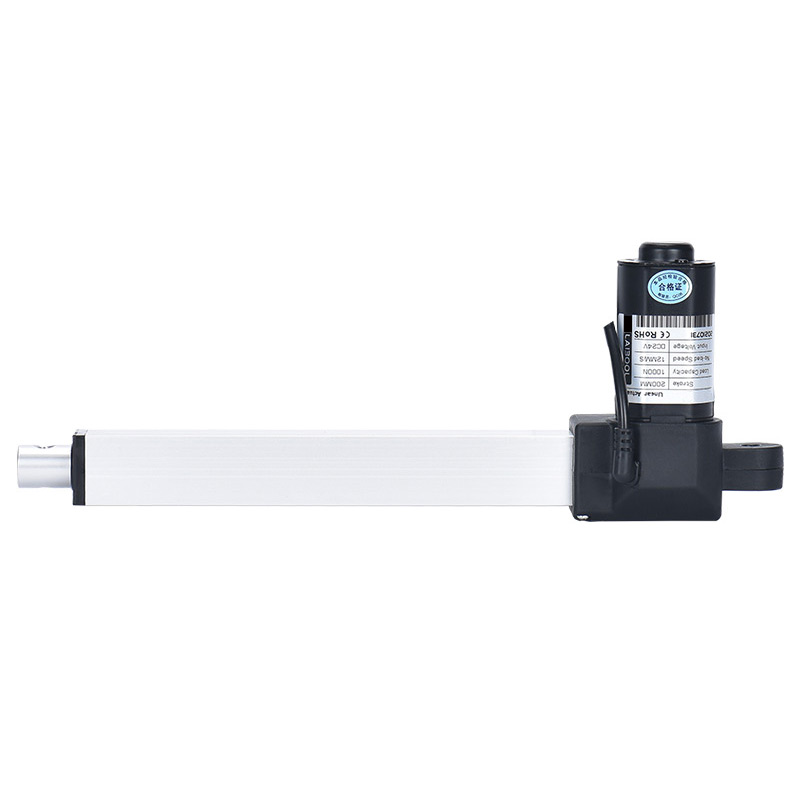

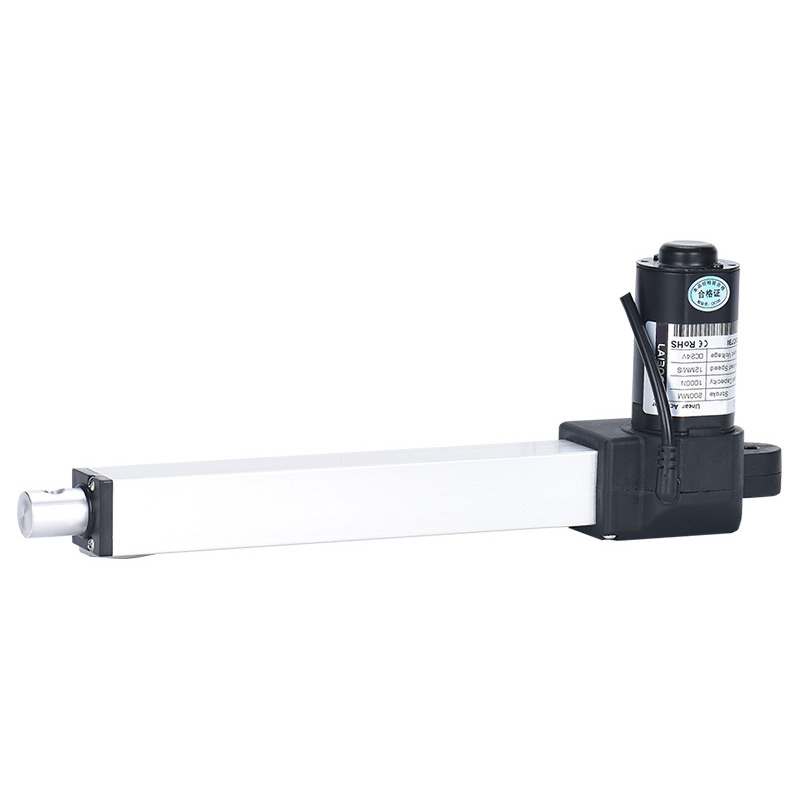

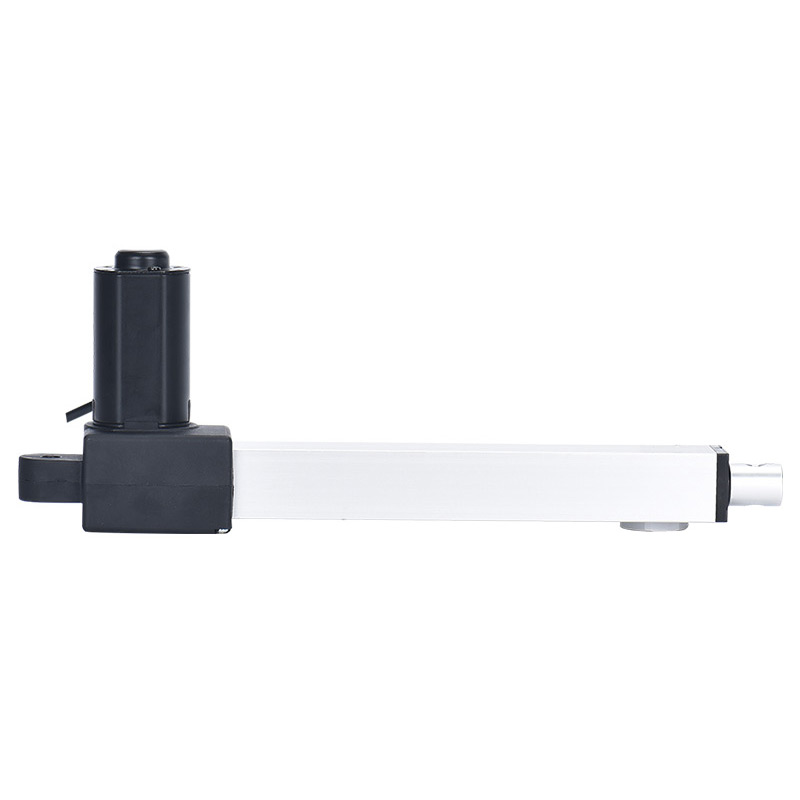

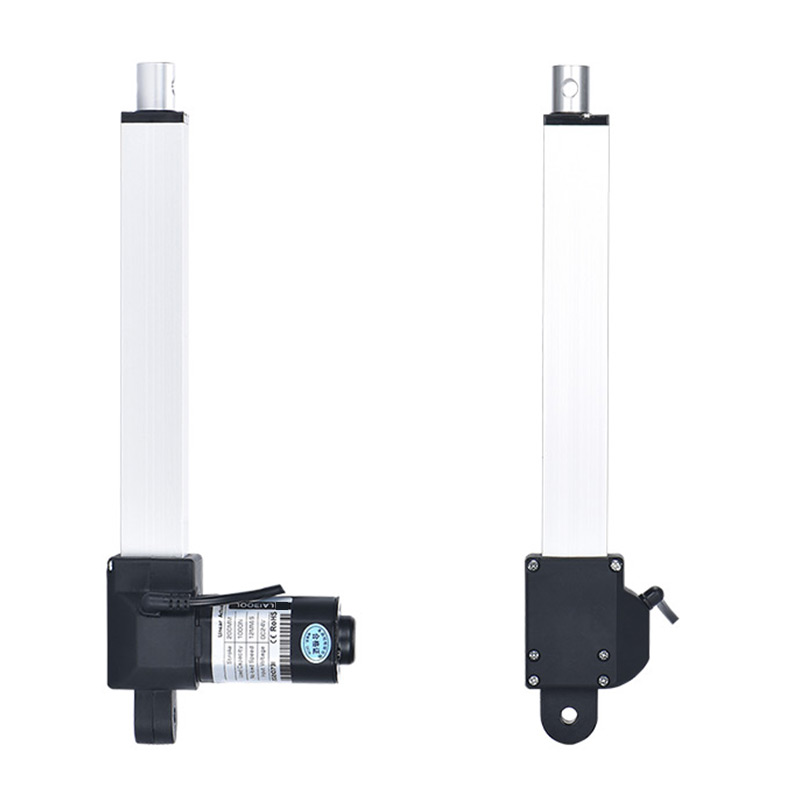

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

PRODUCT DESCRIPTION

LA1300L is a product specially developed and designed for the furniture and medical industries. At the same time, the product can also be used across industrial products. This product has a compact installation size, uses a high horsepower permanent magnet DC motor, and has an ultra-quiet design. It is suitable for the medical, furniture, and industrial industries. Indispensable and important product.

TECHNICAL PARAMETERS

VoltageDC24~32V
No-load Speed (MM/S)512254052
Load Pull Capacity (N)15001000500350300
Load Push Capacity (N)15001000500350300
Self-locking Capacity (N)15001000500350300
VoltageDC12~19V
No-load Speed (MM/S)51020304066
Load Pull Capacity (N)1200800400300200150
Load Push Capacity (N)1200800400300200150
Self-locking Capacity (N)1200800400300200150
Stroke Length30MM-1000MM
Operating Temperature-10°C~+45°C
Limit SwitchesBuilt-in
Operating Frequency10% max 2min. continuous use
Inner TubeAluminum tube
Lead screw TypeType T
The gray bottom can be equipped with a Hall sensor switch, the sound is low, mainly because the Hall motor is stocked, and the other can also be equipped with a Hall controller, the minimum order is 100 pieces

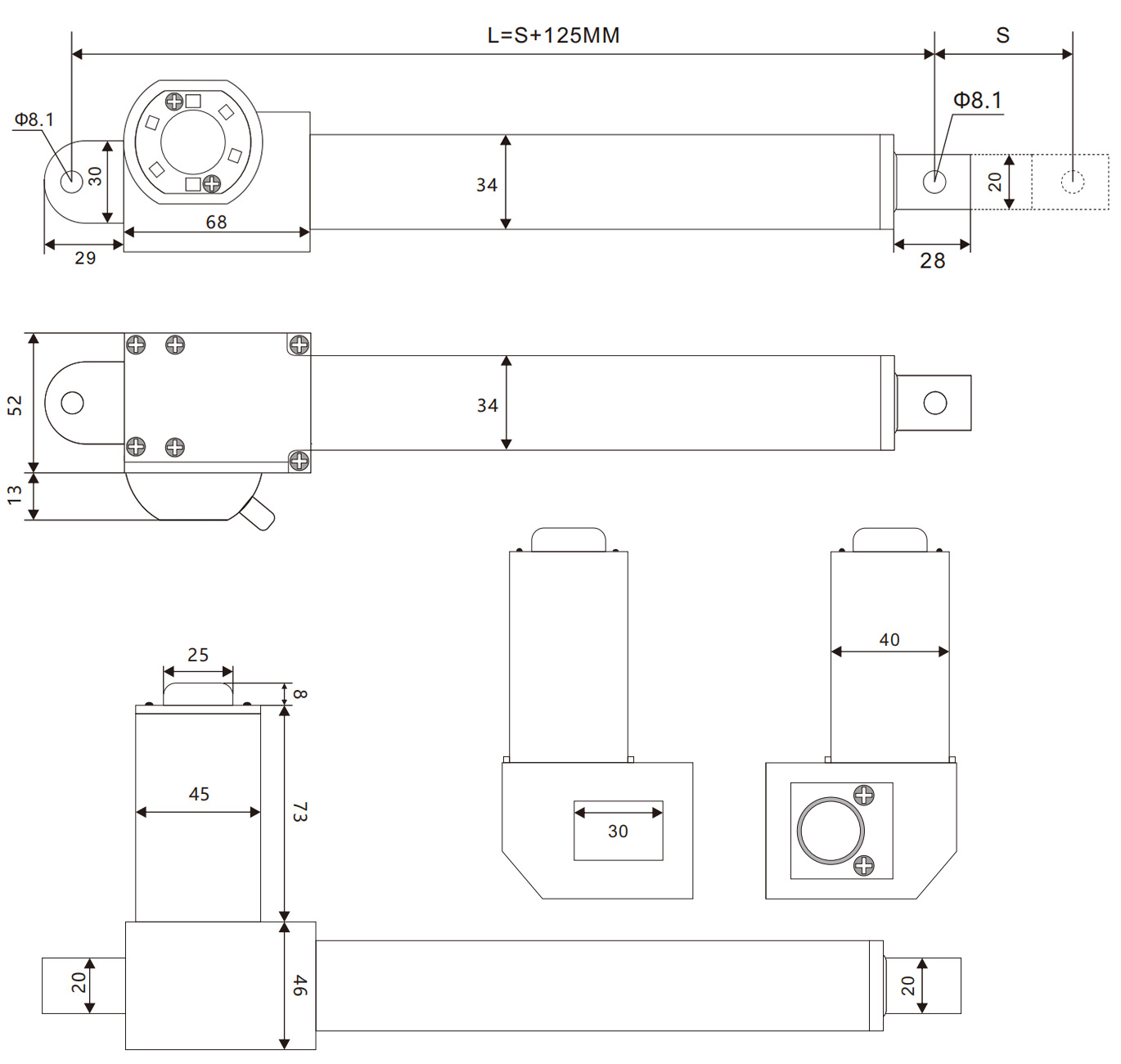

OUTLINE DIMENSION DRAWING
