LA1300 Electric Linear Actuator

LA1300 Electric Linear Actuator

LA1300 Linear Actuator is also called Electric Linear Actuator. Linear Actuator is often used in various fields of industry. The maximum thrust of the product can produce 1500N.

Input Volatge: DC12~19V / DC24~32V
Maximum load：1500N/150kg
IP Grade: IP54
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 30~800mm

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Feature

Lead Screw Type：Trapezoidal thread

Input voltage：DC 12V/24V

Maximum load：1500N/150kg

Maximum Speed：66mm/s

Maximum Stroke：1000mm

Limit Switches：Built-in

Protection Level：IP43

Operating Frequency：10%，2min.on/18min.off

Operating Temperature： -10℃~+50℃

Noise index：≤30dB

Manual function: not support

Introduction

LA1300 is a cheap electric linear actuator, 30W motor 1500N load force. This product is less noisy than most electric linear actuators on the market, and has a large self-locking force. The outer tube adopts a square aluminum tube, a plastic gear box structure, and a 35dB low-noise DC motor.
This linear actuator has a variety of installation methods: Ф8 lifting lug installation, plate installation, M6 thread installation.

Technical Parameters

Voltage DC24~32VDC12~19V
No-load Speed (MM/S)5122540521020304066
Load Pull Capacity(N)15001000500400200800400300200150
Load Push Capacity(N)15001000500400300800400300200150
Self-locking Capacity(N)15001000500400300800400300200150
Stroke Length50MM-1000MM
Motor Power30W
Operating Temperature-10℃~+55℃
Limit switchesBuilt-in
IP GradeIP43
MaterialAluminum
Noise＜30dB
Operating Frequency10% max 2min. Continuous Use
Inner TubeAluminum tube
Lead screw TypeType T
Mechanical LifeMore than 50,000 times

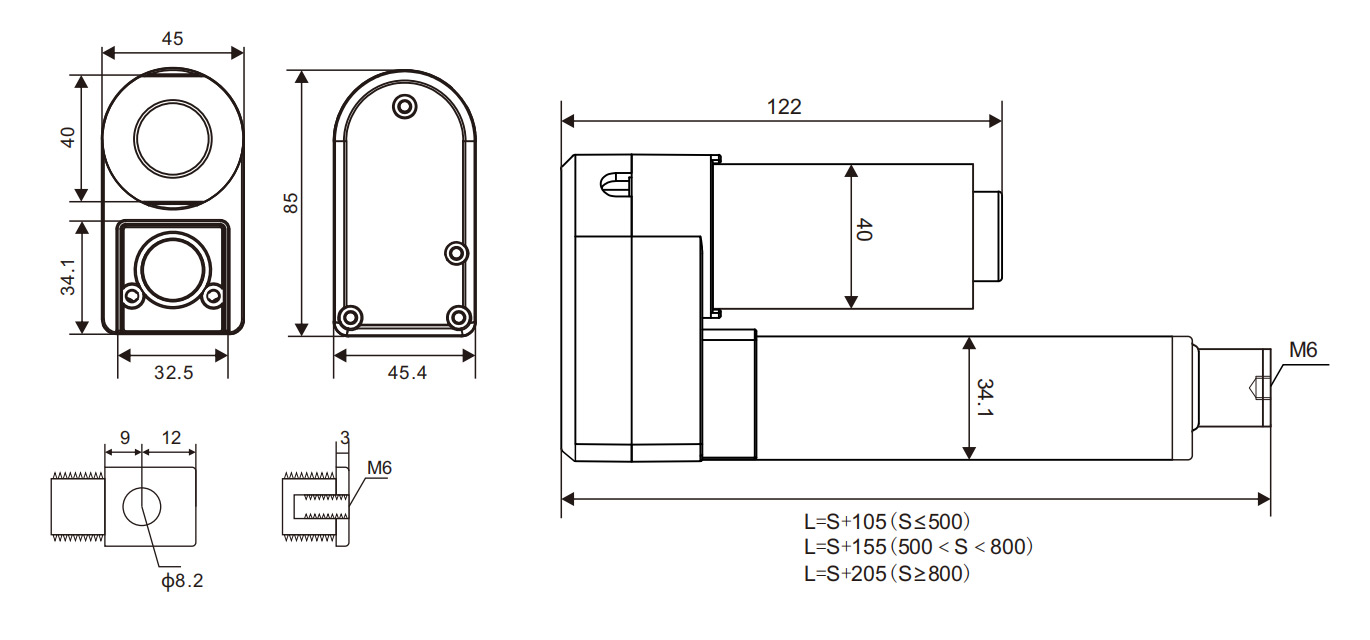

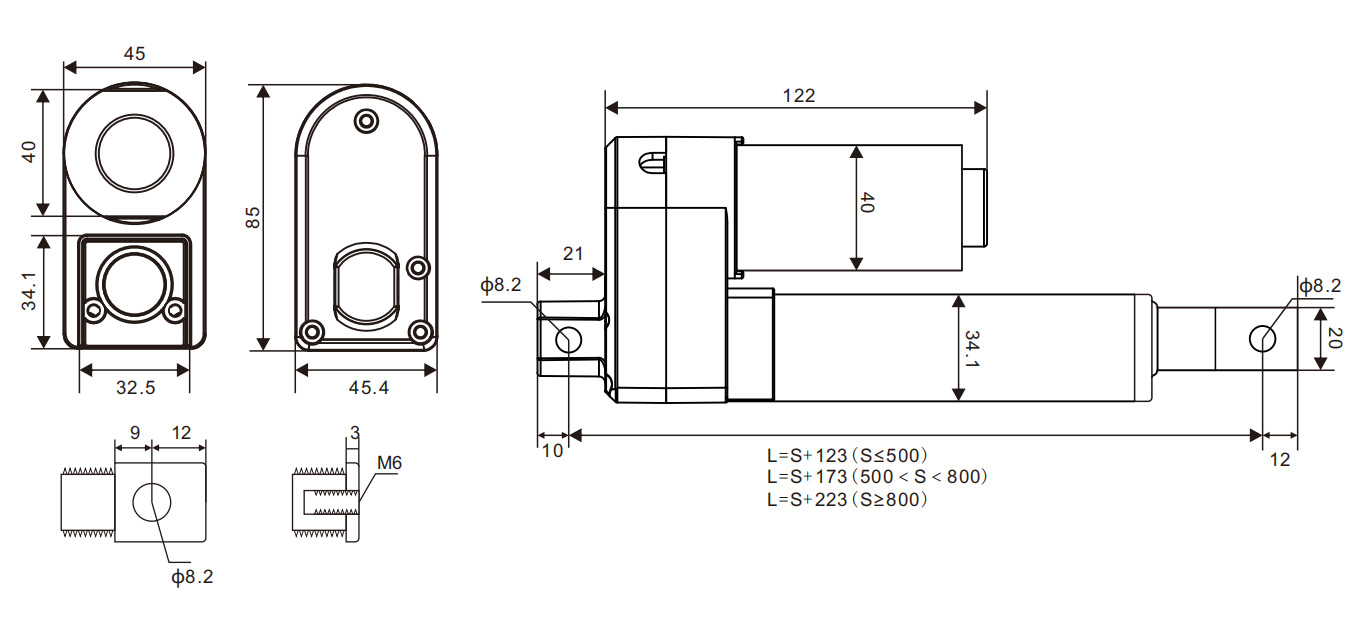

Outline Dimension Drawing

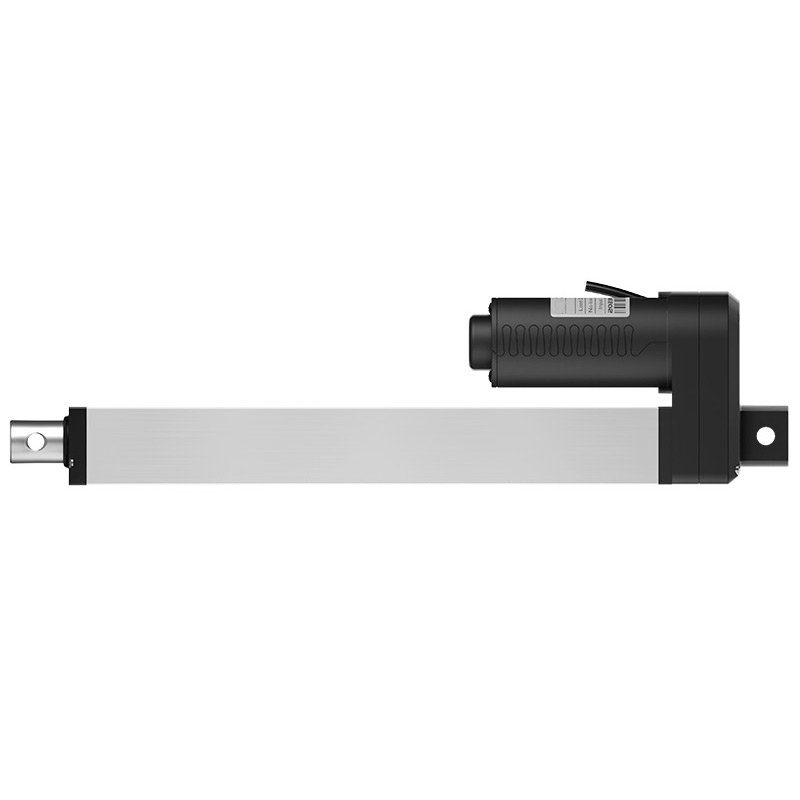

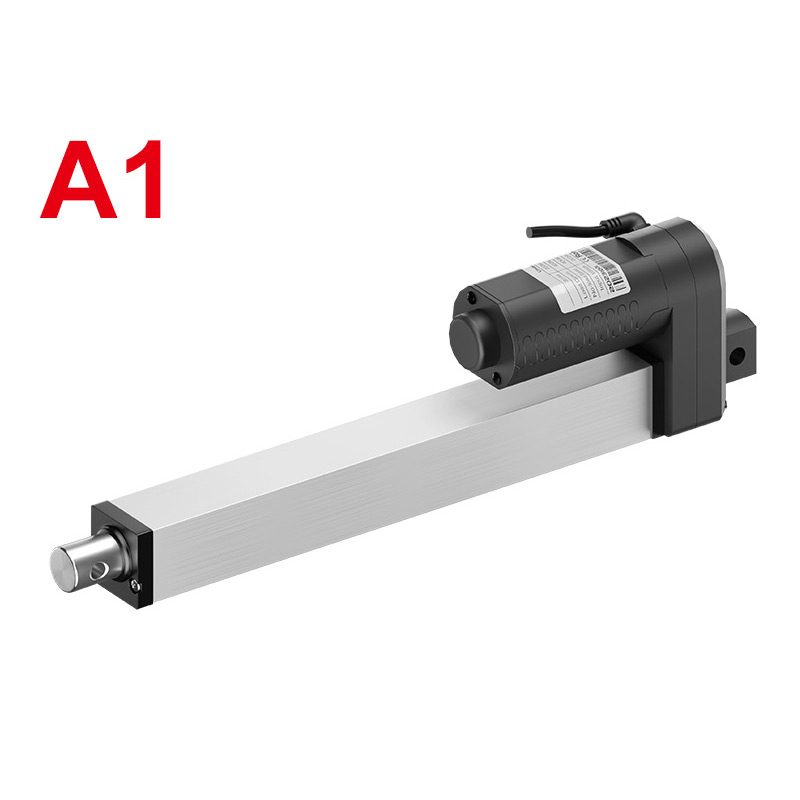

LA1300-A1

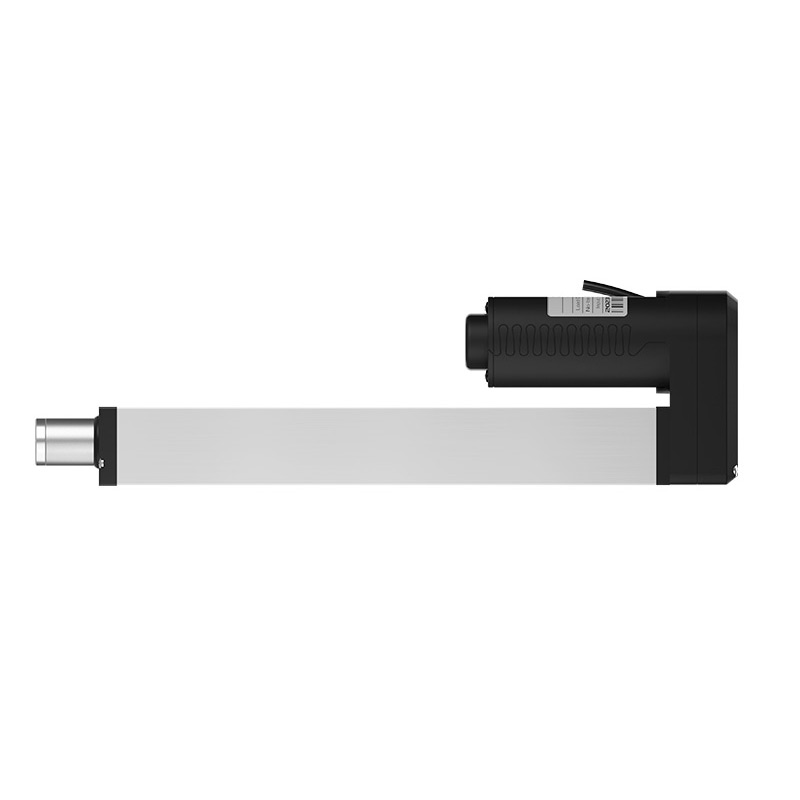

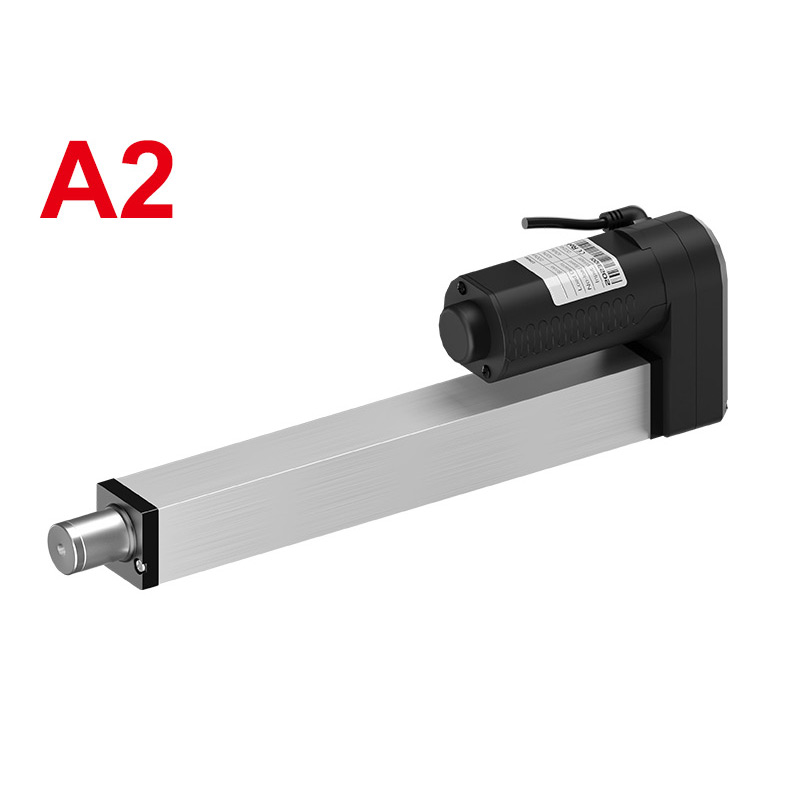

LA1300-A2
