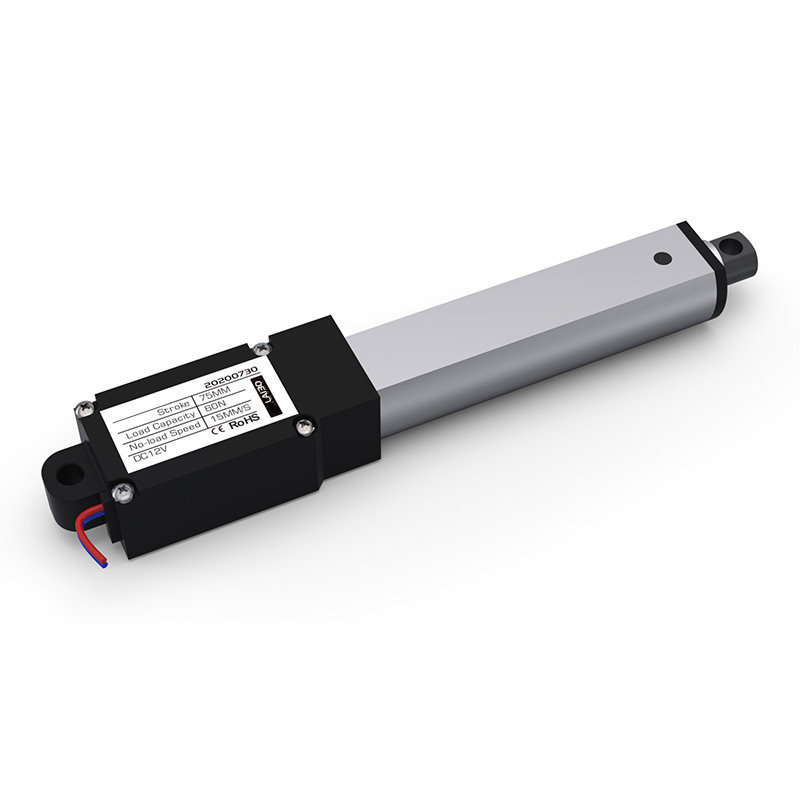

LA130 Micro Electric Linear Actuator

LA130 Micro Electric Linear Actuator

LA130 Micro Linear Actuator is also called Mini Electric Linear Actuator. Miniature Linear Actuator is often used in various fields of industry. The maximum thrust of the product can produce 180N.

Input Volatge: DC6V | DC12V | DC24V
Maximum load：180N/180kg
IP Grade: IP43 / IP65
Operating Frequency: 10% max 2min. continuous use
Maximum Stroke：200mm

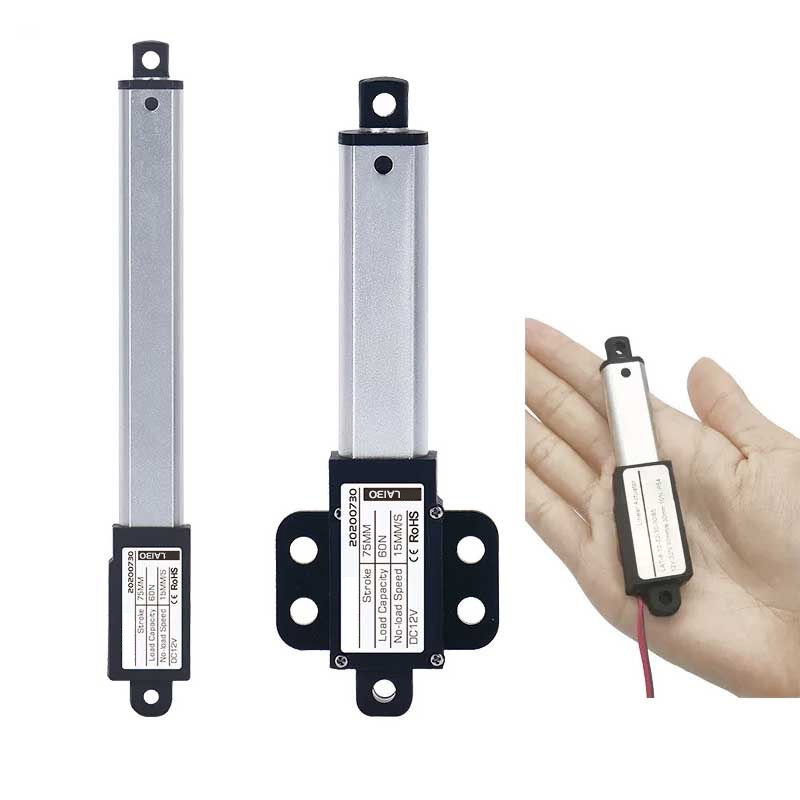

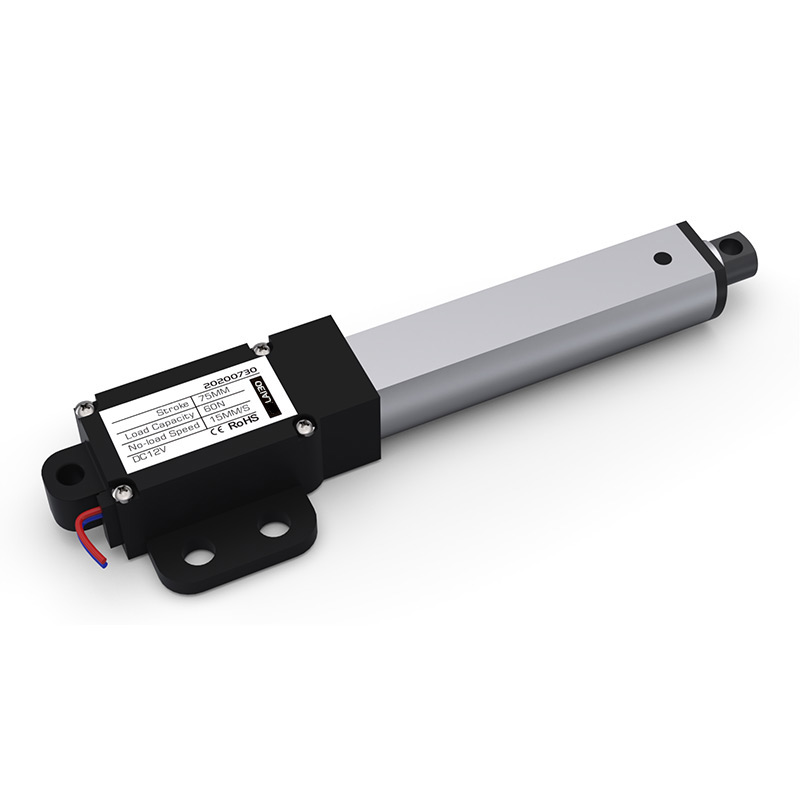

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product Features

Lead Screw Type：Trapezoidal thread
Input voltage：DC6V | DC12V | DC24V
Maximum load：180N/18kg
Maximum Speed：150mm/s
Maximum Stroke：200mm
Limit Switches：Built-in
Protection Level：IP43 / IP65
Operating Frequency：10% max 2min. continuous use
Operating Temperature： -10°C~+50°C
Manual function: not support

Introduction

SRLA130 Micro electric linear actuator, there are two installation methods, one is through the lifting lugs, the second is through the four holes in the motor position to fix, the stroke is between 10-150MM, the thrust is between 180N-8N, This DC12V motor has a low speed and a high speed, so the noise is relatively large. The built-in film circuit board plays the role of upper and lower limit. The outer tube and the inner tube are made of aluminum alloy.
This mini actuator is often used in small load fields such as range hoods, toys, Christmas trees, etc.

Technical Parameters

VoltageDC6V | DC12V | DC24V
No-Load Speed (MM/S)15050281473.5
Load Push Capacity (N)8184080120180
Self-locking Capacity (N)610205070150
Stroke LengthStandard Type: 10MM,15MM,17.5MM,20MM,21MM,30MM,50MM,70MM,100MM,150MM,200MM
Waterproof Type: 10MM,15MM,20MM,30MM,50MM,75MM,100MM,150MM,200MM
Hall Type: 30MM,50MM,75MM,100MM,150MM,200MM
Motor Power5W
Operating Temperature-10℃~+50℃
Operating Frequency10% max 2min. continuous use
Inner tubeAluminum Tube
ColorBlack
MaterialAluminum
Limit SwitchesBuilt-in
Protection ClassIP43/IP65
NoiseBelow 55dB
NoteCustomized DC6V
Mechanical LifeMore than 100,00 times

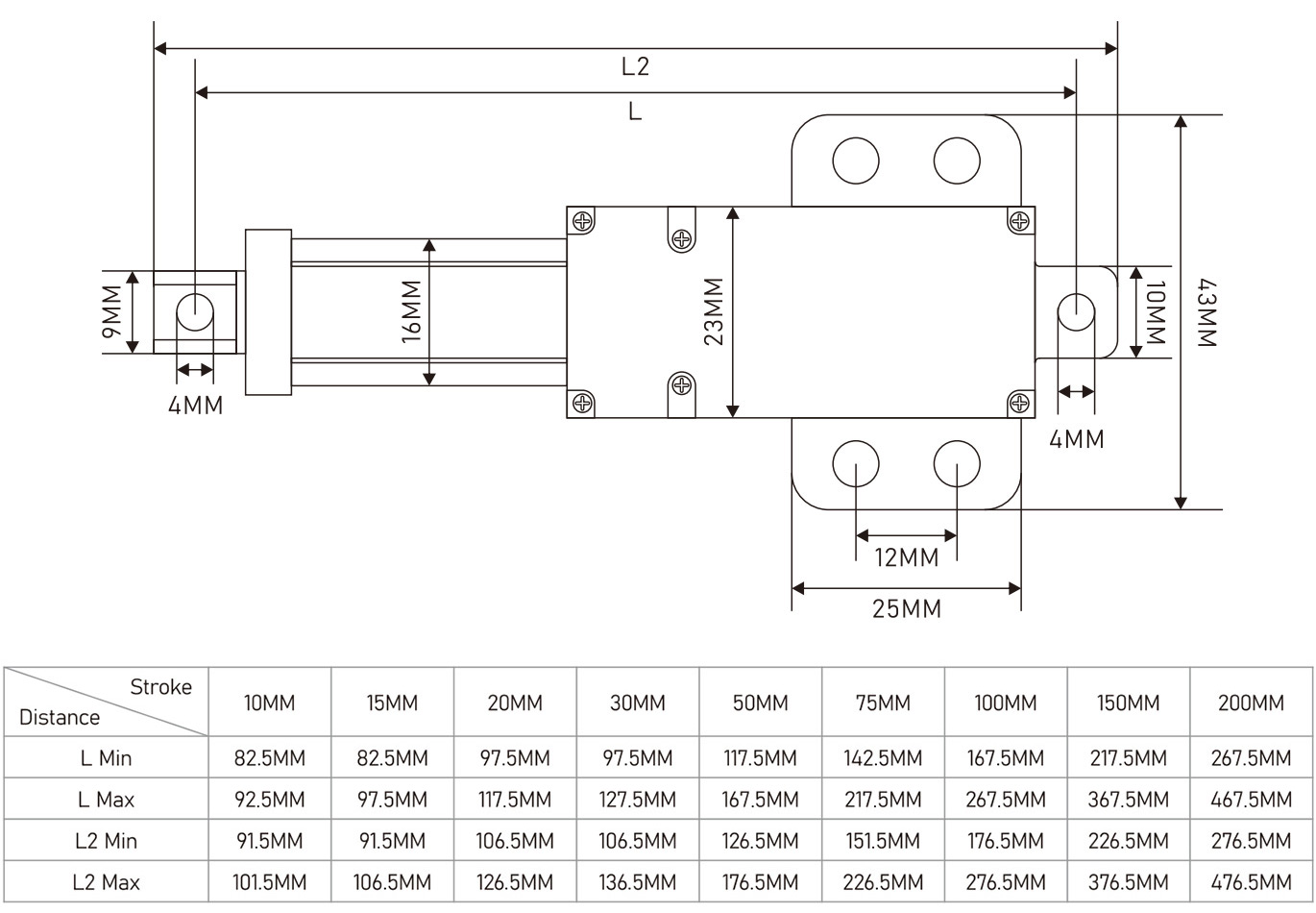

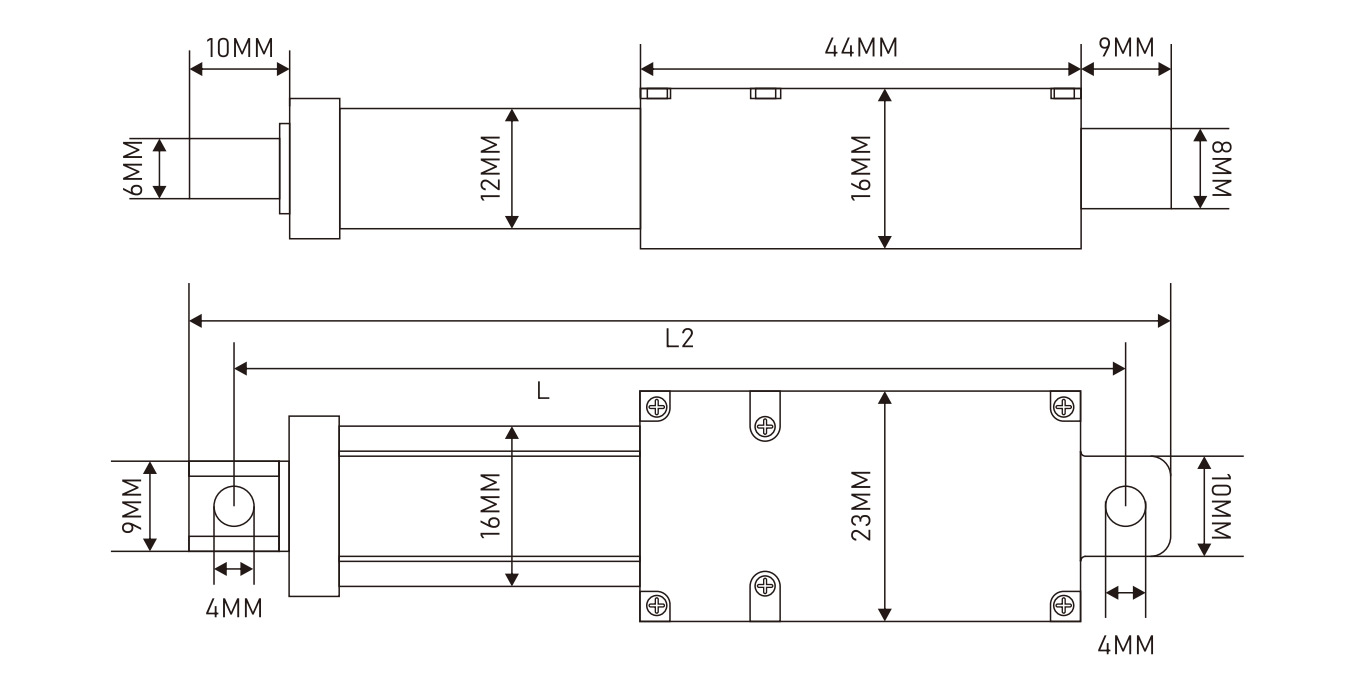

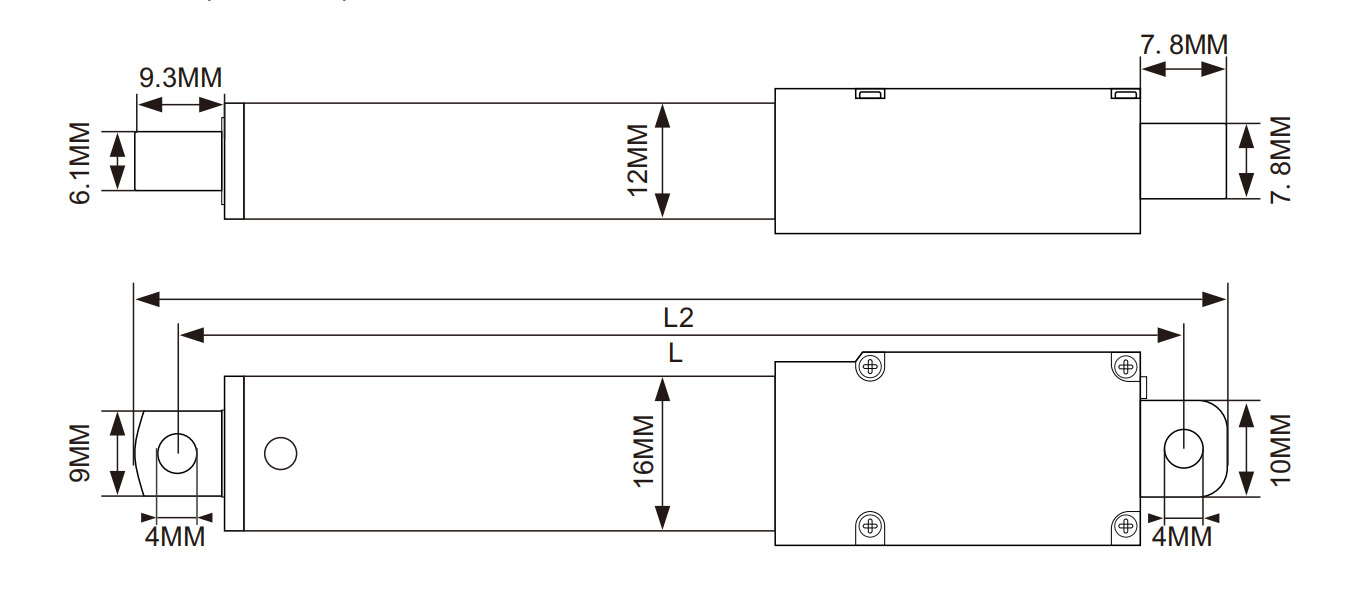

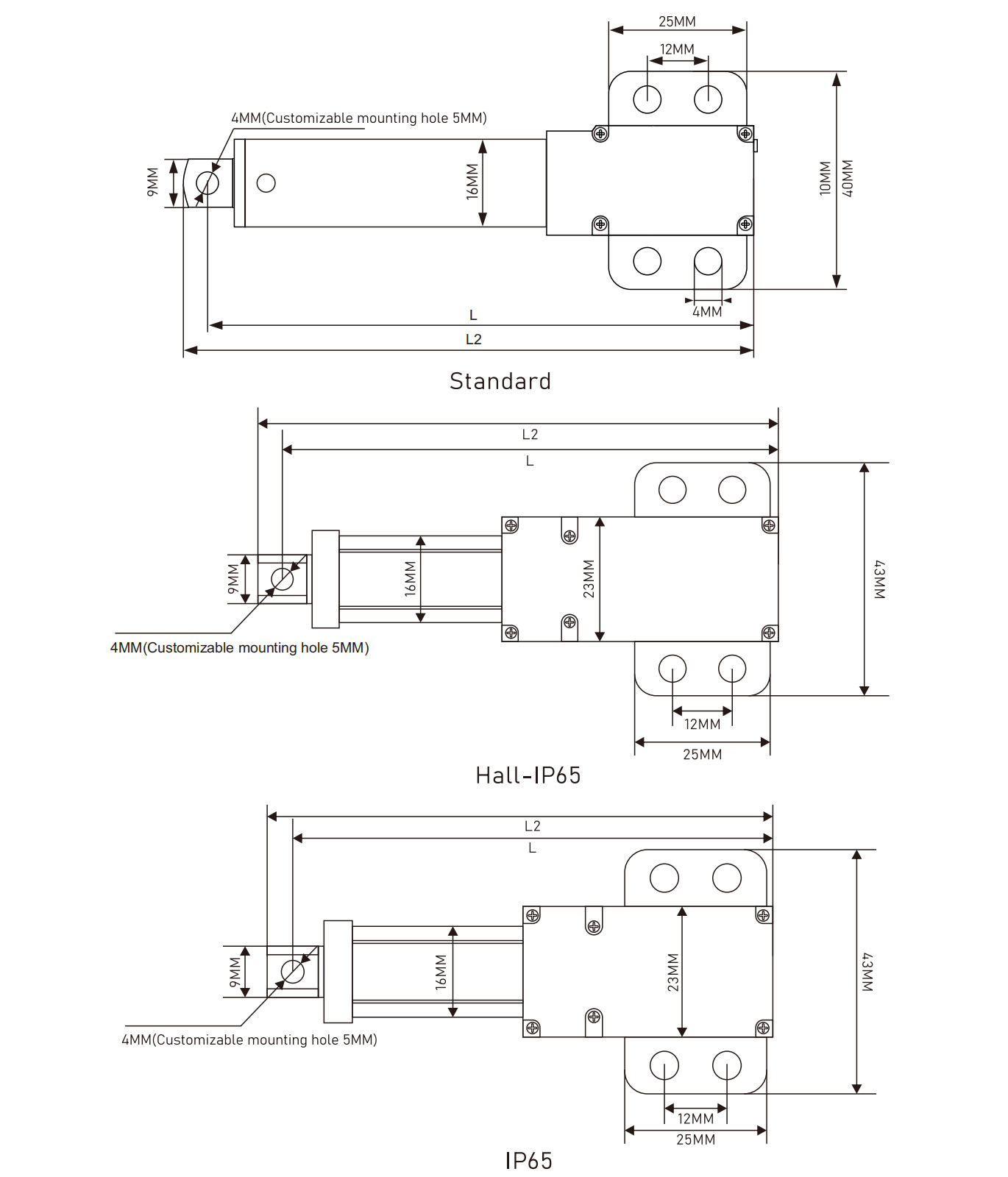

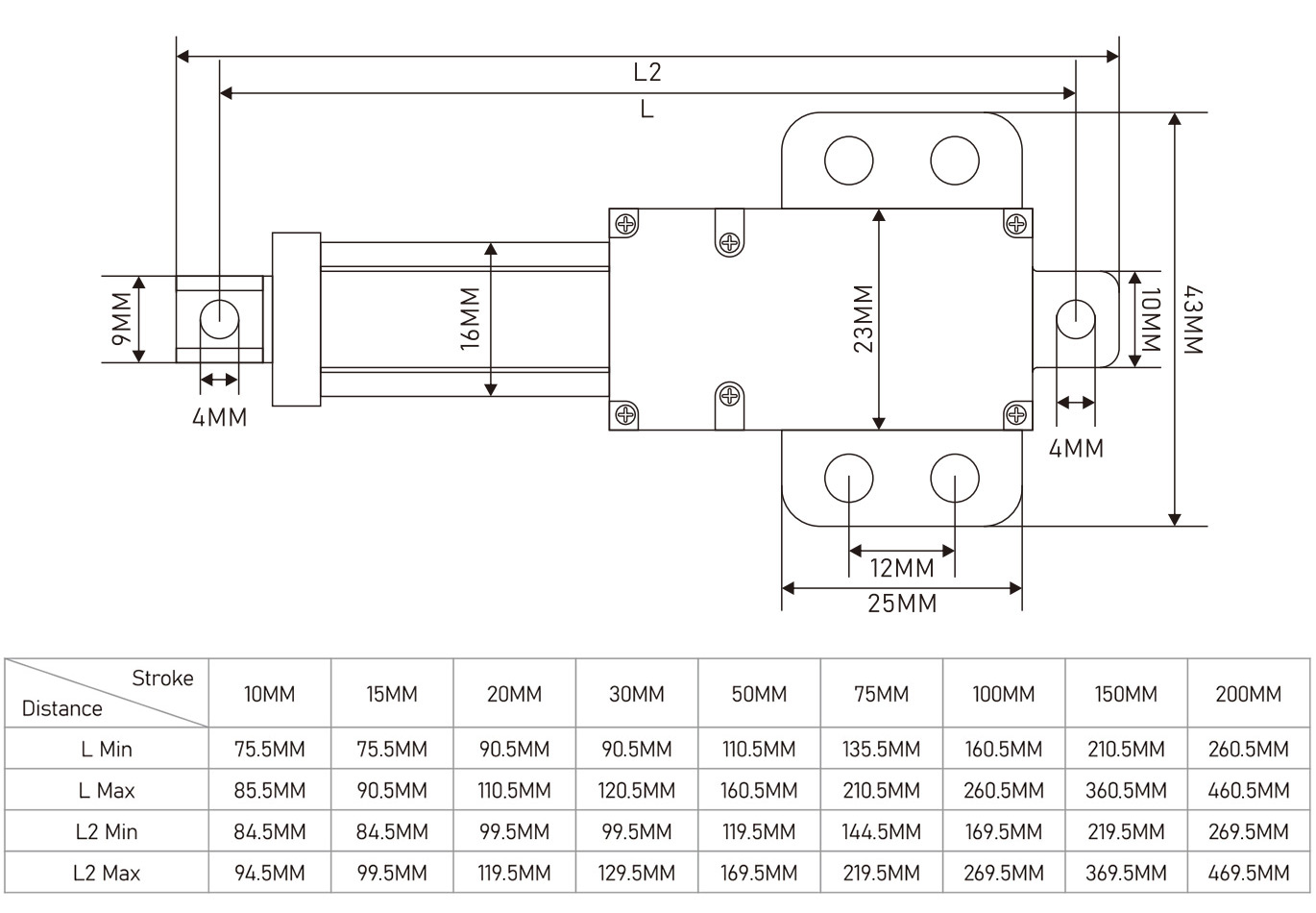

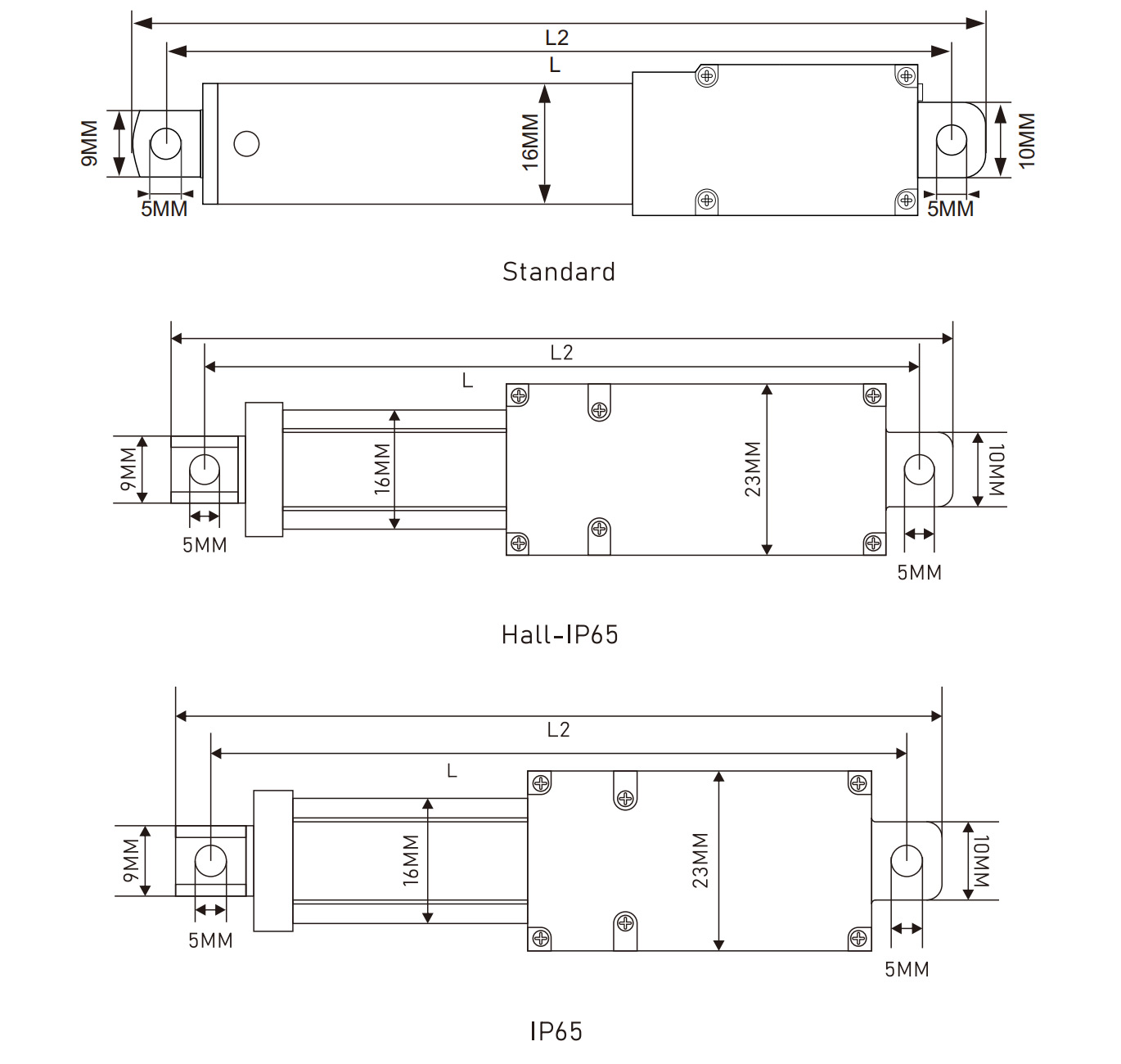

Outline Dimension Drawing

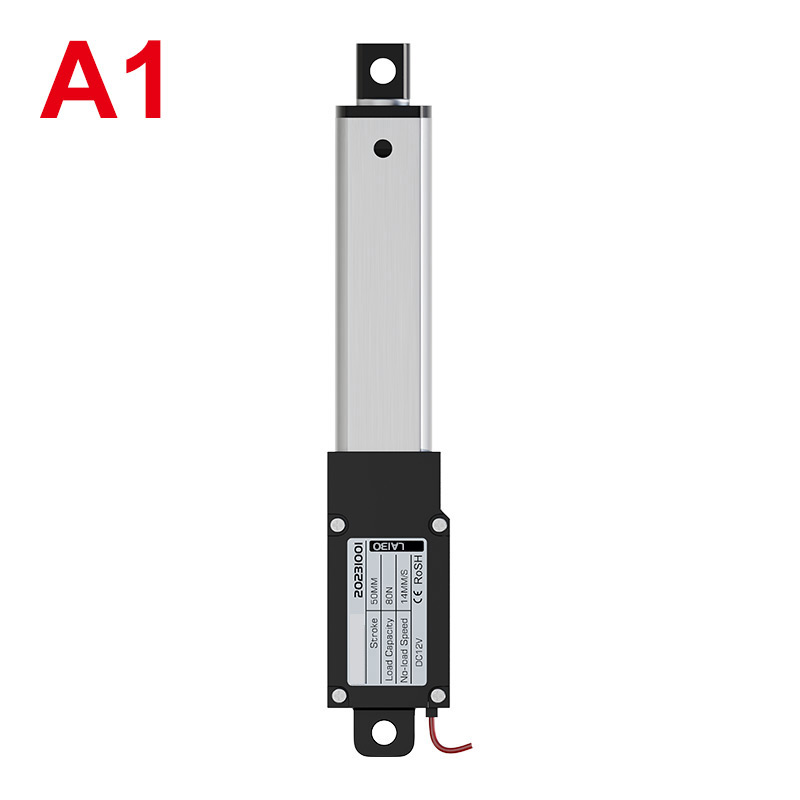

LA130-A1(Standard)

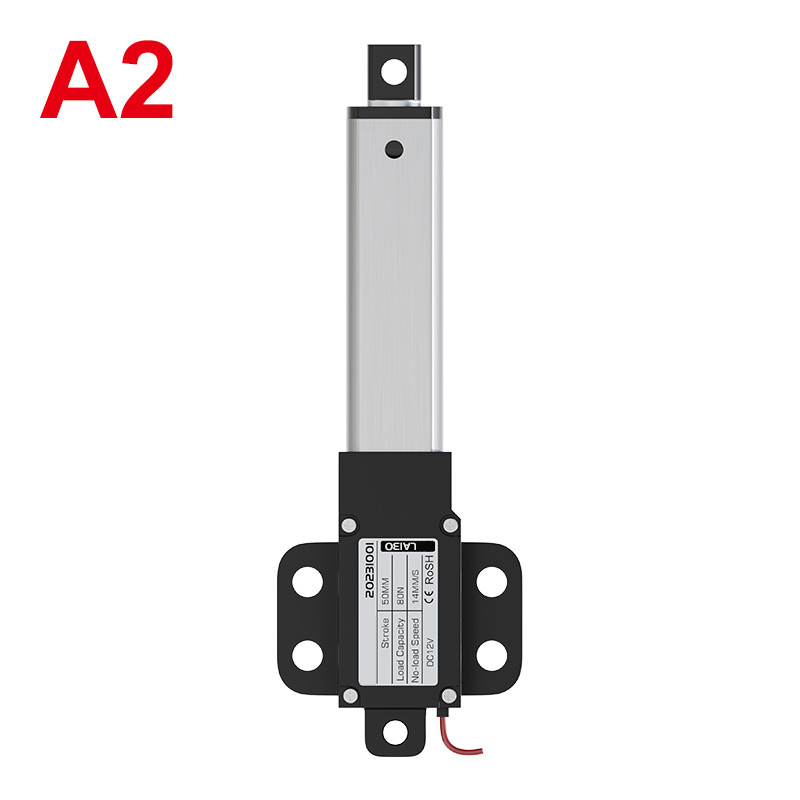

LA130-A2(Standard)

LA130-A1(Hall-IP65)

LA130-A2(Hall-IP65)

LA130-A1(IP65)

LA130-A2(IP65)

CUSTOMIZED

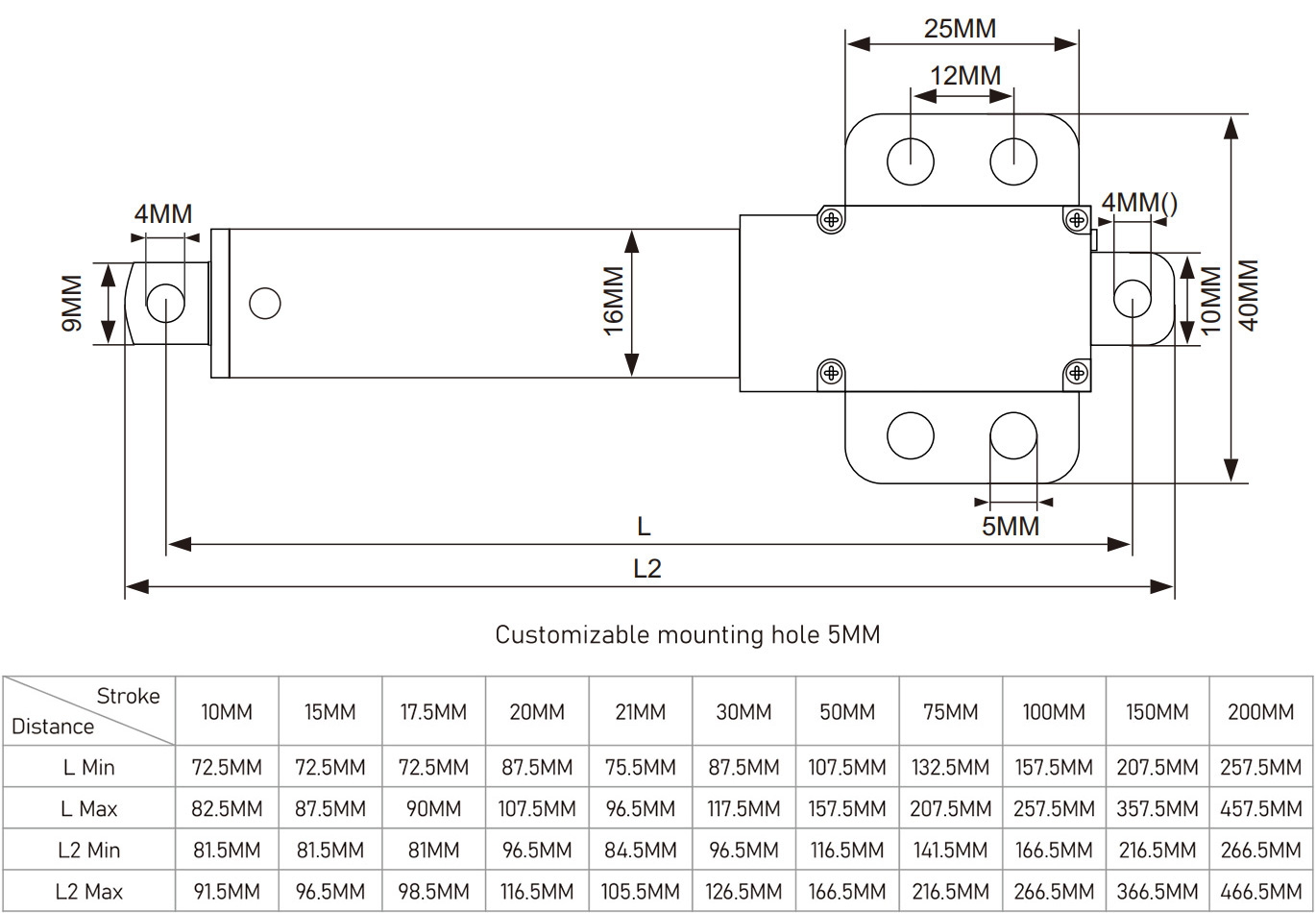

Customizable Mounting Hole 5MM

DW(No lifting ears)
