LA12000 Electric Linear Actuator

LA12000 Electric Linear Actuator

LA12000 industrial high protection grade electric linear actuator adopts stainless steel inner tube, the maximum load is 12000N, the maximum self-locking force is 1.5 tons, and the maximum speed is 60MM/S.

Input Volatge: DC12~19V / DC24~32V / DC36~43V / DC48~55V
Maximum load：12000N/1200kg
IP Grade: IP68
Operating Frequency: 10% max 2min. continuous use
Stroke Length: 50~2000mm

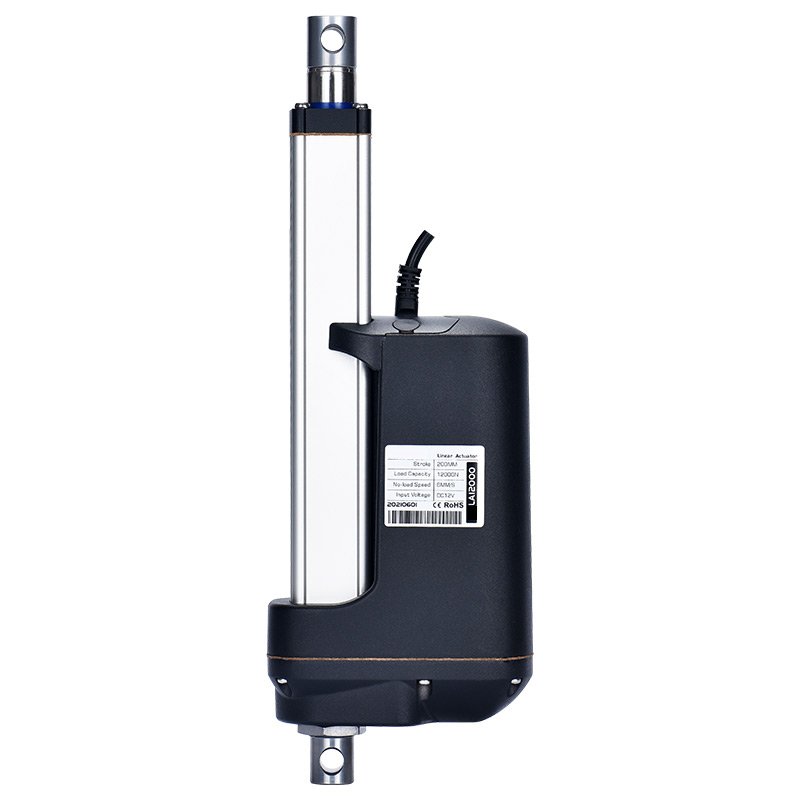

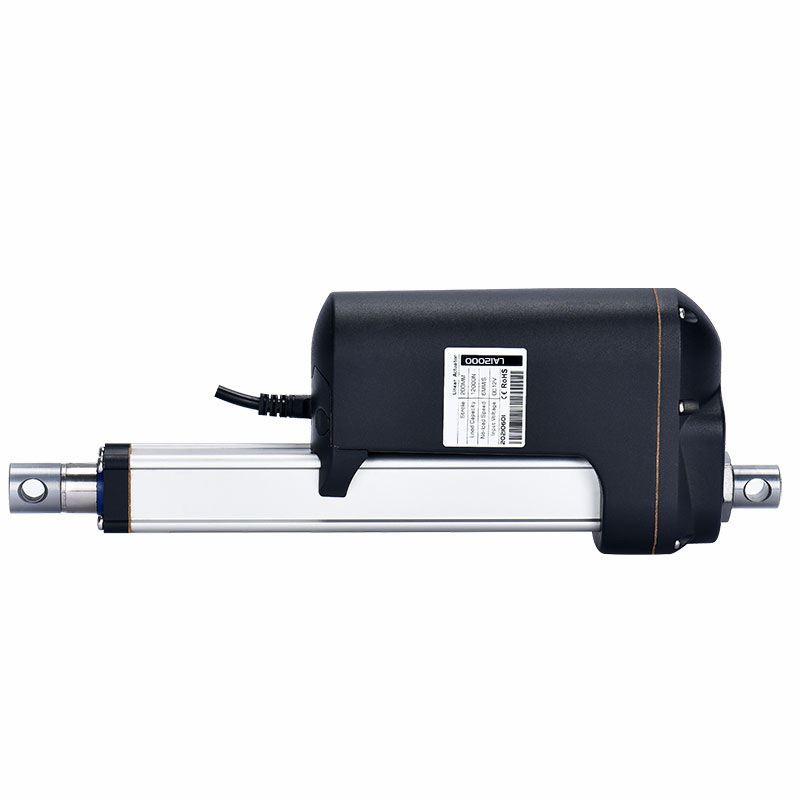

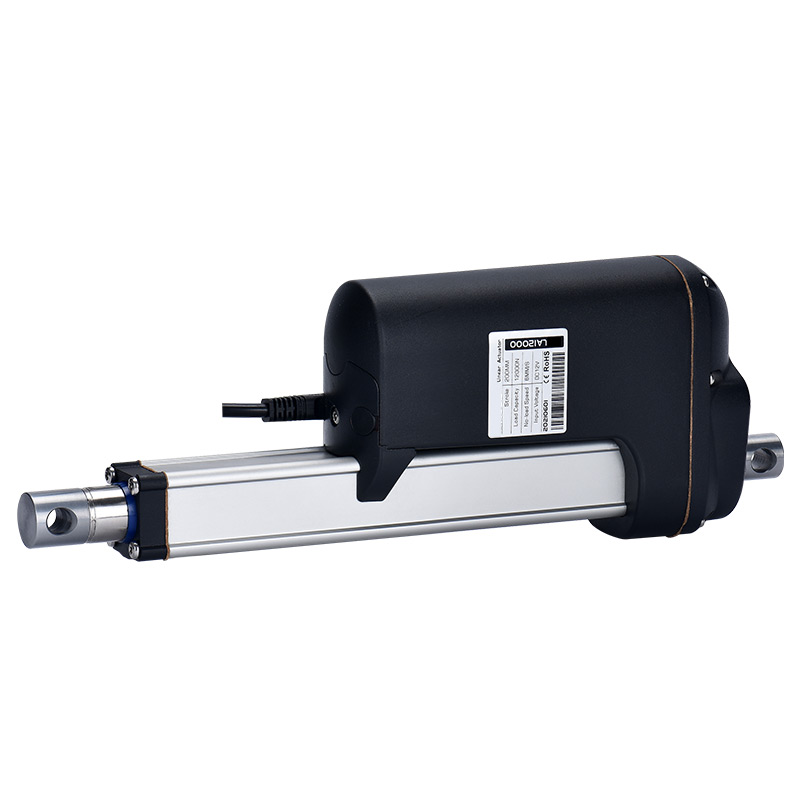

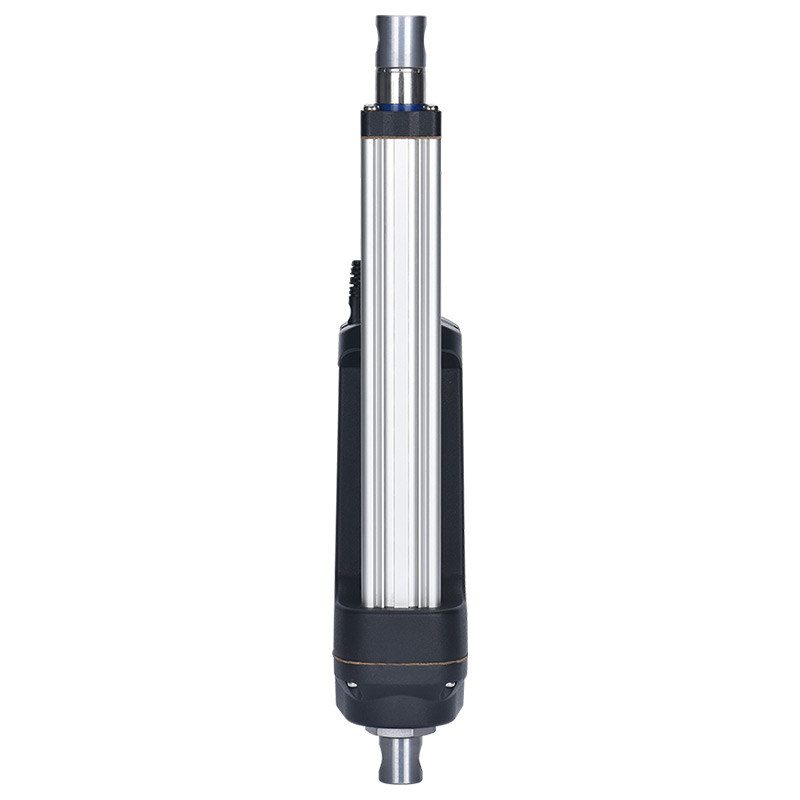

Product Images

Contact Us

If there is no emergency, please contact by email
EMAIL: sales@txele.net
TEL: +86-15669851253
Wechat: +86-15669851253

What’sApp: 15669851253

  • Product Specifications
  • Product Details
  • Size Weight
  • Related Data
  • Product Video

Product features

Material: aluminum alloy
Rated power: 240W
Motor: Permanent magnet DC Motor drive;
Input voltage：DC 12V/24V(Normal) ;DC 36/48V(Customize)
Maximum load：12000N
Maximum Speed：60mm/s
Maximum Stroke：2000mm
Gear: Metal
Standard protection grade: IP68
Note:If you need customized items, pls contact with us.

Introduction

LA12000 industrial high protection grade electric linear actuator adopts stainless steel inner tube, the maximum load is 12000N, the maximum self-locking force is 1.5 tons, and the maximum speed is 60MM/S. The actuator uses DC12V / DC24V / DC36V / DC48V motor to work. The product adopts powder metallurgy gears, which are wear-resistant, high strength and long-life; built-in PCB circuit board, overload protection, built-in limit switch, can automatically stop; IP68 grade waterproof, dustproof, oil-proof and anti-corrosion. Industrial linear actuators have dual clutch protection, which can effectively prevent damage to the push rod caused by higher product loads.

Technical Parameters

VoltageDC12~19V / DC24~32V / DC36~43V / DC48~55V
No-load Speed (MM/S)6.58.5131720304060
Load Pull Capacity(N)12000110001000070006500400030002000
Load Push Capacity(N)12000110001000070006500400030002000
Self-locking Capacity(N)15000120001200080008000500040003000
Stroke Length50MM-2000MM
Motor Power240W
Limit SwitchesBuilt-in
Material304 Stainless Steel + Aluminum
Noise65dB
Operating Temperature-40°C~+65°C
Operating Frequency10% max 2min. continuous use
ColorBlack
Protection ClassIP68
Lead Screw TypeTurbine Screw
Mechanical LifeMore than 30,000 times

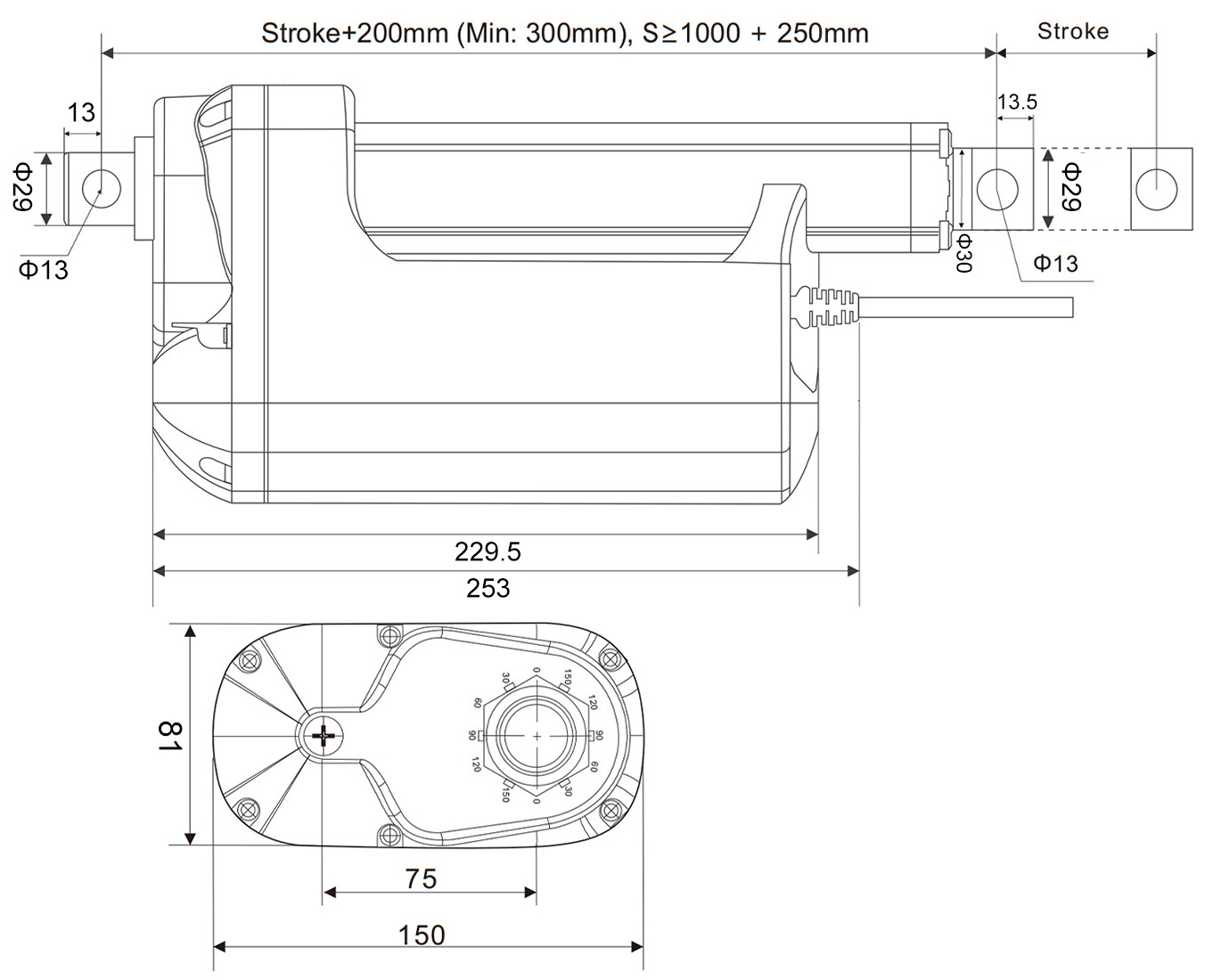

OUTLINE DIMENSION DRAWING
